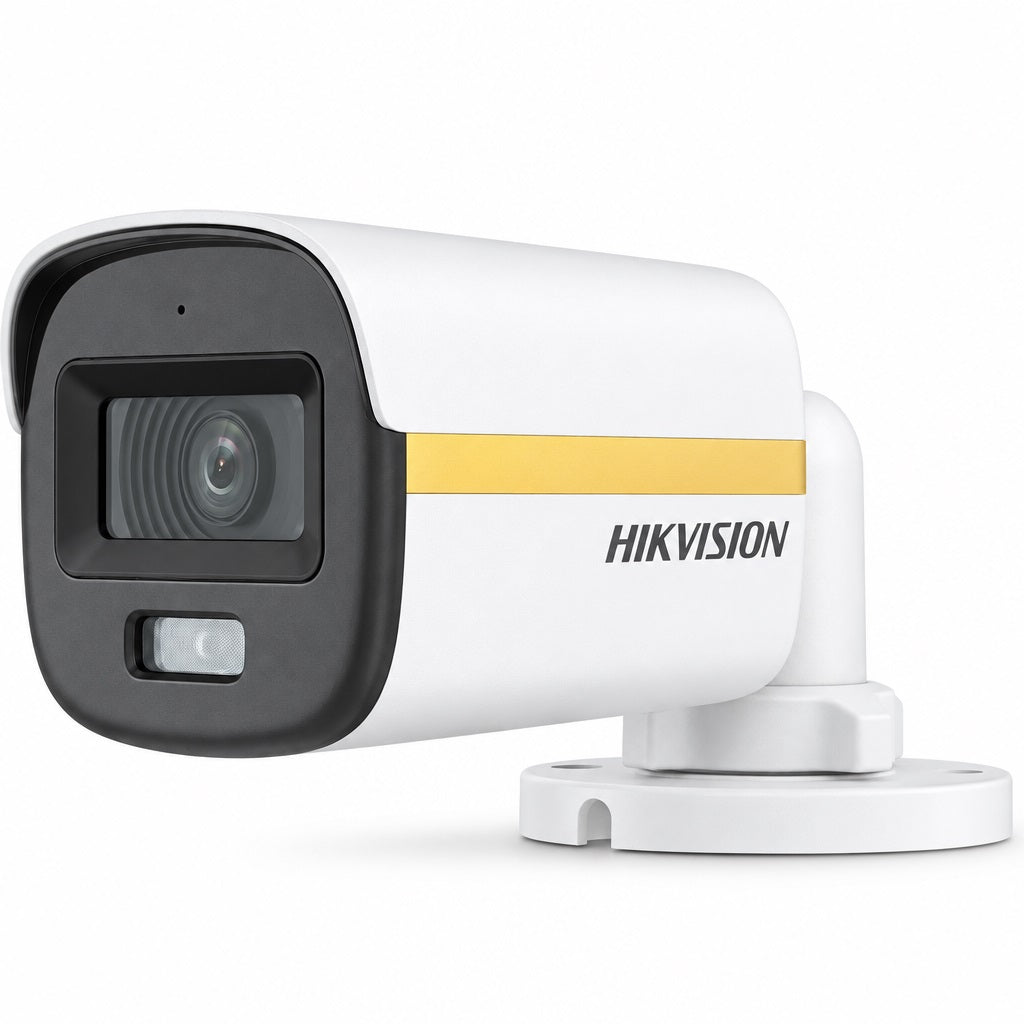

Hikvision 2MP ColorVu Mini Bullet 2.8mm

2 MP ColorVu Dual-light Fixed Mini Bullet Camera
High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
Smart-Hybrid light, optimize your security with flexible lighting options
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
Up to 20 m IR distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)

Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System
PAL/NTSC
Slow Shutter
Max. 16 times
Lens
Lens Type
2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°

3.6 mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°

Lens Mount
M12
Microphone
Pickup Distance
In a radius of up to 5 m
Amount
1
Illuminator
Supplement Light Type
White Light
Supplement Light Range
IR: Up to 20 m, White Light: Up to 20 m
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness,

Contrast,

Sharpness,

Anti-banding,

AGC

Frame Rate
TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Day/Night Mode
Auto/Color
Wide Dynamic Range (WDR)
≥130 dB
Image Enhancement
WDR,

BLC,

HLC,

Global,

HLS

Privacy Mask
4 programmable privacy masks
Noise Reduction
3D DNR
White Balance
Auto,

Manual

Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Alarm
Solid Light Alarm(White Light)
Event
Motion Detection
4 programmable motion areas
General
Power
12 VDC ± 25%, max. 5.4 W

*You are recommended to use one power adapter to supply the power for one camera.

Material
Plastic
Dimension
161.1 mm × 68.4 × 65.15(6.34" × 2.69" × 2.57")
Approx. 260 g (0.6 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP67
