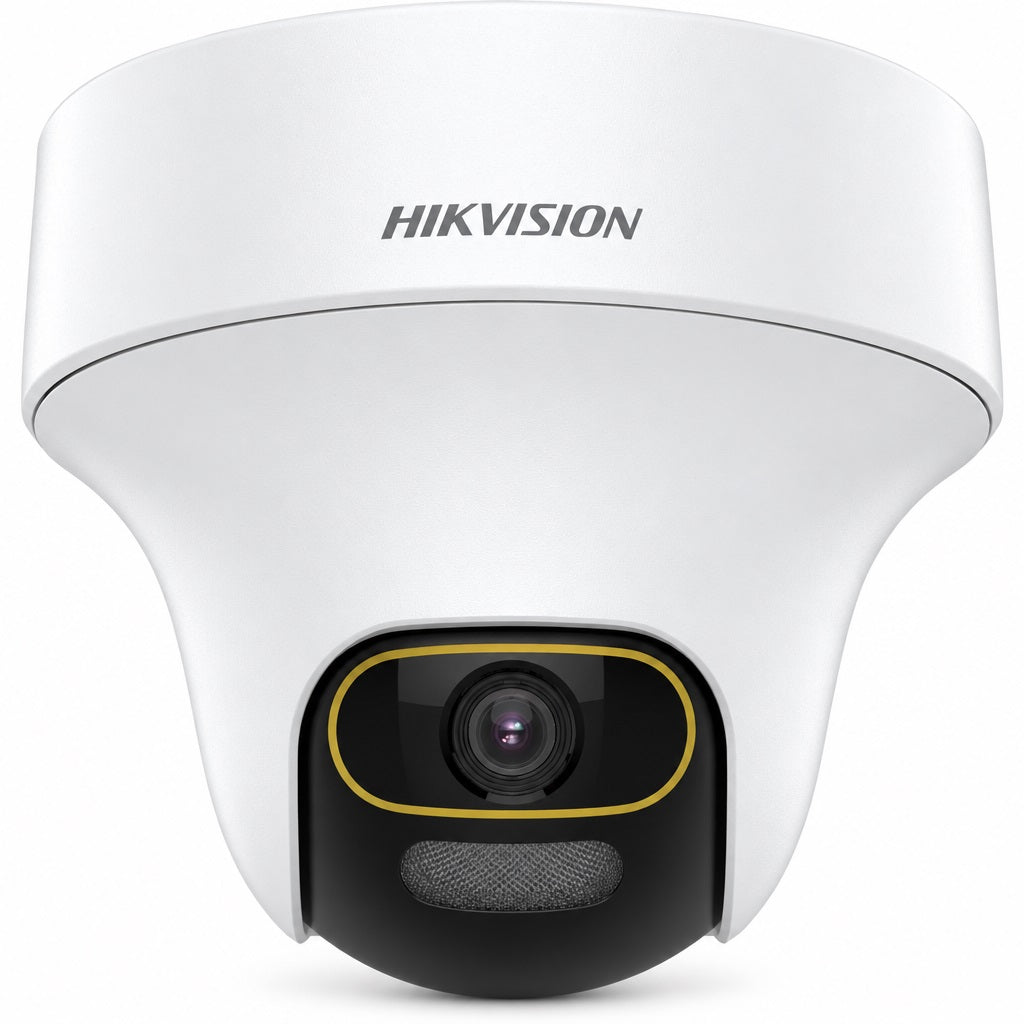

Hikvision 2MP ColorVu PT Camera With Mic

HIKVISION 2MP ColorVu Indoor Audio Fixed PT Camera
The HIKVISION 2MP ColorVu Indoor Audio Fixed PT Camera is an intelligent indoor surveillance camera designed to provide Full HD 1080p imaging, 24/7 colour surveillance, motorised pan and tilt coverage, built-in audio and up to 20m white-light illumination.
Equipped with a 2MP CMOS sensor and an ultra-wide F1.0 aperture, the camera delivers colour imaging in extremely low-light environments, with minimum illumination down to 0.0005 Lux. When additional illumination is required, the integrated smart white light provides a range of up to 20 metres, allowing the camera to maintain bright colour images at night.
The camera provides motorised pan movement from 0° to 350° and tilt movement from 0° to 75°, allowing the viewing direction to be adjusted without manually repositioning the camera body. A built-in microphone provides audio capture, while audio over coaxial cable allows compatible video and audio signals to be transmitted through the surveillance connection.
With 130 dB True WDR, 3D DNR, BLC, HLC, programmable motion detection and privacy masking, this camera provides a versatile solution for indoor residential and commercial CCTV applications.
Key Features
- 2MP Full HD imaging
- Maximum resolution of 1920 × 1080
- HIKVISION ColorVu technology
- 24/7 colour imaging
- Ultra-wide F1.0 aperture
- Minimum illumination of 0.0005 Lux
- Motorised pan and tilt
- Pan range: 0° to 350°
- Tilt range: 0° to 75°
- Fixed focal lens
- 2.8mm or 3.6mm lens options
- Up to 20m white-light illumination
- Smart supplementary light
- ≥130 dB True WDR
- 3D and 2D Digital Noise Reduction
- Built-in microphone
- Audio over coaxial cable
- Solid white-light alarm
- 4 programmable motion detection areas
- 4 programmable privacy masks
- 1080p @ 25/30fps
- HIKVISION-C communication
- Designed for indoor surveillance
2MP Full HD Imaging
The camera incorporates a 2MP CMOS image sensor capable of producing Full HD surveillance footage at a maximum resolution of 1920 × 1080.
Image Sensor: 2MP CMOS
Maximum Resolution: 1920 × 1080
The Full HD resolution provides detailed surveillance footage suitable for monitoring indoor residential, retail, office and commercial environments.
24/7 ColorVu Imaging
HIKVISION ColorVu technology is designed to provide full-colour imaging around the clock, including in extremely low-light environments.
The camera`s large F1.0 aperture allows more available light to reach the image sensor, helping maintain colour information in conditions where conventional cameras may switch to black-and-white imaging.
Minimum Illumination:
0.0005 Lux @ F1.0, AGC ON
0 Lux with white light
Day/Night:
24/7 Colour Imaging
F1.0 Super Aperture
The F1.0 aperture provides strong light-gathering capability for improved low-light surveillance.
This supports the camera`s ColorVu functionality by helping produce brighter, more detailed colour images in low-light environments.
Motorised Pan & Tilt
The camera features motorised PT functionality, allowing the surveillance direction to be adjusted within its supported movement range.
Pan: 0° to 350°
Tilt: 0° to 75°
This provides significantly greater coverage flexibility than a conventional fixed-position indoor camera.
Important: The main camera body or enclosure should not be manually rotated or repositioned. Camera angle adjustment should be performed through the supported PT control functionality.
Fixed Focal Lens
The camera is available with a choice of 2.8mm or 3.6mm fixed focal lenses.
2.8mm Lens
- Horizontal FOV: 106°
- Vertical FOV: 57°
- Diagonal FOV: 126°
The 2.8mm option provides a wider viewing angle, making it suitable for monitoring larger indoor areas.
3.6mm Lens
- Horizontal FOV: 83°
- Vertical FOV: 44°
- Diagonal FOV: 99°
The 3.6mm option provides a narrower field of view for more focused surveillance coverage.
Lens Mount: M12
Up to 20m White-Light Illumination
Instead of conventional infrared-only night illumination, this ColorVu camera uses white supplementary lighting to support bright colour images in dark environments.
Supplement Light: White Light
Maximum Range: Up to 20m
Smart Supplement Light: Yes
The white light can be configured for:
- Auto
- Off
130 dB True WDR
The camera provides ≥130 dB Wide Dynamic Range, helping maintain image detail when bright and dark areas appear within the same scene.
This can be particularly useful for indoor areas facing windows, doors and entrances where strong external light may otherwise cause subjects to appear too dark.
Digital Noise Reduction
The camera supports:
- 3D DNR
- 2D DNR
Digital Noise Reduction helps minimise visible image noise and contributes to cleaner, sharper surveillance footage, particularly in challenging lighting conditions.
Image Enhancement
Supported image enhancement functions include:
- BLC – Backlight Compensation
- HLC – Highlight Compensation
- Global
- HLS
These functions provide additional image adjustment options for different surveillance environments.
Image Settings
Adjustable image parameters include:
- Brightness
- Contrast
- Mirror
- Sharpness
- Anti-Banding
- Saturation
- AGC
Image Parameter Modes
- STD
- HIGH-SAT
- HIGHLIGHT
White Balance
The camera supports:
- Auto White Balance
- Manual White Balance
Frame Rate
TVI Video:
- 1080p @ 25fps
- 1080p @ 30fps
Signal System:
PAL / NTSC
Shutter Speed
PAL:
1/25 s to 1/50,000 s
NTSC:
1/30 s to 1/50,000 s
Slow Shutter:
Maximum 16 times
Built-In Microphone
The camera incorporates a built-in microphone, allowing audio to be captured together with compatible surveillance video.
Built-In Microphone: Yes
Audio Over Coaxial Cable
The camera supports audio over coaxial cable, allowing audio to be transmitted through the compatible HD analogue CCTV connection without requiring a separate dedicated audio cable.
This can simplify installations when used with compatible Hikvision recording equipment.
Video Output
Video Output:
1 × HD analogue output
The camera is designed for use with compatible HD analogue surveillance equipment.
Solid White-Light Alarm
The integrated white light can also provide a solid-light alarm function, adding a visible deterrent capability to the surveillance system.
Alarm Type:
Solid Light Alarm – White Light
Motion Detection
The camera supports 4 programmable motion detection areas.
These areas can be configured according to the surveillance requirements of the monitored location.
Privacy Mask
Up to 4 programmable privacy masks are supported.
Privacy masking allows selected areas of the image to be blocked from surveillance viewing where required.
Power
Power Supply:
12V DC ±25%
Maximum Power Consumption:
7.4W
For reliable operation, it is recommended to use one suitable power adapter for each camera.
Construction
Material: Plastic
The compact housing is designed primarily for indoor surveillance environments.
Dimensions
Dimensions:
`d8123.7 × 110.8mm
Weight
Weight:
Approx. 290g
Operating Conditions
Operating Temperature:
-10°C to 40°C
Operating Humidity:
90% or less, non-condensing
Communication
Communication:
HIKVISION-C
Language:
English
Technical Specifications
Specification Details
Brand HIKVISION
Product Type Indoor Audio Fixed PT Camera
Camera Technology HD Analogue
Image Sensor 2MP CMOS
Maximum Resolution 1920 × 1080
Imaging Technology ColorVu
Day/Night Imaging 24/7 Colour
Minimum Illumination 0.0005 Lux
Lens Type Fixed Focal
Lens Options 2.8mm / 3.6mm
Aperture F1.0
2.8mm Horizontal FOV 106°
3.6mm Horizontal FOV 83°
Pan Range 0°–350°
Tilt Range 0°–75°
Supplement Light White Light
White Light Range Up to 20m
WDR ≥130 dB
Noise Reduction 3D DNR / 2D DNR
Built-In Microphone Yes
Audio Over Coax Yes
Video Output 1 × HD Analogue
Motion Detection 4 Programmable Areas
Privacy Mask 4 Programmable Masks
Solid Light Alarm Yes
Power Supply 12V DC ±25%
Maximum Power 7.4W
Material Plastic
Communication HIKVISION-C
Dimensions `d8123.7 × 110.8mm
Weight Approx. 290g
Operating Temperature -10°C to 40°C

Ideal Applications
The HIKVISION 2MP ColorVu Indoor Audio Fixed PT Camera is suitable for:
- Homes
- Living rooms
- Offices
- Retail stores
- Reception areas
- Small businesses
- Indoor entrances
- Restaurants
- Takeaways
- Stock rooms
- Indoor commercial premises
- General indoor CCTV surveillance
Why Choose This HIKVISION Camera?
The HIKVISION 2MP ColorVu Indoor Audio Fixed PT Camera combines the simplicity of an HD analogue CCTV system with enhanced surveillance capabilities including 24/7 colour imaging, motorised pan and tilt, built-in audio and smart white-light illumination.
Its F1.0 aperture and 0.0005 Lux low-light sensitivity provide excellent colour performance in dark environments, while the built-in white light extends illumination up to 20 metres.
With 130 dB True WDR, 3D DNR, audio over coax, motion detection, privacy masking and motorised 350° pan / 75° tilt coverage, it provides a versatile solution for indoor surveillance applications requiring wider viewing coverage and full-colour monitoring.
