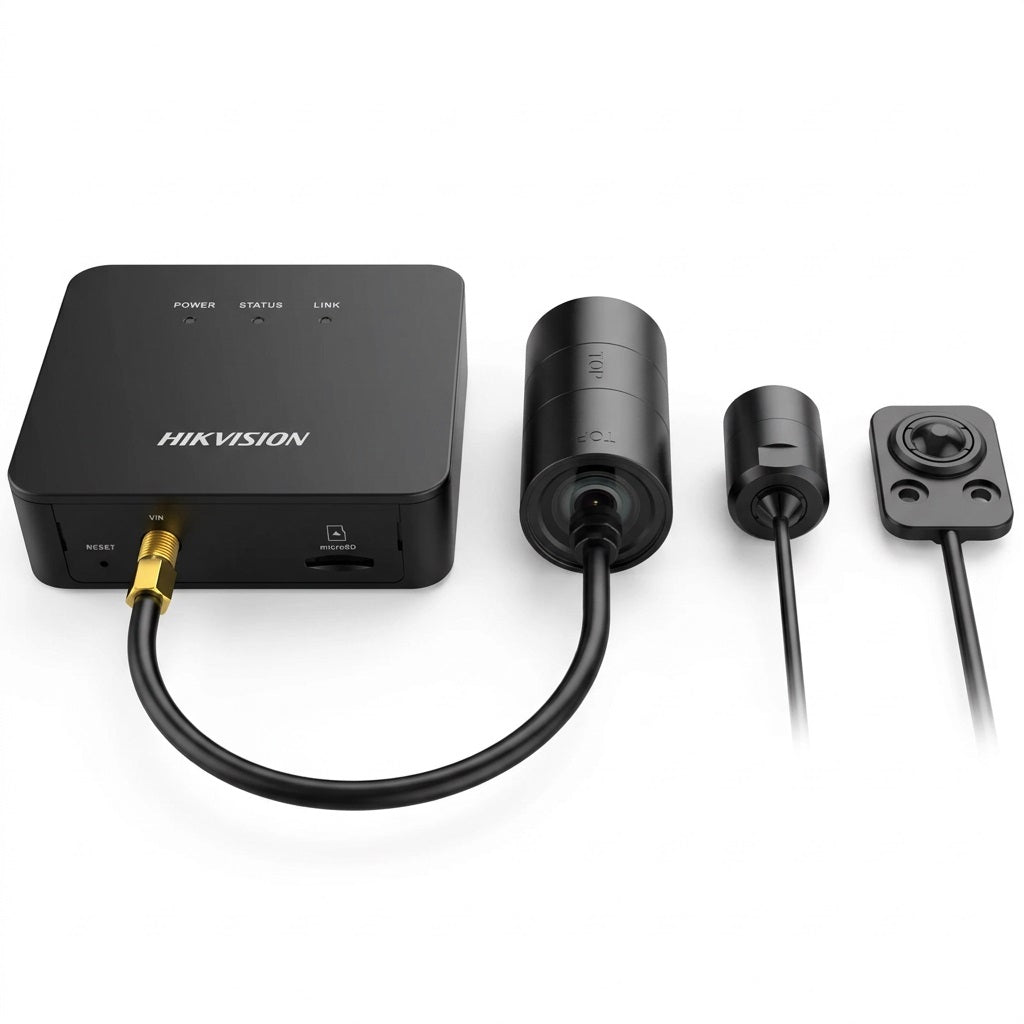

Hikvision 2MP Covert IP Camera 2.8mm 2m

The Hikvision 2MP Separated Network Camera with a 2.8mm lens is designed for discreet and flexible video surveillance installations where a compact camera head and separate main body are required. It delivers Full HD 1920 × 1080 resolution, clear image quality and reliable network connectivity for security monitoring.

Equipped with 120 dB True WDR, the camera helps capture clear images in challenging lighting conditions, including scenes with strong backlighting. Its H.265+ compression technology helps reduce bandwidth and storage requirements, while 3D Digital Noise Reduction (3D DNR) minimises image noise for cleaner footage.

The 2.8mm lens provides a wide viewing angle, making it suitable for monitoring indoor areas and other locations where broad scene coverage is needed. The camera also supports audio and alarm connections, MicroSD card storage of up to 256GB, Power over Ethernet (PoE), and a range of intelligent event detection functions.

Key Features

2MP Full HD Resolution: Captures detailed video at 1920 × 1080.

2.8mm Fixed Lens: Provides a wide viewing angle for general surveillance.

120 dB True WDR: Improves image clarity in scenes with strong backlighting.

H.265+ Compression: Helps save network bandwidth and storage space.

3D DNR Technology: Reduces image noise for clearer footage.

PoE Support: Allows power and network connectivity through a compatible Ethernet connection.

Audio and Alarm Interfaces: Supports external audio equipment and alarm connections.

MicroSD Storage: Supports MicroSD, MicroSDHC and MicroSDXC cards up to 256GB.

Intelligent Event Detection: Includes intrusion detection, line crossing, region entrance and exit detection, and object removal detection.

Network Access: Compatible with Hikvision iVMS-4200 and Hik-Connect.

Flexible Installation: Separate camera head and main body design for suitable surveillance applications.

Technical Specifications
Camera

Specification

Details

Brand

Hikvision

Product Type

Separated Network Camera

Resolution

2MP

Image Sensor

1/2.8" Progressive Scan CMOS

Maximum Resolution

1920 × 1080

Minimum Illumination

0.002 Lux @ F1.2, AGC ON

Shutter Speed

1/3 s to 1/100,000 s

Lens Type

Fixed

Lens Focal Length

2.8mm

Lens Aperture

F2.0 or F2.5, depending on model variant

Lens Mount

Mini or M12, depending on model variant

Day/Night Mode

Day, Night, Auto, Schedule

Wide Dynamic Range

120 dB True WDR

Image Enhancement

BLC, HLC, defog, 3D DNR

Privacy Mask

Yes

Lens and Viewing Angle

The manufacturer lists different viewing angles for the 2.8mm lens across its L10/L20 and L30 variants. Confirm the exact variant before publishing the final model-specific specifications.

Specification

L10/L20 Variant

L30 Variant

Focal Length

2.8mm

2.8mm

Horizontal Field of View

93.9°

107.8°

Vertical Field of View

51.7°

57.9°

Diagonal Field of View

109.3°

126.7°

Aperture

F2.5

F2.0

Lens Mount

Mini

M12

Video and Compression

Specification

Details

Main Stream

25fps at 50Hz; 30fps at 60Hz

Main Stream Resolutions

1920 × 1080, 1280 × 720

Sub-Stream

25fps at 50Hz; 30fps at 60Hz

Sub-Stream Resolutions

640 × 480, 640 × 360, 320 × 240

Third Stream

Up to 1fps

Video Compression

H.265, H.264; sub-stream also supports MJPEG

H.264 Profiles

Baseline, Main, High

H.265 Profile

Main

Scalable Video Coding

H.264 and H.265

Region of Interest

One fixed region for the main stream

Network and Connectivity

Specification

Details

Ethernet

1 × RJ45 10/100 Mbps self-adaptive port

PoE

IEEE 802.3af, Type 1, Class 3

Network Protocols

TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, RTP, NTP, SMTP, IPv6 and others

Simultaneous Live View

Up to 15 channels

Users

Up to 32

Network Storage

NAS via NFS and SMB/CIFS

Client Software

iVMS-4200, Hik-Connect

API Support

ONVIF, ISAPI, SDK, ISUP 5.0

Audio, Alarm and Storage

Specification

Details

Audio Type

Mono

Audio Interfaces

1 × line-in, 1 × line-out

Audio Compression

G.711, G.722.1, G.726, MP2L2, PCM, AAC

Audio Sampling Rate

8kHz, 16kHz, 32kHz

Noise Filtering

Yes

Alarm Interface

1 × input, 1 × output

Alarm Output Rating

Maximum 12V DC, 30mA

RS-485

1 × half-duplex RS-485

Memory Card Slot

MicroSD, MicroSDHC, MicroSDXC

Maximum Memory Card Capacity

256GB

Reset Button

Yes

Intelligent Detection

Motion detection

Video tampering alarm

Network disconnection and other exception alerts

Video quality diagnosis

Intrusion detection

Line crossing detection

Region entrance and region exiting detection

Unattended baggage detection

Object removal detection

Audio exception detection

Defocus detection

Scene change detection

Supported responses include FTP/NAS/memory card uploads, email notifications, surveillance centre alerts, recording, image capture and audible warnings.

Power Requirements

Specification

Details

DC Power Input

12V DC ±20%

DC Current

0.25A

Maximum DC Power Consumption

3W

PoE Standard

IEEE 802.3af

Maximum PoE Power Consumption

3.65W

Physical Specifications

Component

Dimensions

Approximate Weight

Main Body

77.5 × 69 × 26mm

90g

L10 Camera Head

`d826 × 40mm

90g

L20 Camera Head

37 × 26 × 25mm

90g

L30 Camera Head

`d826 × 50mm

90g

Dimensions and camera-head configurations vary by model variant. The manufacturer`s packaging information also lists optional 2m and 8m lens cables.

Ideal Applications

Indoor security surveillance

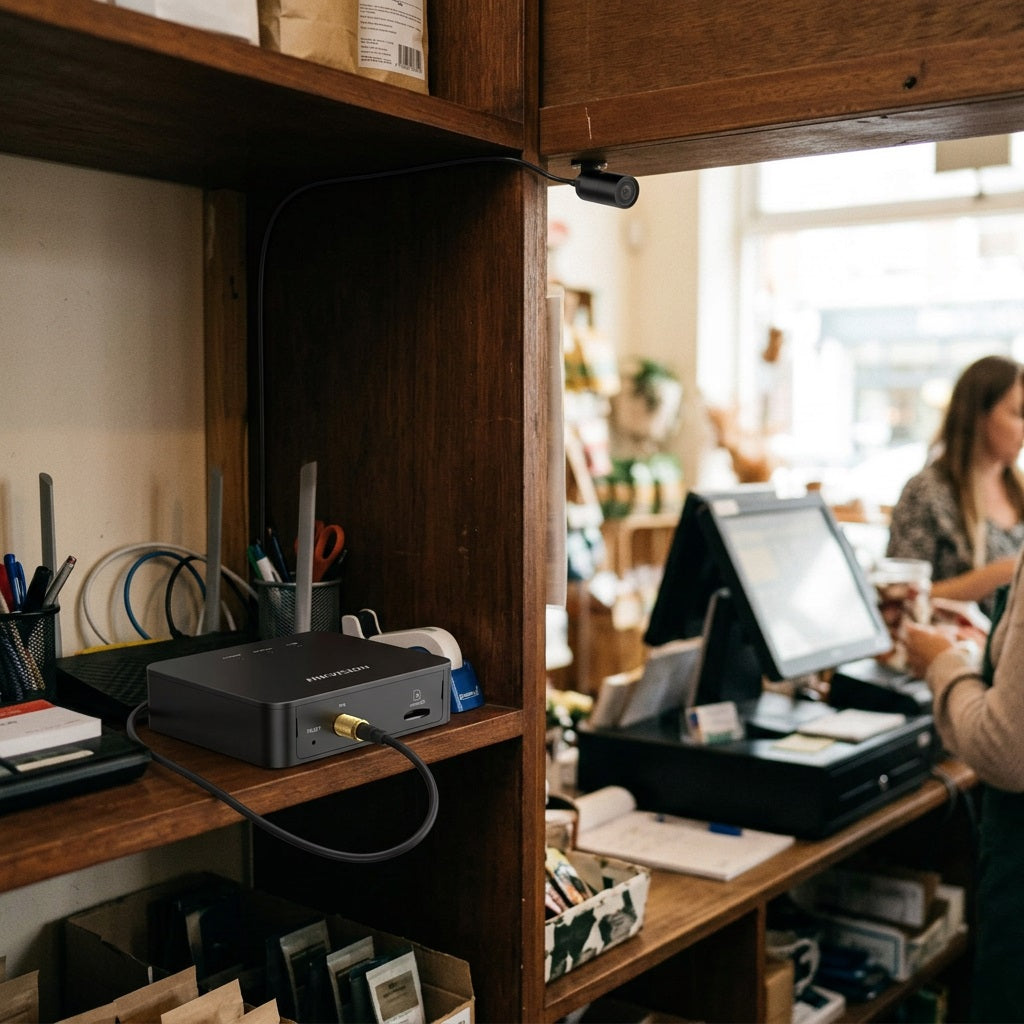

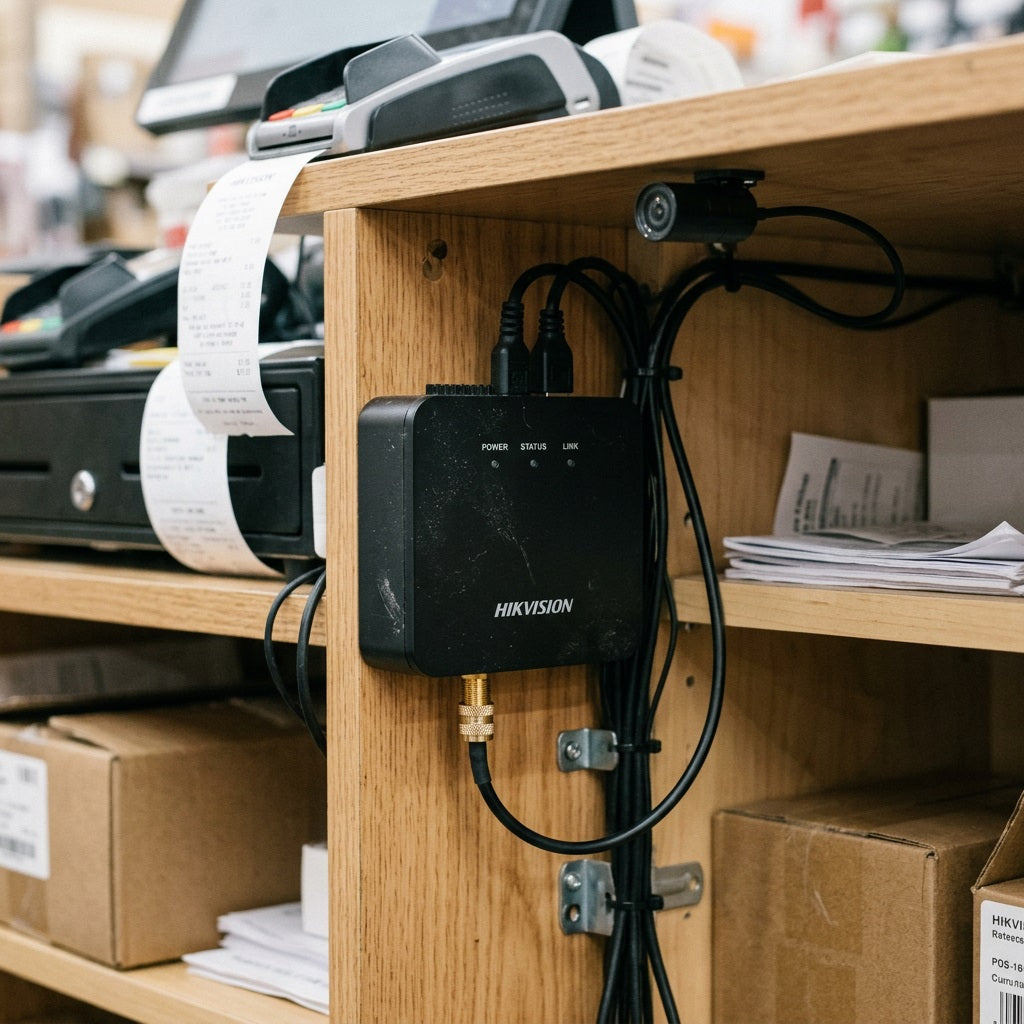

Retail shops and small commercial premises

Offices and reception areas

Monitoring entrances and corridors

Installations requiring a separate camera head and main body

Network surveillance systems requiring audio, alarm and memory card support

What`s in the Box

- Hikvision separated network camera system
