Hikvision DS-2CD1…
19% OFF

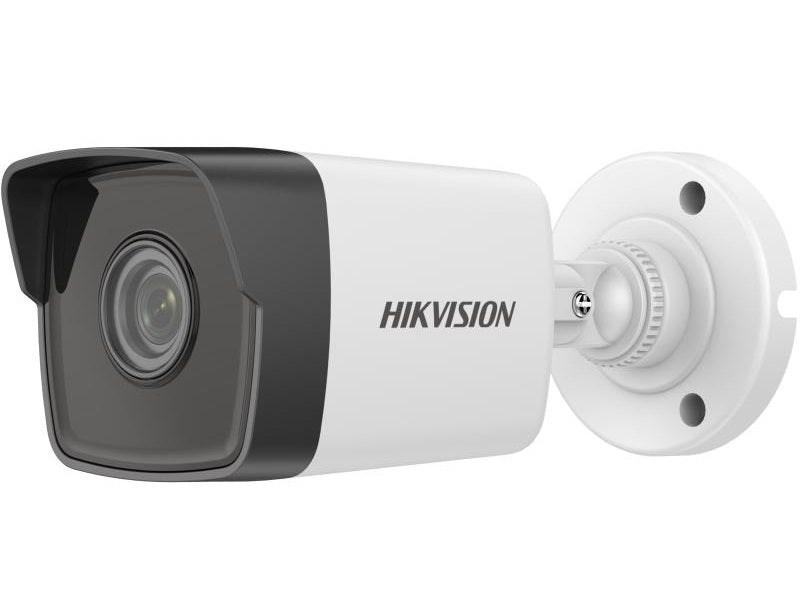

Hikvision DS-2CD1023G0E-I bullet camera, three-quarter view with mount on the right

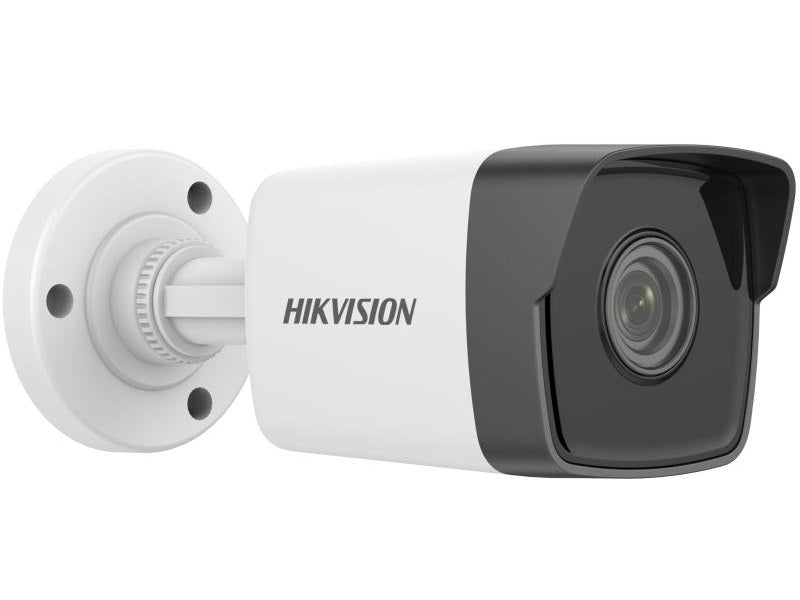

Hikvision 2MP IP bullet camera three-quarter view with mount base on the left

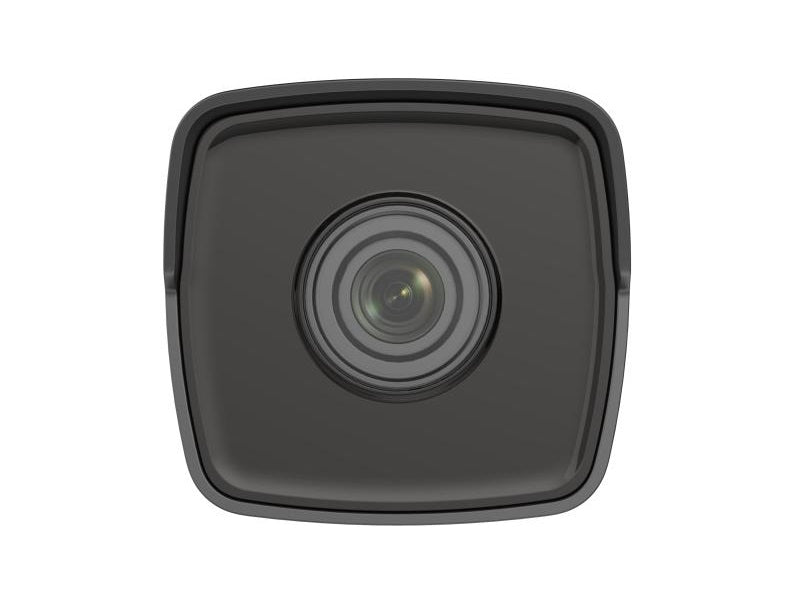

Hikvision bullet camera straight-on close-up of the 2.8mm lens and sun shield

Hikvision DS-2CD1023G0E-I 2MP IP Bullet Camera - 2.8mm Lens, 30m IR, PoE, H.265+

DS-2CD1023G0E-I2.8MM

HIKVISION
R 1,097R 1,349
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 182.83 over 2–6 instalments
Price: R 1,097

Description

Clear imaging against strong back light due to DWDR technology. Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR.

Key features

  • EXIR 2.0: advanced infrared technology with long IR range
  • Image Sensor
  • Max. Resolution
  • Min. Illumination
  • Shutter Time
  • Day & Night
  • IR cut filter
  • Angle Adjustment
  • Pan: 0`b0 to 360`b0, tilt: 0`b0 to 180`b0, rotate: 0`b0 to 360`b0
  • Focal Length & FOV
  • 2.8 mm, horizontal FOV 112.1`b0, vertical FOV 60.0`b0, diagonal FOV 132.2`b0
  • 4 mm, horizontal FOV 90.2`b0, vertical FOV 48.6`b0, diagonal FOV 107.6`b0
  • Iris Type
  • Fixed
  • Illuminator
  • Supplement Light Type
  • IR
  • Supplement Light Range
  • Smart Supplement Light
  • Yes
  • IR Wavelength
  • Main Stream
  • 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 720)
  • 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 720)
  • Sub-Stream
  • 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
  • 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
  • Baseline Profile/Main Profile/High Profile
  • Main Profile
  • Region of Interest (ROI)
  • Protocols
  • Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, rtcp, NTP, upnp, smtp, igmp, qos, ipv6, bonjour, ipv4, UDP, ssl/tls
  • Simultaneous Live View
  • API
  • Open Network Video Interface, ISAPI
  • User/Host
  • Up to 32 users. 3 levels: administrator, operator and user
  • Client
  • Web Browser
  • Image
  • Image Settings
  • Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night Switch
  • Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)
  • Digital WDR
  • SNR
  • Image Enhancement
  • 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event
  • Motion detection, video tampering alarm, exception
  • Linkage
  • Upload to FTP, notify surveillance center, send email
  • 12 VDC `b1 25%, 0.4 A, max. 5 W, `d85.5 mm coaxial power plug
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • 177.6 mm `d7 66.2 mm `d7 67.8 mm (7.0" `d7 2.6" `d7 2.7")
  • 216 mm `d7 121 mm `d7 118 mm (8.5" `d7 4.8" `d7 4.6")
  • Approx. 270 g (0.6 lb.)
  • Approx. 490 g (1.1 lb.)
  • 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions
  • Language
  • English, Ukrainian
  • Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMC
  • FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety
  • UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection

Specifications

  • Ds-2cd1023g0e-i2.8mm
  • 2 MP Fixed Bullet Network Camera
  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • 1/2.7" Progressive Scan CMOS
  • 1920 `d7 1080
  • 1/3 s to 1/100, 000 s
  • Lens
  • Lens Mount
  • M12
  • Aperture
  • F2.0
  • Up to 30 m
  • 850 nm
  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • 32 Kbps to 8 Mbps
  • H.264 Type
  • H.265 Type
  • 1 fixed region for main stream
  • Up to 6 channels
  • iVMS-4200, Hik-Connect
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+
  • ≥ 52 dB
  • BLC, 3D DNR
  • IP67 (IEC 60529-2013)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision IP Cameras / Security & Surveillance / Specials
Brand Hikvision
Model DS-2CD1023G0E-I
Type 2MP Fixed Bullet Network Camera
Resolution 1920 x 1080
Image Sensor 1/2.7" Progressive Scan CMOS
Lens 2.8 mm, F2.0, M12
Field Of View 112.1° horizontal
IR Range Up to 30 m
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Frame Rate 30 fps @ 1920x1080
Network RJ45 10/100M
Power 12V DC / PoE 802.3af
Power Consumption Max 6.5 W
Protection IP67
Operating Temperature -30°C to 60°C
Dimensions 177.6 x 66.2 x 67.8 mm
Weight 270 g
Barcode 6941264098126
