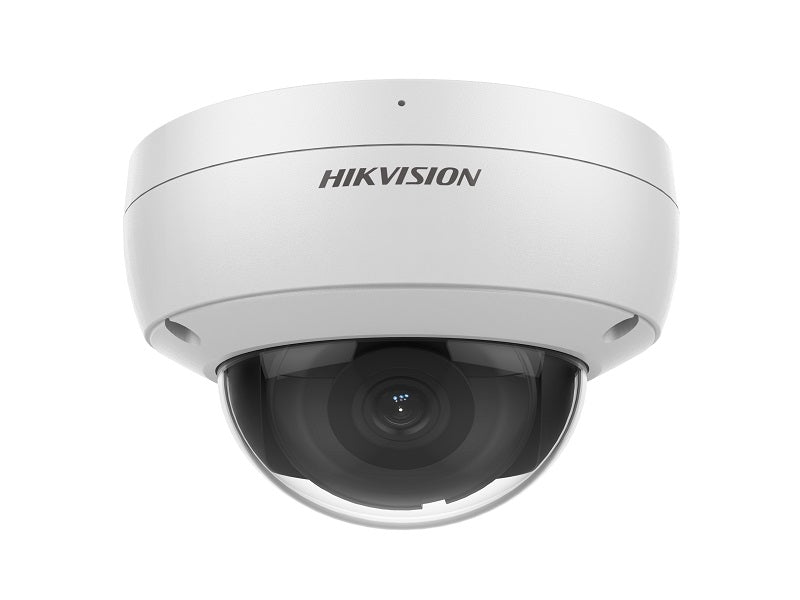

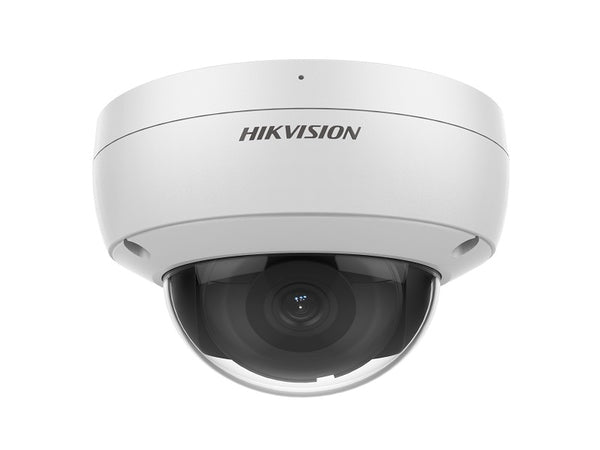

HIKVISION 2Mp Ip Dome 2.8Mm Acusense

Clear imaging against strong back light due to 120 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning.

Key features

• Ultra Series
• Excellent low-light performance with powered-by-DarkFighter technology
• Advanced streaming technology that enables smooth live view and data self-correcting in poor network
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 355`b0, tilt: 0`b0 to 75`b0, rotate: 0`b0 to 355`b0
• Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 107`b0, vertical FOV 57`b0, diagonal FOV 129`b0
• 4 mm, horizontal FOV 86`b0, vertical FOV 47`b0, diagonal FOV 102`b0
• 6 mm, horizontal FOV 55`b0, vertical FOV 29`b0, diagonal FOV 65`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 44 m, O: 17 m, R: 8 m, I: 4 m
• 4 mm: D: 53 m, O: 21 m, R: 10 m, I: 5 m
• 6 mm: D: 86 m, O: 34 m, R: 17 m, I: 8 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: up to 50 fps (1920 `d7 1080, 1280 `d7 720)
• 60 Hz: up to 60 fps (1920 `d7 1080, 1280 `d7 720)
• High frame rate is supported under certain settings.
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third stream is supported under certain settings.
• Fourth Stream
• 50 Hz: 10 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Fourth stream is supported under certain settings.
• Third stream and fourth stream are supported under certain settings.
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 5 fixed regions for main stream and sub-stream
• Target Cropping
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
• Simultaneous Live View
• API
• Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone
• 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 K'd9, interface type: non-equilibrium;
• 1 output (line out), max.output amplitude: 2.5 vpp, output impedance: 100 `d9, interface type: non-equilibrium, mono sound
• Alarm
• 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset Key
• 12 VDC, max. 100 mA (supported by all power supply types)
• Event
• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event
• Unattended baggage detection, object removal detection, scene change detection, audio exception detection
• Linkage
• Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
• Deep Learning Function
• Face Capture
• Perimeter Protection
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• 12 VDC `b1 25%, 0.6 A, max. 7 W, `d85.5 mm coaxial power plug
• PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W
• `d8121.4 mm `d7 92.2 mm (`d84.8" `d7 3.6")
• 150 mm `d7 150 mm `d7 141 mm (5.9" `d7 5.9" `d7 5.6")
• Approx. 580 g (1.2 lb.)
• Approx. 820 g (1.6 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)

Specifications

• 2 MP AcuSense Fixed Dome Network Camera
• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• 1/2.8" Progressive Scan CMOS
• 1920 `d7 1080
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.4
• Up to 40 m
• 850 nm
• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Fourth stream: H.265/H.264/MJPEG
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• 120 dB
• ≥ 52 dB
• BLC, HLC, 3D DNR
• U: Yes
