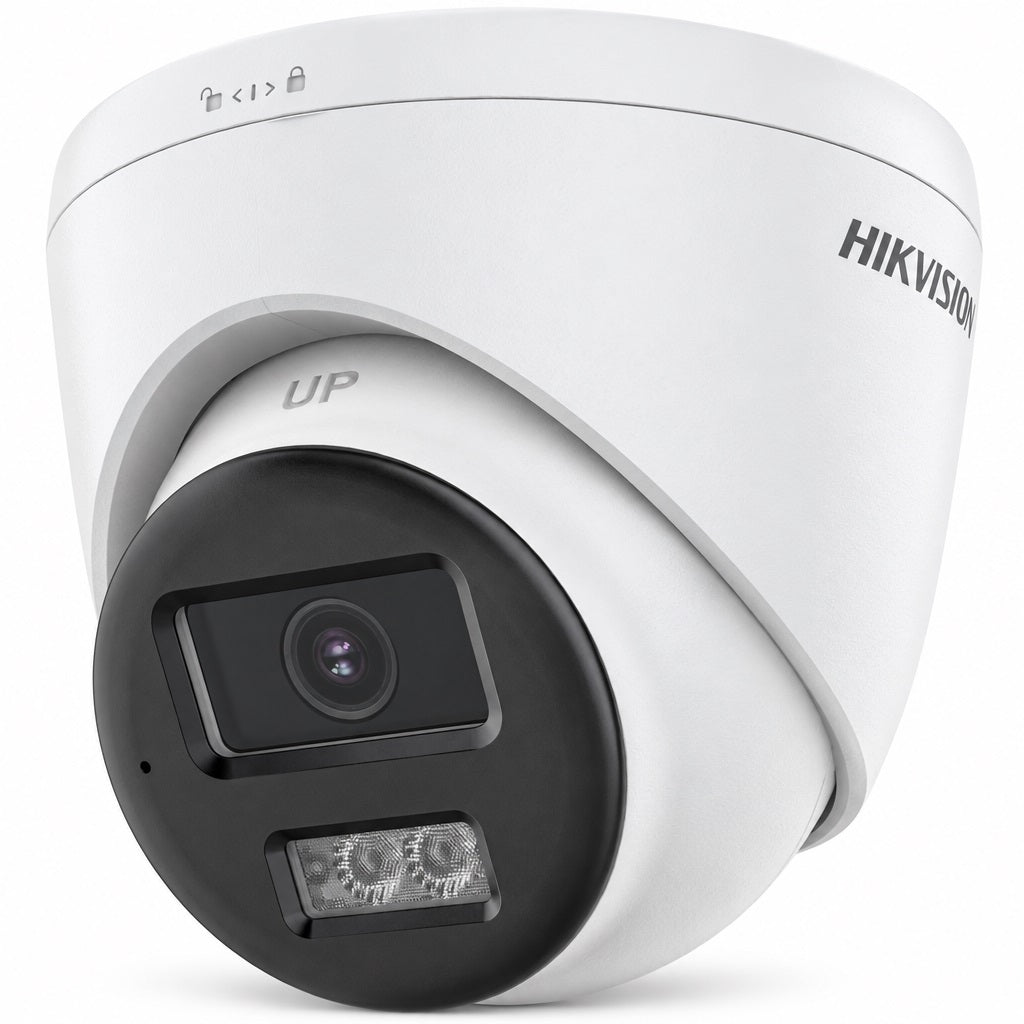

HIKVISION 2MP TwoWay Audio Turret Camera

HIKVISION 2MP Two-Way Audio Smart Hybrid Light Fixed Turret Camera
The HIKVISION 2MP Two-Way Audio Fixed Turret Camera is a versatile HD analogue surveillance camera designed to combine Full HD 1080p imaging, Smart Hybrid Light technology and real-time two-way audio in a compact, weather-resistant turret housing.
Featuring a 2MP CMOS image sensor, the camera delivers a maximum resolution of 1920 × 1080. It is available with either a 2.8mm or 3.6mm fixed focal lens, allowing users to select a wider or more focused field of view depending on the surveillance environment.
HIKVISION Smart Hybrid Light technology combines infrared and white supplementary lighting, providing flexible night-time surveillance with a range of up to 40 metres for both IR and white light.
A built-in microphone and 2W speaker enable real-time two-way communication, while advanced audio functions including Echo Cancellation, AI Noise Reduction and Automatic Gain Control help improve voice clarity. Audio over coaxial cable further simplifies compatible HD analogue installations.
With IP67 water and dust resistance and an operating range from -40°C to 60°C, the camera is suitable for demanding indoor and outdoor surveillance environments.
Key Features
- 2MP Full HD surveillance camera
- Maximum resolution of 1920 × 1080
- HIKVISION Smart Hybrid Light
- Up to 40m IR illumination
- Up to 40m white-light illumination
- 2.8mm or 3.6mm fixed lens
- Built-in microphone
- Built-in 2W speaker
- Two-way audio
- Audio over coaxial cable
- Microphone pickup range up to 5m
- Speaker range up to 5m
- Echo Cancellation
- AI Noise Reduction
- Automatic Gain Control
- Digital WDR
- 3D Digital Noise Reduction
- BLC and HLC image enhancement
- 1080p @ 25/30fps
- IP67 water and dust resistance
- Metal main body
- Suitable for indoor and outdoor surveillance
- 12V DC power
2MP Full HD Imaging
The camera features a 2MP CMOS image sensor capable of producing Full HD surveillance footage at a maximum resolution of 1920 × 1080.
Image Sensor: 2MP CMOS
Maximum Resolution: 1920 × 1080
The 1080p resolution provides clear imaging for general residential, retail and commercial security applications.
Low-Light Performance
Minimum Illumination:
0.01 Lux @ F1.6, AGC ON
0 Lux with IR illumination
The integrated supplementary lighting allows the camera to continue monitoring in environments where there is little or no available ambient light.
Smart Hybrid Light
The camera features Smart Hybrid Light technology, combining infrared and visible white supplementary lighting in one surveillance camera.
Supplementary Lighting
Light Types:
- Smart
- Infrared
- White Light
IR Range: Up to 40m
White Light Range: Up to 40m
The flexible lighting system allows the camera to provide appropriate illumination according to the configured surveillance requirements.
Up to 40m IR Night Vision
Built-in infrared illumination provides night-time monitoring at distances of up to 40 metres.
IR illumination is useful where discreet night surveillance is preferred without continuous visible lighting.
Up to 40m White Light
The integrated white supplementary light also provides illumination at distances of up to 40 metres.
Visible white lighting can provide brighter illuminated scenes when required and forms part of the camera`s Smart Hybrid Light system.
Fixed Focal Lens
The camera is available with either a 2.8mm or 3.6mm fixed focal lens.
Lens Mount: M12
2.8mm Lens
- Horizontal FOV: 101°
- Vertical FOV: 56°
- Diagonal FOV: 118°
The 2.8mm option provides wider scene coverage and is suitable for areas where a broad overview is required.
3.6mm Lens
- Horizontal FOV: 78°
- Vertical FOV: 42°
- Diagonal FOV: 92°
The 3.6mm option provides a narrower viewing angle for more focused surveillance coverage.
Two-Way Audio
One of the key features of this camera is its integrated two-way audio capability.
The camera includes both:
- Built-in microphone
- Built-in speaker
This allows compatible surveillance systems to provide real-time voice communication through the camera.
Two-way audio can be particularly useful for:
- Entrances
- Gates
- Reception areas
- Retail stores
- Residential properties
- Remote warnings
- Visitor communication
- Security communication
Built-In Microphone
Number of Microphones: 1
Pickup Distance: Up to approximately 5m radius
The built-in microphone captures audio around the camera for compatible recording and two-way communication applications.
Built-In Speaker
Speaker Rated Power: 2W
Speaker Range: Up to approximately 5m radius
The integrated speaker allows voice communication or compatible audio to be played directly through the camera.
Advanced Audio Processing
The camera incorporates several audio-processing technologies designed to improve voice communication.
Echo Cancellation
Helps reduce acoustic echo during two-way communication.
AI Noise Reduction
Helps reduce unwanted background noise to improve voice clarity.
Automatic Gain Control
Automatically adjusts audio gain to help maintain more consistent audio levels.
Audio Over Coaxial Cable
The camera supports audio over coaxial cable, allowing compatible audio and HD analogue video signals to be transmitted through the surveillance cabling.
This can simplify installation by reducing the need for a separate dedicated audio connection.
Image Settings
Available image settings include:
- Anti-banding
- Brightness
- Sharpness
- Smart IR
Frame Rate
TVI:
- 1080p @ 25fps
- 1080p @ 30fps
Day & Night
Day/Night: ICR
Supported modes:
- Auto
- Colour
Digital WDR
The camera supports Digital Wide Dynamic Range (DWDR), helping improve image visibility in scenes containing different levels of brightness.
Image Enhancement
Supported image enhancement functions include:
- DWDR
- BLC
- HLC
- Global
- HLS
These features provide additional image-processing options for challenging surveillance environments.
3D Digital Noise Reduction
Noise Reduction: 3D DNR
3D Digital Noise Reduction helps reduce visible image noise, contributing to cleaner surveillance footage, particularly under challenging lighting conditions.
White Balance
Supported white-balance modes include:
- Auto
- Manual
Camera Angle Adjustment
The turret design provides flexible physical adjustment during installation.
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
This allows the installer to position the camera according to the required surveillance area.
Video Output
Video Output:
1 × HD analogue output
The camera is intended for connection to compatible HD analogue CCTV recording equipment.
PAL / NTSC Support
Signal System:
PAL / NTSC
Shutter Speed
PAL:
1/12.5 s to 1/50,000 s
NTSC:
1/15 s to 1/50,000 s
Power
Power Supply:
12V DC ±25%
Maximum Power Consumption:
7.5W
HIKVISION recommends using one power adapter for each camera.
When a high-impedance cable is used, such as the 18m extension cable supplied in certain kit configurations, a 15V DC adapter may be required.
Construction
The camera combines metal and plastic components.
Main Body: Metal
Enclosure: Plastic
This construction provides a durable camera body while maintaining a compact turret design.
IP67 Weather Protection
The camera carries an IP67 protection rating, providing resistance against water and dust.
This makes the camera suitable for appropriately installed indoor and outdoor surveillance applications.
Dimensions
Dimensions:
`d8110 × 102.7mm
Weight
Weight:
Approx. 365g
Operating Conditions
Operating Temperature:
-40°C to 60°C
Operating Humidity:
90% or less, non-condensing
The wide operating-temperature range allows the camera to be used in demanding environmental conditions.
Communication
Communication: HIKVISION-C
Language: English
Technical Specifications
Specification Details
Brand HIKVISION
Product Type Fixed Turret Camera
Camera Technology HD Analogue
Image Sensor 2MP CMOS
Maximum Resolution 1920 × 1080
Lens Type Fixed Focal
Lens Options 2.8mm / 3.6mm
2.8mm Horizontal FOV 101°
3.6mm Horizontal FOV 78°
Smart Hybrid Light Yes
IR Range Up to 40m
White Light Range Up to 40m
Built-In Microphone Yes
Microphone Pickup Up to 5m Radius
Built-In Speaker Yes
Speaker Power 2W
Speaker Range Up to 5m Radius
Two-Way Audio Yes
Audio Over Coax Yes
Audio Processing Echo Cancellation / AI Noise Reduction / AGC
WDR Digital WDR
Noise Reduction 3D DNR
Frame Rate 1080p @ 25/30fps
Video Output 1 × HD Analogue
Signal System PAL / NTSC
Power Supply 12V DC ±25%
Maximum Consumption 7.5W
Main Body Material Metal
Enclosure Material Plastic
Protection Rating IP67
Dimensions `d8110 × 102.7mm
Weight Approx. 365g
Operating Temperature -40°C to 60°C

Ideal Applications
The HIKVISION 2MP Two-Way Audio Fixed Turret Camera is suitable for:
- Residential properties
- Homes
- Retail stores
- Offices
- Warehouses
- Building entrances
- Gates
- Reception areas
- Restaurants
- Takeaways
- Parking areas
- Commercial premises
- Indoor CCTV installations
- Outdoor CCTV installations
Why Choose This HIKVISION Camera?
The HIKVISION 2MP Two-Way Audio Fixed Turret Camera combines Full HD surveillance with flexible night illumination and real-time communication.
Its Smart Hybrid Light system provides both IR and white-light illumination up to 40 metres, while the built-in microphone and 2W speaker enable two-way audio communication within an approximate 5m radius.
With audio over coax, AI Noise Reduction, Echo Cancellation, Automatic Gain Control, Digital WDR, 3D DNR and IP67 weather protection, it provides a comprehensive solution for CCTV installations requiring both video surveillance and interactive audio functionality.
