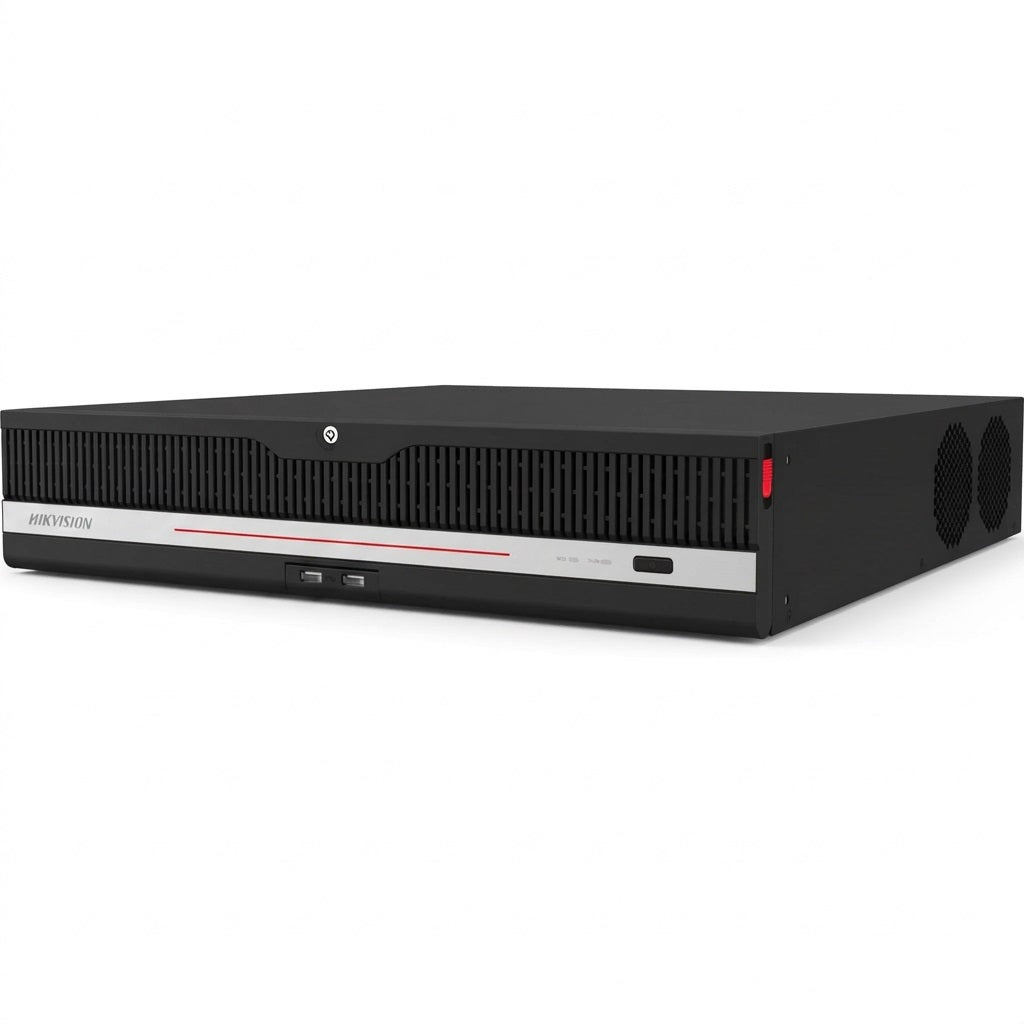

Hikvision 32-ch 2U 8K DeepinMind NVR

The Hikvision 32-Channel 2U 8K DeepinMind NVR is a high-performance AI-powered network video recorder designed for large-scale CCTV surveillance systems requiring advanced video analytics, high-resolution recording and reliable storage management.

Supporting up to 32 IP camera channels and input resolutions of up to 32 MP, this NVR combines powerful decoding capabilities with intelligent deep learning technology. It supports H.265+, H.265, H.264+ and H.264 compression formats to help optimise video storage and network bandwidth.

Advanced AI capabilities include facial recognition, perimeter protection, video structuralization, AcuSearch and camera-based ANPR. With support for up to 24-channel perimeter protection, it helps security teams detect events and investigate footage more efficiently.

The recorder features 8 SATA hard drive interfaces, RAID 0/1/5/6/10 support, dual Gigabit Ethernet ports and HDMI output up to 8K resolution. Its multiple display outputs, extensive alarm interfaces and flexible network integration make it suitable for enterprise security installations, industrial facilities, commercial buildings and centralised monitoring environments.

Key Features

32-Channel IP Camera Support: Connect and manage up to 32 IP cameras.

8K HDMI Output: HDMI 1 supports up to 7680 × 4320 at 30Hz.

High-Resolution Video Input: Supports IP camera input resolutions up to 32 MP, with up to 8 channels at 32 MP or 24 MP.

Advanced AI Analytics: Supports facial recognition, perimeter protection, video structuralization and AcuSearch.

Up to 24-Channel Perimeter Protection: Provides AI-based security analytics, depending on the selected operating mode.

Facial Recognition: Supports up to 16 channels for video-stream facial recognition or up to 32 channels for face-picture recognition.

AcuSearch: Supports rapid target searches across recorded footage using compatible cameras or NVR-based analytics.

ANPR Support: Compatible cameras can provide number plate and vehicle attribute recognition.

H.265+ Compression: Helps reduce video storage requirements and bandwidth usage.

8 SATA Hard Drive Bays: Supports up to eight 3.5-inch HDDs, with up to 20TB per drive.

RAID Support: RAID 0, 1, 5, 6 and 10 for supported storage configurations.

Dual Gigabit Ethernet: Two 10/100/1000 Mbps network interfaces.

Multiple Display Outputs: Two HDMI and two VGA outputs, plus CVBS.

Extensive Alarm Connectivity: 16 alarm inputs and 9 alarm outputs.

Remote Connectivity: Supports up to 128 remote connections.

2U Rack-Mount Design: Suitable for professional surveillance racks and security control rooms.

Technical Specifications
General Information

Specification

Details

Brand

Hikvision

Product Type

DeepinMind AI Network Video Recorder

Channels

32 IP channels

Form Factor

2U

Maximum IP Camera Input Resolution

Up to 32 MP

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

400 Mbps

Remote Connections

Up to 128

Video Compression

H.265+, H.265, H.264+, H.264

Power Supply

100–240V AC, 50–60Hz

Power Consumption

≤ 50W, without HDD

Operating Temperature

-10°C to 55°C

Operating Humidity

10%–90%

Dimensions (W × D × H)

445 × 465 × 93mm

Weight

≤ 10kg, without HDD

AI and Intelligent Analytics

Feature

Specifications

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch

AI by Camera

Facial recognition, perimeter protection, video structuralization, AcuSearch, Motion Detection 2.0, ANPR, people counting, VCA

AI Engines

2; each engine can run one intelligent algorithm

AcuSearch by Camera

All channels, up to 691,200 targets/day

AcuSearch by NVR

Up to 8 channels, up to 691,200 targets/day

Perimeter Protection by NVR

Up to 24-channel 2 MP, 16-channel 4 MP or 8-channel 8 MP without Large Model

Video Structuralization

Up to 12-channel 2 MP, 8-channel 4 MP or 4-channel 8 MP

Face Picture Libraries

Up to 32 libraries

Face Pictures in List Library

Up to 100,000

Stranger Library

Up to 10,000 face pictures

Face Capture Storage

Up to 10,000,000 face pictures, subject to capacity limits

Face Picture Comparison

Up to 16 channels for listed comparison mode

Camera-Based Face Comparison

Up to 32 channels, depending on engine allocation

ANPR Attributes

Plate number, plate colour and plate type

Vehicle Attributes

Vehicle brand, colour and type

AI channel capacity depends on resolution, selected algorithm, engine allocation, camera capabilities and operating mode. Large Model functions may have different channel limits.

Video and Audio

Specification

Details

IP Video Input

32 channels

Maximum Input Resolution

Up to 32 MP

Maximum 32 MP / 24 MP Inputs

Up to 8 channels

HDMI 1 Output

Up to 8K (7680 × 4320) at 30Hz

HDMI 2 Output

Up to 4K (3840 × 2160) at 60Hz

VGA 1 Output

Up to 1920 × 1080 at 60Hz

VGA 2 Output

Up to 1920 × 1080 at 60Hz

CVBS Output

1 channel, BNC

Audio Outputs

2 channels, RCA

Two-Way Audio

1 channel, RCA

Synchronous Playback

16 channels

Recording Resolutions

Up to 32 MP, plus 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p and lower resolutions

When HDMI 1 is configured for 8K output, HDMI 2 is limited to a maximum resolution of 1080p.

Decoding Capability

Resolution

Maximum Channels at 30 fps

32 MP

2

24 MP

2

16 MP

4

8 MP

8

4 MP

16

2 MP

32

Network and Connectivity

Specification

Details

Network Interfaces

2 × RJ-45 Gigabit Ethernet

Network Speed

10/100/1000 Mbps

Network Protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS and more

Camera Access

ONVIF, RTSP

API Support

ONVIF Profile S/G, SDK, ISAPI

Serial Interfaces

1 × RS-232, 1 × RS-485 full-duplex, 1 × keyboard interface

USB Ports

Front: 2 × USB 2.0; Rear: 1 × USB 3.0

Alarm Inputs

16

Alarm Outputs

9

Controllable Power Output

12V DC, 1A, controlled by alarm output 9

Additional DC Output

12V DC, 1A

Storage and RAID

Specification

Details

SATA Interfaces

8

Supported HDD Size

3.5-inch

Maximum Capacity per HDD

20TB

Maximum Theoretical Raw Capacity

160TB with 8 × 20TB HDDs

RAID Modes

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

eSATA

1 interface

Hard drives are not included unless specified. Maximum raw capacity is before RAID overhead and formatting; usable capacity depends on the selected RAID configuration.

Ideal Applications

Large-scale commercial CCTV systems

Industrial facilities and warehouses

Shopping centres and retail networks

Enterprise buildings and campuses

AI-powered facial recognition and perimeter security

Vehicle monitoring and ANPR installations

Centralised surveillance control rooms

What`s in the Box?

1 × Hikvision 32-Channel 8K DeepinMind NVR

Power cable and accessories, subject to supplied package contents
