Hikvision 4-Ch ColorVu CCTV Kit with 1TB eSSD DVR & Zatech RG59 Cable Roll

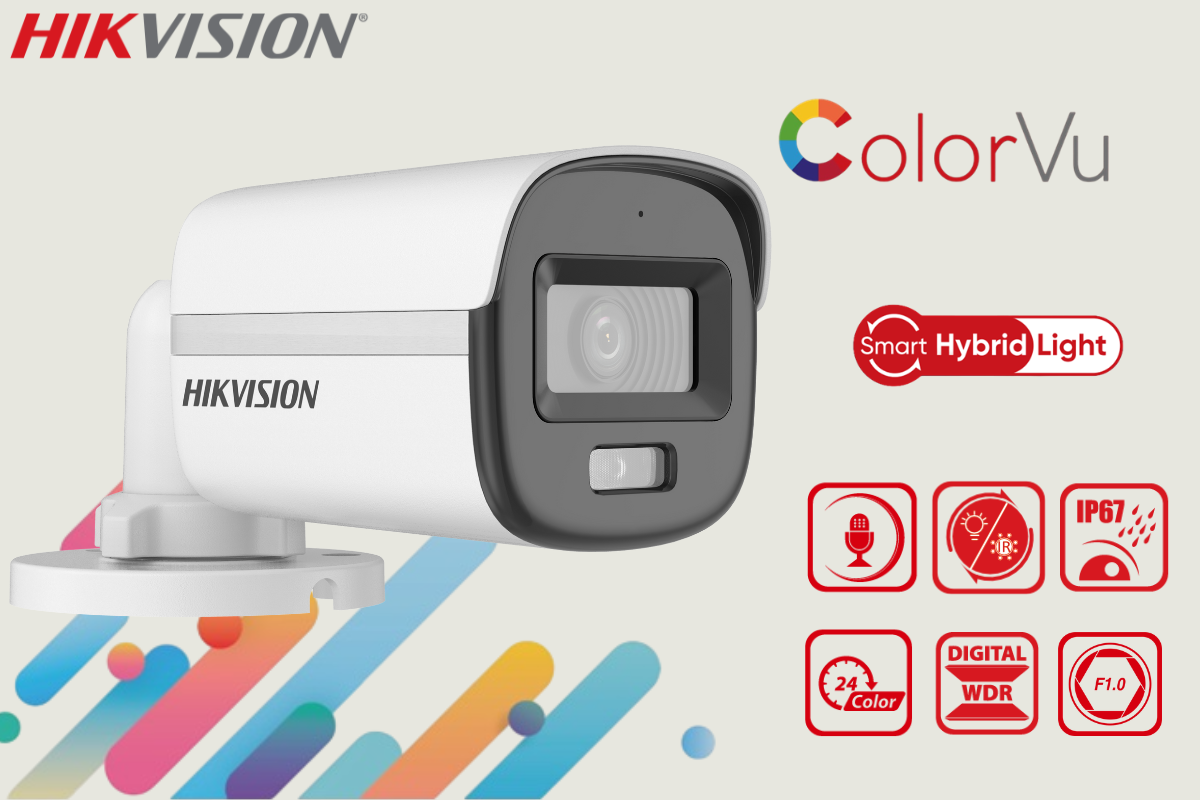

Get premium 24/7 protection with the Hikvision 4-Channel ColorVu CCTV Kit - a modern surveillance solution built for superior image clarity, intelligent motion detection, and next-gen storage. This system includes high-quality 2MP ColorVu fixed mini bullet cameras featuring Smart Hybrid Light technology, which delivers brilliant full-color video day and night. With a wide F1.0 aperture, the cameras capture detailed 1080p footage even in low-light conditions, while 3D DNR ensures reduced noise for sharper images.Each camera comes with a built-in microphone for audio capture over coaxial cable and supports 4-in-1 video formats (TVI/AHD/CVI/CVBS).

The included 4-channel 1080p Lite DVR is powered by advanced eSSD (embedded solid-state drive) technology with a built-in 1TB SSD, offering faster speeds, lower power consumption, and greater durability than traditional HDDs.The kit is fully equipped for installation, including a 100-meter ZATECH RG59 coaxial cable roll, Hikvision 4-channel power supply, and DCW/DC connectors for streamlined setup. Perfect for homes, shops, or offices, this all-in-one system delivers reliable, intelligent, and high-performance surveillance.

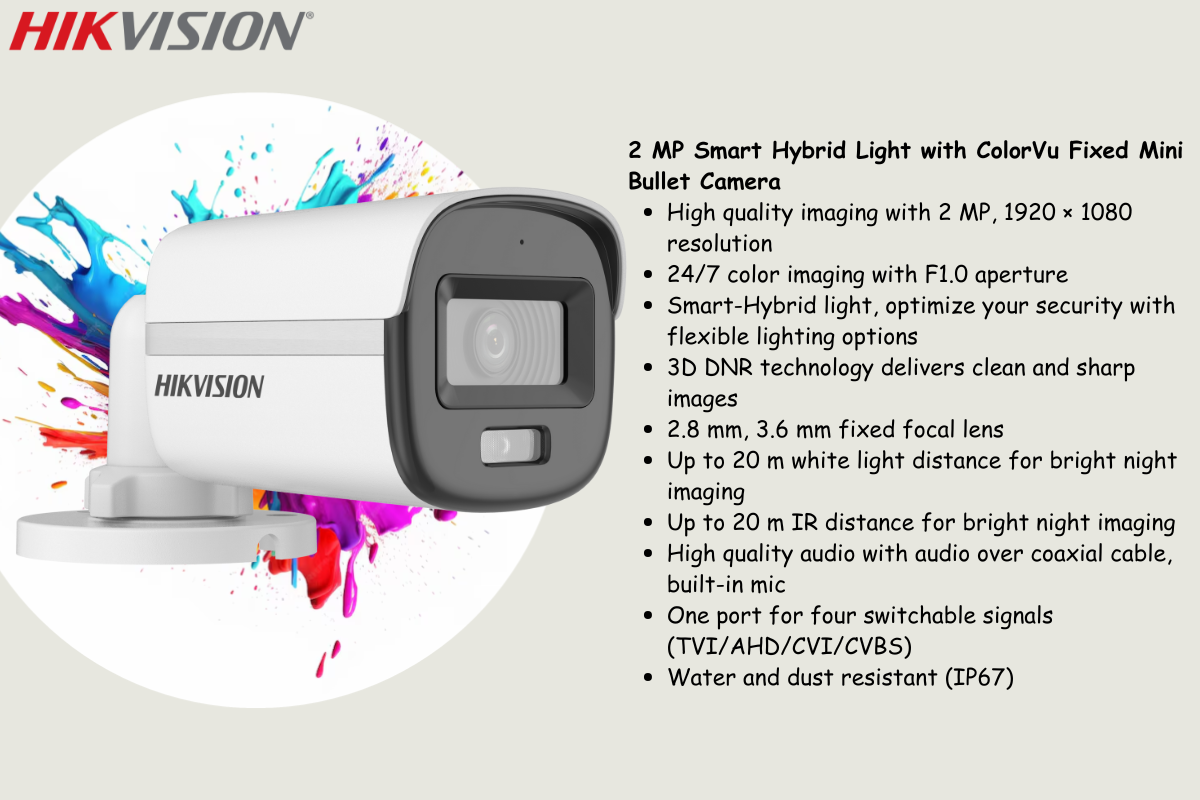

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 105 , vertical FOV: 56 , diagonal FOV: 126 3.6 mm, horizontal FOV: 84 , vertical FOV: 46 , diagonal FOV: 98
• Lens MountM12
• Microphone
• Pickup DistanceIn a radius of up to 5 m
• Amount1
• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Anti-banding, AGC
• Frame RateTVI: 1080p @25 fps/30 fpsCVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image EnhancementDWDR,BLC,HLC,Global
• White BalanceAuto, Manual
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

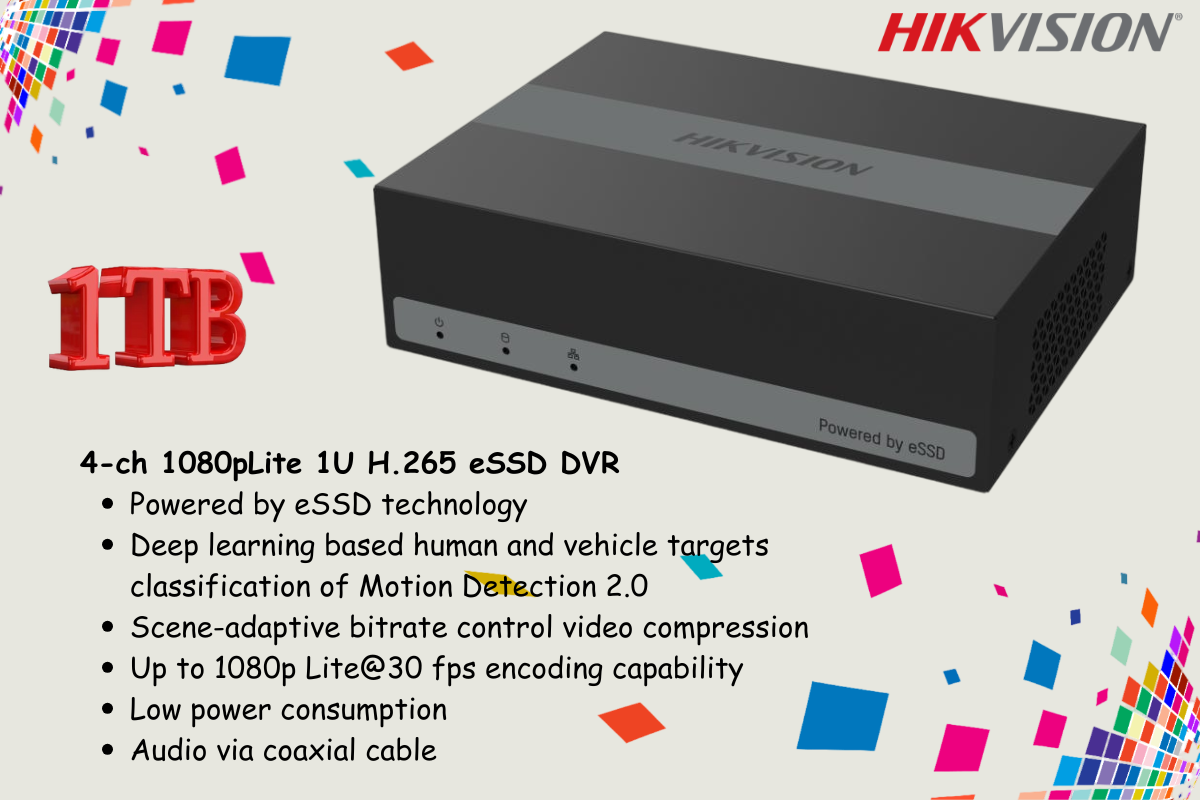

eDVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input1-chUp to 1080p resolutionSupport H.265+/H.265 IP cameras
• Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input4-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous playback4-ch
• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame RateMain stream:1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)Note:1080p Lite/720p is 15 fps by defaultSub-stream:4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)
• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream TypeVideo, Video & AudioNote: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth64 MbpsIncoming bandwidth: 4 Mbps
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP , HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• CapacityBuilt-in 1024 GB eSSD (960 GB available)Note:The device can store about 8 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

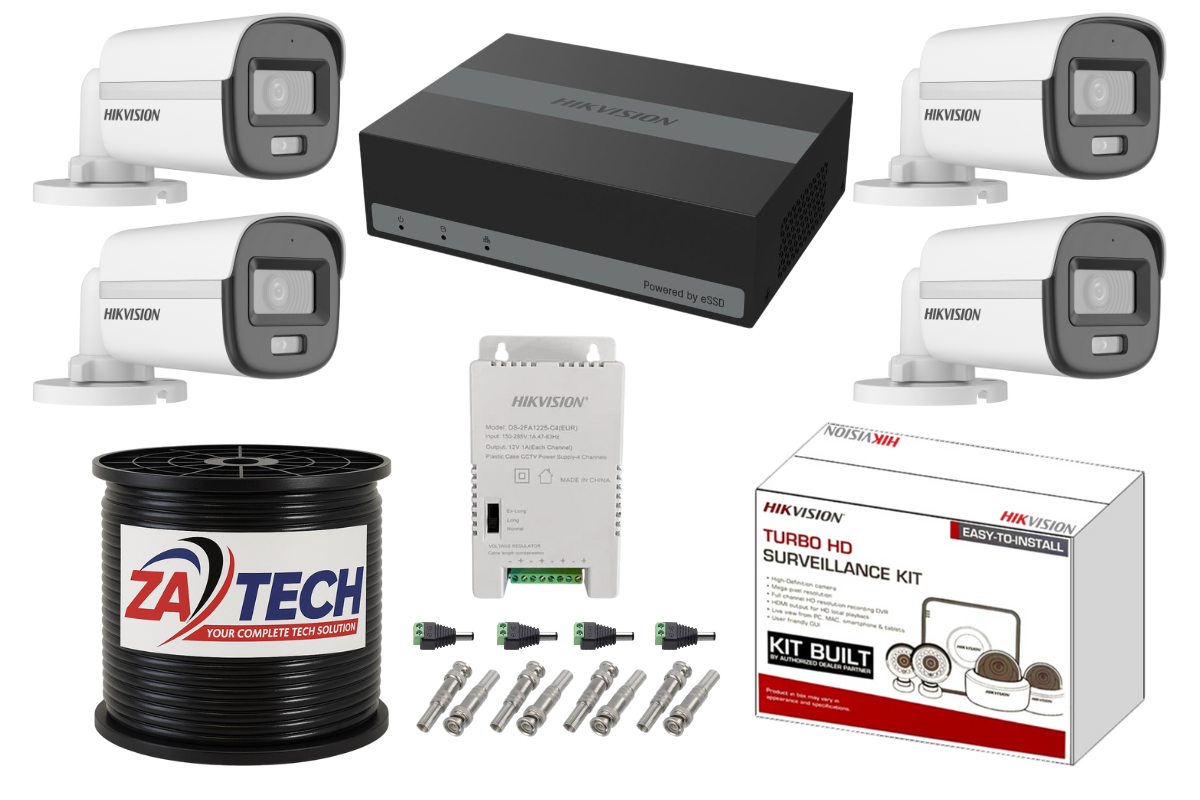

What's in the box

• 4 x 2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera
• 1 x 4-ch 1080pLite 1U H.265 eSSD DVR

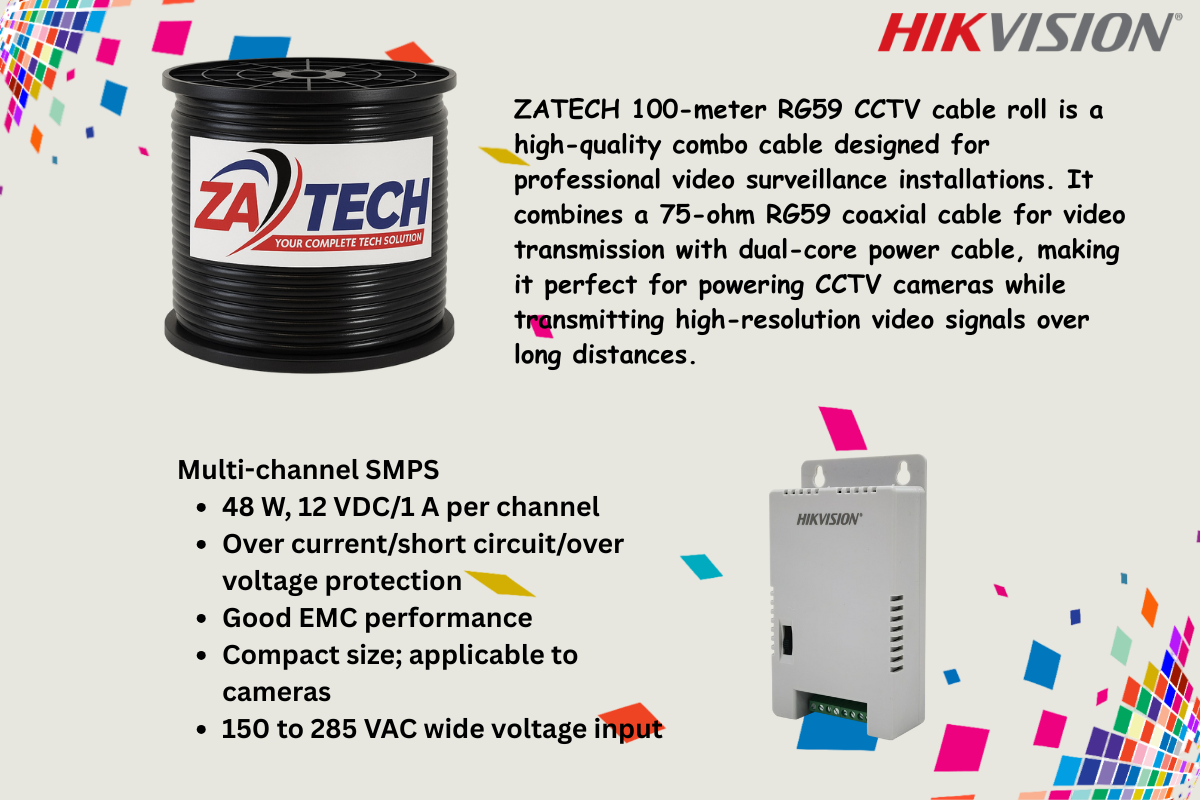

• 1 x Zatech RG59 coaxial cable roll
• 1 x Hikvision 4-channel power supply
• 4 x DC connector
• 8 x BNC connector
