Hikvision 4-Channel ColorVu CCTV Kit with Zatech 20m Cables and Junction Box

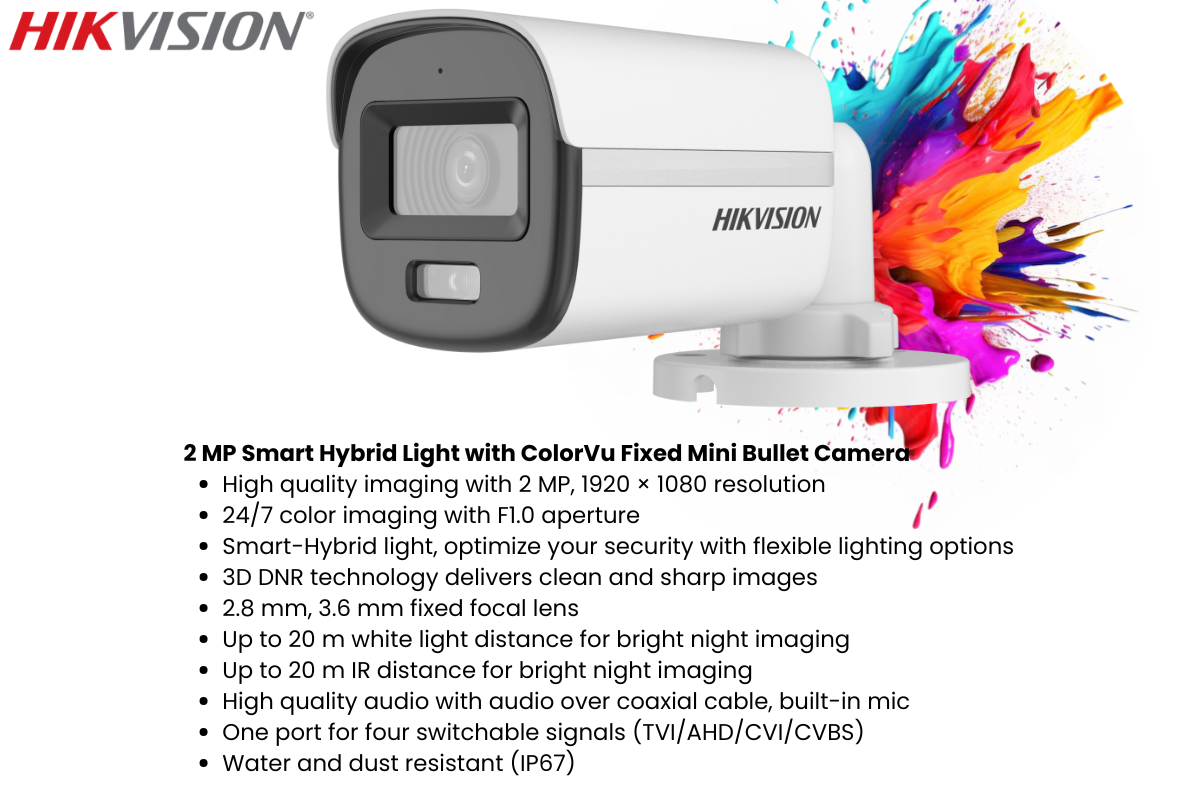

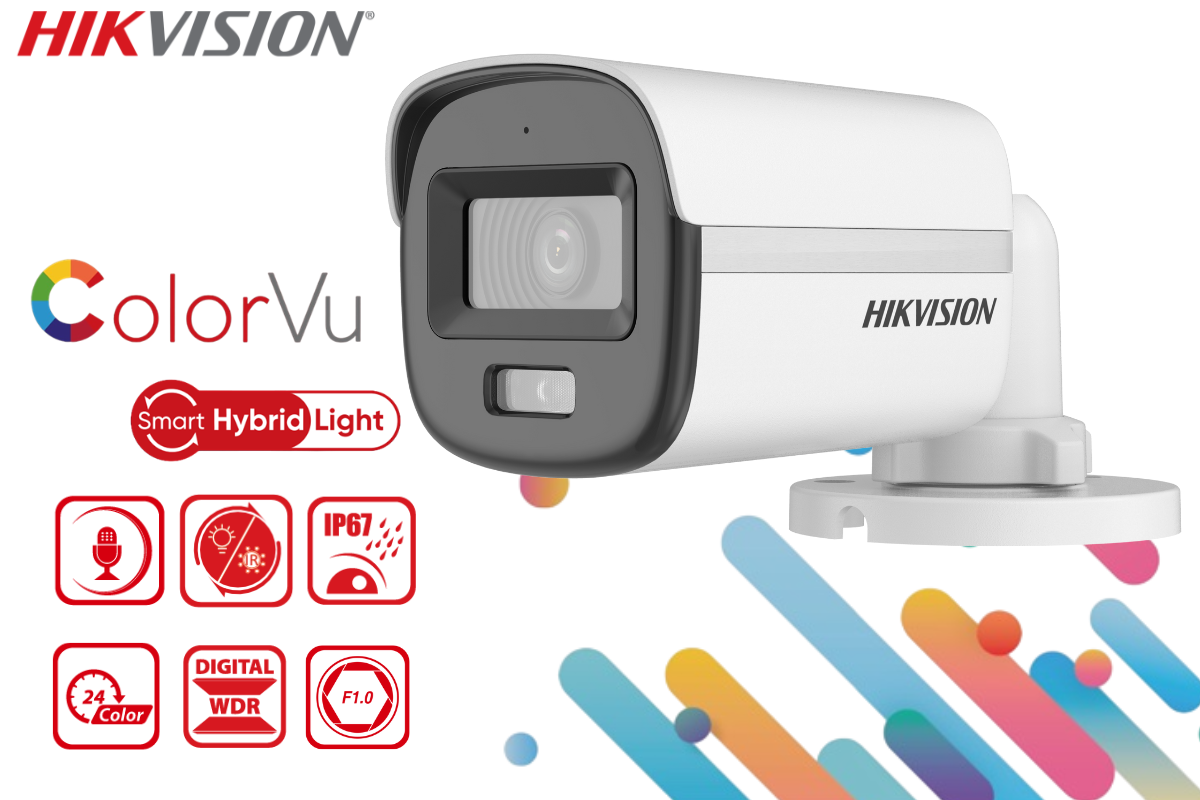

Hikvision 4-Channel ColorVu CCTV Kit - a compact yet powerful system designed for full-color recording, day or night. This kit includes high-performance 2MP ColorVu fixed mini bullet cameras that deliver 1080p resolution, enhanced by a large F1.0 aperture and Smart Hybrid Light for true 24/7 color imaging.3D DNR technology for sharp image clarity, these cameras are built for reliability indoors or out.

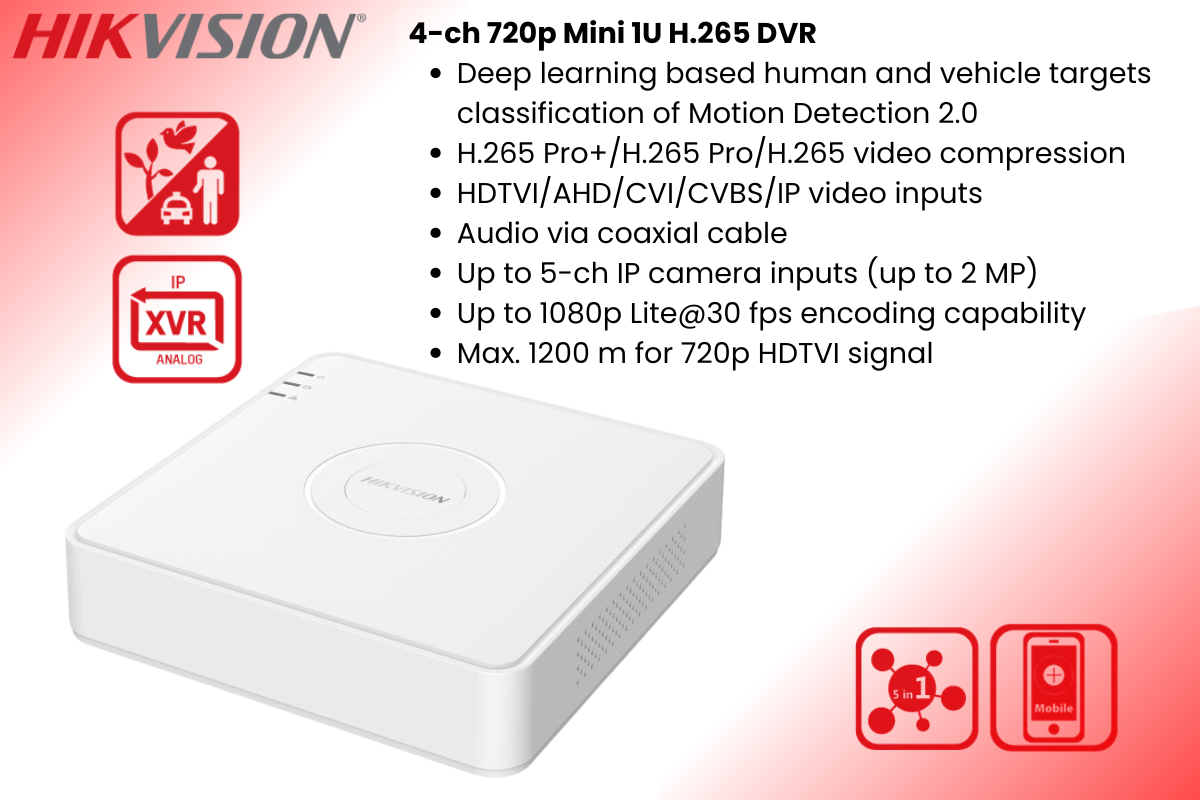

At the core of the system is a 4-channel 720p Mini 1U H.265 DVR, offering H.265 Pro+ compression to maximize storage efficiency.Included in the kit are ZATECH 20-meter ready-made cables for fast setup, a ZATECH junction box for neat connections, a reliable power supply, and a DCW4P 4-way power distributor. Whether you're securing a small office, home, or retail space, this ColorVu kit delivers sharp visuals, smart detection, and easy installation.

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Microphone
• Pickup DistanceIn a radius of up to 5 m
• Amount1
• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Anti-banding, AGC
• Frame RateTVI: 1080p @25 fps/30 fpsCVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image EnhancementDWDR,BLC,HLC,Global
• White BalanceAuto, Manual
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input1-ch (up to 5-ch)Up to 1080p resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K )4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way AudioReuse the first audio input
• Synchronous playback4-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth64 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP , HTTPS
• Remote Connection32
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

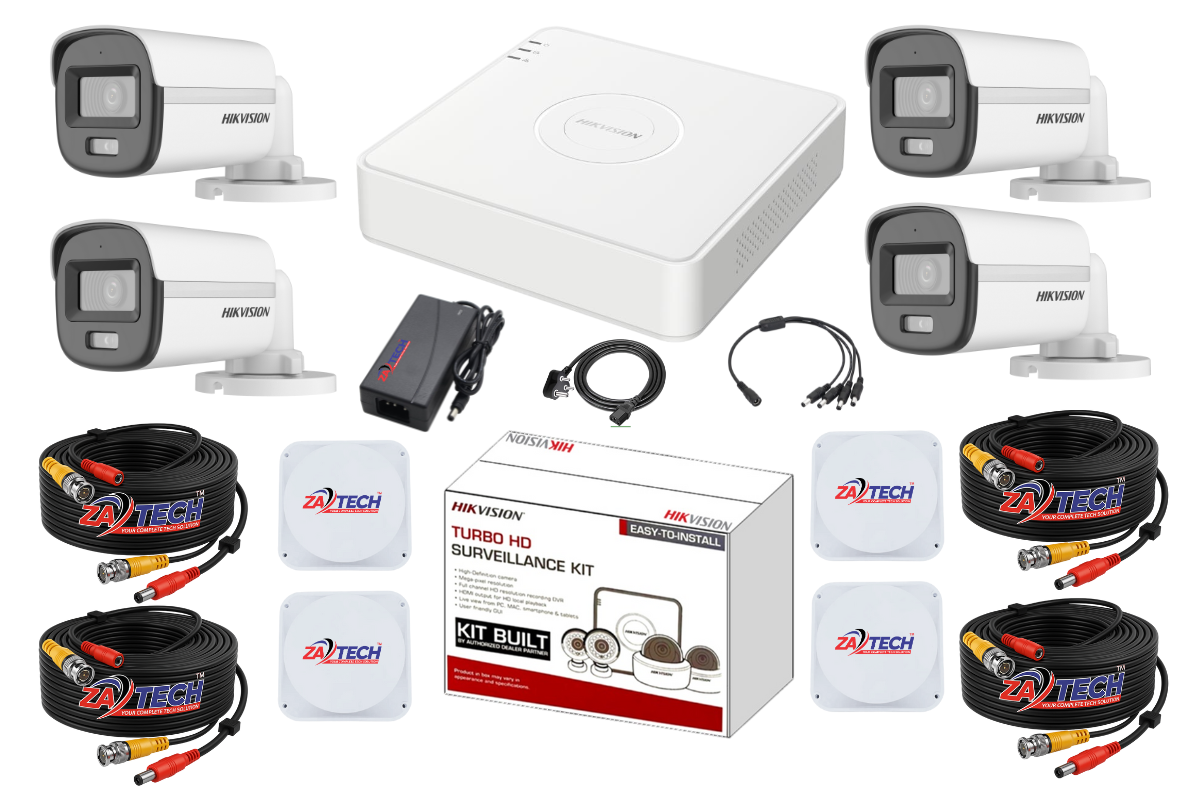

What's in the box

• 4 x Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera
• 1 x 4-ch 720p Mini 1U H.265 DVR

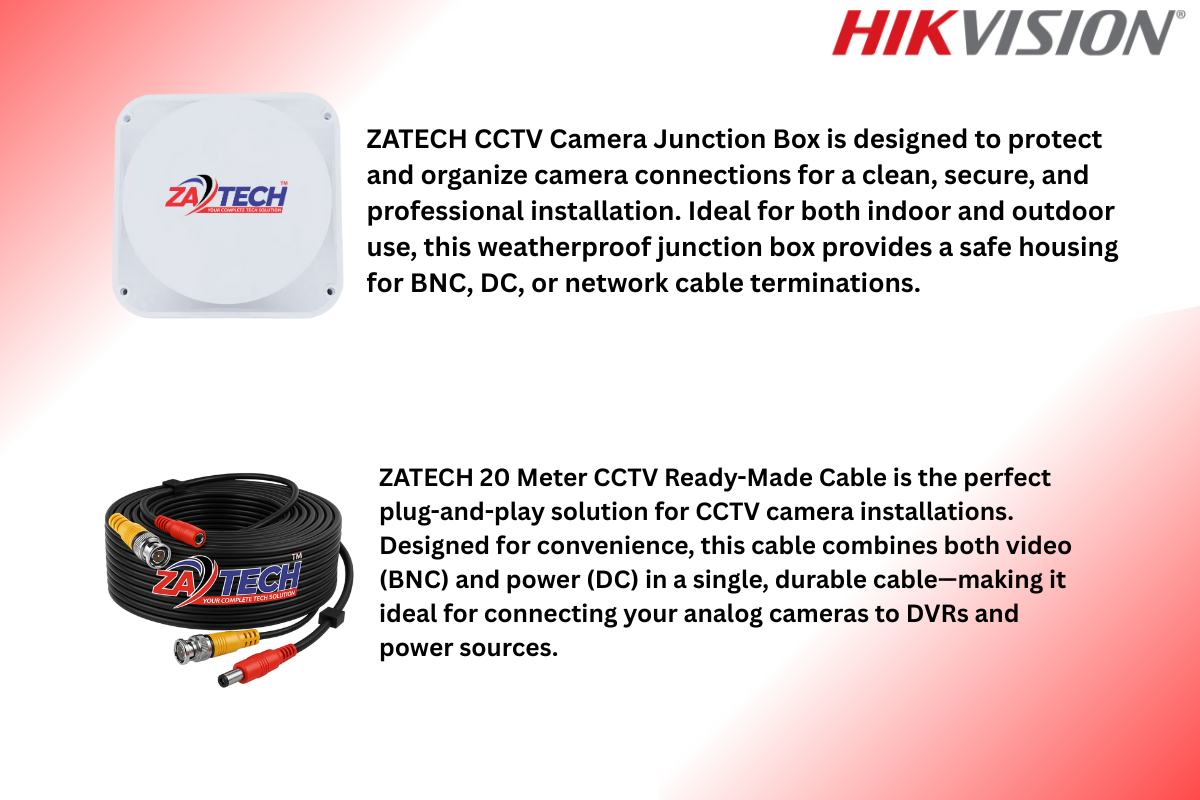

• 4 x Zatech junction box
• 4 x Zatech 20-meter ready-made cable
• 1 x Power supply
• 1 x DCW4P
