Hikvision 4-Channel ColorVu CCTV Kit with Zatech RG59 Cable, Junction Box

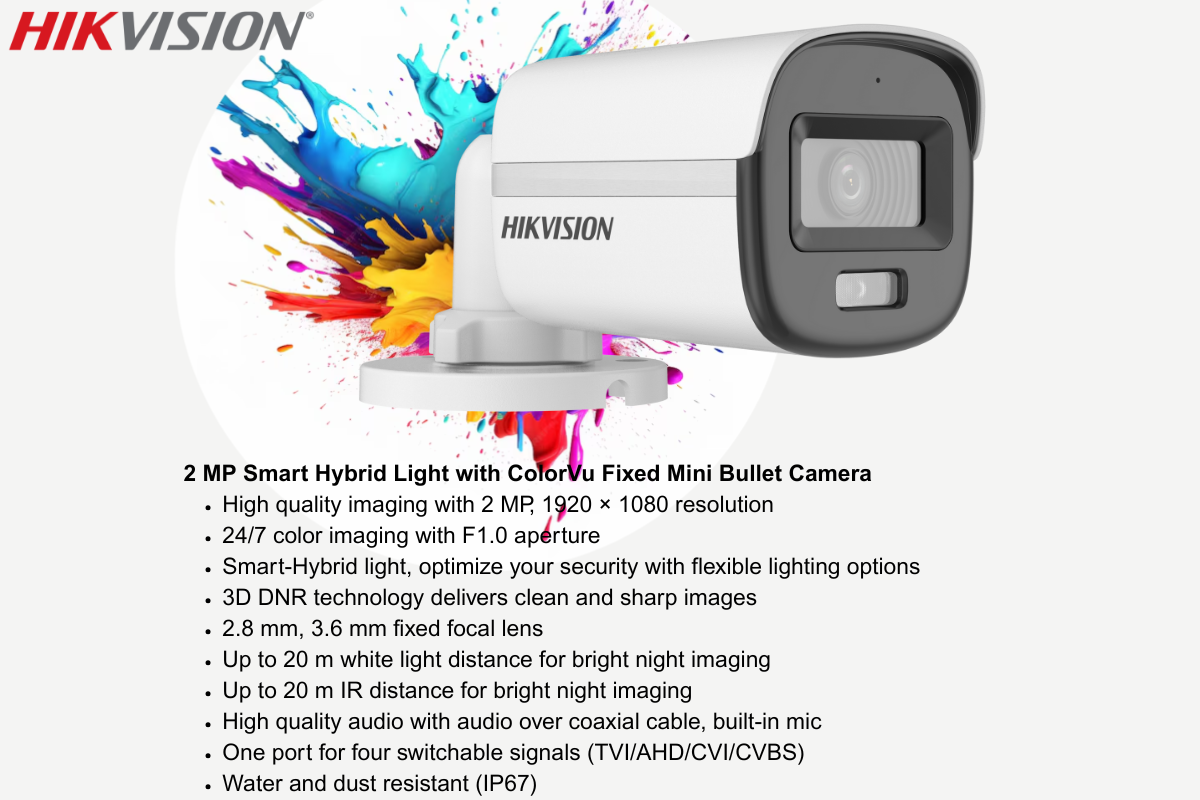

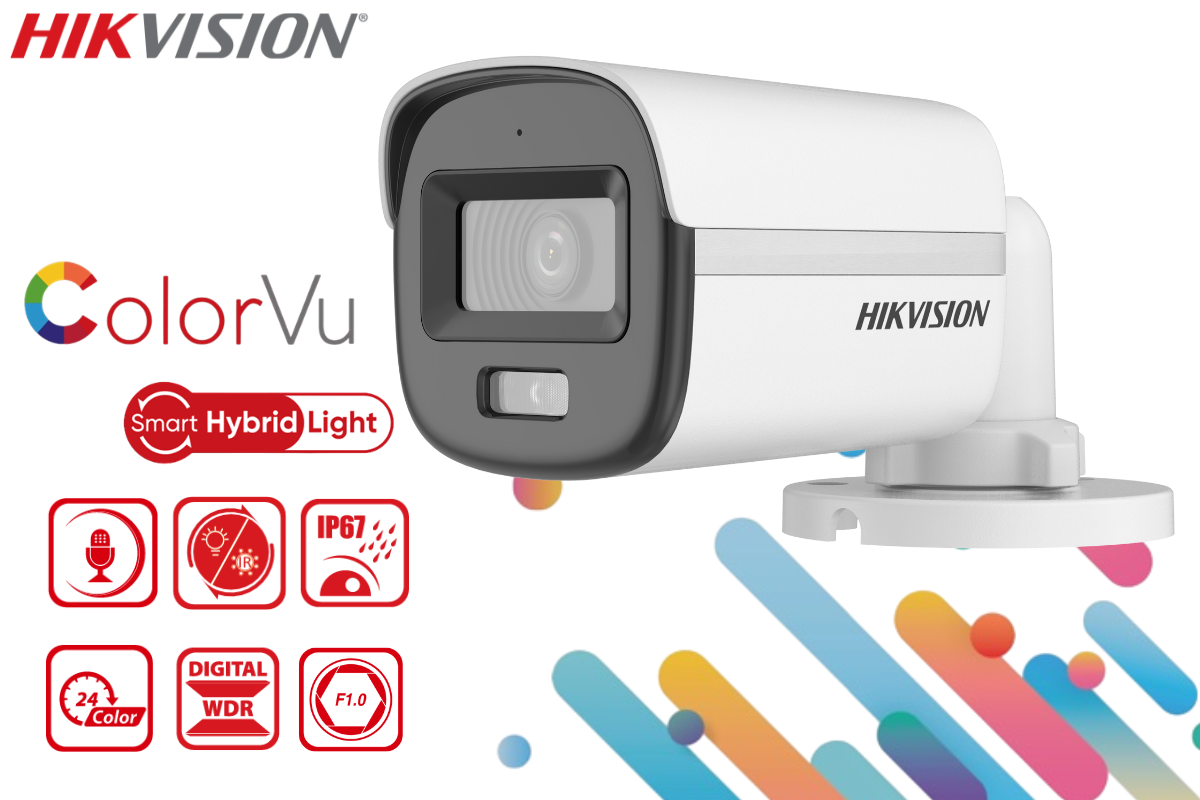

Hikvision 4-Channel ColorVu CCTV Kit - a comprehensive surveillance solution designed for crystal-clear, full-color imaging and smart detection features. This system includes high-performance 2MP ColorVu fixed mini bullet cameras with Smart Hybrid Light, offering 1920 × 1080 full HD resolution and true 24/7 color video, even in complete darkness. Equipped with a wide F1.0 aperture, 3D DNR image enhancement, and built-in microphones for audio over coaxial, and IP67 weatherproofing, they're ideal for both indoor and outdoor installations.

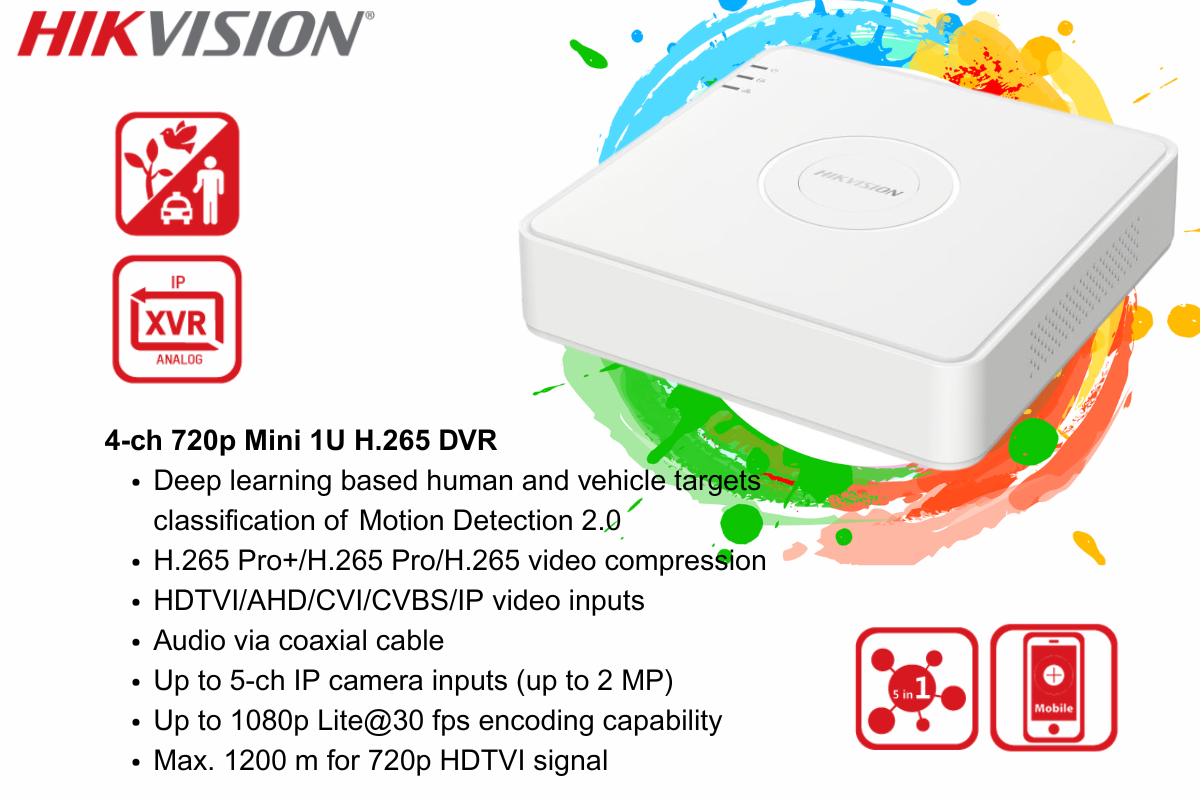

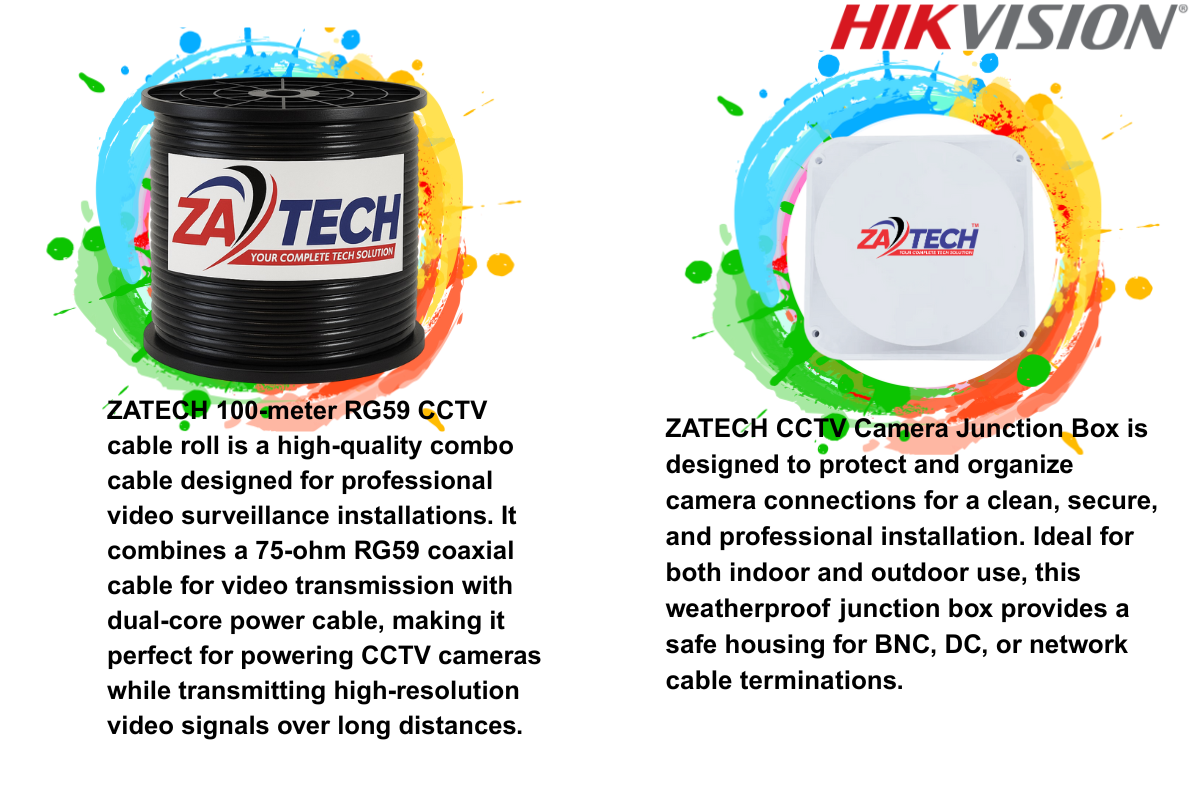

The compact 4-channel 720p Mini H.265 DVR delivers powerful video compression (H.265 Pro+/H.265) to save storage space while maintaining image quality.1080p Lite recording at 30 fps, audio over coaxial, and long-range transmission up to 1200 meters for 720p signals. Included in the package are a ZATECH 100-meter RG59 coaxial cable roll, a ZATECH junction box for clean wiring, a Hikvision 4-channel power supply, and DCW/DC connectors for quick and secure installation. This kit is the perfect blend of professional-grade features and DIY-friendly setup - ideal for homes, shops, or offices.

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle Adjustment Pan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
• Signal System PAL/NTSC
• Microphone
• Pickup Distance In a radius of up to 5 m
• Amount1
• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image Settings Brightness, Sharpness, Anti-banding, AGC
• Frame Rate TVI: 1080p @25 fps/30 fps CVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image EnhancementDWDR,BLC,HLC,Global
• White BalanceAuto, Manual
• Interface
• Video Output Switchable TVI/AHD/CVI/CVBS

DVR

• Motion Detection 2.0
• Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported
• Video and Audio
• IP Video Input1-ch (up to 5-ch)Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode HDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K )4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way Audio Reuse the first audio input
• Synchronous playback4-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame Rate Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth64 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP , HTTPS
• Remote Connection32
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

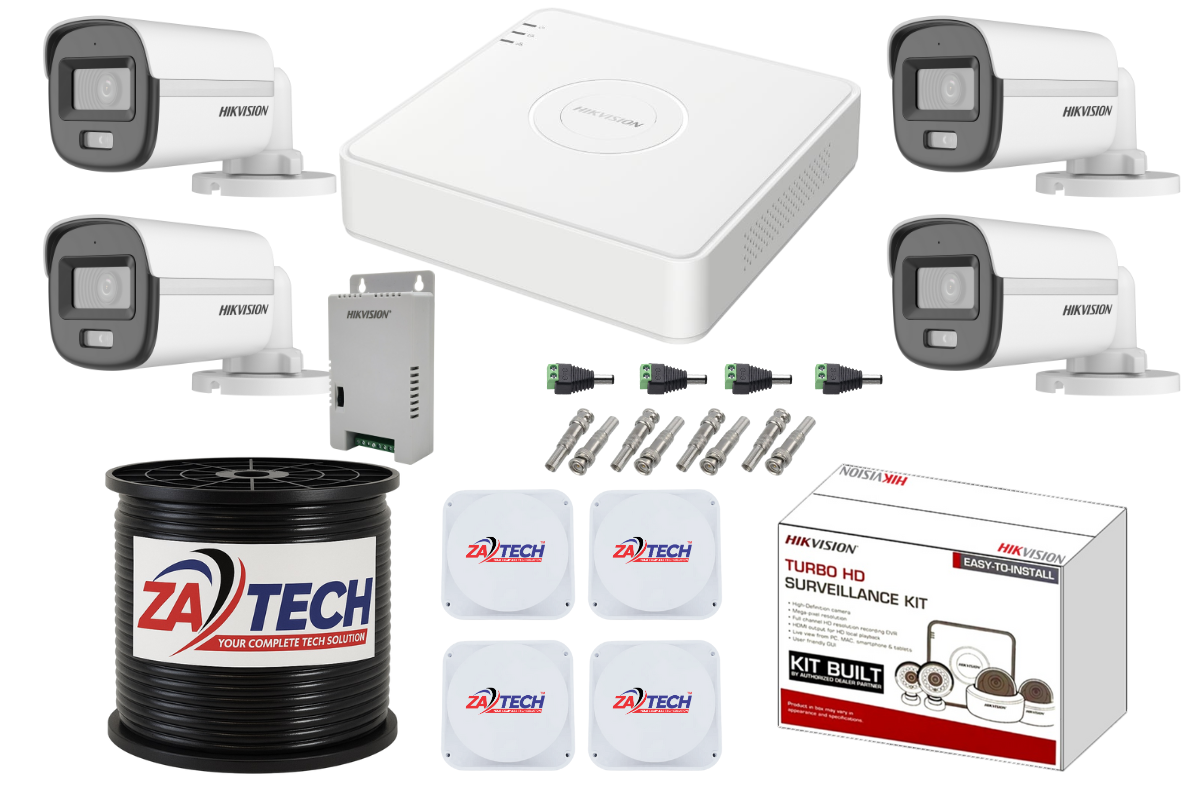

What's in the box

• 4 x 2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera
• 1 x 4-ch 720p Mini 1U H.265 DVR
• 1 x Zatech RG59 100m cable roll
• 4 x Zatech junction box
• 1 x Hikvision 4-channel power supply
• 8 x DNC connector
• 4 x DC connector
