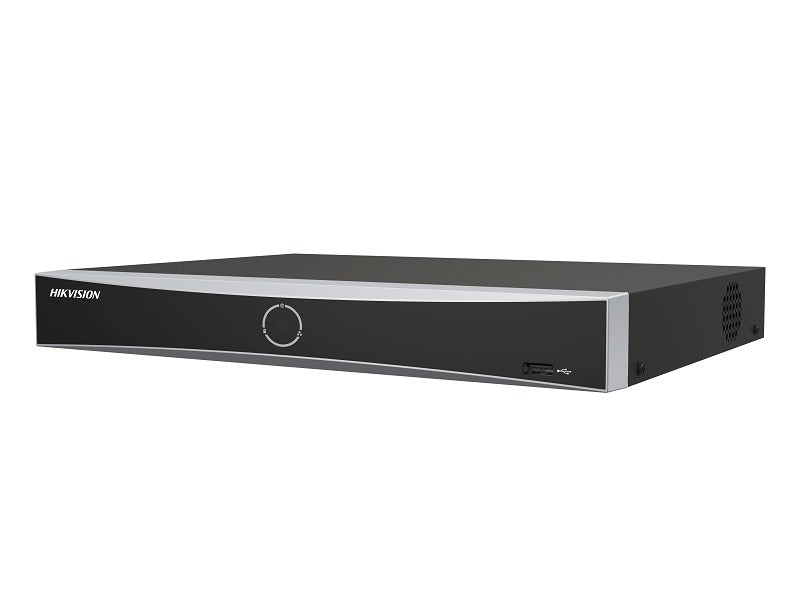

HIKVISION 4Ch 4K NVR without poe

Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity. Adopt Hikvision Acusense technology to minimize manual effort and security costs.

Key features

• Intelligent Analytics
• AI by Device
• Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
• Facial Recognition
• Face Attributes
• N/A
• Facial Detection and Analytics
• Face picture comparison, human face capture, face picture search
• Face Picture Library
• Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB);Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance
• Face Picture Comparison
• By Device
• All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
• All channels
• Perimeter Protection
• 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• Incoming Bandwidth
• Outgoing Bandwidth
• 1-ch, 4K (3840 `d7 2160)/30 Hz, 2K (2560 `d7 1440)/60 Hz, 1920 `d7 1080/60 Hz, 1600 `d7 1200/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
• 1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
• 1-ch, RCA (2.0 Vp-p, 1 K'd9, using the audio input)
• Decoding
• Decoding Format
• Recording Resolution
• Synchronous Playback
• Decoding Capability
• AI on: 1-ch@8 MP (30 fps)/2-ch@4 MP (30 fps)/4-ch@1080p (30 fps)
• AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
• Stream Type
• Remote Connection
• API
• ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser
• IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Tcp/ip, dhcp, ipv4, ipv6, DNS, ddns, NTP, rtsp, sadp, smtp, snmp, NFS, iscsi, isup, upnp™, http, https
• Sata
• Up to 10 TB capacity for each HDD
• Front panel: 1 `d7 USB 2.0; Rear panel: 1 `d7 USB 2.0
• GUI Language
• English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Consumption
• Working Temperature
• 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
• Working Humidity
• 320 mm `d7 240 mm `d7 48 mm (12.6"`d7 9.4" `d7 1.9")
• CE
• EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS;CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA

Specifications

• Ds-7604nxi-k1
• 4-ch 1U K Series AcuSense 4K NVR
• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 40 Mbps incoming bandwidth
• Facial recognition, perimeter protection, motion detection 2.0
• 1-ch, 4 MP;1-ch, 8 MP
• 2-ch
• Motion Detection 2.0
• 4-ch
• 40 Mbps
• 80 Mbps

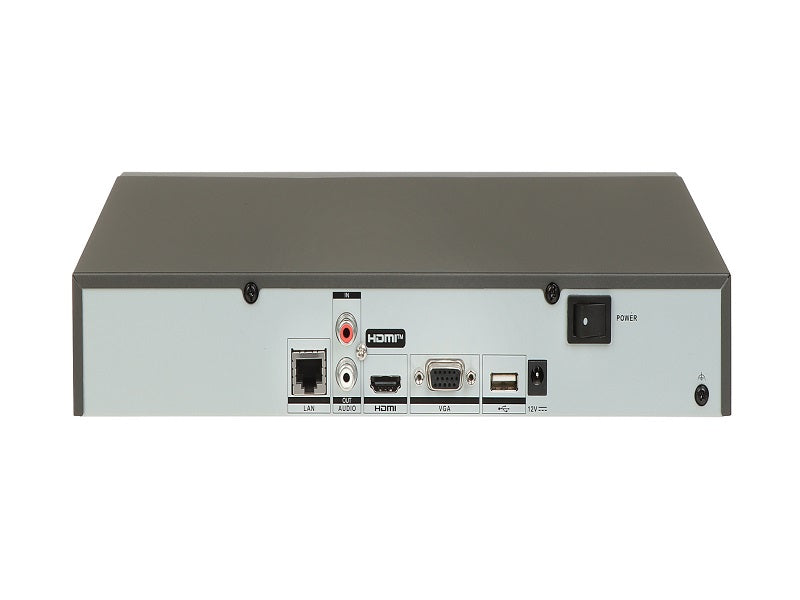

• HDMI1/VGA simultaneous output
• 1-ch, RCA (Linear, 1 K'd9)
• H.265/h.265+/h.264+/h.264
• 12 MP/8 MP/6 MP/5 MP/4 MP/3 mp/1080p/uxga/720p/vga/4cif/dcif/2cif/cif/qcif
• G.711ulaw/G.711alaw/G.722/G.726/AAC
• 128
• 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• 1 SATA interface
• Capacity
• 12 VDC, 1.5 A
• ≤ 10 W (without HDD)
• 10% to 90%
• Dimension (W `d7 D `d7 H)
• ≤1 kg (without HDD, 2.2 lb.)
