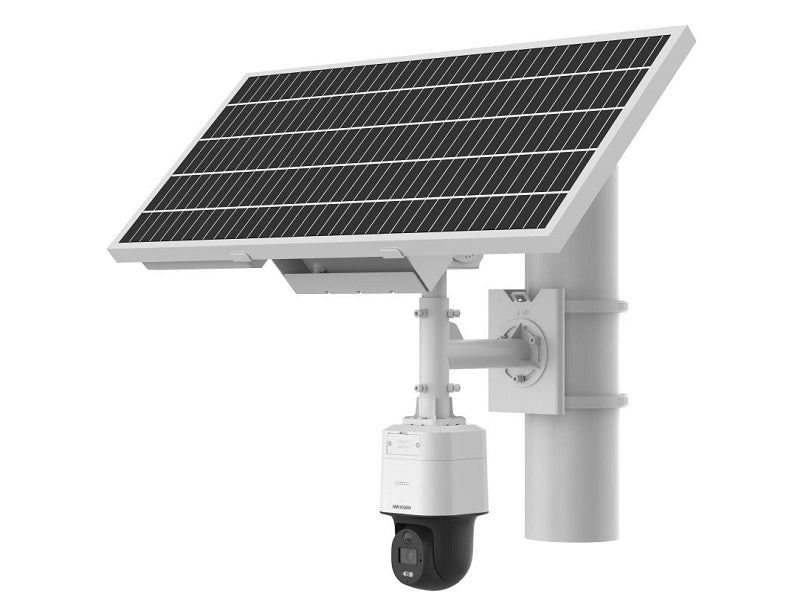

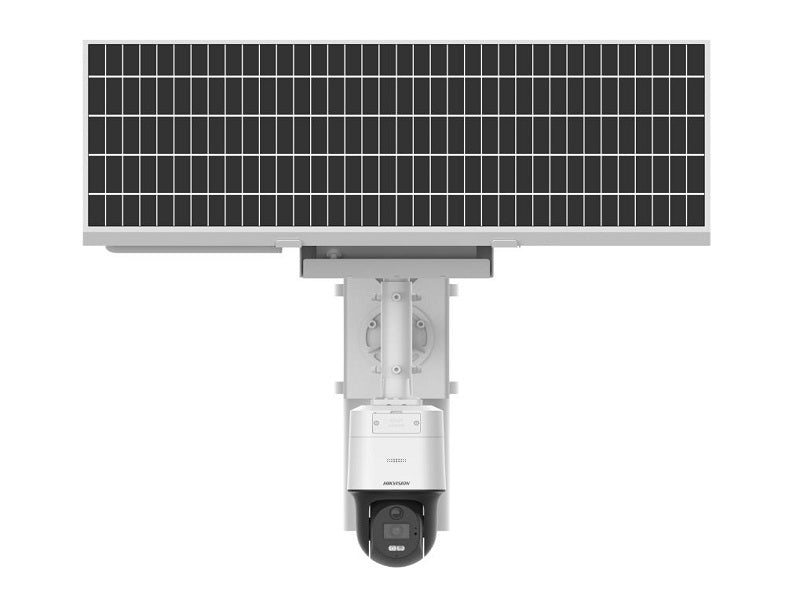

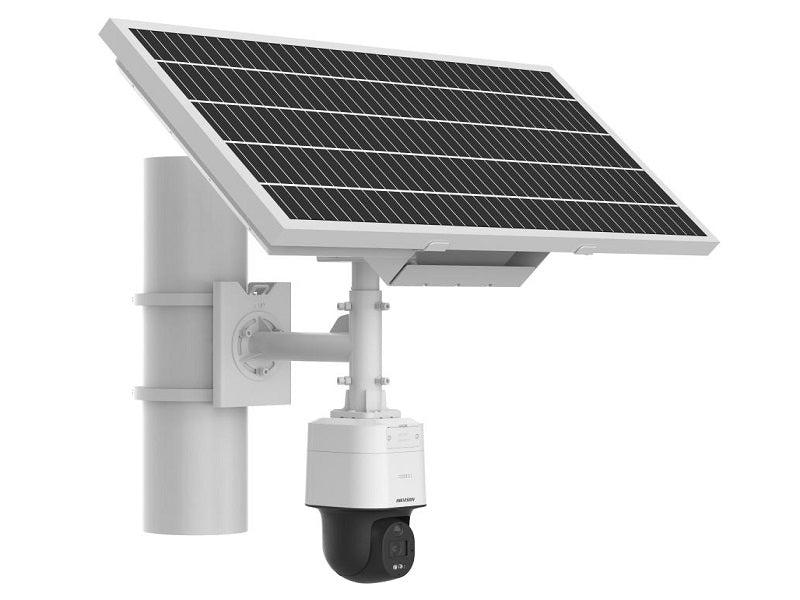

Hikvision DS-2XS3Q47G1-LD 4MP 4G Solar ColorVu PT Camera - 6mm, 30m White Light

Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light. Solar panel: pan: 0`b0 to 358`b0, tilt: -40`b0 to 0`b0; camera: pan: 0`b0 to 340`b0, tilt: -5`b0 to 105`b0.

Key features

• Standalone with solar panel and built-in battery
• Provide real-time security via built-in two-way audio
• Image Sensor
• Max. Resolution
• Min. Illumination
• Shutter Time
• Day & Night
• Angle Adjustment
• Fixed focal lens, 4 and 6 mm optional
• Iris Type
• Fixed
• Focal Length & FOV
• 4 mm, Horizontal FOV: 75`b0, Vertical FOV: 40`b0, Diagonal FOV: 89`b0
• 6 mm, Horizontal FOV: 49`b0, Vertical FOV: 27`b0, Diagonal FOV: 57`b0
• Dori
• 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
• 6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m
• Illuminator
• Supplement Light Type
• White Light
• Supplement Light Range
• Performance mode: up to 30 m, proactive mode: up to 10 m
• Smart Supplement Light
• Yes
• Main Stream
• 50 Hz: 12.5 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 15 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 12.5 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 15 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Security
• Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• Protocols
• Tcp/ip, icmp, http, dhcp, DNS, RTP, rtsp, rtcp, NTP, igmp, qos, UDP
• User/Host
• Auto Network Replenishment (ANR)
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
• Mobile Communication
• SIM Card Type
• Micro SIM
• Uplink and Downlink Data Rate
• Lte-tdd,lte-fdd,wcdma,gsm
• Image
• SNR
• Wide Dynamic Range (WDR)
• Privacy Mask
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording.
• Built-in Microphone
• Reset Key
• Event
• Basic Event
• Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
• Linkage
• Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning
• For debugging only
• 0 `b0C to 60 `b0C (32 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Language
• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Heartbeat,mirror,flash log
• Startup and Operating Conditions
• 686.6mm `d7 442.6mm `d7 760 mm (27.03" `d7 17.42" `d7 29.9")
• 902 mm `d7 342 mm `d7 440 mm (35.5" `d7 13.5" `d7 17.3")
• Approx. 11.90 kg (26.2 lb.)
• Approx. 15.21 kg (33.5 lb.)

Specifications

• Ds-2xs3q47g1-ld/4g/c18s40(6mm)
• 4MP ColorVu Solar-powered Security PT Camera Setup
• High quality imaging with 4 MP resolution
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
• 1/3" Progressive Scan CMOS
• 2688 `d7 1520
• 1/3 s to 1/100,000 s
• 24/7 color imaging
• Lens
• Lens Type
• Aperture
• F1.0
• Depth of Field
• 4 mm: 2.7 m to ∞
• 6 mm: 5.9 m to ∞
• Lens Mount
• M12
• Main stream: H.265/ H.264
• Sub-stream: H.265/H.264/MJPEG
• H.264+ and H.265+: main stream supports under performance mode
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• 1 fixed region for main stream
• 8 kHz/16 kHz
• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect,Hik-Central
• Plug-in required live view: IE 10, IE11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Cat 4, uplink: 50 Mbps Mbps, downlink: 150 Mbps
• Frequency
• Lte-tdd: B38/B40/B41
• Lte-fdd: b1/b3/b5/b7/b8/b20/b28
• Wcdma: B1/B5/B8
• GSM: B3/B5/B8
• Lte-tdd: B38/B40
• Lte-fdd: b1/b2/b3/b4/b5/b7/b8/b12/b17/b28/b66
• Wcdma:b1/b2/b3/b4/b5/b8
• GSM: b2/b3/b5/b8
• Lte-fdd: b2/b4/b5/b12/b13/b17/b66/b71
• Wcdma: B2/B4/B5
• Standard
• ≥ 52 dB
• 120 dB
• 4 programmable polygon privacy masks
• Blc,hlc,3d DNR
• Built-in eMMC storage, up to 64 GB,
• Typical power scenarios: 1.85 W (4G working)
• Standby scenarios: 40 mW
• Max. power consumption: 6 W
• 12 VDC `b1 25%
• 40 W (deviation: `b1 2 W) Solar panels
• Power supply interface: `d85.5 mm coaxial power plug
• Extened solar panel: four-core aviation connector
• Material
• Camera: Plastic; Solar panel: Metal
