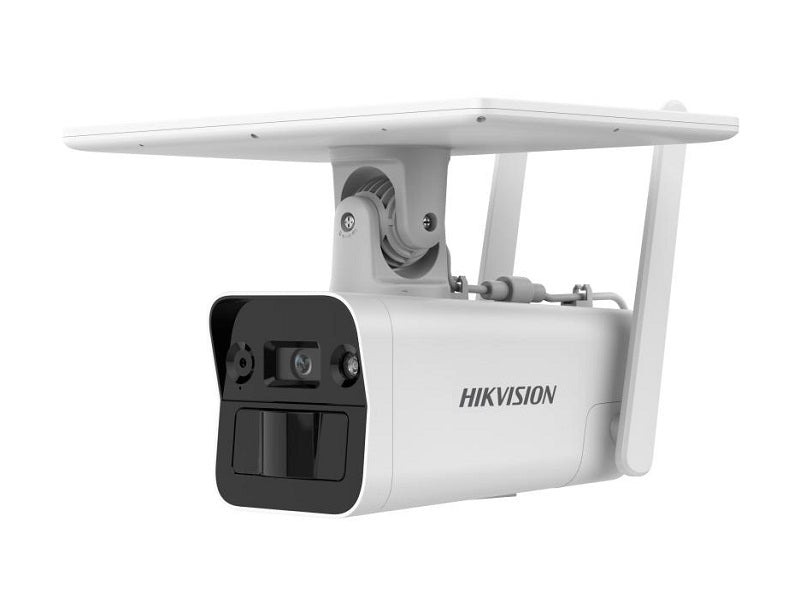

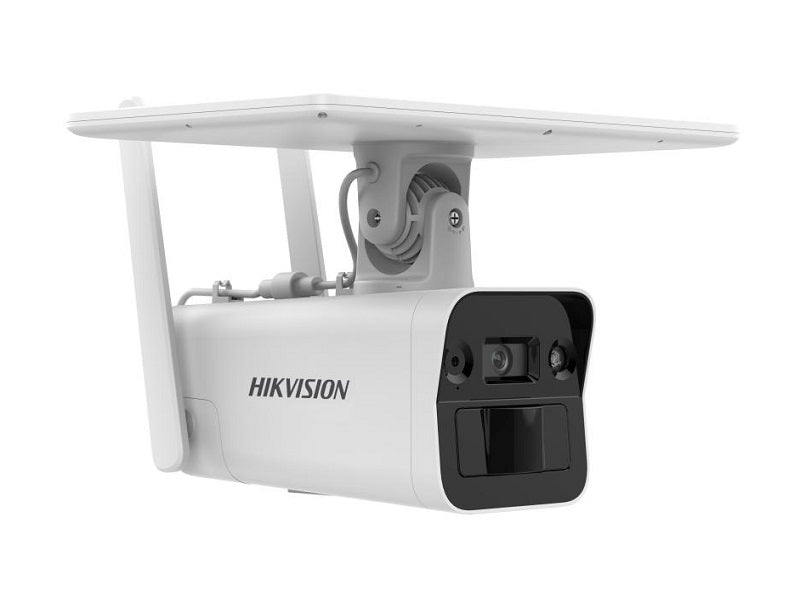

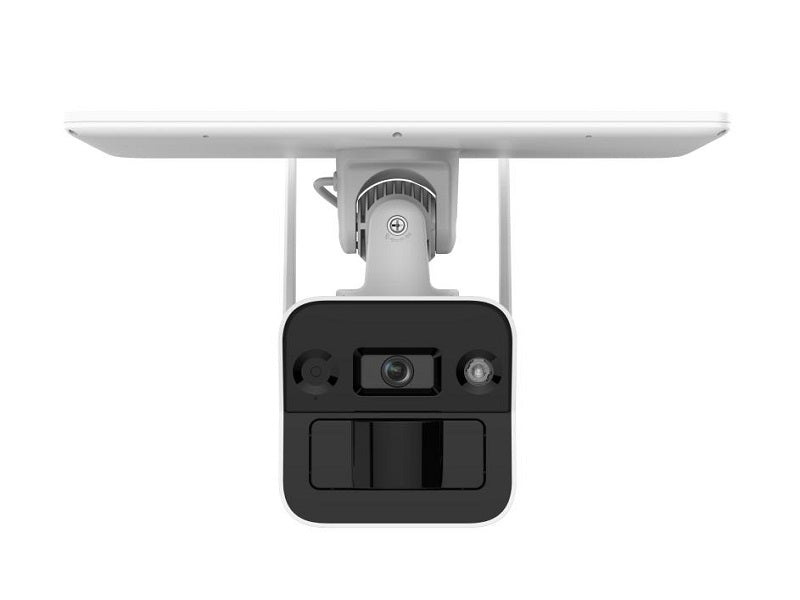

HIKVISION 4Mp-4G Solar Power Network Cam

B/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR. 4 mm, Horizontal FOV: 79`b0, Vertical FOV: 43`b0, Diagonal FOV: 93`b0.

Key features

• Standalone with solar panel and built-in battery
• Support human and vehicle detection
• Provide real-time security via built-in two-way audio
• Image Sensor
• Max. Resolution
• Min. Illumination
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Solar panel: tilt: -45`b0 to 45`b0, rotate:-30`b0 to 30`b0
• Fixed focal lens, 4 and 6 mm optional
• Iris Type
• Fixed
• Focal Length & FOV
• 6 mm, Horizontal FOV: 49`b0, Vertical FOV: 26`b0, Diagonal FOV: 57`b0
• Dori
• 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
• 6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Performance mode: up to 30 m, proactive mode: up to 10 m
• IR Wavelength
• Smart Supplement Light
• Yes
• Main Stream
• 50 Hz: 12.5 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 15 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 12.5 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 15 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Region of Interest (ROI)
• Scalable Video Coding (SVC)
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• API
• Isapi,sdk,isup,otap
• Security
• Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live View
• Protocols
• Tcp/ip, icmp, http, dhcp, DNS, RTP, rtsp, rtcp, NTP, igmp, qos, UDP
• User/Host
• Auto Network Replenishment (ANR)
• Client
• Web Browser
• Mobile Communication
• SIM Card Type
• Micro SIM
• Uplink and Downlink Data Rate
• Lte-tdd,lte-fdd,wcdma,gsm
• Image
• SNR
• Wide Dynamic Range (WDR)
• Digital WDR
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• Image Settings
• Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Transducer
• Transducer Type
• PIR + Radar
• Detection Angle
• 4 mm : Horizontal: 80`b0, vertical: 42`b0,6 mm'a3°Horizontal: 50`b0, vertical: 22`b0
• Detection Range
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.
• Built-in Microphone
• Reset Key
• Event
• Basic Event
• Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
• Linkage
• Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning
• For debugging only
• Plastic
• 0 `b0C to 50 `b0C (32 `b0F to 122 `b0F). Humidity 95% or less (non-condensing)
• Language
• English, Ukranian
• Heartbeat,mirror,flash log
• Startup and Operating Conditions
• 213.7 mm `d7 292.4 mm `d7 188.7 mm (8.4" `d7 11.5" `d7 7.3")
• 345 mm `d7 240 mm `d7 292 mm (13.6" `d7 9.4" `d7 11.5")
• Approx. 1.42 kg (3.1 lb.)
• Approx. 2.07 kg (4.6 lb.)
• Ternary Lithium
• Max. Charging Voltage
• Charging: 0 `b0C to 45 `b0C (32 `b0F to 113 `b0F)
• Discharging: -20 `b0C to 50 `b0C (-4 `b0F to 122 `b0F)
• Cycle Lifetime
• Approx. 185 g (0.4 lb.)
• Approval
• EMC
• Ce-emc: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
• CE and RCM certifications are only for the device sold in the European region.
• RF
• CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
• CE certification is only for the device sold in the European region.
• Safety
• CE and LOA certifications are only for the device sold in the European region.
• Protection

Specifications

• DS-2XS2T41G1-ID/4G/C05S07(4mm)
• 4MP Solar-powered Security Camera Setup
• High quality imaging with 4 MP resolution
• Water and dust resistant (IP67)
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
• 1/3" Progressive Scan CMOS
• 2560 `d7 1440
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Aperture
• 4mm: F1.28, 6mm: F1.6
• Depth of Field
• 4 mm: 2.7 m to ∞
• 6 mm: 5.9 m to ∞
• Lens Mount
• M12
• 850 nm
• Main stream: H.265/ H.264,
• Sub-stream: H.265/H.264/MJPEG,
• H.264+ and H.265+: main stream supports under performance mode
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• 1 fixed region for main stream
• H.264 and H.265 encoding
• 8 kHz/16 kHz
• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect,Hik-Central
• Plug-in required live view: IE 10, IE 11,
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
• Local service: Chrome 57.0+, Firefox 52.0+
• Cat 4, uplink: 50 Mbps, downlink: 150 Mbps
• Frequency
• Lte-tdd: B38/B40/B41
• Lte-fdd: b1/b3/b5/b7/b8/b20/b28
• Wcdma: B1/B5/B8
• GSM: B3/B5/B8
• Lte-tdd: B38/B40
• Lte-fdd: b1/b2/b3/b4/b5/b7/b8/b12/b17/b28/b66
• Wcdma:b1/b2/b3/b4/b5/b8
• GSM: b2/b3/b5/b8
• Standard
• ≥ 52 dB
• Blc,hlc,3d DNR
• Up to 12 m
• Built-in eMMC storage, up to 8 GB,
• Typical power scenarios: 1.85 W (4G working)
• Standby scenarios: 80 mW
• Max. power consumption: 7 W
• 12 VDC
• 6.5 W (deviation: `b1 1 W) Solar panels
• Power supply interface: `d85.5 mm coaxial power plug
• Extened solar panel: `d85.5 mm coaxial power plug
• Material
• Battery
• Battery Type
• Capacity
• 51.46 Wh
• 12.6 V
• Battery Voltage
• 8.1 V to 12.6 V
• Battery Life
• More than 800 cycles
• Proactive mode: 1.5 days,
• Standby mode: 11 days
• RCM: as/nzs cispr 32: 2015,
• CB: IEC 62368-1: 2014+A11,
• Ce-lvd: EN 62368-1: 2014/A11: 2017,
• LOA: iec/en 60950-1,
• Ce-rohs: 2011/65/EU,
• Weee: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006,
• IP67: IEC 60529-2013
