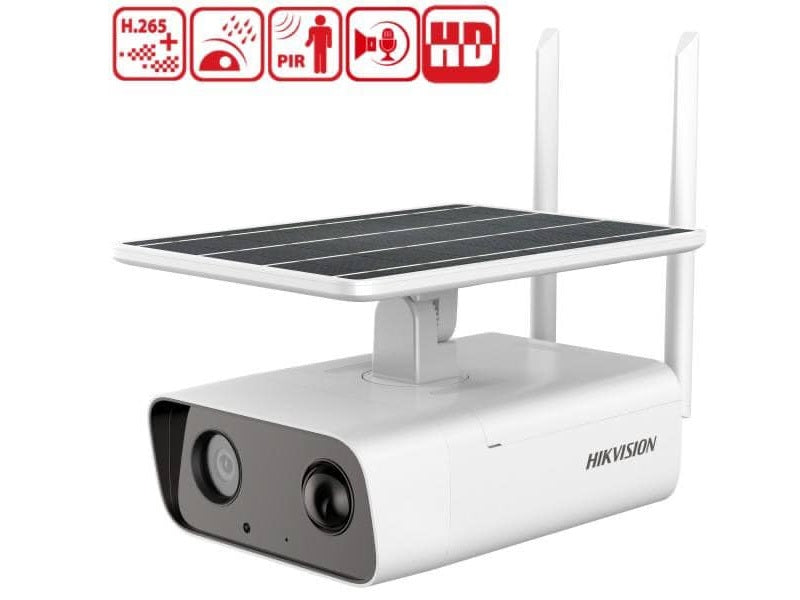

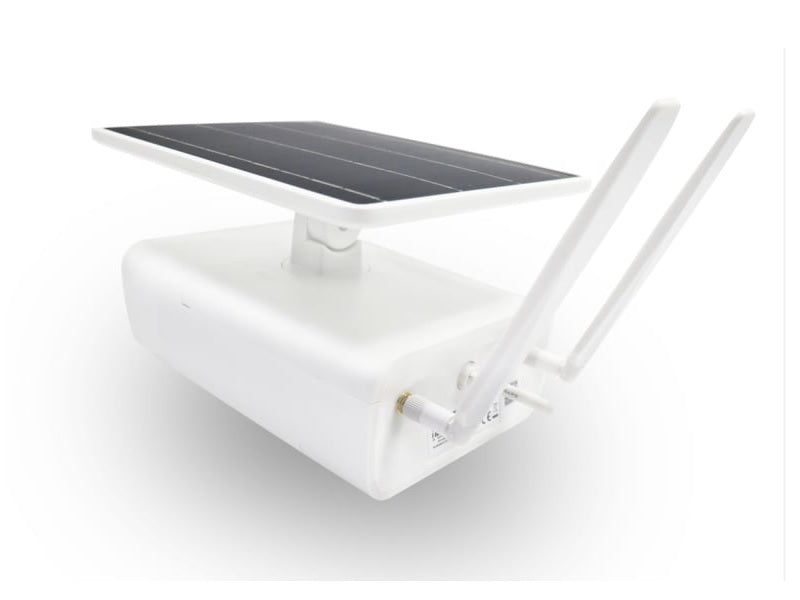

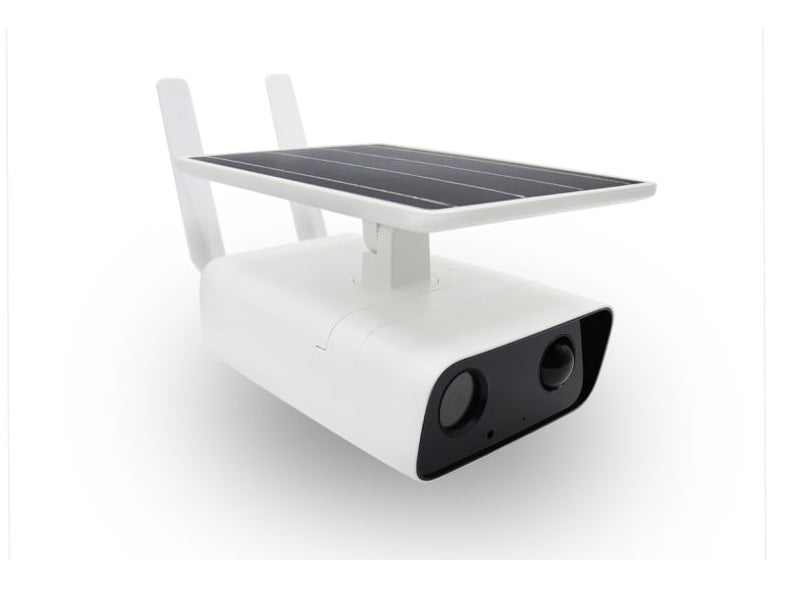

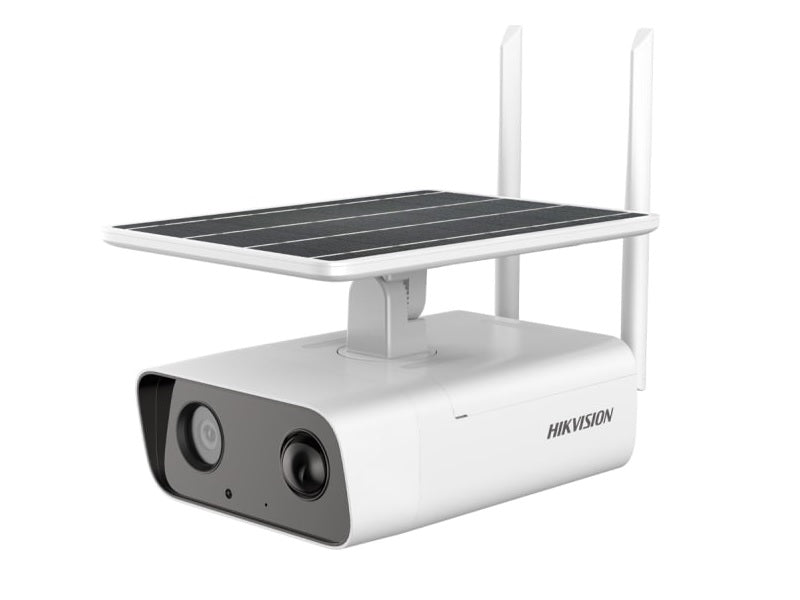

HIKVISION 4Mp-4G Solar Power Network Cam

Detects human body through passive infrared which is sensitive to body temperature (PIR). Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR.

Key features

• Standalone with built-in solar panel and battery
• Provide real-time security via built-in two-way audio
• Support remote control with Hik-Connect APP
• Image Sensor
• Max. Resolution
• Min. Illumination
• Shutter Time
• Day & Night
• IR cut filter
• Fixed focal lens, 4 and 6 mm optional
• Iris Type
• Fixed
• Focal Length & FOV
• 4 mm, horizontal FOV 83.7`b0, vertical FOV 44`b0, diagonal FOV 99.5`b0
• 6 mm, horizontal FOV 51.8`b0, vertical FOV 27.9`b0, diagonal FOV 60.5`b0
• Illuminator
• Supplement Light Range
• IR Wavelength
• Smart Supplement Light
• Yes
• Main Stream
• 50 Hz: 12.5 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 15 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 12.5 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 15 fps (640 `d7 480, 640 `d7 360)
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Region Of Interest (ROI)
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Simultaneous Live View
• API
• Ezviz
• Protocols
• Tcp/ip, icmp, http, FTP, dhcp, DNS, ddns, RTP, rtsp, rtcp, NTP, upnp, smtp, igmp, qos, ipv6, UDP, bonjour, ssl/tls
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Auto network replenishment (ANR)
• Client
• Web Browser
• Mobile Communication
• Lte-tdd, lte-fdd, wcdma, GSM
• Image
• Wide Dynamic Range (WDR)
• Day/Night Switch
• Day, Night, Auto, Schedule
• Image Enhancement
• BLC, HLC, 3D DNR, Defog, EIS, Distortion correction
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• PIR
• PIR Range
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
• Built-in 8 GB eMMC storage (6 GB avaible for recording)
• Built-In Microphone
• Reset Key
• Event
• Basic Event
• PIR, exception
• Linkage
• Upload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email
• Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Startup And Operating Conditions
• 0 `b0C to 40 `b0C (32 `b0F to 104 `b0F), humidity 95% or less (non-condensing)
• 245.8 mm `d7 156 mm `d7 214 mm (9.7" `d7 6.1" `d7 8.4")
• 730 mm `d7 722 mm `d7 285 mm (28.7" `d7 28.4" `d7 11.2")
• PV Panel
• Dimension: 205.1 mm `d7 145.1 mm `d7 2.35 mm (8.1" `d7 5.7" `d7 0.1")
• Standard testing condition: AM = 1.5, 25 `b0C (77 `b0F), 1000 W/m'b2, SMQ + 12%
• Ternary lithium
• Max. Charging Voltage
• 0 `b0C to 50 `b0C (32 `b0F to 122 `b0F)
• Charging Condition: 0 `b0C to 50 `b0C (32 `b0F to 122 `b0F) (deviation: `b1 5 `b0C)
• Discharging Condition: -20 `b0C to 60 `b0C (-4 `b0F to 140 `b0F) (deviation: `b1 5 `b0C)
• Cycle Lifetime
• Low consumption real-time mode: 1 day (at the rate of one-hour alarm and half-hour remote live view per day)
• Wakeup Mode: 7 days (at the rate of 1.67-hour remote live view per day)
• Approx. 185 g (0.4 lb.)
• Approval
• RF
• CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
• EMC
• Ce-emc (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
• Safety
• Protection

Specifications

• Ds-2xs2t41go-id/4g/c04s05
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Water and dust resistant (IP66)
• 1/3" Progressive Scan CMOS
• 2688 `d7 1520
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Aperture
• F1.6
• Lens Mount
• M12
• Performance mode: up to 30 m
• Proactive mode: up to 10 m
• 850 nm
• Main stream: H.265+(performance mode)/H.265/H.264+(performance mode)/ H.264
• Sub-stream: H.265/H.264/MJPEG
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• 1 fixed region for main stream
• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• G.711/g.722.1/g.726/mp2l2/pcm/aac/mp3
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Proactive mode: Hik-Connect
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• Frequency
• LTE-TDD: Band 38/40/41;
• LTE-FDD: Band 1/3/5/7/8/20/28;
• WCDMA: Band 1/5/8;
• GSM: band 3/5/8
• Standard
• 120 dB
• Up to 10 m
• Typical power scenarios: 1.85 W (4G working)
• Standby scenarios: 40 mW
• Max. power consumption: 4.8 W
• Power supply: 5 VDC `b1 10%, reverse polarity protection
• Extened solar panel: `d83.5 mm, 5 VDC
• 4G model: approx. 1235 g (2.7 lb.)
• 4G model: approx. 1890 g (4.2 lb.)
• Standard output consumption: 5 W
• Battery
• Battery Type
• Capacity
• 10 Ah
• 4.25 V
• Battery Voltage
• 3.0 V to 4.2 V
• Battery Life
• More than 500 cycles
• FCC (47 CFR Part 15, Subpart B)
• RCM (as/nzs cispr 32: 2015)
• Ce-lvd (EN 62368-1: 2014/A11: 2017)
• IP66 (IEC 60529-2013)
