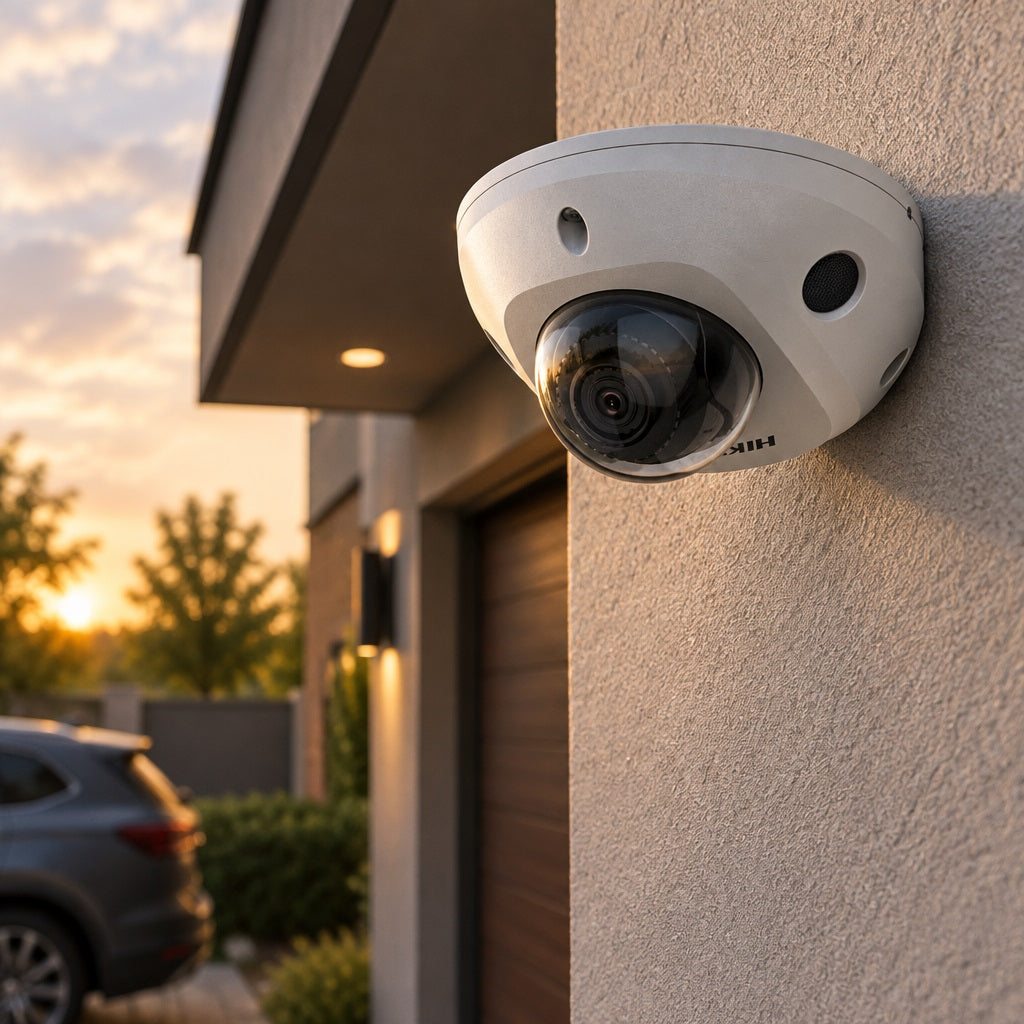

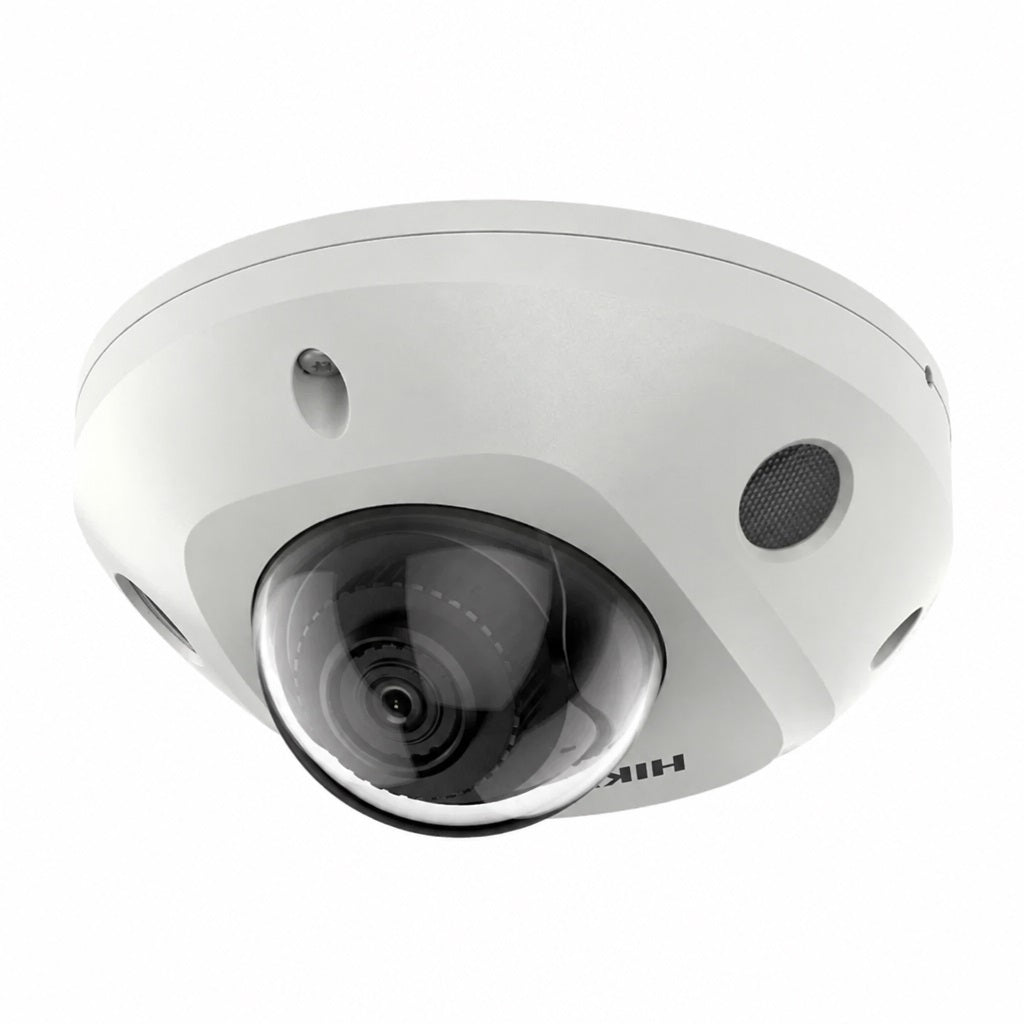

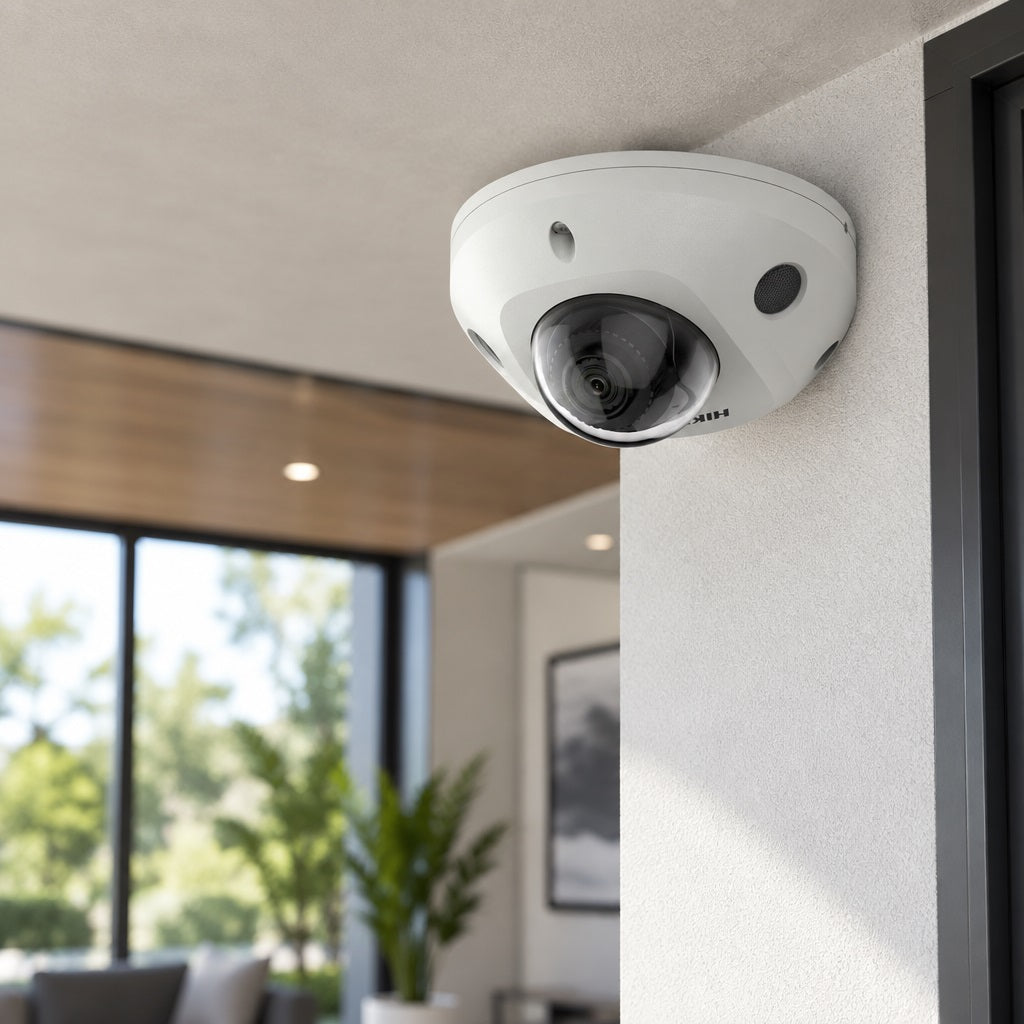

# Hikvision 4MP AcuSense Fixed Mini Dome Network Camera

The **Hikvision 4MP AcuSense Fixed Mini Dome Network Camera** is a professional surveillance solution designed to deliver high-quality 4MP imaging, intelligent event detection, and reliable performance in demanding security environments.

Powered by **DarkFighter technology**, the camera provides excellent low-light imaging, helping maintain clearer and more detailed footage when lighting conditions are poor. Hikvision`s **AcuSense deep-learning technology** focuses on the classification of **human and vehicle targets**, allowing the surveillance system to distinguish relevant security events more effectively.

With **120 dB Wide Dynamic Range (WDR)**, the camera delivers clearer images in scenes containing both bright and dark areas. Efficient **H.265+ video compression** helps reduce bandwidth and storage requirements while maintaining high-quality surveillance footage.

The camera also supports intelligent security functions including **line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, motion detection, and face capture**.

## Key Features

- High-quality imaging with **4MP resolution**
- Excellent low-light performance with **powered-by-DarkFighter technology**
- **AcuSense human and vehicle classification** based on deep learning
- **120 dB WDR** for clearer images against strong backlighting
- Efficient **H.265+ compression technology**
- Built-in microphone
- Built-in microSD card slot supporting up to **512GB**
- Face capture support
- Smart motion and perimeter protection events
- Supports **12V DC and PoE**
- **IP67** water and dust resistance
- **IK08** vandal-resistant construction
- Reset key
- Ethernet connectivity
- Selected variants support audio and alarm interfaces
- Selected **-W variants support Wi-Fi connectivity**

## Image Parameters

**Image Parameter Switch:** Yes

**Image Settings:**
Rotate, saturation, brightness, contrast, sharpness, gain, and white balance are adjustable through client software or a web browser.

**Day/Night Modes:**
Day, Night, Auto, and Schedule

**Wide Dynamic Range:**
120 dB WDR

**Signal-to-Noise Ratio:**
≥ 52 dB

**Image Enhancement:**
BLC, HLC, and 3D DNR

These image-processing technologies help provide clearer surveillance footage across different lighting conditions.

## Network & Storage Interface

**Ethernet Interface:**
1 × RJ45 10M/100M self-adaptive Ethernet port

**On-Board Storage:**
Built-in memory card slot supporting a **microSD card up to 512GB**

**Built-in Microphone:**
Yes

**Reset Key:**
Yes

The onboard microSD storage option allows the camera to record footage locally, providing additional flexibility for standalone or network-based surveillance deployments.

## Audio Interface

For **-IS / -IWS variants:**

**Audio Input:**
1 × line input using a two-core terminal block

- Maximum input amplitude: 3.3 Vpp
- Input impedance: 4.7 kΩ
- Interface type: Non-equilibrium

**Audio Output:**
1 × line output using a two-core terminal block

- Maximum output amplitude: 3.3 Vpp
- Output impedance: 100 Ω
- Interface type: Non-equilibrium

## Alarm Interface

For **-IS / -IWS variants:**

- 1 × alarm input
- 1 × alarm output
- Maximum alarm output: **12 VDC, 20 mA**

## Basic Events

The camera supports a range of standard security events, including:

- Motion detection
- Human and vehicle target classification
- Video tampering alarm
- Exception detection

The human and vehicle classification capability helps improve the relevance of motion-based alerts by focusing on defined target types.

## Smart Events

Supported smart-event functions include:

- Line crossing detection
- Intrusion detection
- Region entrance detection
- Region exiting detection
- Scene change detection

Line crossing, intrusion, region entrance, and region exiting events support alarm triggering according to specified target types, including **humans and vehicles**.

## Event Linkage

When a supported event is triggered, the camera can perform several linkage actions, including:

- Upload to FTP
- Upload to NAS
- Save to memory card
- Notify surveillance centre
- Trigger recording
- Trigger image capture
- Send email notification

## Deep Learning Functions

**Face Capture:** Yes

The camera combines deep-learning functionality with Hikvision AcuSense technology to provide more intelligent surveillance and event detection.

## Power Requirements

### -IS Variant

**12V DC:**

- 12 VDC ±25%
- 0.45 A
- Maximum power consumption: **5.5W**
- `d85.5 mm coaxial power plug
- Reverse polarity protection

**PoE:**

- IEEE 802.3af
- Class 3
- 36V to 57V
- 0.18A to 0.11A
- Maximum power consumption: **6.5W**

### -IWS Variant

**12V DC:**

- 12 VDC ±25%
- 0.5 A
- Maximum power consumption: **6W**
- `d85.5 mm coaxial power plug
- Reverse polarity protection

**PoE:**

- IEEE 802.3af
- Class 3
- 36V to 57V
- 0.19A to 0.12A
- Maximum power consumption: **7W**

## Construction

**Material:**

- Base: Aluminium
- Cover: Plastic

The combination of an aluminium base and protective cover provides a compact and durable mini-dome construction suitable for professional surveillance environments.

## Dimensions & Weight

**Camera Dimensions:**
`d8110 mm × 57.4 mm

**Package Dimensions:**
134 mm × 134 mm × 108 mm

**Camera Weight:**
Approx. 380 g

**Weight with Packaging:**
Approx. 620 g

## Operating Environment

**Operating Temperature:**
-30°C to 60°C

**Operating Humidity:**
95% or less, non-condensing

**Storage Temperature:**
-30°C to 60°C

**Storage Humidity:**
95% or less, non-condensing

The broad operating-temperature range allows the camera to perform reliably across a variety of indoor and outdoor surveillance environments.

## Protection Rating

**Water & Dust Resistance:**
IP67 – IEC 60529-2013

**Vandal Resistance:**
IK08 – IEC 62262:2002

The **IP67** protection rating provides resistance against water and dust, while the **IK08** rating provides additional protection against physical impact.

## General Functions

Supported general camera functions include:

- Anti-flicker
- Heartbeat
- Mirror
- Privacy mask
- Flash log
- Password reset via email
- Pixel counter

## Language Support

The camera supports **33 languages**, including:

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), and Ukrainian.

## Approvals & Compliance

### RF – Wi-Fi (-W Variants)

- FCC ID – FCC Part 15.247
- CE-RED
- EN 301489-1
- EN 301489-17
- EN 300328
- EN 62311

### EMC

- FCC – 47 CFR Part 15, Subpart B
- CE-EMC – EN 55032
- EN 61000-3-2
- EN 61000-3-3
- EN 50130-4
- RCM – AS/NZS CISPR 32
- IC – ICES-003
- KC – KN32 / KN35

### Safety

- UL 62368-1
- CB – IEC 62368-1
- CE-LVD – EN 62368-1
- LOA – IEC/EN 60950-1

### Environmental Compliance

- CE-RoHS – 2011/65/EU
- WEEE – 2012/19/EU
- REACH – Regulation (EC) No. 1907/2006

## Ideal Applications

The Hikvision 4MP AcuSense Fixed Mini Dome Network Camera is suitable for professional surveillance applications including:

- Retail stores
- Offices
- Warehouses
- Residential properties
- Building entrances
- Commercial premises
- Parking areas
- Schools and educational facilities
- Indoor and outdoor security monitoring

With **4MP imaging, DarkFighter low-light technology, AcuSense human and vehicle classification, 120 dB WDR, smart event detection, face capture, local microSD storage, PoE support, and IP67/IK08 protection**, this Hikvision mini dome camera provides a comprehensive surveillance solution for applications requiring intelligent monitoring and reliable image quality.
