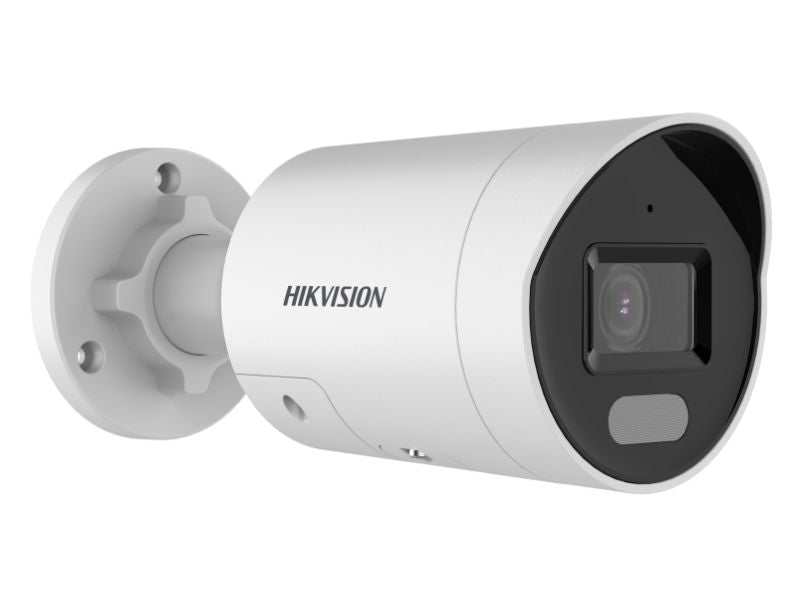

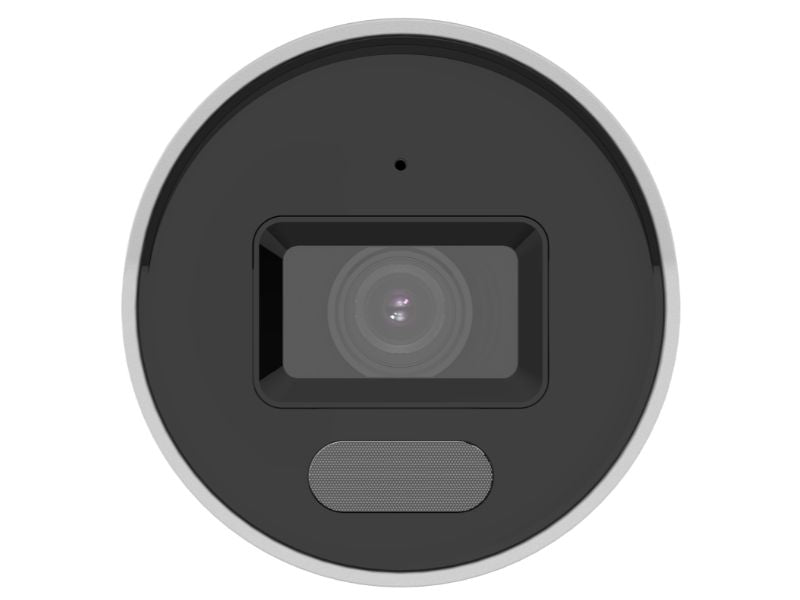

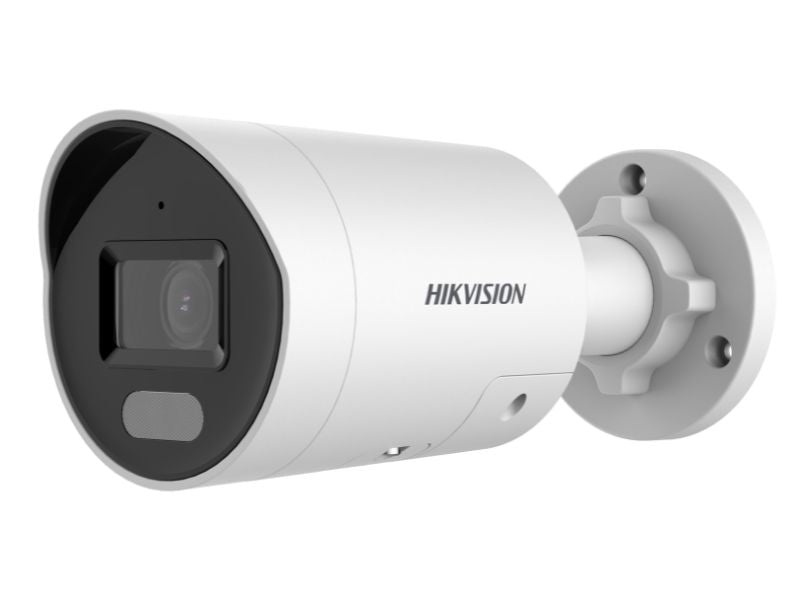

HIKVISION 4Mp Acusense Strobe Light and

4 MP AcuSense Strobe Light and Audible Warning Fixed Mini Bullet Network Camera. Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications.

Key features

• Audible Warning Fixed Mini Bullet IP Cam
• Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Support on-board storage up to 512 GB (SD card slot)
• Active strobe light and audio alarm to warn intruders off
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 360`b0,tilt: 0`b0 to 90`b0,rotate: 0`b0 to 360`b0
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 100.2`b0, vertical FOV 54.7`b0, diagonal FOV 119.7`b0
• 4 mm, horizontal FOV 81.1`b0, vertical FOV 44.7`b0, diagonal FOV 94.6`b0
• Iris Type
• Fixed
• Dori
• 2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
• 4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
• Illuminator
• Supplement Light Type
• IR,White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Heop
• Open Resources
• Open Capability
• Deep Learning Structure
• Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
• Programming Language
• C,C++
• Main Stream
• 50 Hz: 25 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 x 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (1280 x 720, 640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• The third stream is supported under certain settings.
• Fourth Stream
• 50 Hz: 10 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• The fourth stream is supported under certain settings.
• The third stream and the fourth stream are supported under certain settings.
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 5 fixed regions for main stream and sub-stream
• Target Cropping
• Mono sound
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• SNR
• Wide Dynamic Range (WDR)
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone
• Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage
• Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
• Smart Event
• Scene change detection, audio exception detection, defocus detection, unattended baggage detection,object removal detection
• Deep Learning Function
• Face Capture
• People Counting
• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting

Specifications

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Smart Hybrid Light: advanced technology with long range
• Water and dust resistant (IP67)
• 1/3" Progressive Scan CMOS
• 2688 `d7 1520
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.0
• Depth of Field
• 2.8 mm: 1.9 m to ∞
• 4 mm: 2.5 m to ∞
• Up to 40 m
• 850 nm
• Memory: 60 MB,
• Smart RAM: 400 MB,
• eMMC: 2 GB
• 1.5 tops
• HEOP 2.0 OpendevSDK
• Main stream: H.265/H.264/H.264+/H.265+,
• Sub-stream: H.265/H.264/MJPEG,
• Third stream: H.265/H.264,
• Fourth stream: H.265/H.264/MJPEG,
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• G.711/g.722.1/g.726/mp2l2/pcm/mp3/aac-lc
• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect,Hik-Central
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• BLC,HLC,3D DNR,Defog
• ≥ 52 dB
• 130 dB
• 4 programmable polygon privacy masks
• Yes,1 built-in microphone
