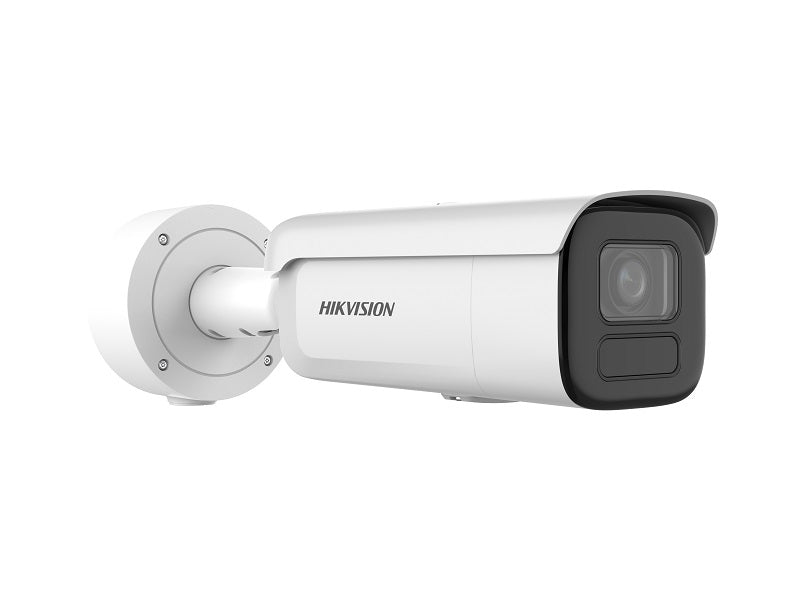

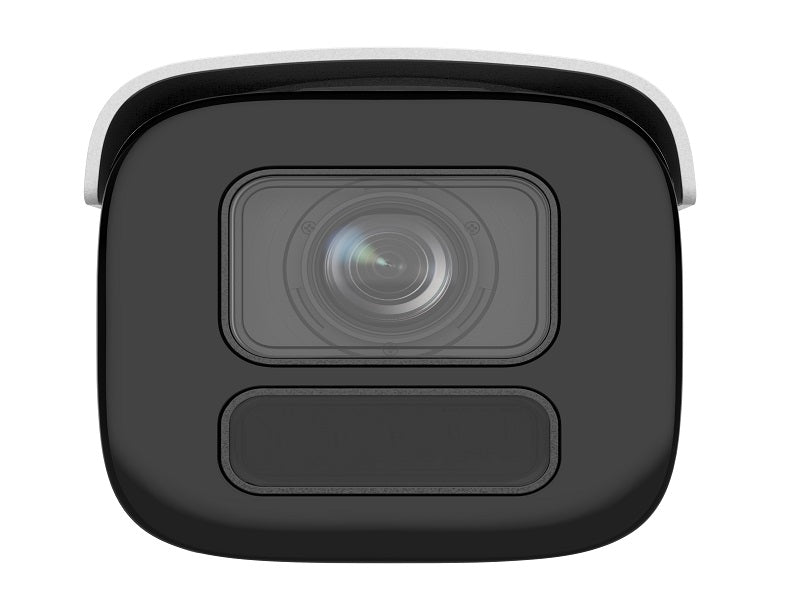

Hikvision DS-2CD2646G2H-IZS 4MP AcuSense Motorized Varifocal Bullet IP Camera - 2.8-12mm, 60m IR, IP67

4 MP Powered by Darkfighter Motorized Varifocal Bullet Network Camera. Clear imaging against strong back light due to 120 dB WDR technology.

Key features

• Excellent low-light performance via powered-by-DarkFighter technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
• Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV
• 2.8 to 12 mm, horizontal FOV 105.4° to 34.3°, vertical FOV 56.1° to 19.3°, diagonal FOV 125.8° to 39.4°
• Iris Type
• Fixed
• Dori
• Wide: D: 63.4m, O: 25.2 m, R: 12.7 m, I: 6.3 m
• Tele: D: 180.6 m, O: 71.7 m, R: 36.1 m, I: 18.1 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Third stream is supported under certain settings.
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View
• API
• ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• SNR
• Wide Dynamic Range (WDR)
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K'd9, interface type: non-equilibrium,
• 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 `d9, interface type: non-equilibrium
• Alarm
• 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
• Smart Event
• Scene change detection
• Linkage
• Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
• Deep Learning Function
• Face Capture
• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types (human and vehicle)
• 12 VDC ± 25%, 1.21 A, max. 14.5 W,two-core terminal block,reverse polarity protection,
• PoE: IEEE 802.3at, Class 4, max. 18 W
• Ø140 mm × 333.8 mm (Ø5.5" × 13.1")
• 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• Approx. 1490 g (3.3 lb.)
• Approx. 2349 g (5.2 lb.)
• 30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Heartbeat,mirror,password reset via email,pixel counter,anti-banding
• Language
• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Approval
• EMC
• Ce-emc: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
• Safety
• Protection

Specifications

• 2.8/12MM ds-2cd2646g2h-izs
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• 1/3" Progressive Scan CMOS
• 2688 × 1520
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• Ø14
• Aperture
• F1.0
• Depth of Field
• 1 m to ∞
• Up to 60 m
• 850 nm
• Main stream: H.265/H.264/H.264+/H.265+,
• Sub-stream: H.265/H.264/MJPEG,
• Third stream: H.265/H.264,
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• G.711/g.722.1/g.726/mp2l2/pcm/mp3/aac-lc
• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect,Hik-Central
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Blc,hlc,3d DNR
• ≥ 52 dB
• 120 dB
• 4 programmable polygon privacy masks
• Material
• Front cover: Metal, body: Metal, bracket: Metal
• IC: ICES-003: Issue 7,
• RCM: as/nzs cispr 32: 2015
• CB: IEC 62368-1: 2014+A11,
• Ce-lvd: EN 62368-1: 2014/A11: 2017
• Ce-rohs: 2011/65/EU,
• Weee: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006
• IP67: IEC 60529-2013,IK10: IEC 62262:2002
