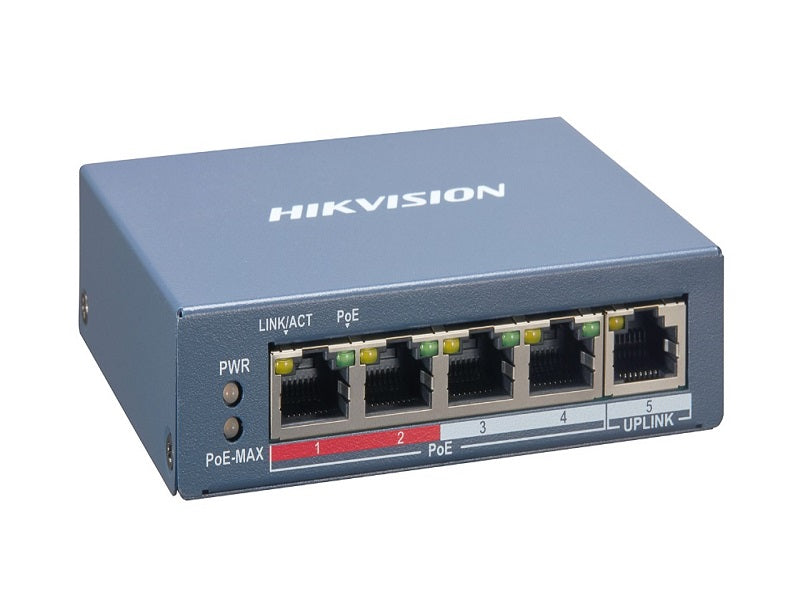

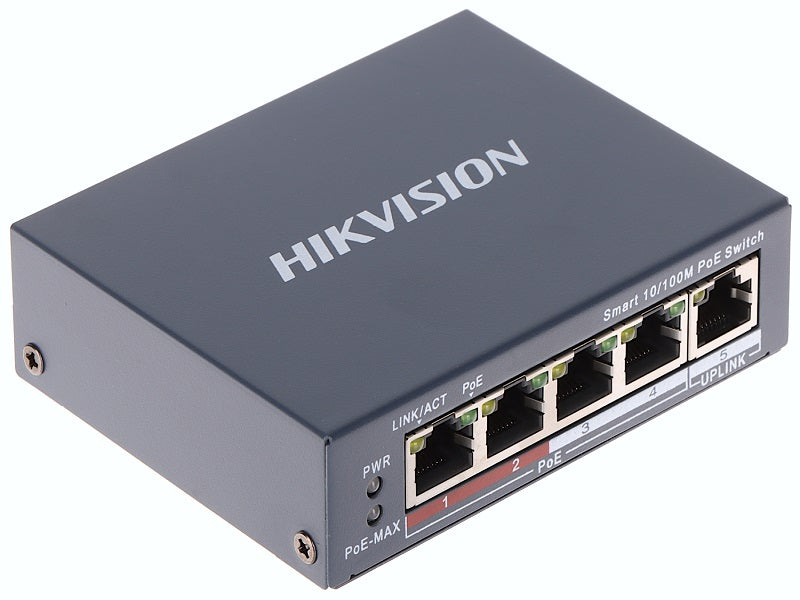

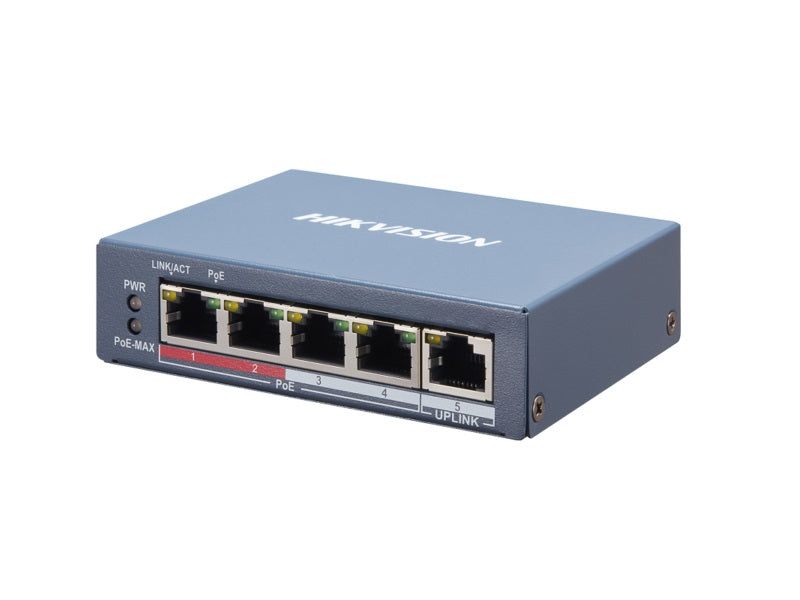

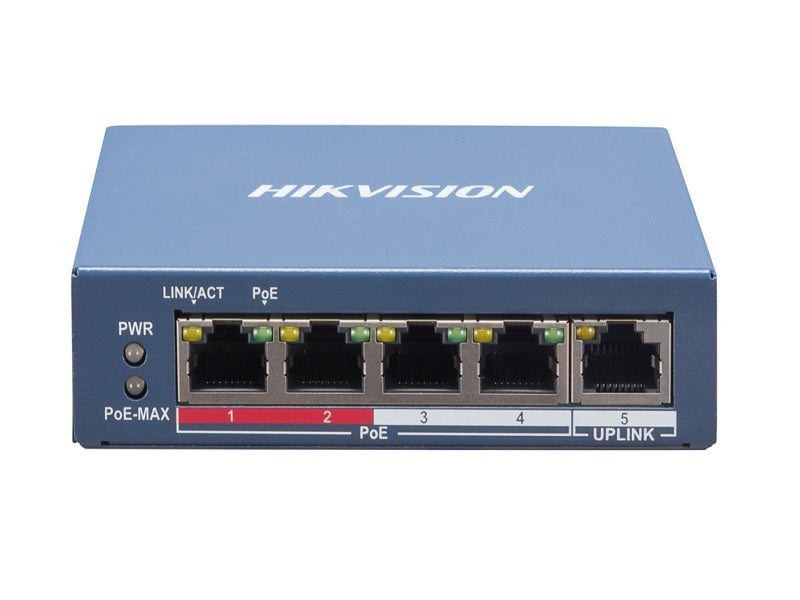

Hikvision 4P L2 Smart Managed 100M Poe

4 `d7 100 Mbps PoE RJ45 ports, 1 `d7 100 Mbps network RJ45 port. IEEE 802.3at/af standard for PoE ports.

Key features

• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.
• 4 `d7 10/100 Mbps PoE ports, and 1 `d7 10/100 Mbps RJ45 port
• Working Mode
• Extend mode
• Forwarding Mode
• Store-and-forward switching
• MAC Address Table
• Internal Cache
• Switching Capacity
• Packet Forwarding Rate
• PoE Power Supply
• PoE Standard
• PoE Power Pin
• PoE Power Budget
• Software Function
• Device Maintenance
• Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
• PoE Configuration
• Support rate, flow control, and switch configuration
• Shell
• Metal material, fan-free design
• 105 mm `d7 27.6 mm `d7 83.1 mm (4.76” `d7 3.47” `d7 1.09”)
• Relative Humidity
• Max. Power Consumption
• Approval
• EMC
• FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• Safety
• UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• Chemistry
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Specifications

• Ds-3e1105p-ei
• 4 Port Fast Ethernet Smart POE Switch
• RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard mode (default)
• Standard
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
• 2 K
• 768 Kbits
• 1 Gbps
• 0.744 Mpps
• Ports 1 to 2
• IEEE 802.3af, IEEE 802.3at
• End-span: 1/2(-), 3/6(+)
• Mid-span: 4/5(+), 7/8(-)
• 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• Ports 1 to 4
• 30 W
• 60 W
• 0.22 kg (0.49 lb)
• 0.816 kg (1.80 lb)
• Dimension (W `d7 H `d7 D)
• 0`b0C to 40`b0C (32`b0F to 104`b0F)
• 40`b0C to 85`b0C (-40`b0F to 185`b0F)
• 5% to 95% (no condensation)
• 48 VDC, 1.35 A
• 65 W
