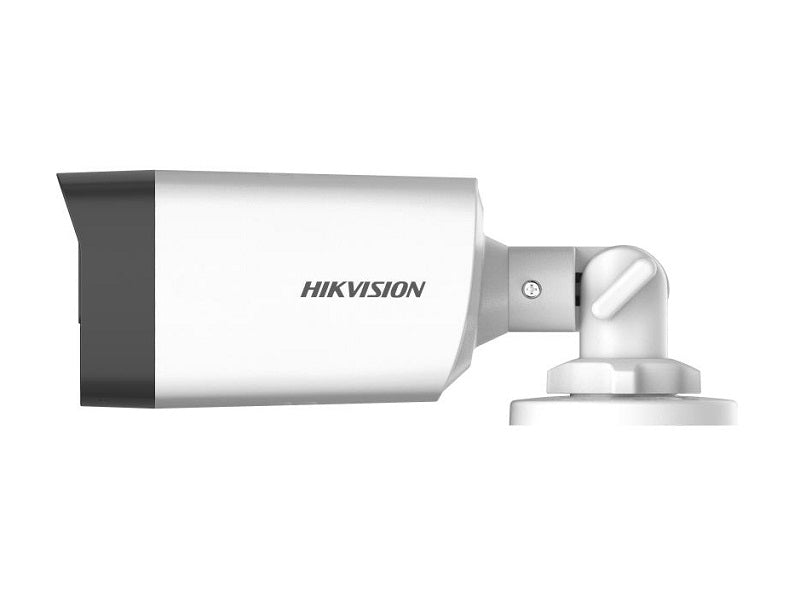

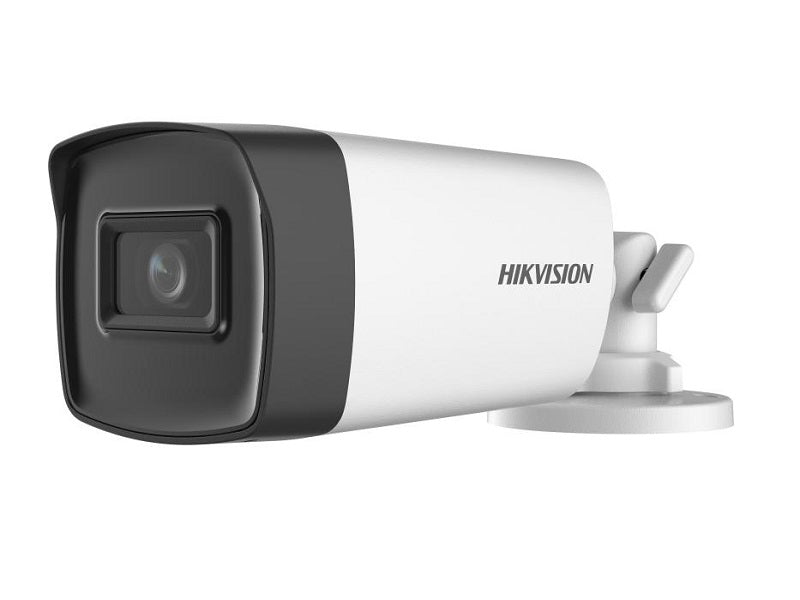

HIKVISION 5Mp Bullet 30Mtr 6mm Lens

High quality imaging with 5 MP, 2560 `d7 1944 resolution. 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens.

Key features

• Up to 30 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Image Sensor
• Max. Resolution
• Min. Illumination
• 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time
• Day & Night
• ICR
• Angle Adjustment
• Pan: 0 to 360`b0, Tilt: 0 to 180`b0, Rotation 0 to 360`b0
• Pal/ntsc
• 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV
• 2.4 mm, horizontal FOV: 103`b0, vertical FOV: 81`b0, diagonal FOV: 142`b0
• 2.8 mm, horizontal FOV: 86`b0, vertical FOV: 63`b0, diagonal FOV: 120`b0
• 3.6 mm, horizontal FOV: 80`b0, vertical FOV: 63`b0, diagonal FOV: 112`b0
• 6 mm, horizontal FOV: 55`b0, vertical FOV: 40`b0, diagonal FOV: 70`b0
• Image
• Image Parameters Switch
• Std/high-sat
• Image Settings
• Frame Rate
• Day/Night Mode
• Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)
• Digital WDR
• Image Enhancement
• DWDR/BLC/HLC/Global
• Noise Reduction
• Yes
• White Balance
• Auto/Manual
• AGC
• Tvi/ahd/cvi/cvbs
• 78.9 mm `d7 75.4 mm `d7 216.6 mm (3.10" `d7 2.97" `d7 8.53")
• Approx. 330 g (0.73 lb.)
• 40 `b0C to 60 `b0C (-40 `b0F to 140 `b0F), humidity: 90% or less (non-condensation)
• Communication
• Hikvision-c
• Language
• English
• Consumption
• Max. 4.3 W
• IR Range
• Approval
• Protection

Specifications

• Ds-2ce17hot-it1f-6mm
• 5 MP Fixed Bullet Camera
• Water and dust resistant (IP67)
• 5 MP cmos
• 2560 (H) `d7 1944 (V)
• PAL: 1/25 s to 1/50, 000 s
• NTSC: 1/30 s to 1/50, 000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Brightness, Sharpness, Mirror, Smart IR
• TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
• AHD: 5M@20fps, 4M@30fps, 4M@25fps
• CVI: 4M@30fps, 4M@25fps
• Cvbs: pal/ntsc
• Material
• Front Cover: Metal
• Main Body: Plastic
• 12 VDC `b1 25%
• Up to 30 m
• IP67
