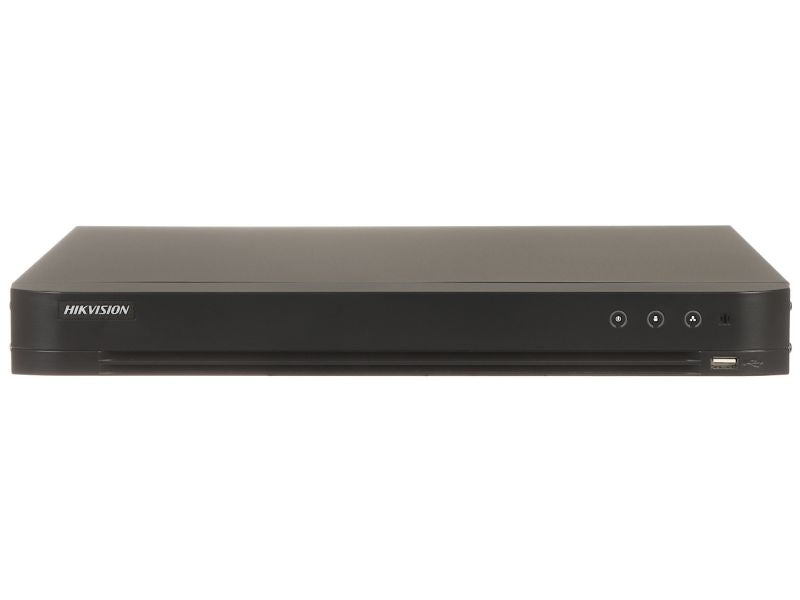

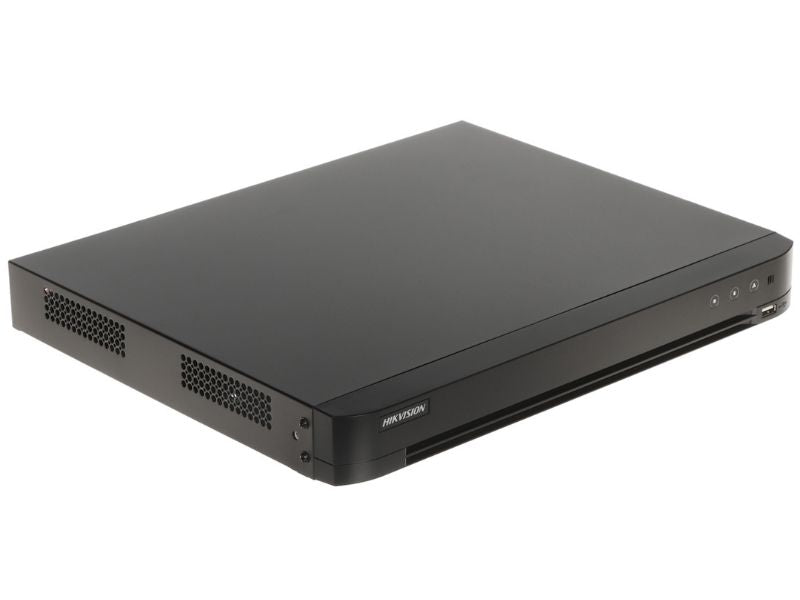

Hikvision 8Ch Acusense Dvr Up To 5mp

Supports 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm. Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera).

Key features

• 8 channels and 2 HDD 1U AcuSense DVR
• Encoding ability up to 3K/5M Lite @ 12 fps
• Up to 12-ch network cameras can be connected
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology
• Perimeter Protection
• Human/Vehicle Analysis
• Facial Recognition
• Face Picture Comparison
• Face Picture Library
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• 4-ch (up to 12-ch), Up to 6 MP resolution
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 `d7 1944)@20 fps, 4 MP(2560 `d7 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• 5 MP(2560 `d7 1944)@20 fps, 4 MP(2560 `d7 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• 3K(2880`d71620)@20/25 fps, 5MP(2592 `d7 1944)@20 fps, 4MP(2560 `d7 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
• Pal/ntsc
• 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz,
• 8-ch, RCA (2.0 Vp-p, 1 K'd9), 8-ch via coaxial cable;1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 K'd9) 8-ch via coaxial cable ;4-ch, RCA (2.0 Vp-p, 1 K'd9), 8-ch via coaxial cable
• 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
• Synchronous Playback
• Recording
• Encoding Resolution
• 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame Rate
• For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• Dual-stream
• Support main stream or sub stream
• Stream Type
• Remote Connection
• TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Total Bandwidth
• Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
• Sata
• 2 SATA interface, up to 10 TB capacity for each disk
• Alarm In/Out
• Consumption
• Working Temperature
• 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
• Working Humidity
• 384 `d7 313 `d7 52 mm (15.1 `d7 12.3 `d7 2.0 inch)

Specifications

• Ids-7208hqhi-m2/xt
• 8-ch 1080p 1U H.265 AcuSense DVR
• Support 4-ch AcuSearch Technology
• Efficient H.265 pro+ compression technology
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 4-ch
• Up to 16 face picture libraries
• Motion Detection 2.0
• 8-ch
• 1-ch, BNC (1.0 Vp-p, 75 `d9),
• resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480
• 1-ch, RCA (Linear, 1 K'd9)
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
• For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• 32 Kbps to 6 Mbps
• G.711u
• 64 Kbps
• 64
• 96 Mbps
• 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• RS-485 (half-duplex)
• Front panel: 1 `d7 USB 2.0;
• Rear panel: 1 `d7 USB 2.0
• 8/4;N/A (optional to support );4/1
• 12 VDC, 2.5 A
• ≤ 30 W
• 10% to 90%
• Dimension (W `d7 D `d7 H)
• ≤ 1.78 kg (3.9 lb)
