Hikvision 8CH eDVR CCTV Kit with 1TB SSD - 8x 2MP Mini Bullet Cameras, 100m Cat5

Hikvision 8-channel analog CCTV kit with eDVR offers a reliable and space-saving HD surveillance system using modern built-in 1TB SSD storage. It features 8 × 2MP fixed mini bullet cameras with 1080p resolution, up to 20m IR night vision, IP67 weatherproof rating. The advanced 8CH eDVR supports H.265 compression, audio via coax, low power usage,this kit includes a Zatech 100m Cat5 Ethernet cable with 8 × videobaluns (paier), 8 × DC connectors, and 1 × Hikvision 8CH power supply-allowing both power and video transmission over a single cable. It's a complete solution for clean, professional-grade analog CCTV installation with all storage built right into the DVR.

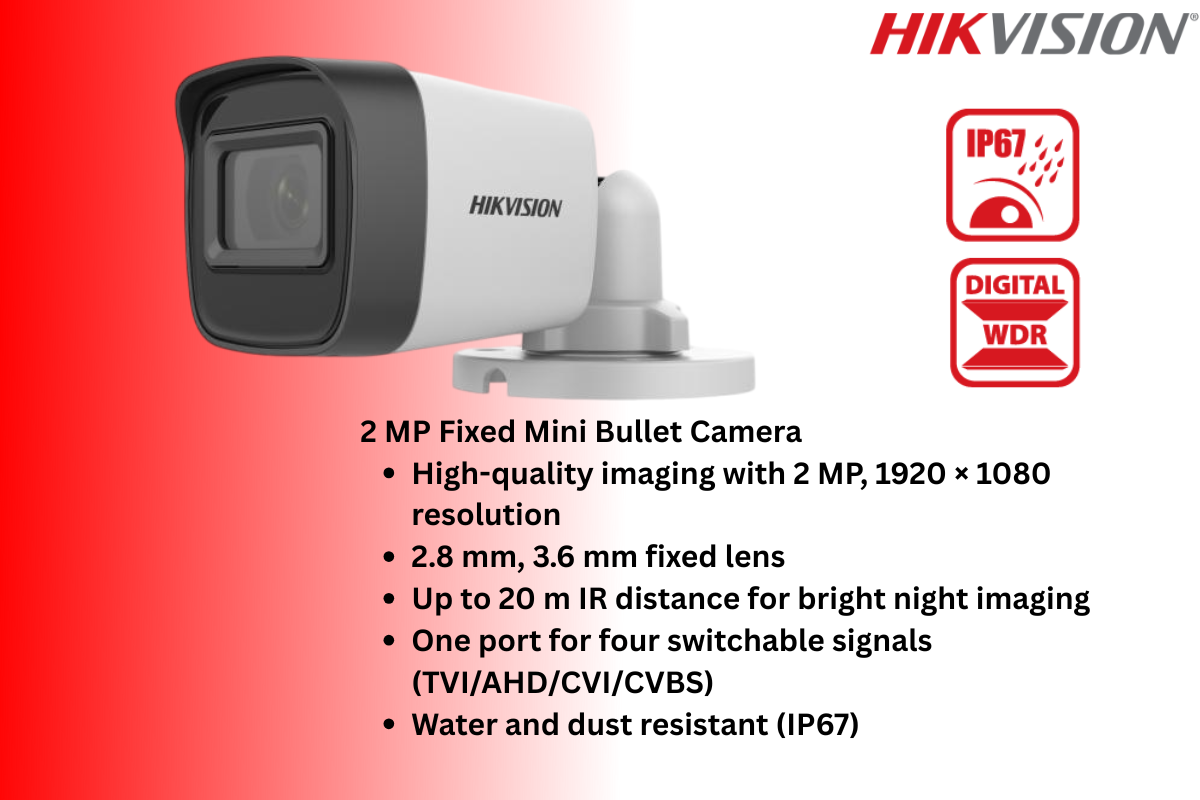

Camera

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 90 , Rotation: 0 to 360
• Lens
• Lens Type2.8 mm, 3.6 mm Fixed Lens
• Focal Length & FOV2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
• Lens MountM12
• Illuminator
• Supplement Light RangeUp to 20 m
• Supplement Light TypeSmart,IR,White Light
• Image
• Frame RateTVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters SwitchSTD/HIGH-SAT
• Day/Night ModeAuto/Color
• White BalanceAuto
• Image EnhancementDWDR, BLC, Global
• Noise Reduction2D DNR
• Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

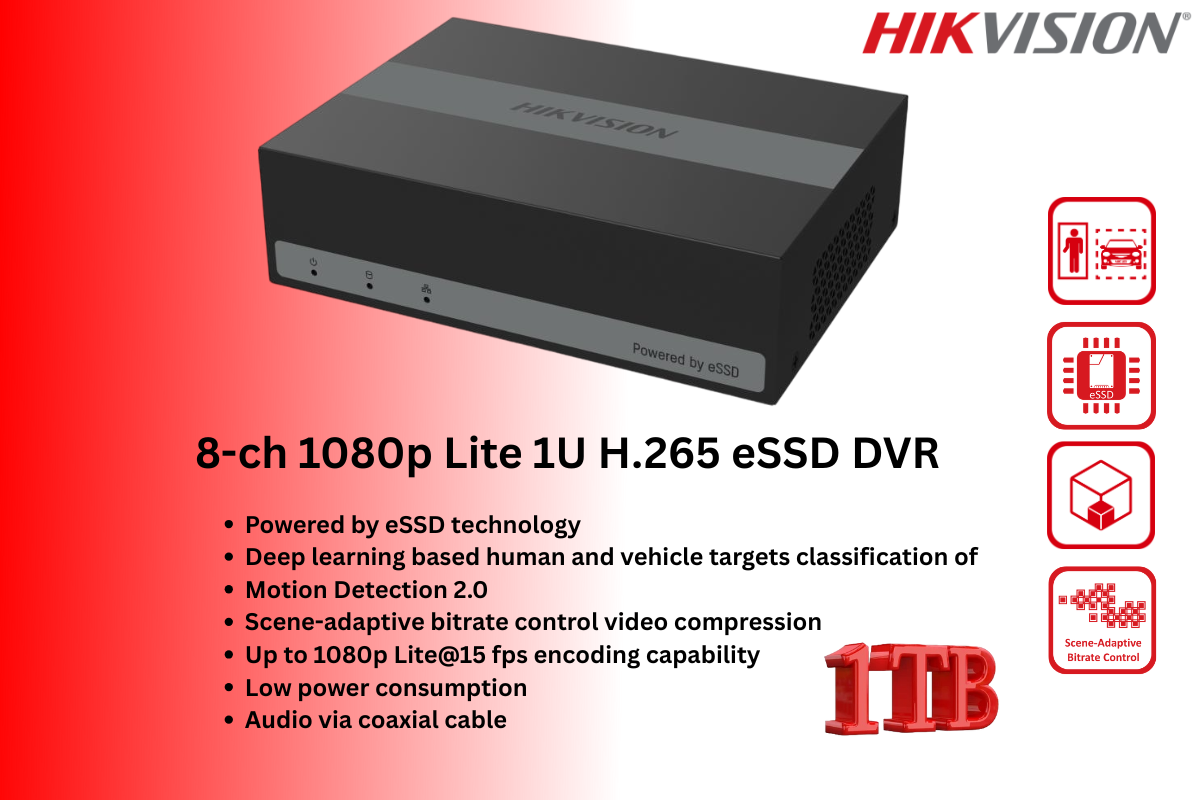

eDVR

• 8-ch 1080p Lite 1U H.265 eSSD DVR

Built-In SSD

• Minimalist eSSD design brings low power consumption
• Integrated storage design provides the plug-and-play device use

Compression and Recording

• Scene-adaptive bitrate control technology would precisely allocate videos in eSSD according to the actual scene
• Full channel recording at up to 2 MP Lite resolution

Recording

• Video Compression H.265 Pro/H.265
• Encoding Resolution 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame Rate
• Main stream
• 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
• Note
• 1080p Lite/720p is 15 fps by default
• Sub-stream
• CIF/QVGA@15 fps

Video and Audio

• IP Video Input
• 2-ch
• Up to 5 MP resolution
• Support H.265+/H.265 IP cameras
• Analog Video Input
• 8-ch
• BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection

Auxiliary Interface

• Capacity
• Built-in 1024 GB eSSD (960 GB available)
• Note
• The device can store about 4 weeks videos for 8-ch analog cameras (default parameters),
• this estimation is for reference only.
• USB Interface Rear panel: 2 × USB 2.0
• Alarm In/Out N/A

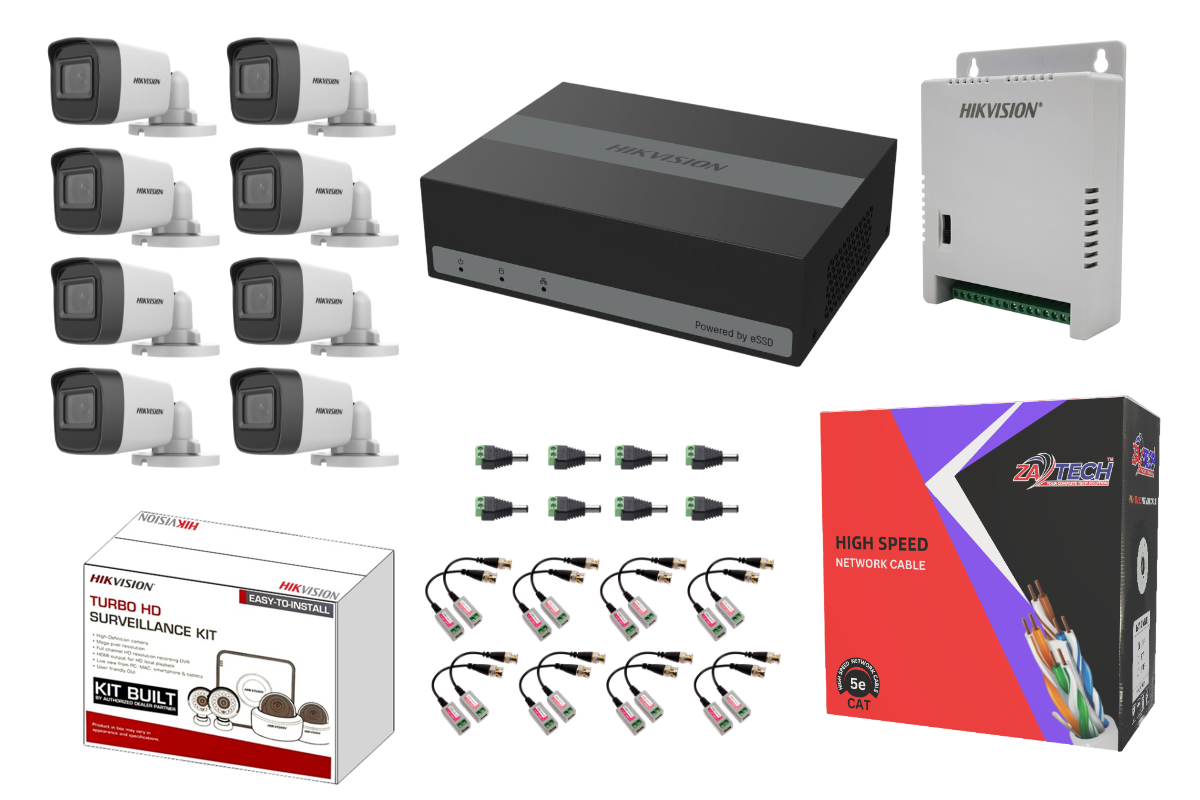

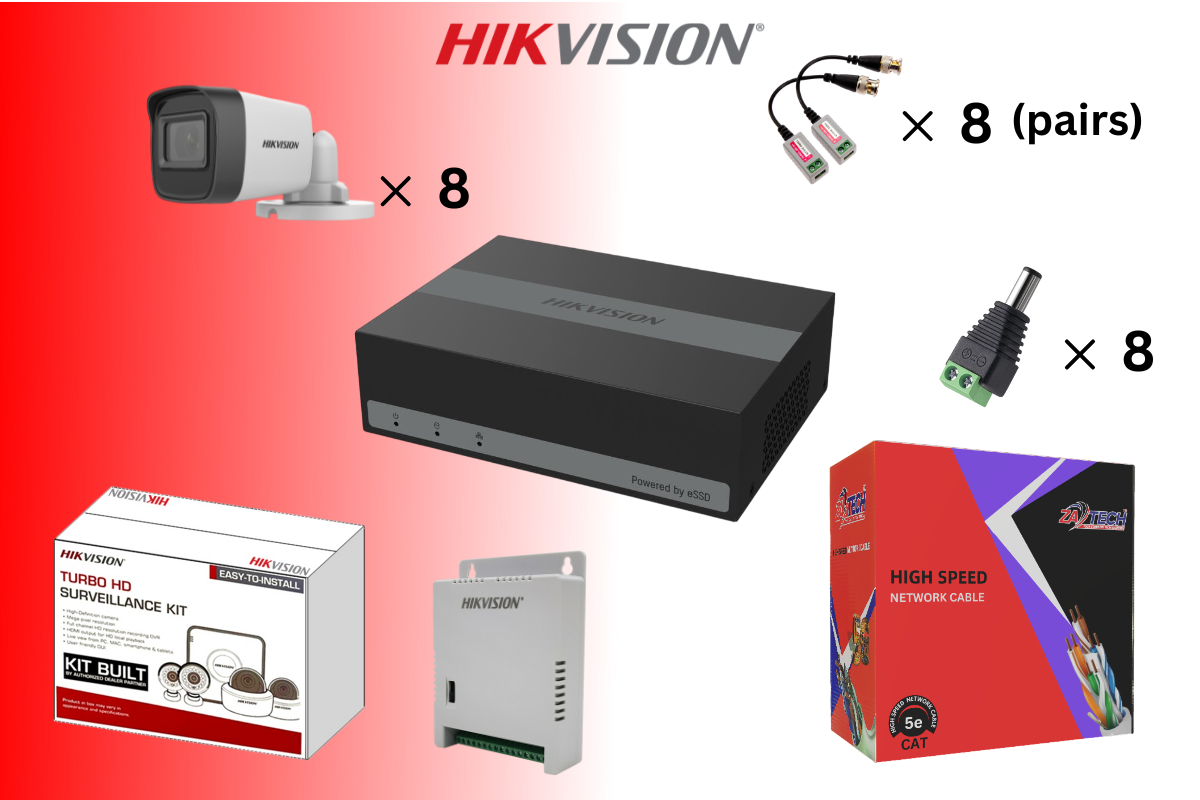

What's in the box

• 8 x Hikvision Camera
• 1 x Hikvision eDVR
• 1 x Hikvision power supply

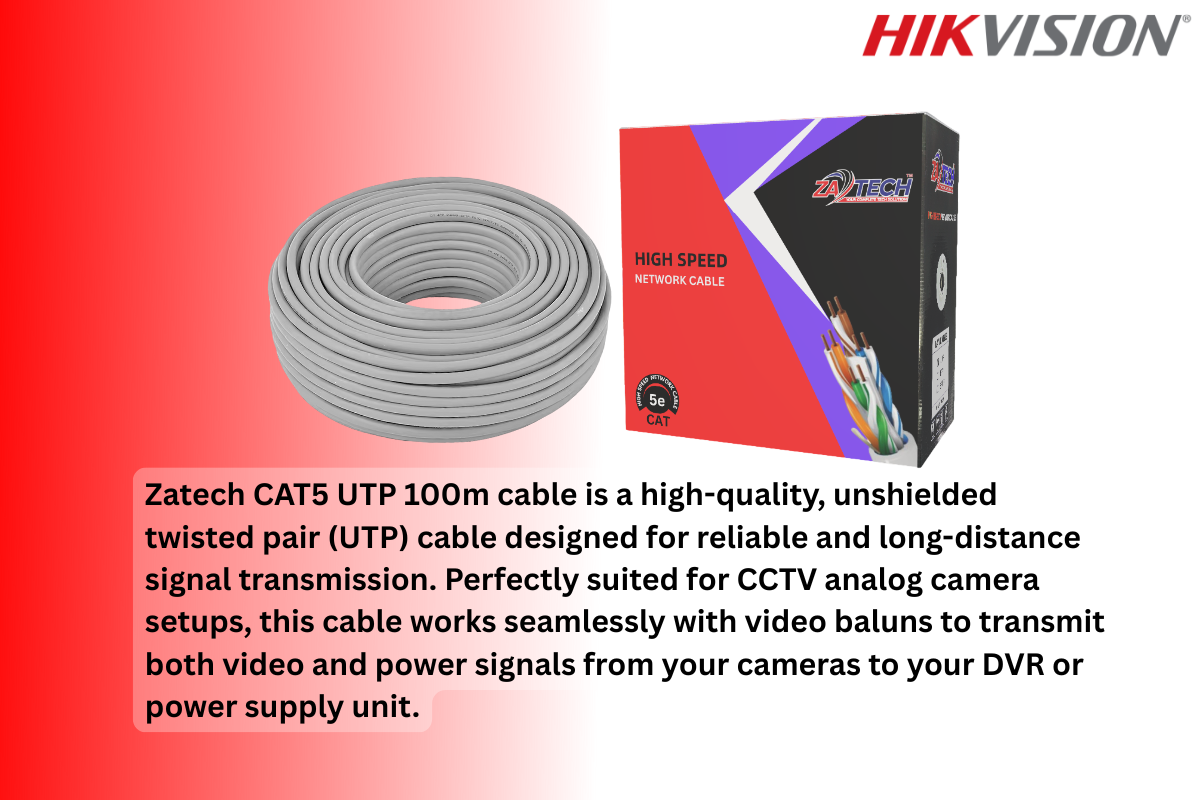

• 1 x Zatech Cat5 cable, 100 m
• 8 x balun pair
• 8 x DC connector
