Hikvision 8CH ColorVu eDVR CCTV Kit with 1TB SSD, 100M Zatech Cable roll

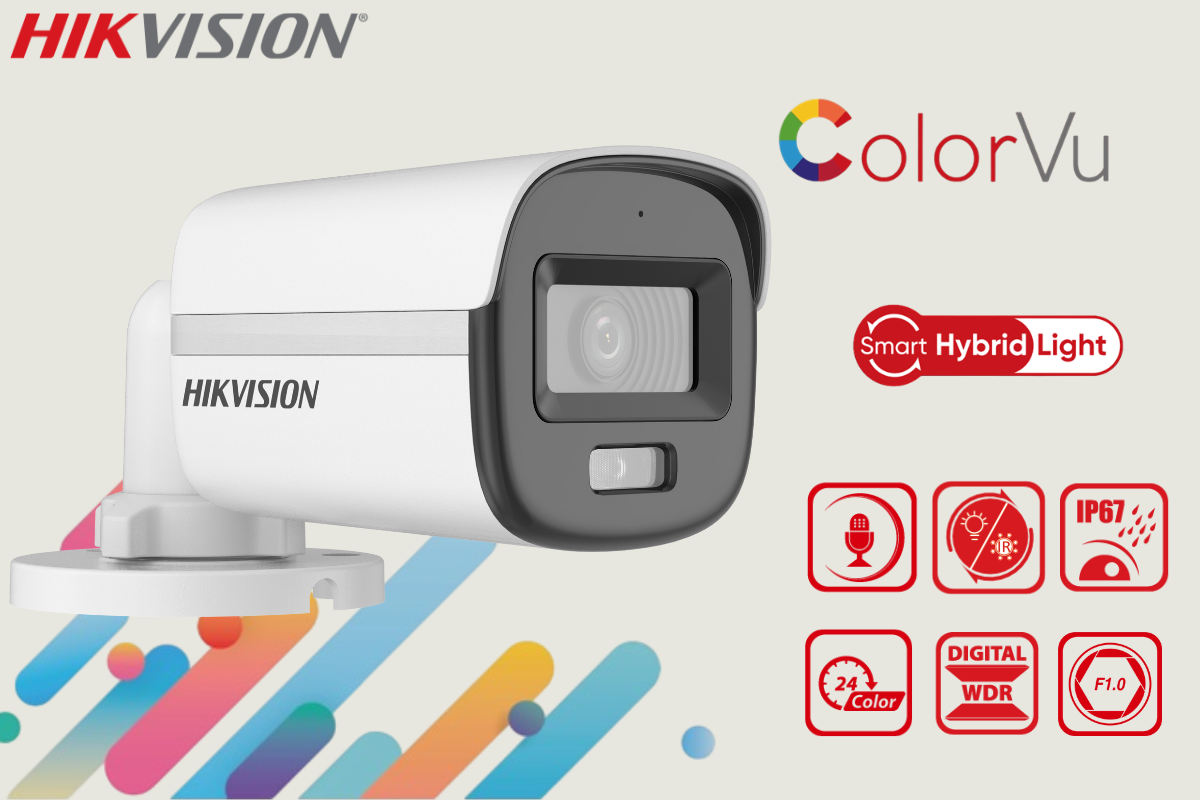

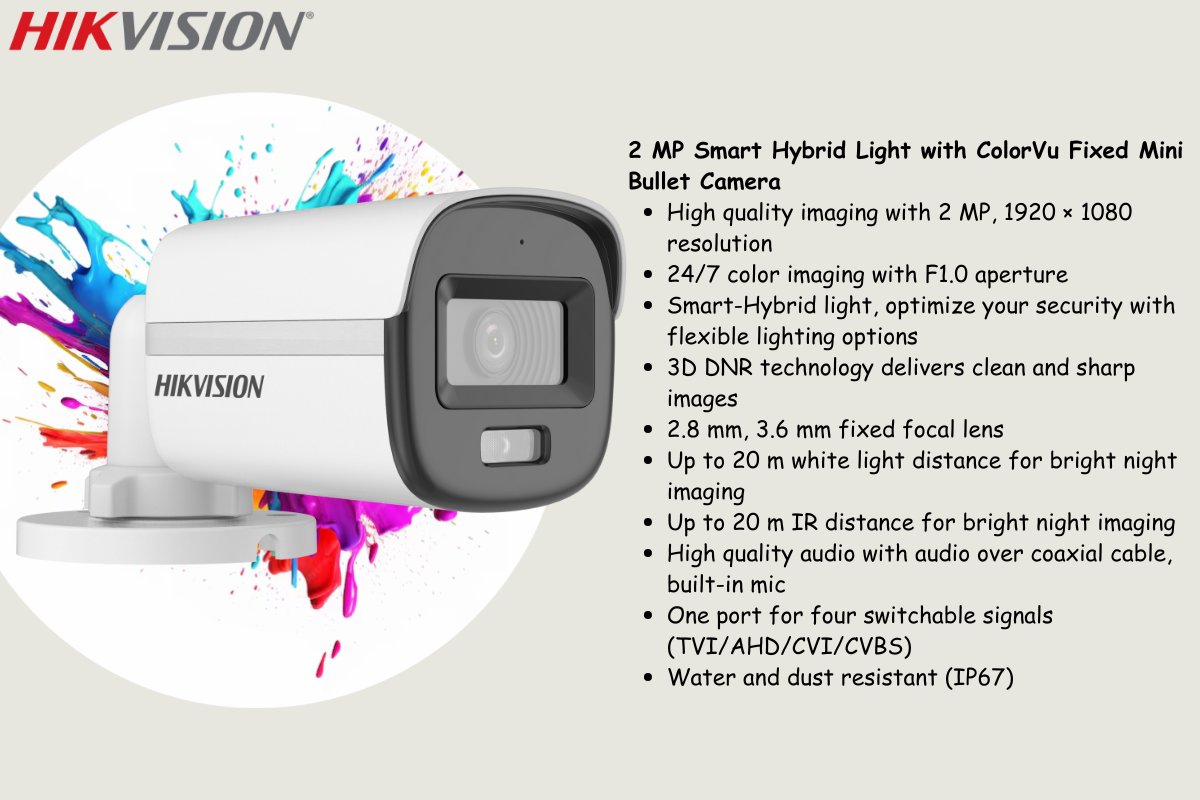

• Hikvision 8CH ColorVu eDVR CCTV Kit, now upgraded with a 1TB built-in SSD for ultra-fast and reliable storage. This complete system includes 2MP ColorVu Fixed Mini Bullet Cameras offering full HD 1920 × 1080 resolution, vivid 24/7 color imaging with a wide F1.0 aperture, Smart Hybrid lighting, and up to 20m white light and IR night vision range. With 3D DNR technology, integrated microphones, and support for TVI/AHD/CVI/CVBS formats, these IP67-rated cameras are built for robust and detailed monitoring in any environment.

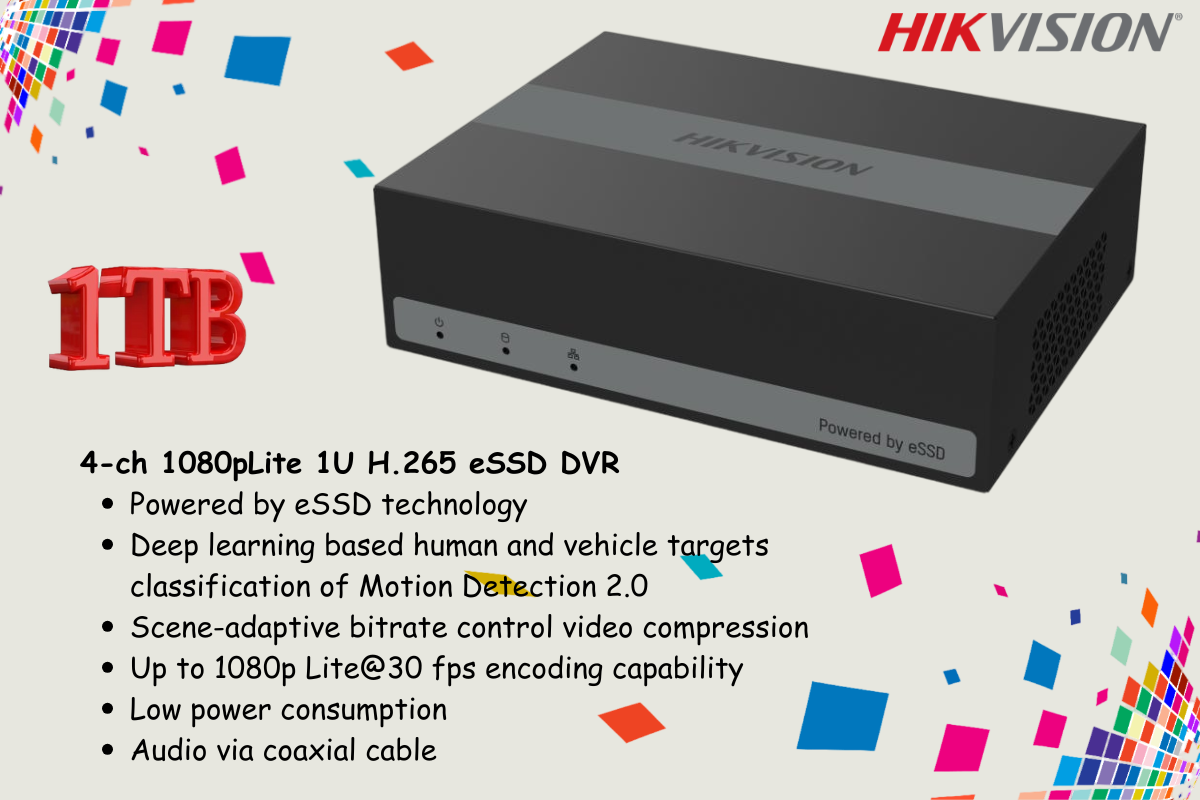

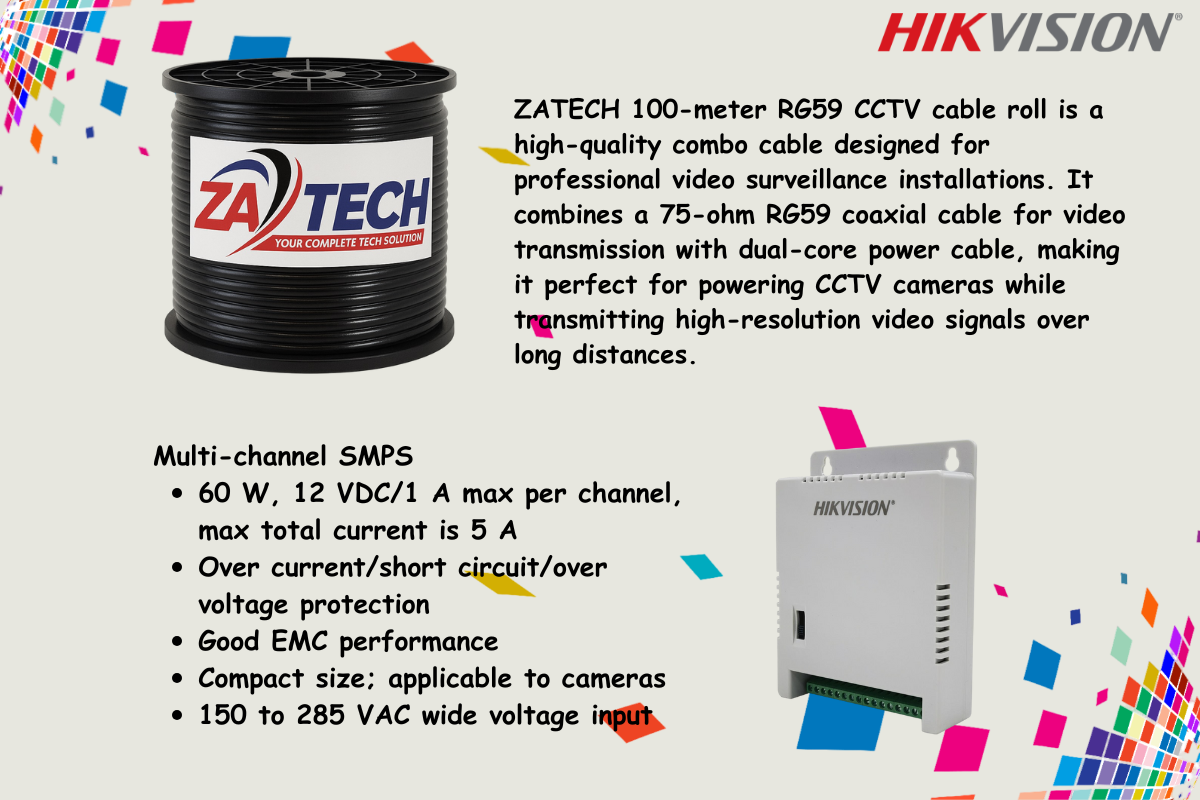

• At the core is an 8-channel H.265 eSSD DVR with scene-adaptive bitrate compression,and audio over coax. With low power consumption and enhanced durability from the eSSD technology, this system ensures long-lasting performance. The kit also includes a 100M Zatech RG59 cable roll, a Hikvision 8CH power supply, and DC/BNC connectors-making it a complete solution for professional-grade installations.

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 105 , vertical FOV: 56 , diagonal FOV: 126 3.6 mm, horizontal FOV: 84 , vertical FOV: 46 , diagonal FOV: 98
• Lens MountM12
• Microphone
• Pickup DistanceIn a radius of up to 5 m
• Amount1
• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Anti-banding, AGC
• Frame RateTVI: 1080p @25 fps/30 fpsCVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image EnhancementDWDR,BLC,HLC,Global
• White BalanceAuto, Manual
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

eDVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input2-chUp to 5 MP resolutionSupport H.265+/H.265 IP cameras
• Analog Video Input8-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input8-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous playback8-ch
• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame RateMain stream:1080p Lite/720p/720p Lite/WD1/4CIF@15 fpsNote:1080p Lite/720p is 15 fps by defaultSub-stream:CIF/QVGA@15 fps
• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream TypeVideo, Video & AudioNote: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth72 MbpsIncoming bandwidth: 8 Mbps
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP , HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• CapacityBuilt-in 1024 GB eSSD (960 GB available)Note:The device can store about 4 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

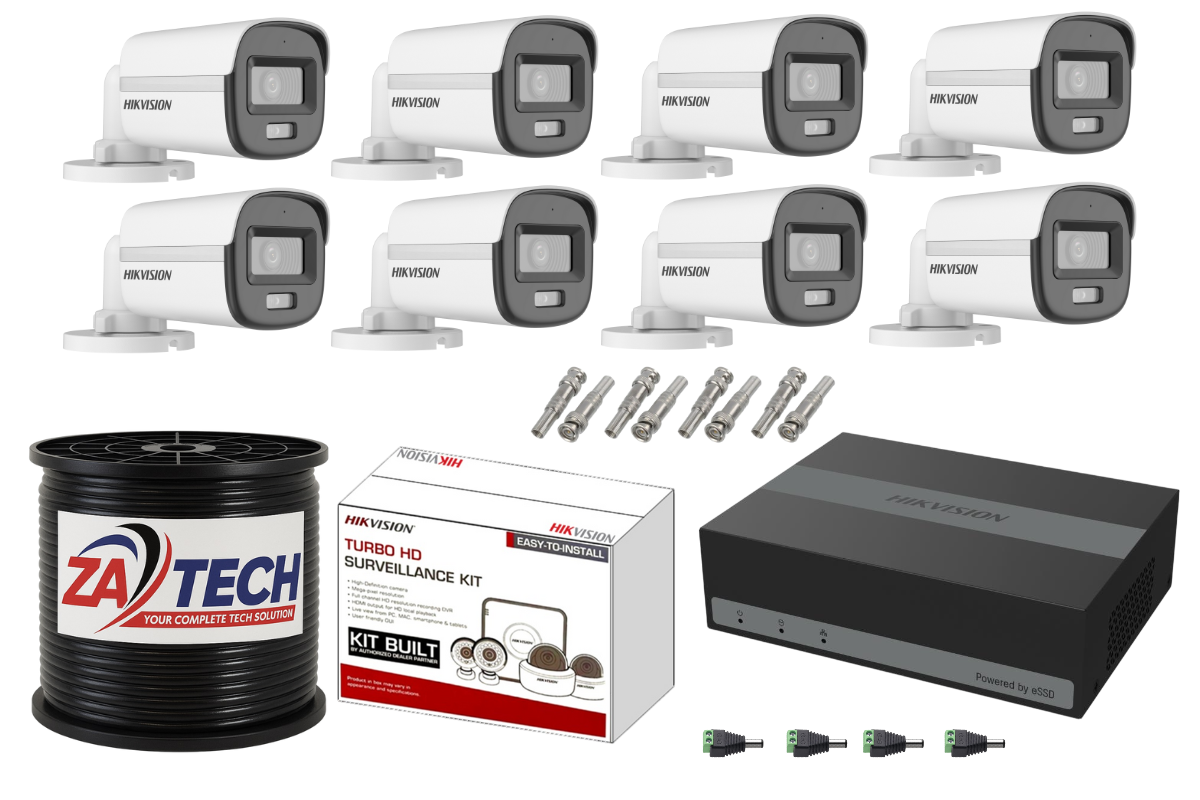

What's in the box

• 8 x 2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera
• 1 x 8-ch 1080pLite 1U H.265 eSSD DVR
• 1 x Zatech 100m RG59 Cable Roll
• 8 x DC connector
• 16 x BNC connectors
