Hikvision 8CH eDVR Dome CCTV Kit -1TB Built-in SSD and Zatech ready cable

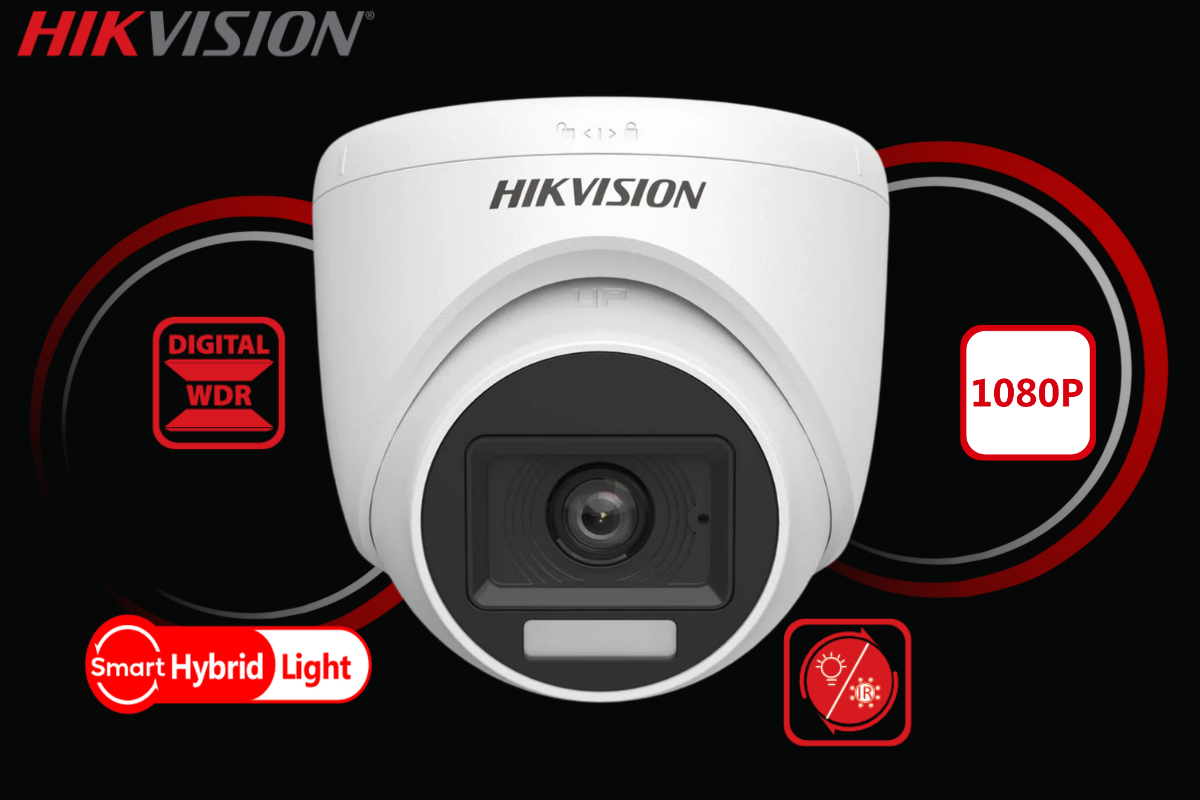

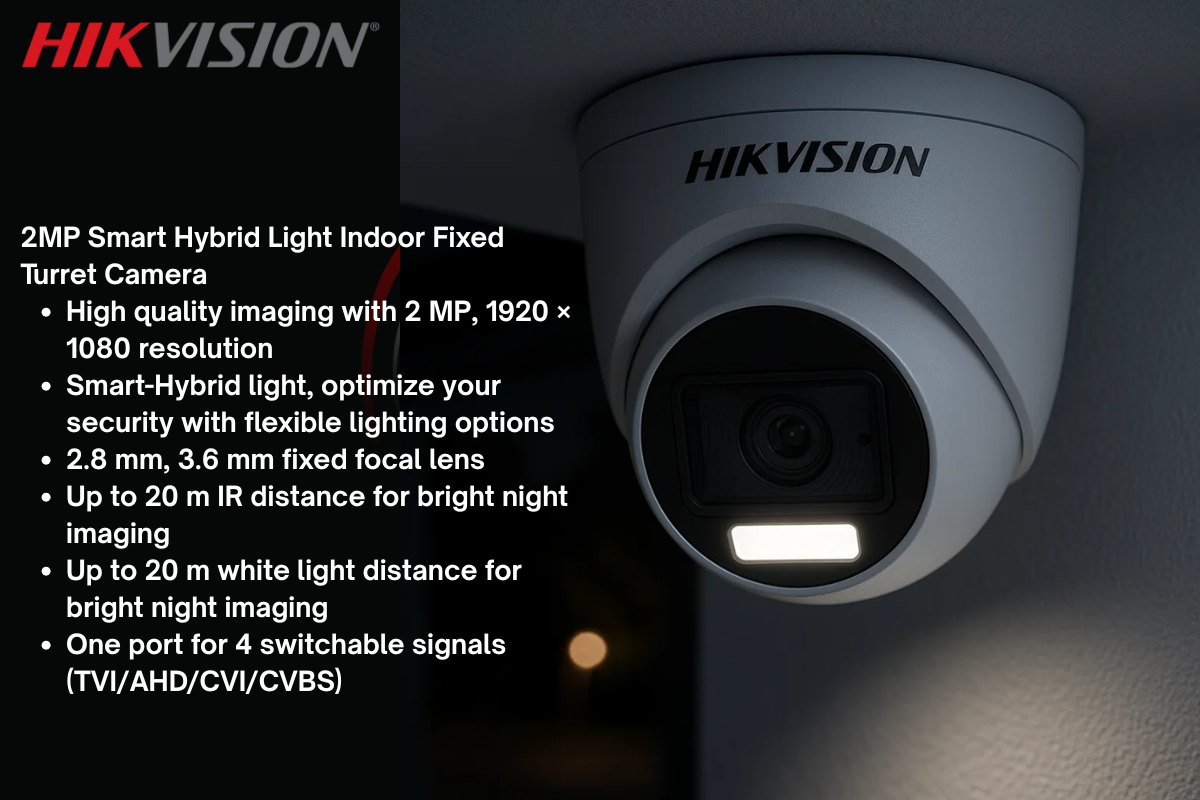

• Hikvision 8CH eDVR Dome Turret CCTV Kit is a smart and reliable security solution designed for homes, offices, and retail spaces. It features 4 × 2MP Smart Hybrid Light dome cameras offering 1080p video quality, Smart IR up to 20 meters, and white light for full-color night vision.

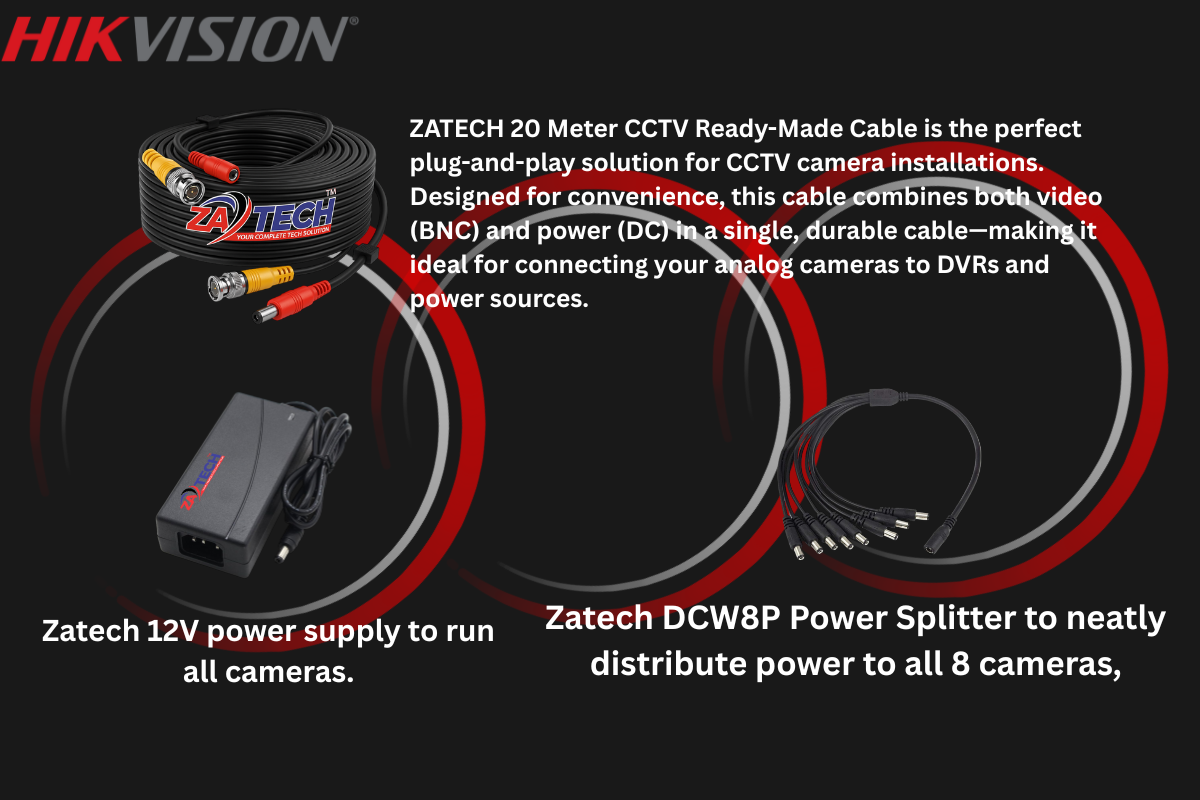

• The included 8-channel eDVR is equipped with a built-in 1TB eSSD, providing faster performance, lower power consumption, and silent operation. as well as scene-adaptive compression with H.265 encoding. The kit also comes with 4 × 20m Zatech ready-made cables, a Zatech/Hikvision power supply, and a DCW8P splitter for powering all 4 cameras, making installation simple and efficient.

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 75 , Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 97 , vertical FOV: 54 , diagonal FOV: 113 3.6 mm, horizontal FOV: 77 , vertical FOV: 43 , diagonal FOV: 90
• Lens MountM12
• Illuminator
• Supplement Light RangeIR : Up to 20 mWhite Light : Up to 20 m
• Supplement Light TypeSmart, IR, White Light
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame RateTVI: 1080p @ 30 fps, 1080p @ 25 fpsAHD: 1080p @ 30 fps, 1080p @ 25 fpsCVI: 1080p @ 30 fps, 1080p @ 25 fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Day/Night ModeAuto/Color
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

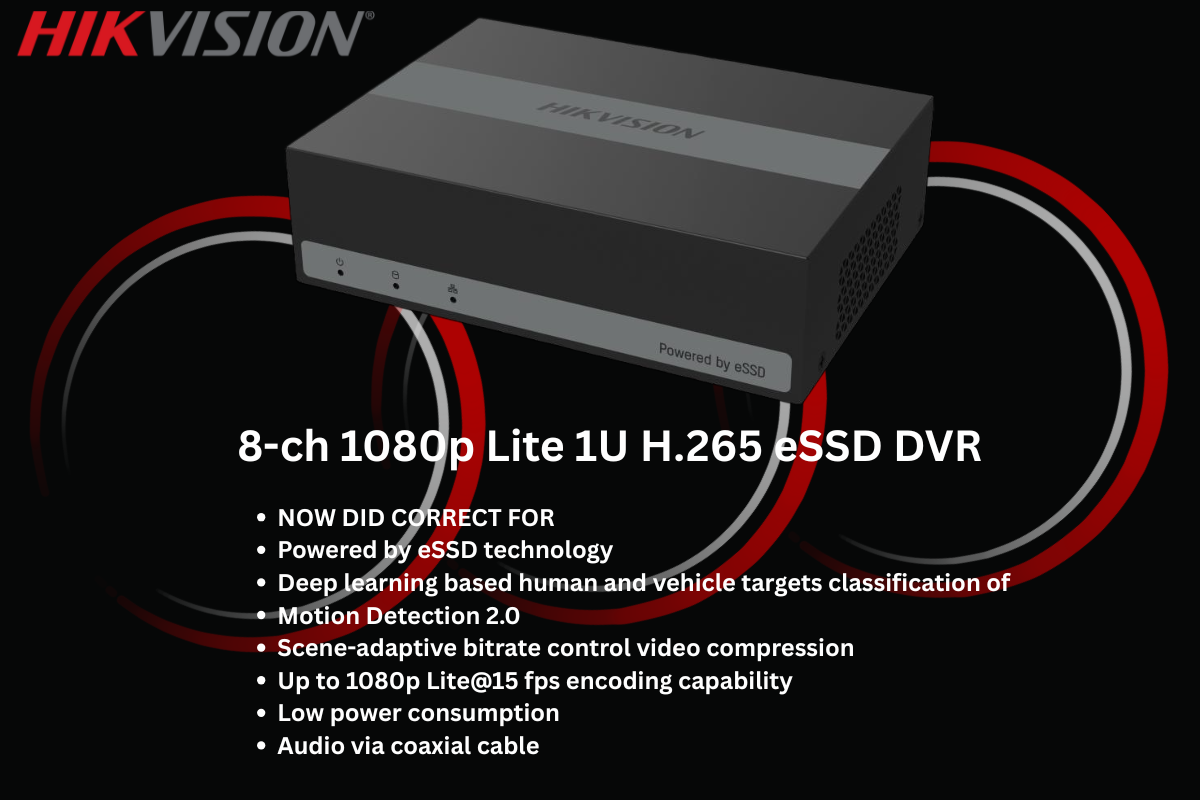

eDVR

• Built-In SSD
• Minimalist eSSD design brings low power consumption
• Integrated storage design provides the plug-and-play device use
• Easy Installation
• Mini size design saves installation space
• Anti-vibration design and light weight satisfy more installation conditions
• Compression and Recording
• Scene-adaptive bitrate control technology would precisely allocate videos in eSSD according to the actual scene
• Full channel recording at up to 2 MP Lite resolution
• Smart Function
• Deep learning-based motion detection 2.0
• Smart search for efficient playback
• Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported
• Recording
• Video Compression H.265 Pro/H.265
• Encoding Resolution 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame Rate
• Main stream
• 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
• Note
• 1080p Lite/720p is 15 fps by default
• Sub-stream
• CIF/QVGA@15 fps
• Video Bitrate
• According to the actual scene, scene-adaptive bitrate control technology would
• automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type
• Video, Video & Audio
• Note: In order to protect privacy, the device will only record video (without audio) by
• default. If you want to record audio, you shall manually enable audio recording. For
• operation details, refer to the user manual.
• Audio Compression G.711u
• Audio Bitrate 64 Kbps
• Capacity
• Built-in 1024 GB eSSD (960 GB available)
• Note
• The device can store about 4 weeks videos for 8-ch analog cameras (default parameters),
• this estimation is for reference only.
• USB Interface Rear panel: 2 × USB 2.0

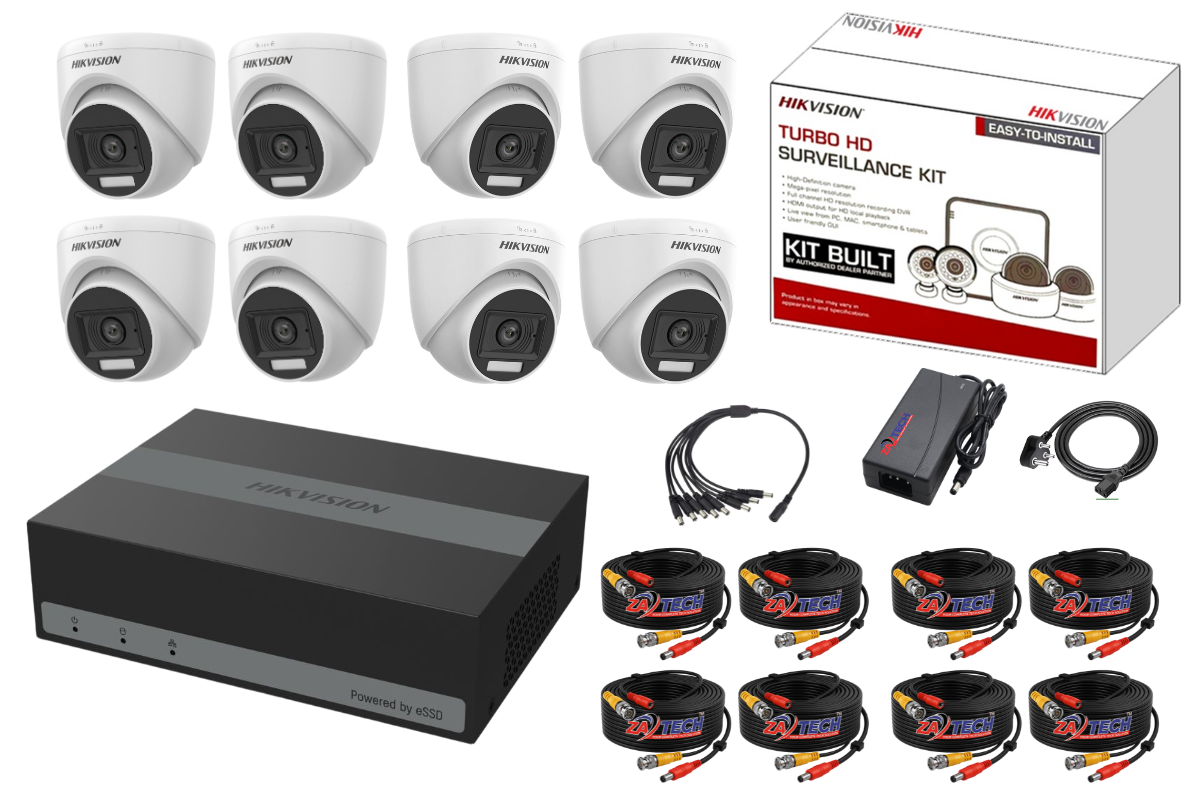

What's in the box

• 8 x Hikvision Turret Camera
• 1 x Hikvision 8ch eDVR
• 8 x Zatech ready-made cable 20m
• 1 x Zatech power supply
• 1 x DCW8p
