Hikvision 8CH eDVR Dome CCTV Kit -1TB Built-in SSD & Zatech Junction Boxes

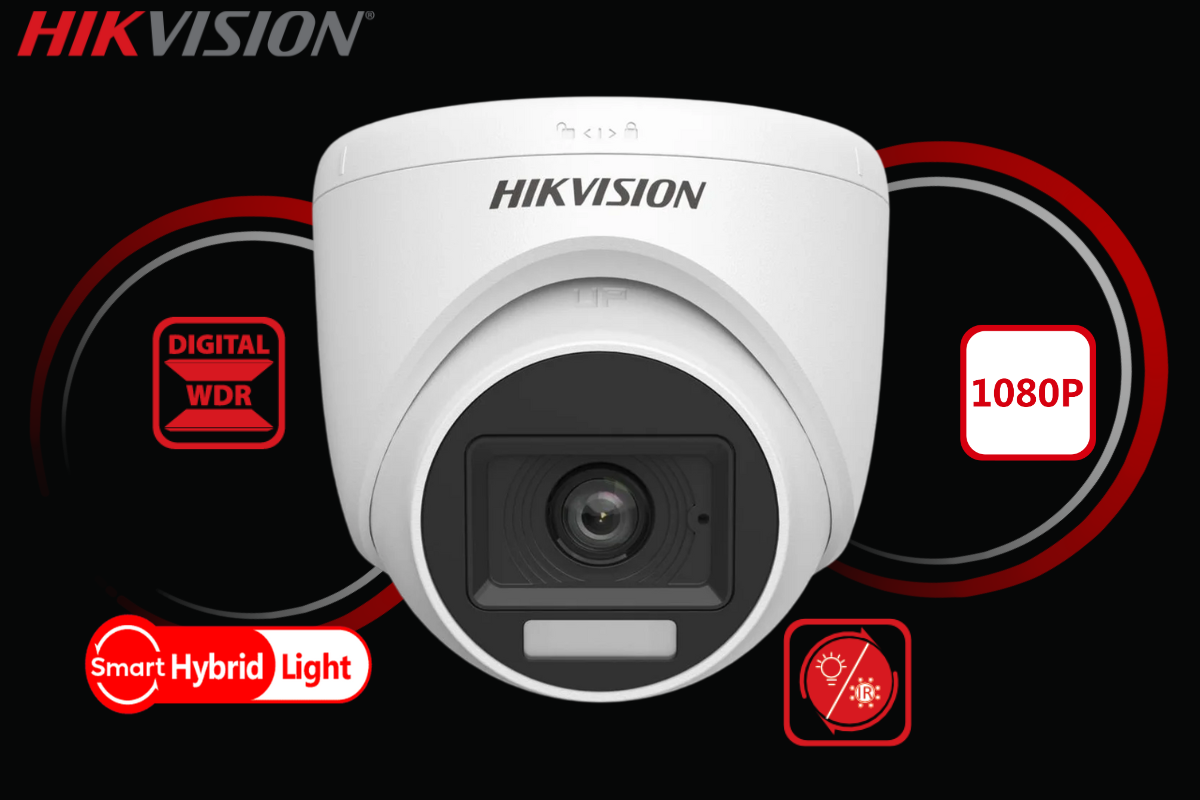

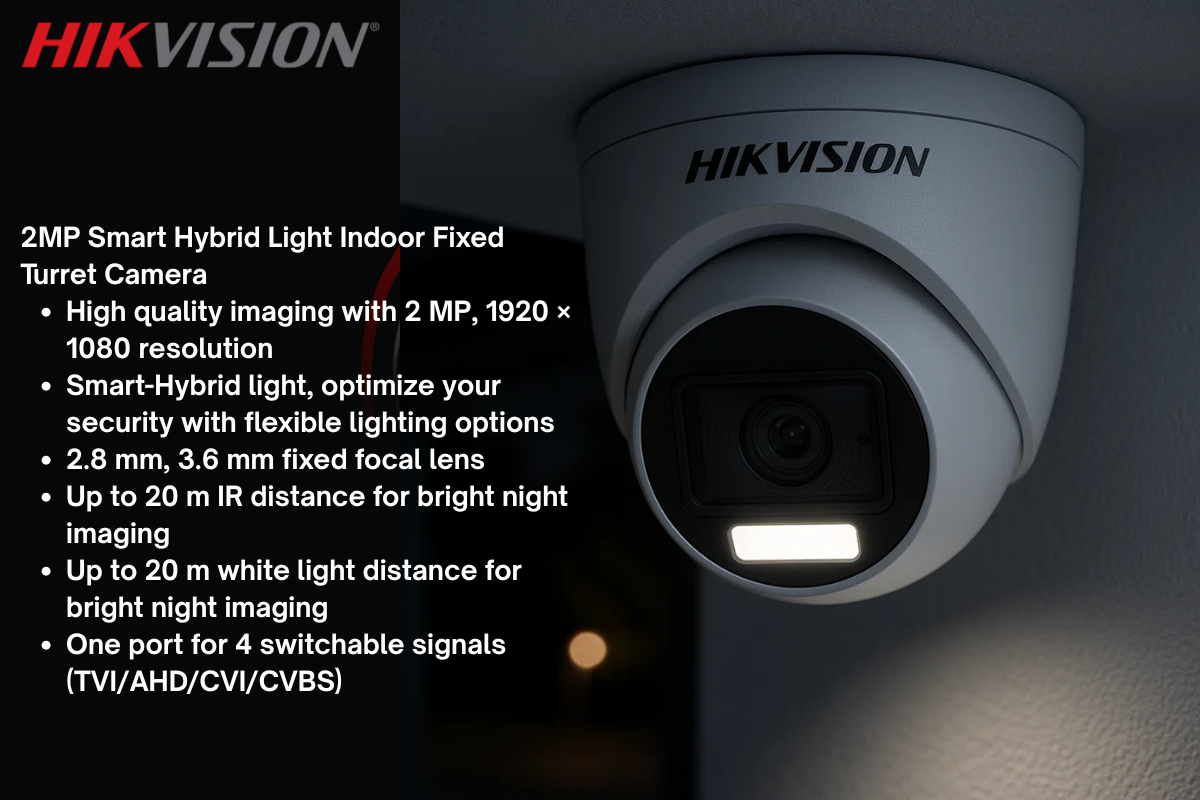

• Hikvision 8CH eDVR Dome Turret CCTV Kit is a complete and professional surveillance solution ideal for residential and commercial use. It includes 4 × 2MP Smart Hybrid Light Dome Cameras that deliver sharp 1080p video, with both infrared and white light night vision up to 20 meters for clear monitoring around the clock.

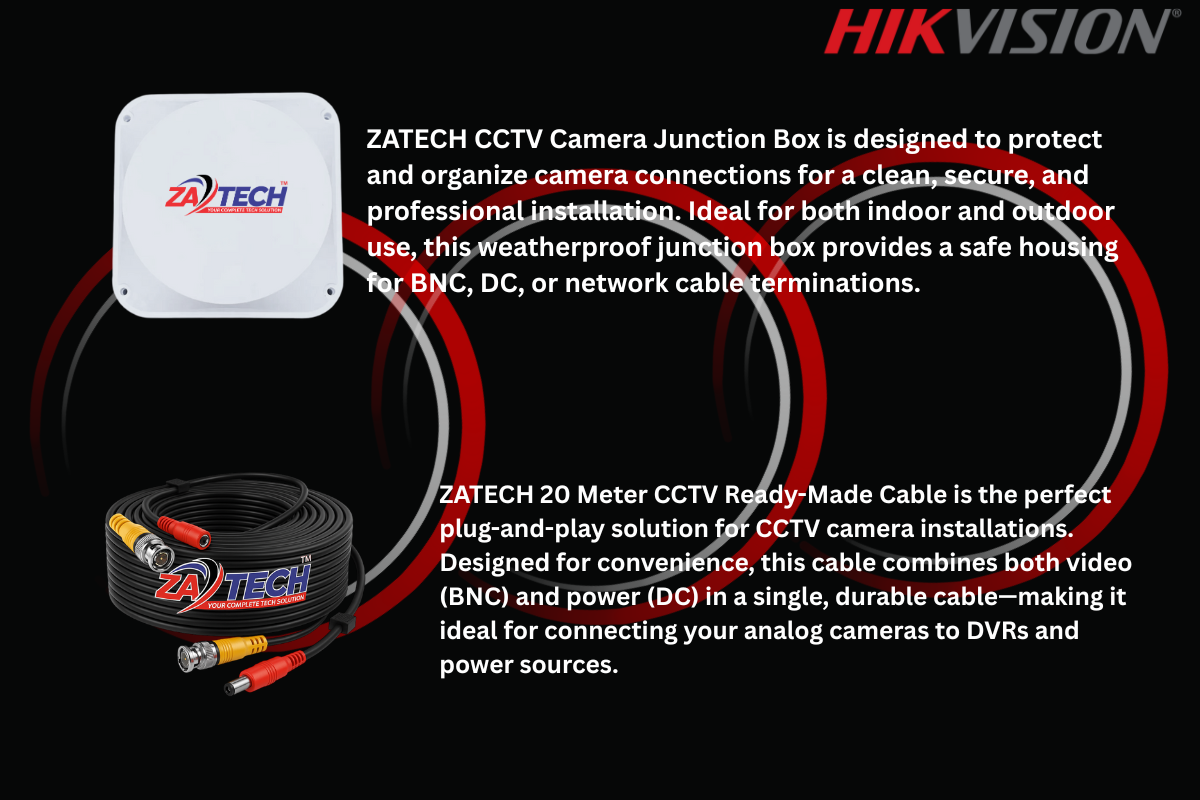

• At the heart of the system is an 8-channel eDVR with a built-in 1TB SSD, offering high-speed performance, low power usage, and silent operation.The kit also includes 4 × Zatech 20m ready-made cables, Zatech junction boxes, Zatech 8-channel power supply, and a DCW8P power splitter - ensuring hassle-free setup and clean installation.
• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 75 , Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 97 , vertical FOV: 54 , diagonal FOV: 113 3.6 mm, horizontal FOV: 77 , vertical FOV: 43 , diagonal FOV: 90
• Lens MountM12
• Illuminator
• Supplement Light RangeIR : Up to 20 mWhite Light : Up to 20 m
• Supplement Light TypeSmart, IR, White Light
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame RateTVI: 1080p @ 30 fps, 1080p @ 25 fpsAHD: 1080p @ 30 fps, 1080p @ 25 fpsCVI: 1080p @ 30 fps, 1080p @ 25 fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Day/Night ModeAuto/Color
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

eDVR

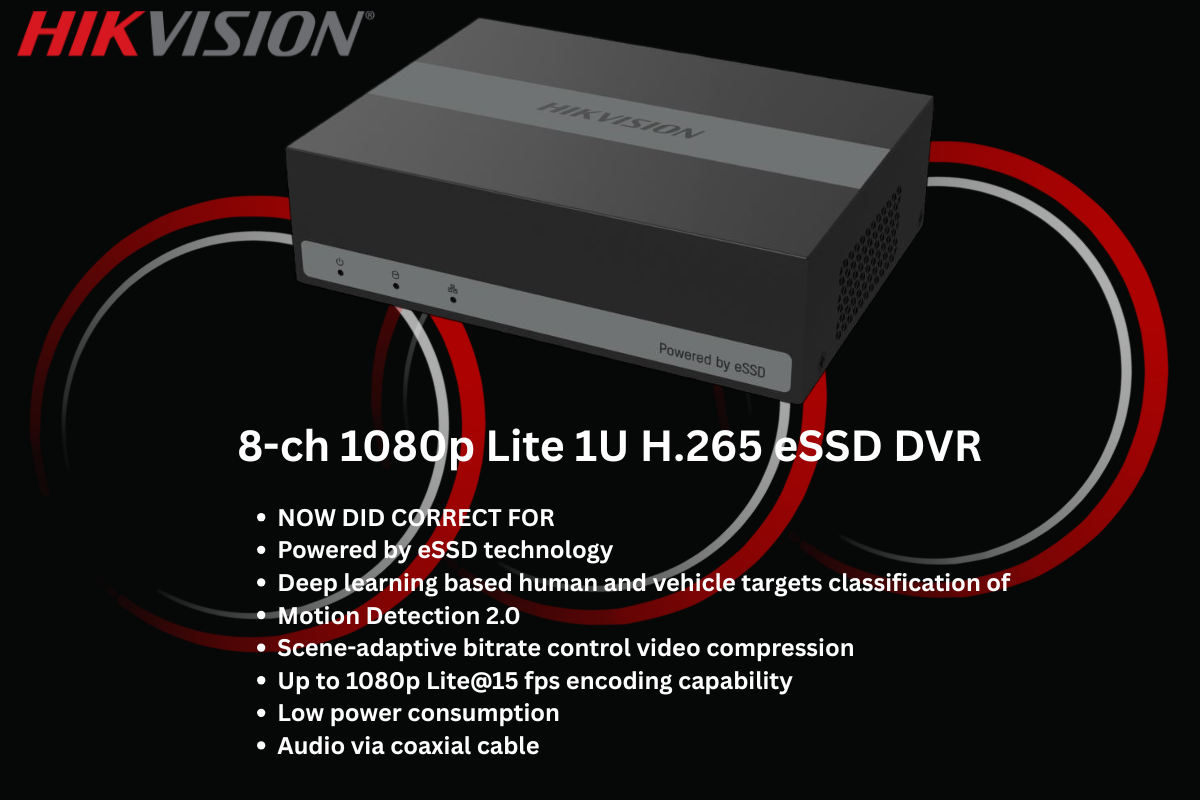

• 8-ch 1080p Lite 1U H.265 eSSD DVR
• Built-In SSD
• Minimalist eSSD design brings low power consumption Integrated storage design provides the plug-and-play device use
• Smart Function
• Deep learning-based motion detection 2.0
• Smart search for efficient playback
• Recording
• Video Compression H.265 Pro/H.265
• Encoding Resolution 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame Rate
• Main stream
• 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
• Note
• 1080p Lite/720p is 15 fps by default
• Sub-stream
• CIF/QVGA@15 fps
• Video and Audio
• IP Video Input
• 2-ch
• Up to 5 MP resolution
• Support H.265+/H.265 IP cameras
• Analog Video Input
• 8-ch
• BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• Auxiliary Interface
• Capacity
• Built-in 1024 GB eSSD (960 GB available)
• Note
• The device can store about 4 weeks videos for 8-ch analog cameras (default parameters),
• this estimation is for reference only.

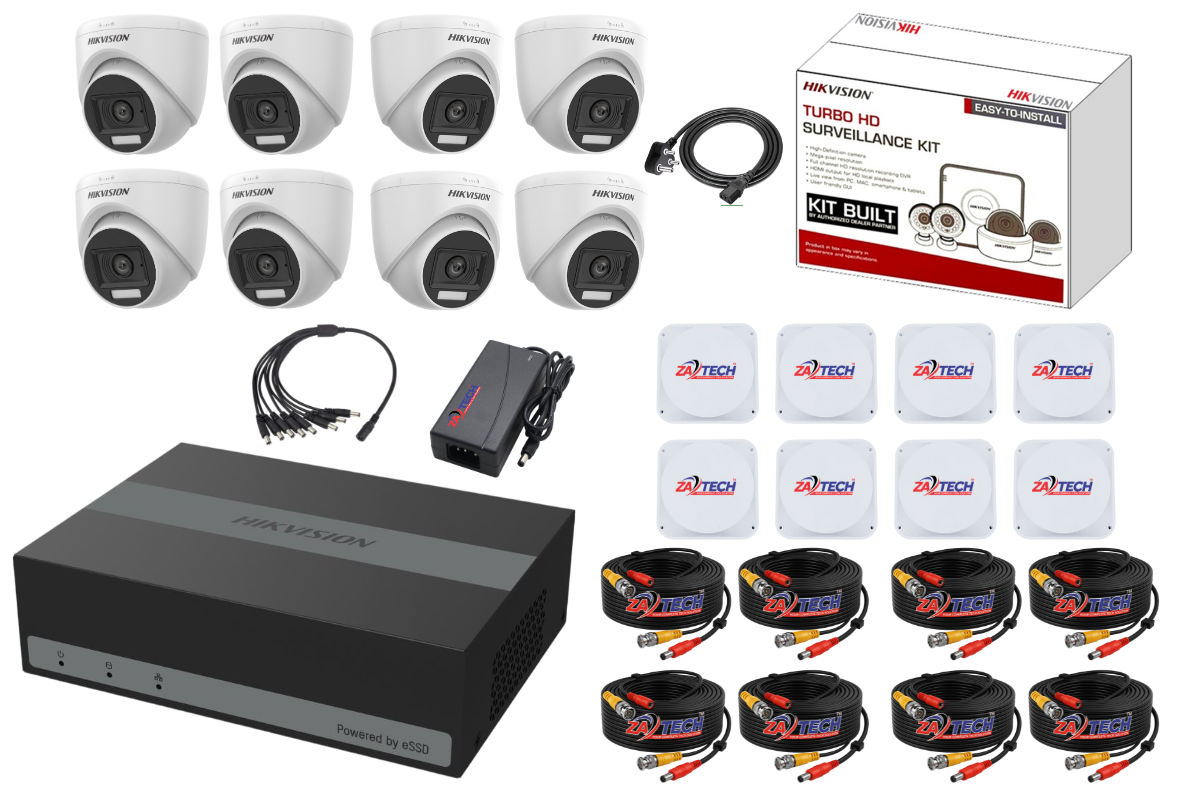

What's in the box

• 8 x Hikvision Turret Camera
• 1 x Hikvision 8ch eSSD
• 8 x Zatech junction box
• 8 x Zatech 20m ready-made cable
• 1 x Zatech power supply
• 1 x DCW8p
