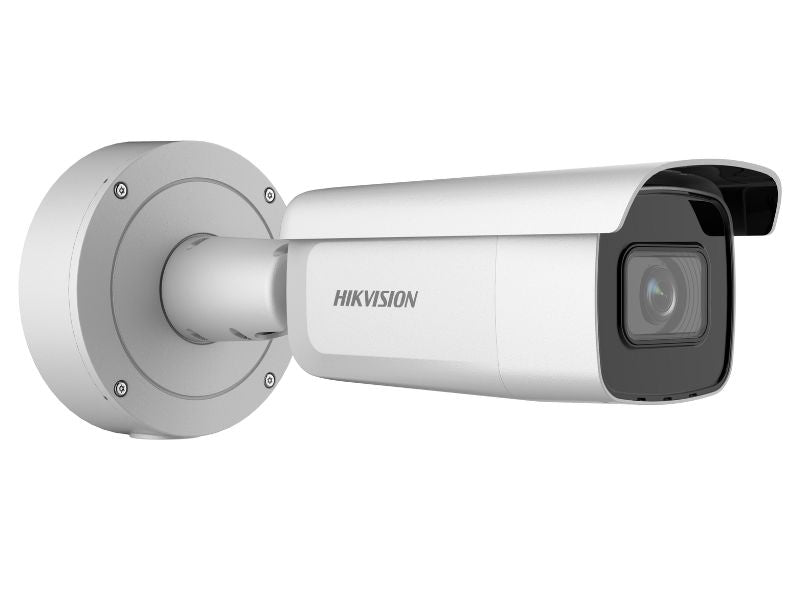

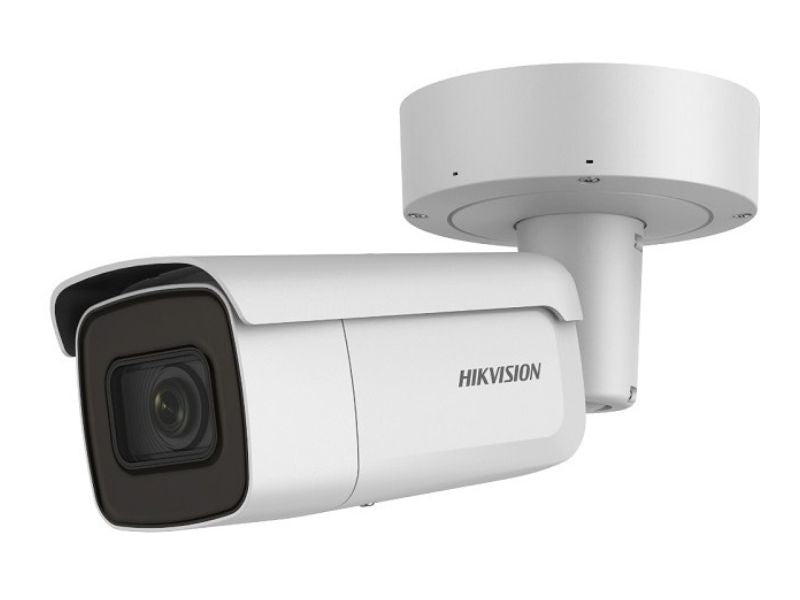

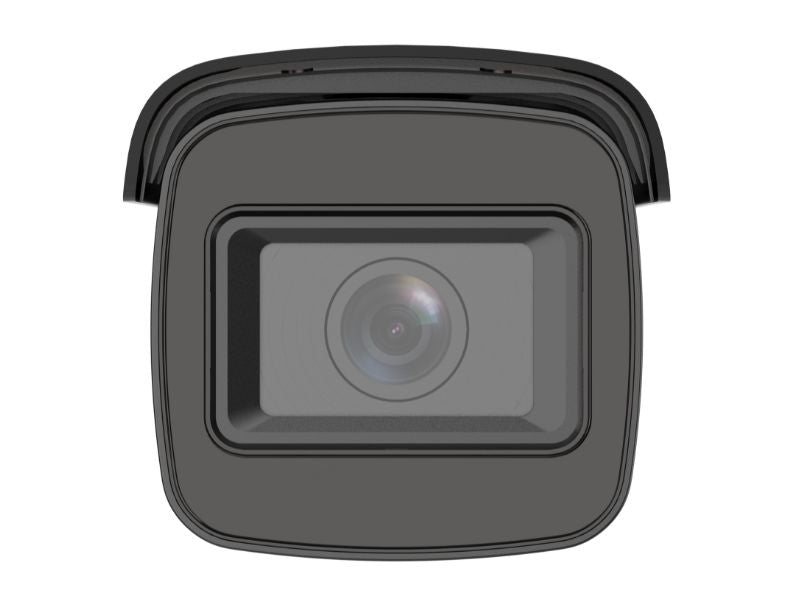

Hikvision DS-2CD2686G2-IZS 8MP 4K AcuSense Bullet IP Camera - 2.8-12mm, 60m IR

Clear imaging against strong back light due to 120 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning.

Key features

• Motorized varifocal lens for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal proof (IK10)
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
• Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV
• 2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
• Iris Type
• Fixed
• Dori
• Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
• Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream
• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Third stream is supported under certain settings.
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• Target Cropping
• Mono sound
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, NTP, upnp, smtp, igmp, 802.1X, qos, ipv4, ipv6, UDP, bonjour, ssl/tls, pppoe, snmp, ARP
• Simultaneous Live View
• API
• Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in micro SD slot, up to 256 GB
• 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K'd9, interface type: non-equilibrium;
• 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 `d9, interface type: non-equilibrium
• Alarm
• 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key
• Event
• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
• Scene change detection
• Linkage
• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
• Deep Learning Function
• Face Capture
• 12 VDC, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
• Ø144.1 mm × 345.7 mm (Ø5.7" × 13.6")
• 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• Approx. 1430 g (3.2 lb.)
• Approx. 2490 g (5.5 lb.)
• 30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Language
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Specifications

• 2.8/12MM ds-2cd2686g2-izs
• Ds-2cd2686g2-izs
• 4K AcuSense Varifocal Bullet Network Camera
• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• 1/1.8" Progressive Scan CMOS
• 3840 × 2160
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• Ø14
• Aperture
• F1.4
• 2.8 to 12 mm:
• Up to 60 m
• 850 nm
• 60 Hz: 24 fps (3840 × 2160)
• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• 120 dB
• ≥ 52 dB
• BLC, HLC, 3D DNR
• 33 languages
