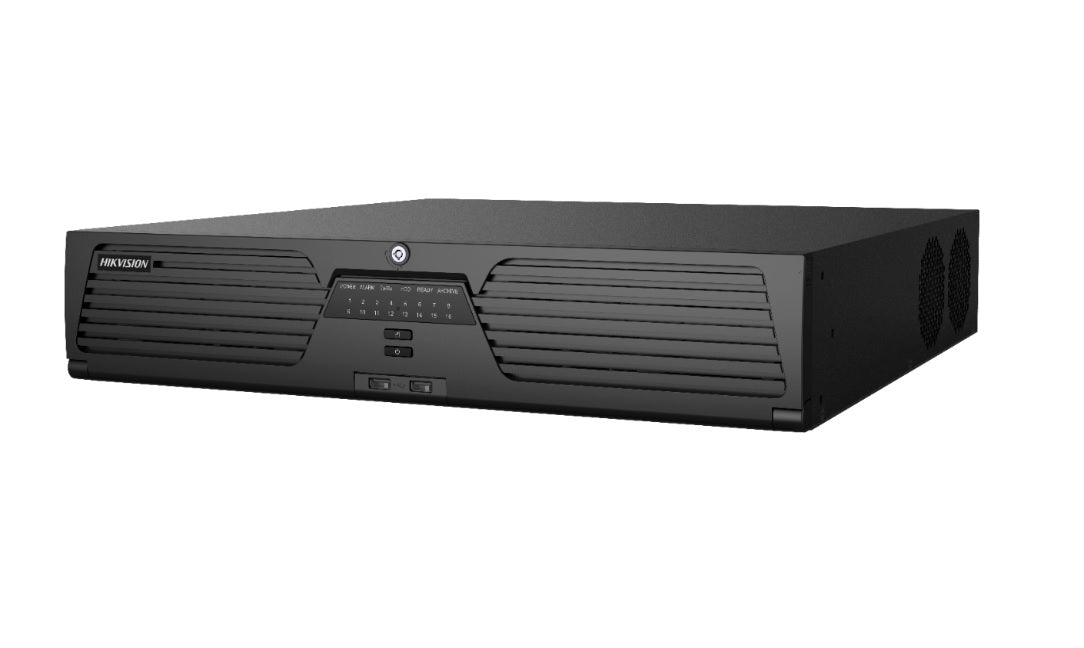

HIKVISION Acusense Nvr 64 Ch,4K,Ipvideo

Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture. Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA.

Key features

• Intelligent analytics based on deep learning algorithm
• Up to 8-ch IP speakers can be connected
• Intelligent Analytics
• AI by NVR
• Engine
• Facial Recognition
• Facial Detection and Analytics
• Face picture comparison, human face capture, face picture search
• Face Picture Library
• Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance
• 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
• Face Picture Comparison
• All channels
• Human/Vehicle Analysis
• N/A
• By NVR
• All channels for Hikvision cameras
• Perimeter Protection
• 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
• Anpr
• Vehicle Attributes
• Plate number, license plate color, license plate type
• Plate Attributes
• Vehicle brand, vehicle color, vehicle type
• Incoming Bandwidth
• Outgoing Bandwidth
• 4K (3840 `d7 2160)/30 Hz, 2K (2560 `d7 1440)/60 Hz, 1920 `d7 1080/60 Hz
• HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output
• 1-ch, BNC (1.0 Vp-p, 75 `d9), resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480
• Decoding
• Recording Resolution
• 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 mp/1080p/uxga/720p/vga /4cif/dcif/2cif/cif/qcif
• : The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
• Live View Window Division
• Aux Port Window Division
• Dual-Stream Recording
• Support
• Decoding Format
• Decoding Capability
• Synchronous Playback
• Stream Type
• API
• ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser
• IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Tcp/ip, dhcp, ipv4, ipv6, DNS, ddns, NTP, rtsp, sadp, smtp, snmp, NFS, iscsi, isup, upnp™, http, https
• Remote Connection
• Raid
• RAID Type
• RAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare
• Sata
• eSATA
• Up to 16 TB capacity for each disk
• Front panel: 2 `d7 USB 2.0; Rear panel: 2 `d7 USB 3.0
• Alarm In/Out
• Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
• : The Ctrl 12V power is controlled by alarm output 9.
• GUI Language
• English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
• 100 to 240 VAC, 50 to 60 Hz
• Consumption
• Working Temperature
• 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
• Working Humidity
• Chassis
• 445 `d7 460 `d7 93 mm (17.5"`d7 18.1" `d7 3.7")
• FCC
• CE
• EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
• CE, CB, reach, weee, ukca, LOA

Specifications

• Ds-9664nxi-i8/s
• 64-ch 2U 4K AcuSense NVR
• H.265+/H.265/H.264+/H.264 video formats
• Up to 4-ch perimeter protection
• Up to 64-ch IP camera inputs
• Up to 16-ch 1080p decoding capability
• Up to 320 Mbps incoming bandwidth
• Facial recognition, perimeter protection, motion detection 2.0
• 1, engine mode is adjustable
• 8-ch
• Motion Detection 2.0
• Up to 12 rules in total
• 64-ch
• 384 Mbps
• 256 Mbps
• HDMI 1 Output
• HDMI 2 Output
• VGA 1 Output
• 1920 `d7 1080/60 Hz
• VGA 2 Output
• 2-ch, RCA (Linear, 1 K'd9)
• 1-ch, RCA (2.0 Vp-p, 1 K'd9)
• 1/2/4/6/8/9/16/25/32/36/64
• 1/2/4/6/8/9/16/25/32/36
• G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
• H.265+/h.265/h.264+/h.264
• Enable AI by NVR: 20-ch@1080p (30 fps)
• Disable AI by NVR: 32-ch@1080p (30 fps)
• 16-ch
• 128
• 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• ONVIF(Version 2.5), RTSP
• 8 SATA interfaces
• 1 eSATA interface
• Capacity
• 1 RS-485 (full-duplex), 1 RS-232
• 16/9
• Ctrl 12V
• DC 12V
• 12 VDC, 1 A power output
• ≤ 30 W (without HDD)
• 10% to 90%
• 2U chassis
• Dimension (W `d7 D `d7 H)
• ≤ 8.3 kg (18.3lb.)
