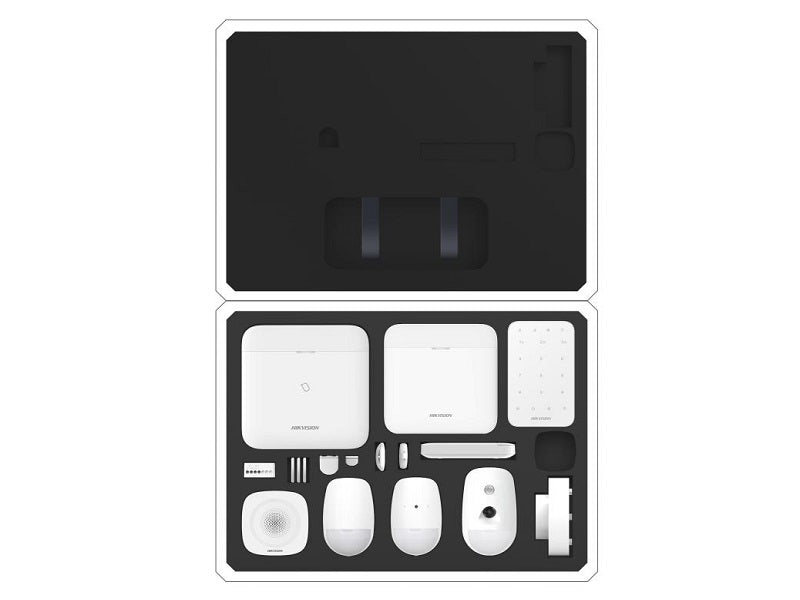

Hikvision DS-PWA96-DB-WE AX PRO demo kit case open showing full range of alarm components

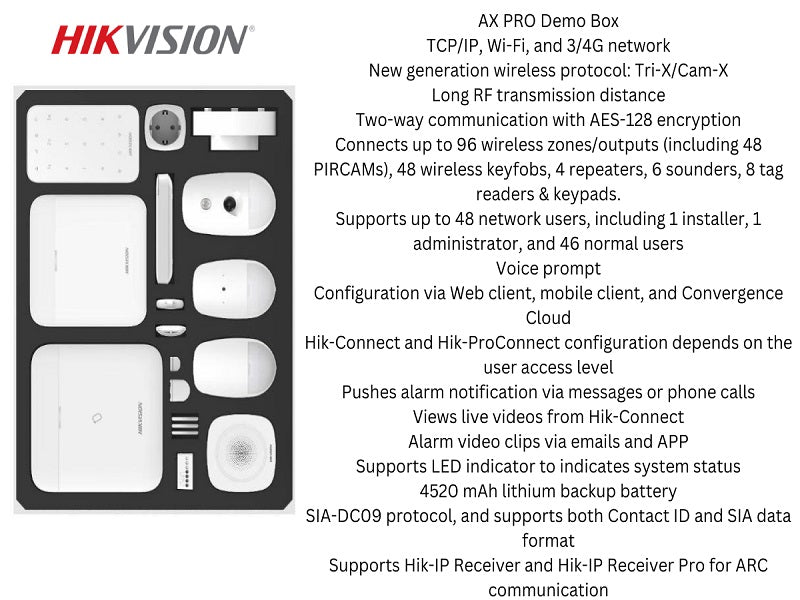

Hikvision DS-PWA96-DB-WE AX PRO Demo Box feature diagram listing system specifications

Hikvision DS-PWA96-DB-WE AX PRO Wireless Control Panel - 96 Zones, Wi-Fi/4G, 32 Areas, AES-128

DS-PWA96-DB-WE

HIKVISION
R 14,563R 18,999
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 2,427.16 over 2–6 instalments
Price: R 14,563

Description

Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads. Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users.

Key features

  • AX PRO Demo Box
  • Long RF transmission distance
  • Voice prompt
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Hik-Connect and Hik-ProConnect configuration depends on the user access level
  • Pushes alarm notification via messages or phone calls
  • Views live videos from Hik-Connect
  • Alarm video clips via emails and APP
  • Supports LED indicator to indicates system status
  • SIA-DC09 protocol, and supports both Contact ID and SIA data format
  • Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
  • Tag
  • Area
  • Zones
  • Onboard video clips
  • Installer
  • User
  • Admin
  • Supported
  • Loudspeaker built in
  • Tag reader built in
  • Programming tools
  • Firmware upgrade
  • APP/Web Portal
  • Arm modes
  • Away/Stay
  • Automatic Arm/Disarm Timers
  • Forced Arming with Open Zones
  • Diagnostics via the APP or Web
  • ARC protocol
  • SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
  • Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
  • Supports video verification and remote control
  • Installer APP for programming
  • Web server for maintenance (offline configuration)
  • SIM slot
  • Dual
  • RF transmission
  • Two-way Wireless Communication
  • Support
  • RF Frequency
  • Wireless Security
  • Electrical characteristics
  • Built in power supply
  • Built in on board Battery Li
  • Wireless transmission
  • LEDs Status
  • Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
  • Operation temperature
  • Shell material
  • Plastic
  • 170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
  • White
  • Device management
  • Keyfob
  • Wireless sounder
  • Keypad
  • Wireless Repeater
  • Multi Transmitter
  • PIR Cam

Specifications

  • Ds-pwa96-db-we
  • TCP/IP, Wi-Fi, and 3/4G network
  • New generation wireless protocol: Tri-X/Cam-X
  • Two-way communication with AES-128 encryption
  • 4520 mAh lithium backup battery
  • 48
  • 32
  • 96 (up to 48 PIRCAMs)
  • 4
  • 1
  • 46
  • 5000
  • Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • RS232 output
  • 868Mhz
  • Frequency Hoping 128 AES Encryption
  • 3/4G on board
  • Battery type
  • Battery life span
  • Up to 16 hours
  • 10 °C to +55 °C
  • Dimension(WxHxD)
  • 557.5 g(19.7 oz)
  • Color
  • 6 (3 internal+3 External)
  • 8 (Including Tag reader)
  • 6

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision Alarm Systems / Security & Surveillance / Specials
Brand Hikvision
Model DS-PWA96-DB-WE
Connectivity TCP/IP, Wi-Fi, 3/4G
Wireless Protocol Tri-X/Cam-X
Encryption AES-128
RF Frequency 868 MHz
Zones/Outputs Up to 96 (incl. 48 PIRCAMs)
Keyfobs Up to 48
Sounders 6 (3 internal + 3 external)
Repeaters Up to 4
Users Up to 48
Areas 32
Memory Log 5000 entries
SIM Slots Dual
Dimensions 170 x 170 x 38.6 mm
Weight 557.5 g
SKU DS-PWA96-DB-WE
Barcode 6941264088066
