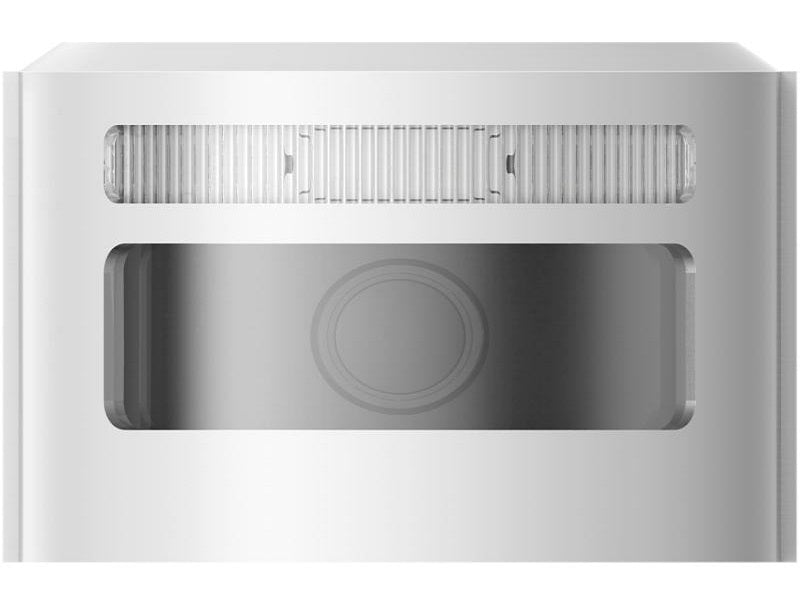

Hikvision DS-PDCM15PF-IR camera module close-up of the IR illuminator strip and lens window

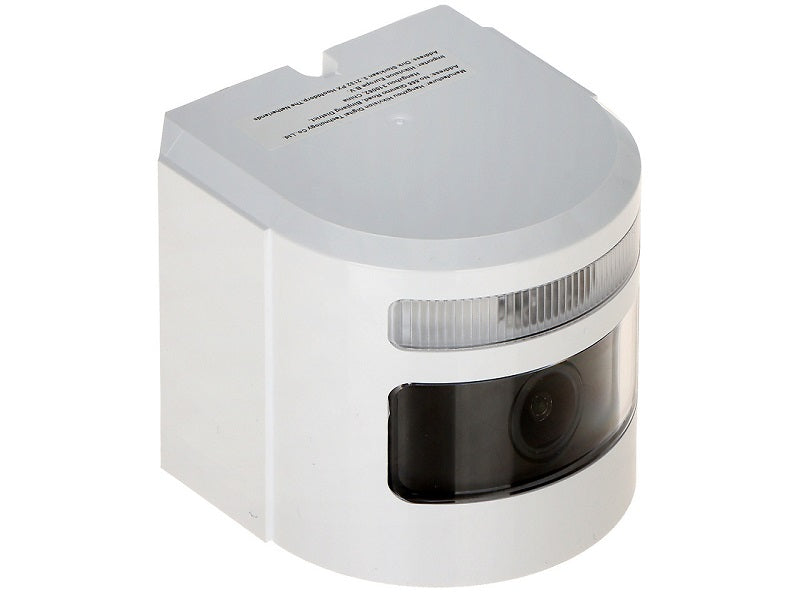

Hikvision DS-PDCM15PF-IR wireless camera module, three-quarter view of the housing and lens

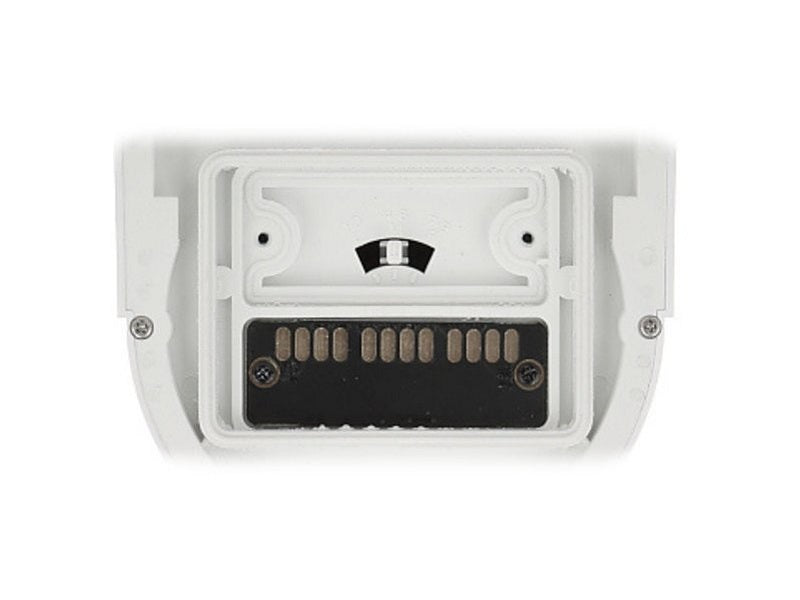

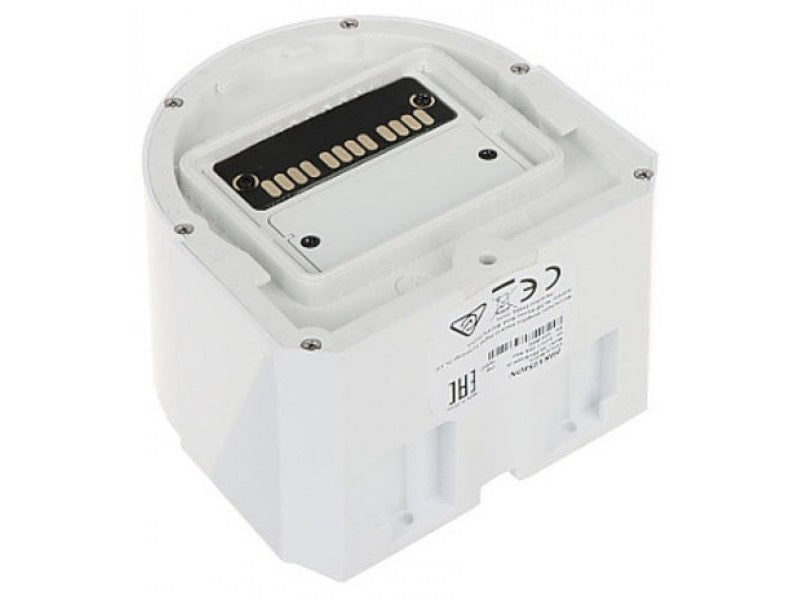

Hikvision DS-PDCM15PF-IR camera module viewed from the rear showing the connector plate and label
Hikvision DS-PDCM15PF-IR camera module's mounting bracket with adjustment dial and pin connector

Hikvision DS-PDCM15PF-IR AX PRO Wireless IR Camera Module - VGA, 137° View, 15m IR, IP66

HIKVISION
R 1,456R 1,899
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 242.66 over 2–6 instalments
Price: R 1,456

Description

The direction of the Angle can be adjusted to fit the TT Detector's Angle. 25 `b0C to 60 `b0C (-13 `b0F to 140 `b0F).

Key features

  • RF Camera Module
  • Easy Installation
  • Detection Performance
  • Detection Method
  • Feature
  • Digital Noise Reduction
  • Focal length
  • Field Angle
  • Image Type
  • Jpeg
  • Resolusion
  • Fill Light
  • Infrared Light
  • Fill Range
  • Day/Night Switch
  • Auto
  • Electrical Characteristics
  • Operation Temperature
  • Operation Humidity
  • IP Rate

Specifications

  • 1/2.7" Progressive Scan CMOS
  • 2.0 mm fixed lens
  • 3D Digital Noise Reduction
  • Protection Level IP66
  • 3D
  • 2.0mm@F2.25
  • 137.2`b0(H), 80.1`b0(V)
  • 640*480;320*240;160*120
  • 15m
  • 1 12-Bit Data Interface
  • 3 VDC
  • 1200mA
  • 10% to 90%
  • IP66
  • Dimension(WxHxD)
  • 74.1mm x 72.35mm x 53mm
  • 155g

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision Alarm Systems / Security & Surveillance / Specials
Brand Hikvision
Type AX Pro RF IR camera module
Sensor 1/2.7" Progressive Scan CMOS
Lens 2.0 mm fixed, F2.25
Field Angle 137.2 degrees (H), 80.1 degrees (V)
Resolution 640x480, 320x240, 160x120
Image Type JPEG
Fill Light Infrared, 15 m range
Noise Reduction 3D Digital
Day/Night Switch Auto
Power Supply 3 VDC
Power Consumption 1200 mA
IP Rating IP66
Dimensions 74.1 x 72.35 x 53 mm
Weight 155 g
Barcode 6931847146788
