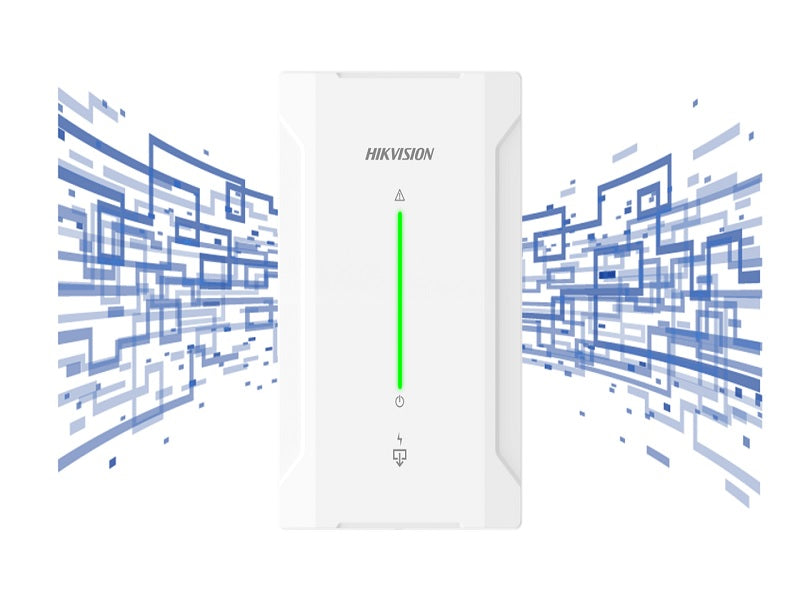

Power relay module pictured against a blue digital circuit-pattern backdrop

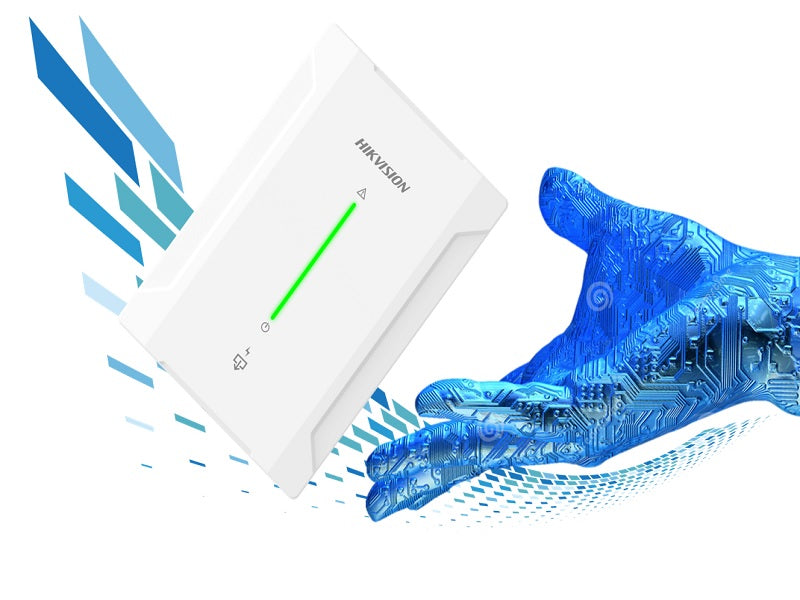

Relay module at an angle beside a circuit-textured robotic hand marketing graphic

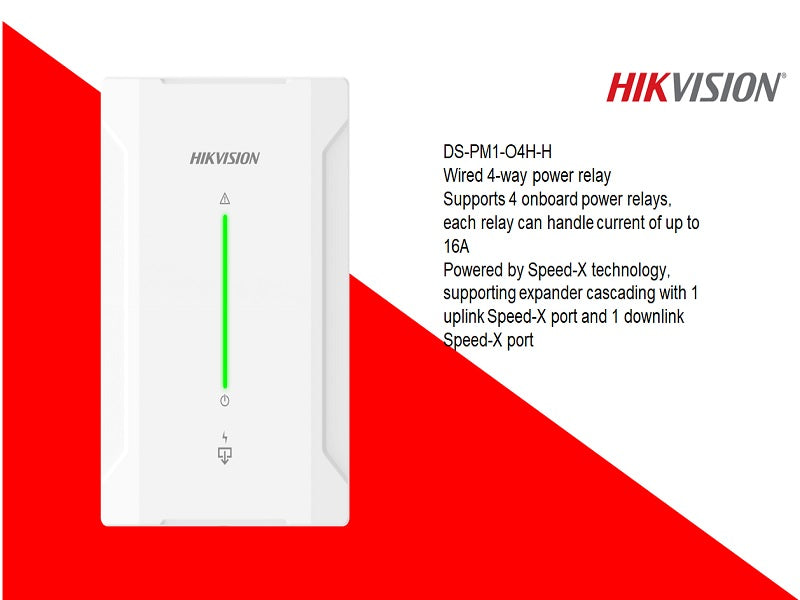

Spec diagram detailing the relay module's four 16A onboard relays and Speed-X ports

Hikvision DS-PM1-O4H-H AX Pro Wired 4-Way Power Relay Module - 16A, Speed-X

DS-PM1-O4H-H

HIKVISION
R 611R 999
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 101.83 over 2–6 instalments
Price: R 611

Description

Supports 4 onboard power relays'a3`aceach relay can handle current of up to 16A. Powered by Speed-X technology'a3`acsupporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port.

Key features

  • Tamper-Proof
  • Support (front and rear)
  • Bus
  • 2`d7Speed-X bus, 1 uplink for control panel connection and 1 downlink for next expander
  • LED Indicator
  • Electrical characteristics
  • Typical voltage
  • 110 mm `d7 155 mm `d7 32.5 mm
  • Shell material
  • Plastic
  • Operation temperature
  • Operation humidity

Specifications

  • Ds-pm1-o4h-h
  • Wired 4-way power relay
  • 1 TTL serial port
  • 1 for power'a3`ac1 for fault
  • 9 to 24 VDC
  • 12 VDC
  • Maximum current: 210 mA@12 VDC
  • Quiescent current: 65 mA@12 VDC
  • Dimension(WxHxD)
  • 333.1g
  • 10`b0C to 40`b0C
  • 10% to 90%

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision Alarm Systems / Security & Surveillance / Specials
Brand Hikvision
Model DS-PM1-O4H-H
Type AX PRO Wired 4-Way Power Relay Module
Relays 4 onboard, up to 16 A each
Bus 2x Speed-X (1 uplink, 1 downlink)
Serial Port 1 TTL
Power Supply 9 to 24 VDC (typical 12 VDC)
Power Consumption Max 210 mA @ 12 VDC; quiescent 65 mA
Material Plastic
Weight 333.1 g
Dimensions 110 x 155 x 32.5 mm
Operating Temperature -10 C to 40 C
Humidity 10% to 90%
Barcode 6931847180799
