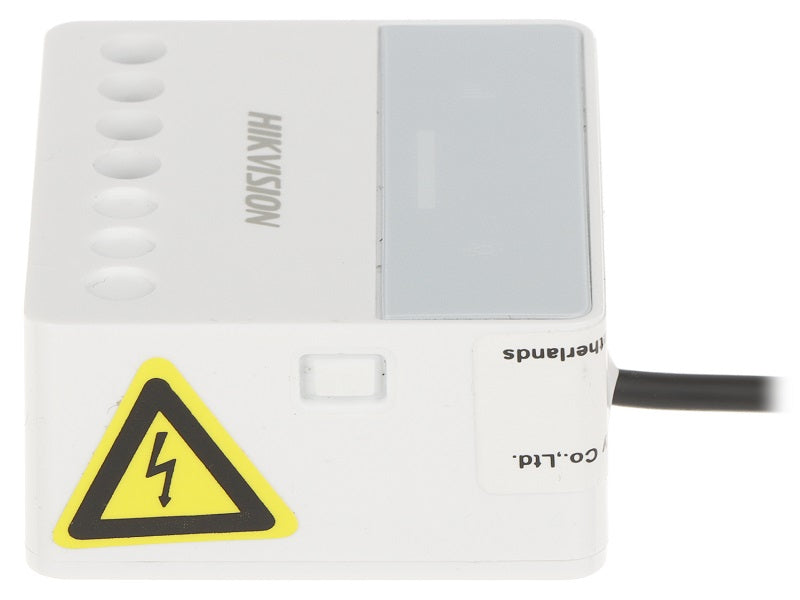

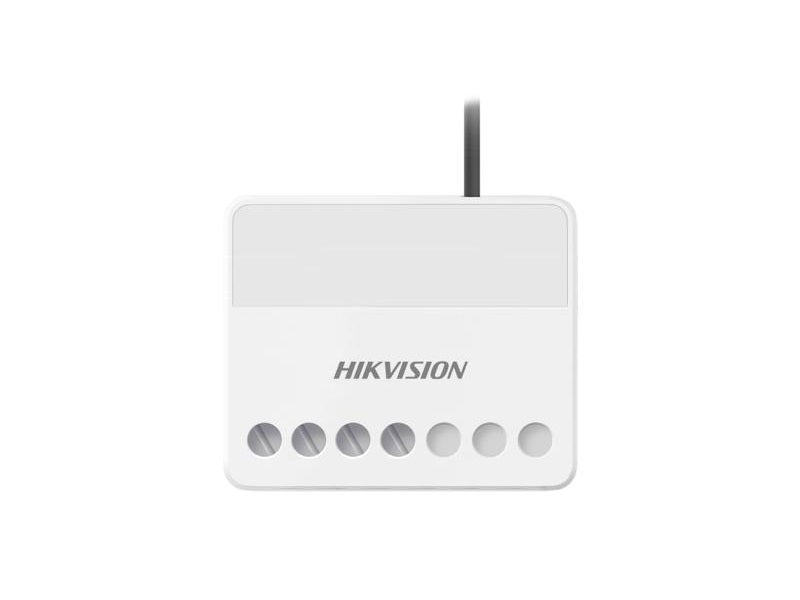

HIKVISION Ax Pro Wall Switch

Wall Switch
868MHz two-way wireless communication
AES-128 encryption
LED display, show status of device and replay on/off display
Small case design, which can be put into hiding places easily
Automation operating, one button turn on/off from APP/Keyfob/Keypad
Setting scenarios by different events

Software features
Scenario setting
By Alarm, By Operation, By Fault, By Schedule, By Manual
Learning button
1, For register
Hardware features
Serial port
1, for debug
Electrical characteristics
Power supply
AC 100v – 240v, 50/60 HZ
Operation humidity
10`a3`a5~90`a3`a5
Operation temperature
﹣10℃~+55℃
Wireless transmission
RF frequency
868MHz
RF method
Two way communication
RF modulation
2GFSK
RF distance
1600m
Wireless security
AES-128
Display
LEDs status
3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
General
Installation method
Wall Mounting or Inside 86 box
Dimension(WxHxD)
38x25x18mm
Shell material
Plastic
Color
White
Weight
31.5g
Device management
Relay output
1, NO/NC (AC 100~240v, Max 13A`a3©
