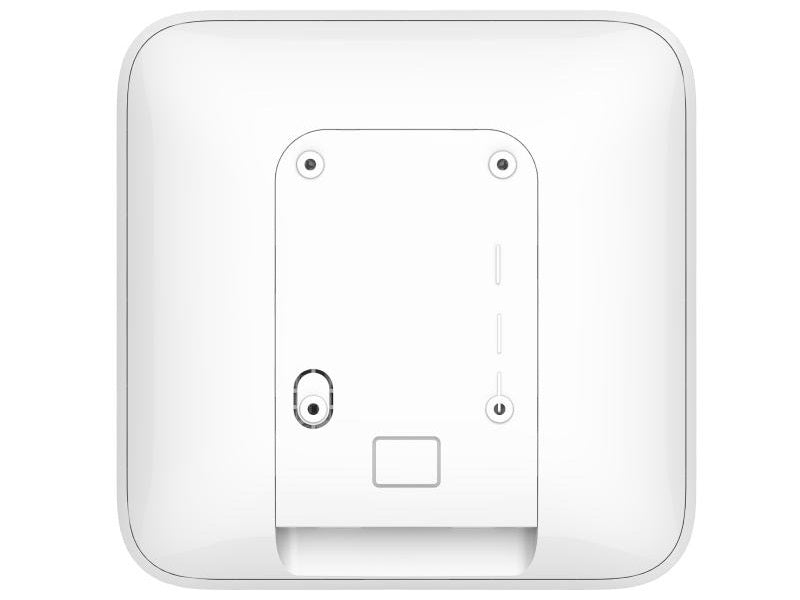

HIKVISION Ax Pro Wireless Control Panel

The HIKVISION DS-PWA96-M-WE AX PRO is a cutting-edge security system designed to provide comprehensive protection with advanced wireless technology. Featuring multi-network support and long-range RF transmission, this system is ideal for various security applications. Multi-Network Support: TCP/IP, Wi-Fi, and 3/4G networks ensure reliable connectivity.

Key features

• Advanced Wireless Protocols: Utilizes Tri-X and Cam-X for enhanced performance.
• Extensive Coverage: Supports up to 96 wireless zones/outputs, including 48 PIRCAMs, 48 wireless keyfobs, 4 repeaters, 6 sounders (3 internal and 3 external), and 8 tag readers and keypads.
• User Capacity: Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users.
• Voice Prompt: Provides audible notifications for various system events.
• Remote Configuration: Configurable via Web client, mobile client, and Convergence Cloud.
• Hik-Connect and Hik-ProConnect: Configuration based on user access level, with features like alarm notifications, live video viewing, and alarm video clips sent via email or app.
• SIA-DC09 Protocol: Supports Contact ID and SIA data formats for ARC communication.
• Backup Battery: Equipped with a 4520 mAh lithium backup battery for extended operation during power outages.
• Diagnostics: Accessible via the app or web client.
• User Management: Supports 1 installer, 1 administrator, and 46 normal users.
• Firmware Upgrade: Easily upgradable through the app or web portal.
• Programming Tools: Compatible with Hik-Connect, Hik-ProConnect, Web Portal, IVMS4200, and Convergence Cloud.
• Memory Log: Stores up to 5000 event logs.
• RS232 Output: Supported for various integrations.
• Dual SIM Slots: Ensures continuous connectivity with support for 3/4G networks.
• Built-In Tag Reader and Loudspeaker: Enhances functionality and user interaction.
• Electrical Characteristics
• Battery: Built-in lithium battery with up to 12 hours of backup at normal temperatures.
• Operating Temperature: -10`b0C to +55`b0C (Note: Battery cannot be charged below 10`b0C; ensure the adapter is connected).
• Wireless Transmission
• Frequency: 868 MHz with frequency hopping and AES-128 encryption for secure communication.
• LED Indicators: Display system status including Arm/Disarm, Alarm, Tamper, Fault, Cloud, and Power.
• Dimensions: 170.0 mm `d7 170.0 mm `d7 38.6 mm (6.7" `d7 6.7" `d7 1.5").
• Material and Color: Durable plastic shell in white.
• Weight: 557.5 g (19.7 oz).
• Device Management
• Tags: Supports up to 48 tags.
• Zones: Manages up to 96 zones, including up to 48 PIRCAMs.
• Keypads: Supports up to 8 keypads with tag readers.
• Sounders: Accommodates up to 6 wireless sounders (3 internal and 3 external).
• Repeaters: Supports up to 4 wireless repeaters.
• Keyfobs: Can connect up to 48 keyfobs.
• Multi-Transmitters: Supports up to 6 multi-transmitters.
• Reporting Methods
• ARC Protocol: Compatible with SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK).
• Hik-IP Receiver: Supports Hik-IP Receiver and Hik-IP Receiver Pro (Sur-Gard & Ademco 685) for advanced reporting and remote control.

Specifications

• Ds-pwa96-m-we
