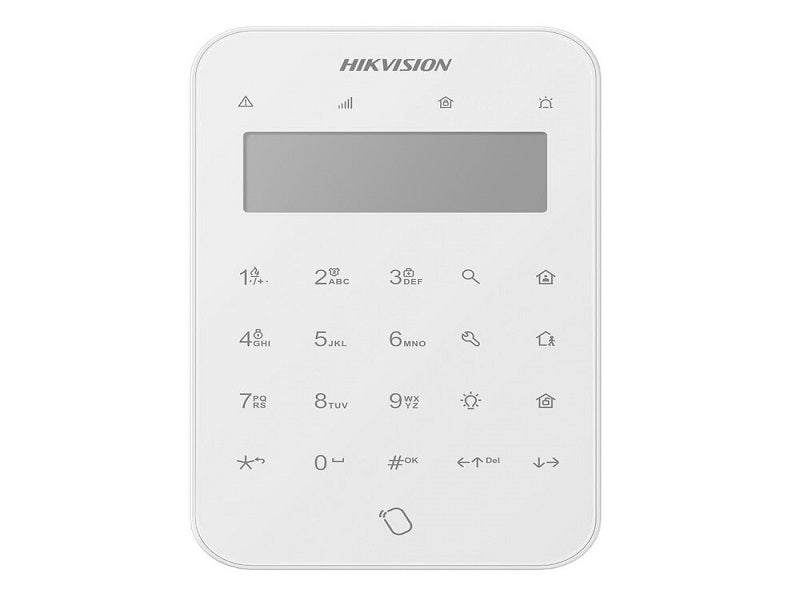

HIKVISION Ax Pro Wireless Lcd Keypad

n Multiple operations like stay/away arm, disarm, silent alarm, output control. Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left.

Key features

• n LCD screen and LED to indicate system status
• n System configuration through LCD screen
• n One-Push fire alarm, panic alarm, and medical alarm
• n Full touch key design with LED backlight
• n Fully remote configurable through App
• Tag reader built in Supported
• Tamper-Proof Supported, front and rear
• Buzzer Supported
• Electrical characteristics
• Wireless transmission
• Wireless technology Tri-X Wireless Technology
• Numeric key
• LED indicator Fault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red)
• Installation method Wall mounting

Specifications

• Ds-pk1-lt-we
• n 868MHz two-way wireless communication
• Serial port 3
• Battery type Four CR123 batteries
• Operation humidity 10% to 90%
• Operation temperature -10 `b0C to 55 `b0C
• Battery life span Standby time more than two years
• Quiescent current: 80 uA
• Max current: 300 mA
• Voltage: 3 V
• RF frequency 868 MHz
• RF modulation 2GFSK
• RF distance 1200 m (open area)
• Number key: 0 to 9
• Dimension(W'd7H'd7D) 174.63 mm `d7 109.62 mm `d7 25.25 mm
• With batteries: 348 g
• Without batteries: 282 g
• Color White
