Hikvision DS-K110…
29% OFF

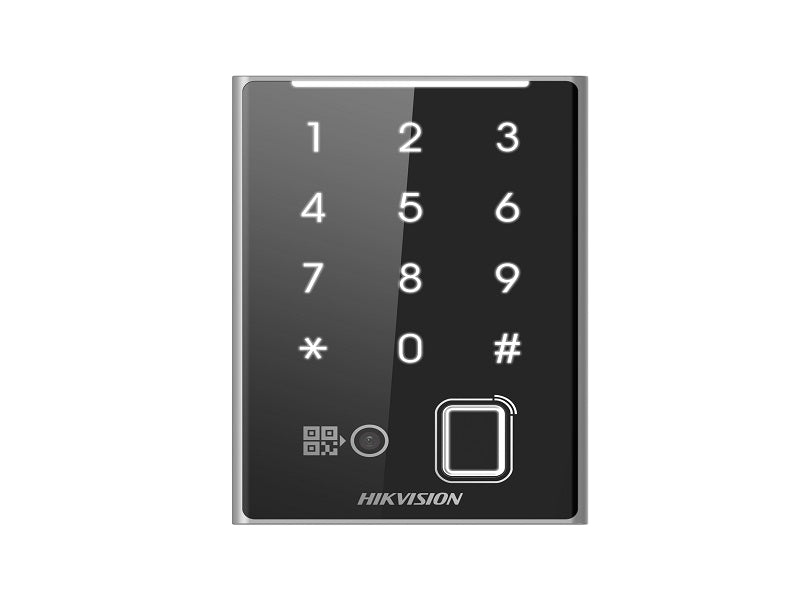

Hikvision DS-K1109DKFB-QR card reader, front view of keypad with QR scan and fingerprint icons
DS-K1109DKFB-QR reader shown at an angle on a blue tech-themed marketing background
DS-K1109DKFB-QR reader beside a digital hand graphic on a circuit-pattern marketing background

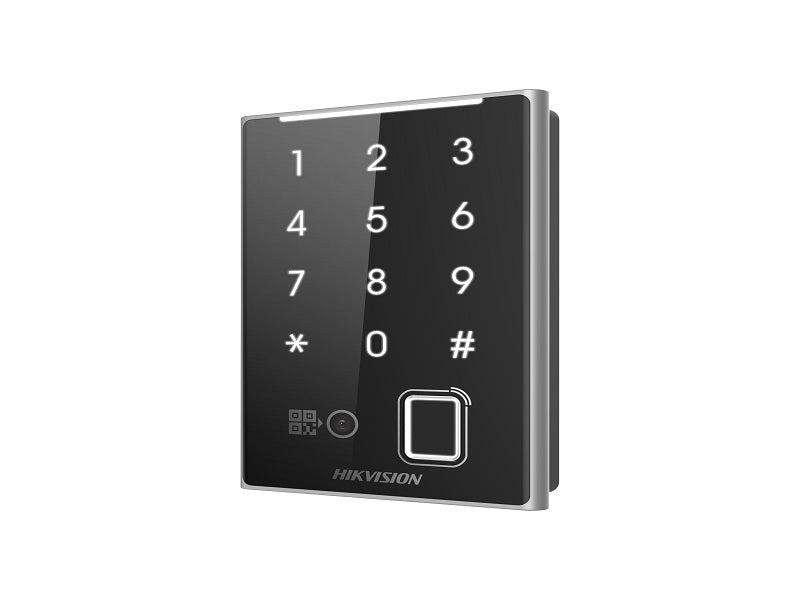

Hikvision DS-K1109DKFB-QR Card Reader - Fingerprint, QR, PIN, IP65, RS-485

DS-K1109DKFB-QR

HIKVISION
R 2,135R 2,999
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 355.83 over 2–6 instalments
Price: R 2,135

Description

40 °C to 65 °C (-40 °F to 149 °F). 125 mm × 84.5 mm × 18 mm (4.92" × 3.33" × 0.71").

Key features

  • Card Reader
  • Supports reading DESfire card, Felica card and M1 card
  • Supports authentication via card, password, fingerprint and QR code
  • Tamper-proof function
  • Max. 5000 fingerprint capacity
  • Tamper
  • Wiegand
  • Fingerprint capacity
  • Authentication
  • Card type
  • Working temperature
  • Working humidity
  • Protective level
  • Installation
  • Wall mounting
  • Buzzer
  • Support
  • Function
  • Format: Code 128, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codebar, Code 9 and UCC/EAN-128
  • QR code recognition

Specifications

  • Ds-k1109dkfb-qr
  • Supports RS-485 and Wiegand (W26, W34) protocol
  • Supports bluetooth module (when connecting by RS-485)
  • 1
  • RS-485
  • Capacity
  • 5000
  • M1 card;DESfire card;Felica card
  • 12 VDC
  • With load: ≤ 14 w
  • Without load: ≤ 4 w
  • 0 to 90% (no condensing)
  • IP65
  • ≤ 1 kg (2.20 lb)
  • Barcode recognition
  • Support (when connecting by RS-485)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Security & Surveillance / Specials
Brand Hikvision
Model DS-K1109DKFB-QR
Protocols RS-485, Wiegand (W26, W34)
Card Types DESfire, Felica, M1
Authentication Card, Password, Fingerprint, QR Code
Fingerprint Capacity 5000
Power Supply 12 VDC
Power Consumption ≤ 14 W (with load)
Working Temperature -40°C to 65°C
Working Humidity 0 to 90%
Protection IP65
Dimensions 125 x 84.5 x 18 mm
Weight ≤ 1 kg
Installation Wall Mounting
SKU DS-K1109DKFB-QR
Barcode 6931847187187
