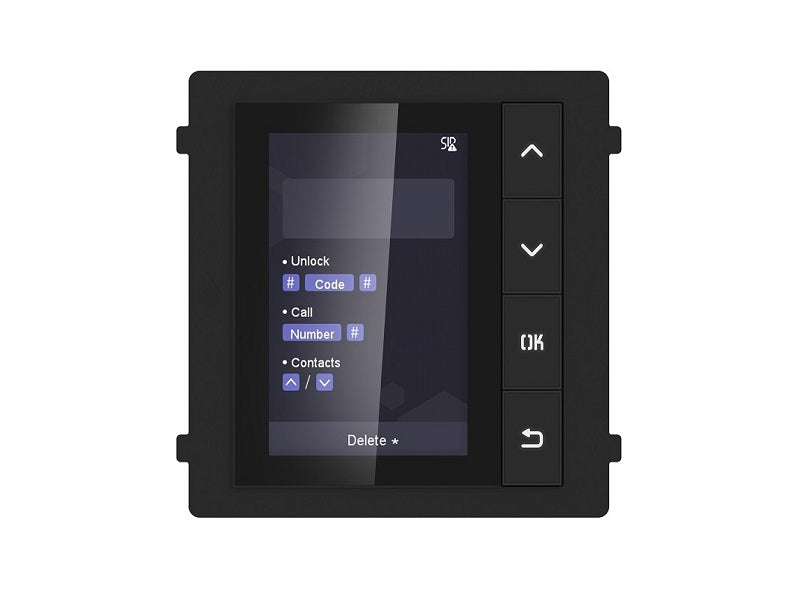

Hikvision DS-KD-DIS display module front view showing the intercom menu screen

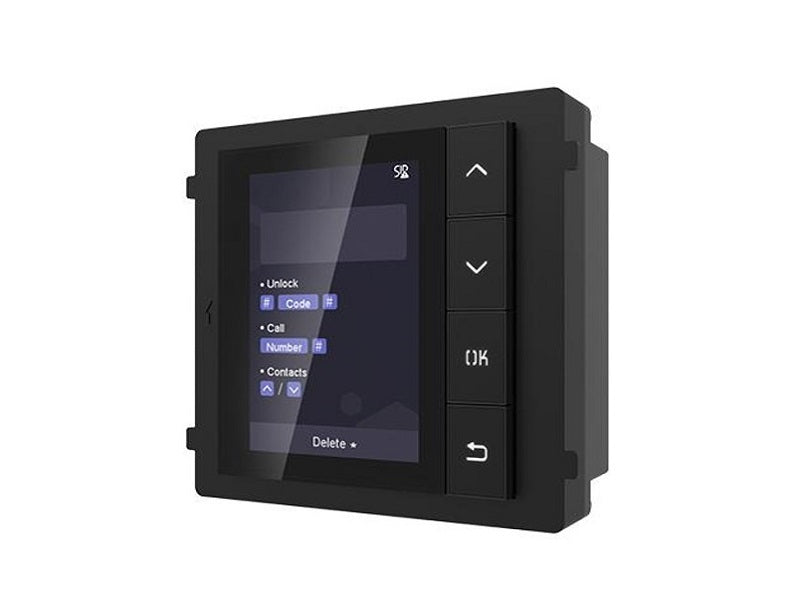

Hikvision DS-KD-DIS display module three-quarter angle with menu screen lit

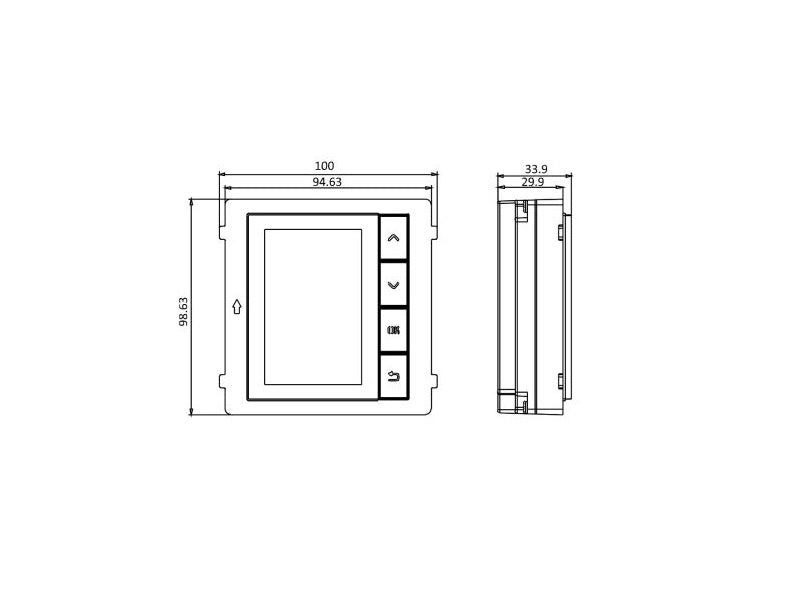

Hikvision DS-KD-DIS display module dimensions diagram, front and side views
Hikvision DS-KD-DIS display module held up in a hands-on product demonstration

Hikvision DS-KD-DIS Display Module for KD8 Pro Door Station - 3.5" TFT LCD

HIKVISION
R 1,844R 2,499
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 307.33 over 2–6 instalments
Price: R 1,844

Description

Up to 2000 contacts can be added to the device. 98.5 mm `d7 100 mm `d7 34.2 mm (3.87" `d7 3.95" `d7 1.33").

Key features

  • Modular door station Display module, needs mouting bracket
  • 3.5 inch LCD screen, 4 buttons, backlight, IP65
  • Dial number display, pin code unlock, contact list display
  • Stores and searches contact list
  • Multiple languages
  • ROM
  • RAM
  • CPU
  • Screen Size
  • Operation Method
  • Physical buttons
  • Type
  • TFT LCD screen
  • /
  • FOV
  • WDR
  • Supplement Light
  • Volume Adjustment
  • User Capacity
  • Face Capacity
  • Card Capacity
  • Linked Network Camera Capacity
  • Communication Protocol
  • Tamper
  • Exit Button
  • Wiegand
  • TF Card
  • Lock Control
  • Performances
  • Multi-Factor Authentication
  • Button
  • Installation
  • Flush mounting, surface mounting
  • Indicator
  • Protective Level
  • Working Temperature
  • 20`b0 C to +60`b0 C(-4`b0 F to 140`b0 F)
  • Working Humidity
  • Outdoor

Specifications

  • KD8 Series Pro Modular Door Station
  • 8 MB
  • 64 MB
  • 3.5-inch
  • Resolution
  • 320 `d7 480p
  • Brightness
  • 250 cd/m2
  • Lens
  • Capacity
  • Bluetooth Version
  • 3G/4G Standard
  • RS-485
  • 1
  • 4( Up, Down, OK, Back)
  • IP65
  • 10% to 95%
  • Battery
  • 2.5 W

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Security & Surveillance / Specials
Brand Hikvision
Series KD8 Pro Modular Door Station
Type Display Module
Operating System Embedded Linux
ROM 8 MB
RAM 64 MB
CPU Embedded MCU Processor
Screen Size 3.5-inch
Screen Type TFT LCD
Resolution 320 x 480p
Brightness 250 cd/m²
Buttons 4 (Up, Down, OK, Back)
Contacts Up to 2000
Installation Flush / Surface Mounting
Protection IP65
Dimensions 98.5 x 100 x 34.2 mm
Power Consumption 2.5 W
Barcode 6941264011590
