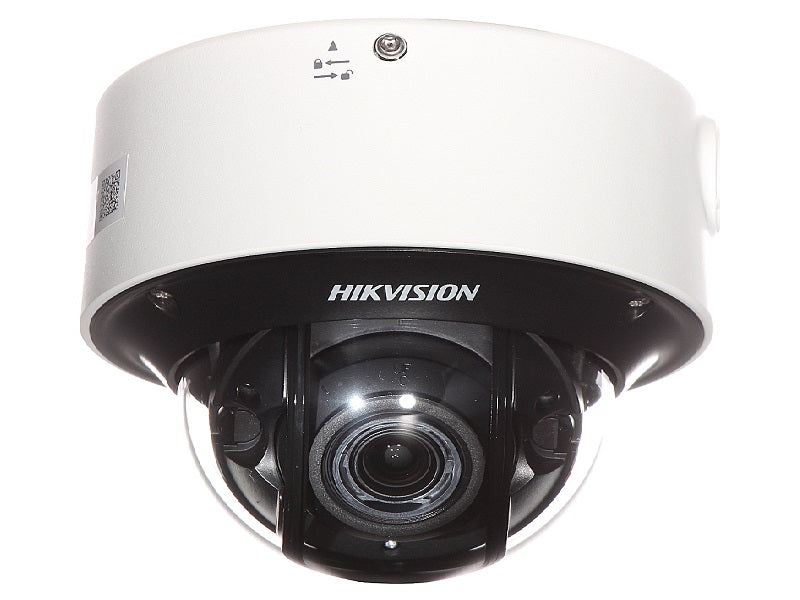

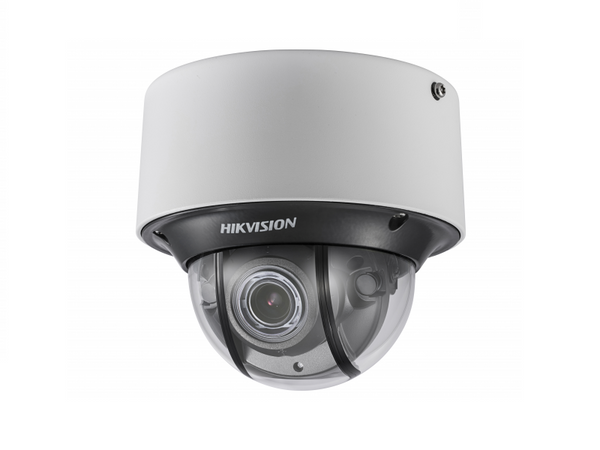

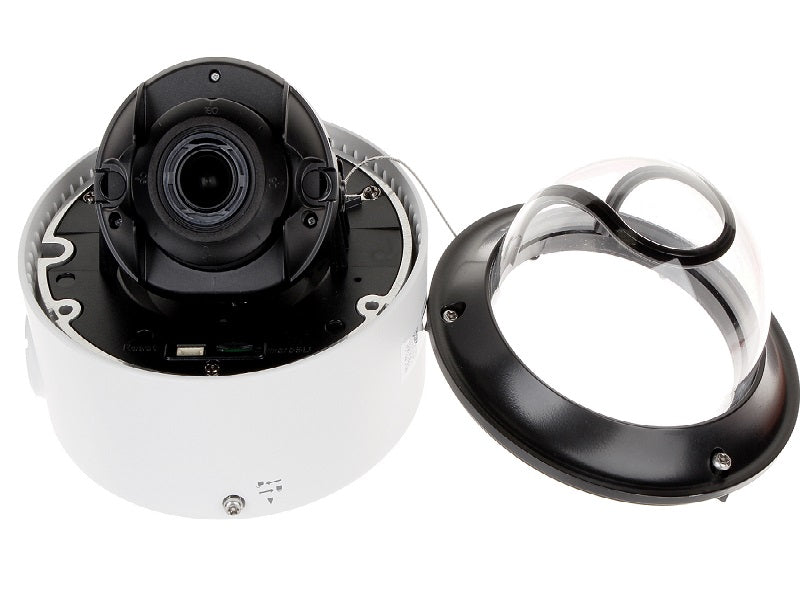

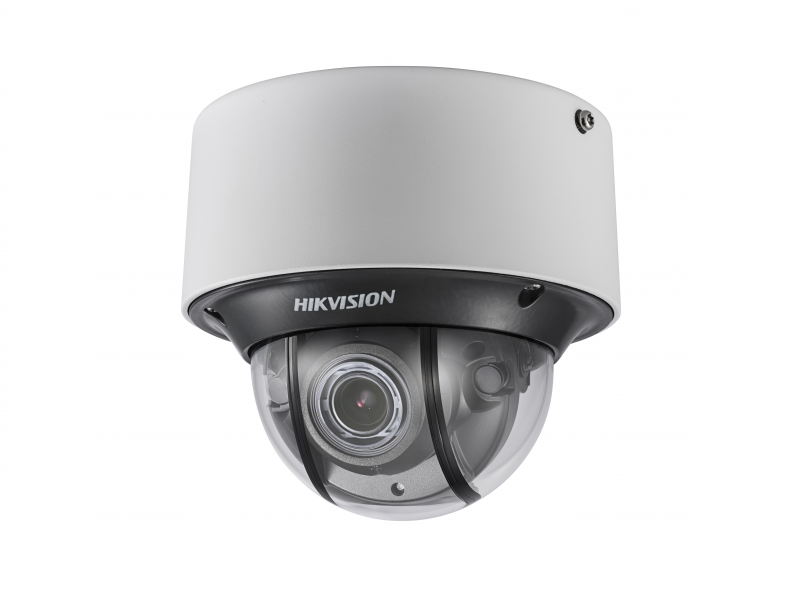

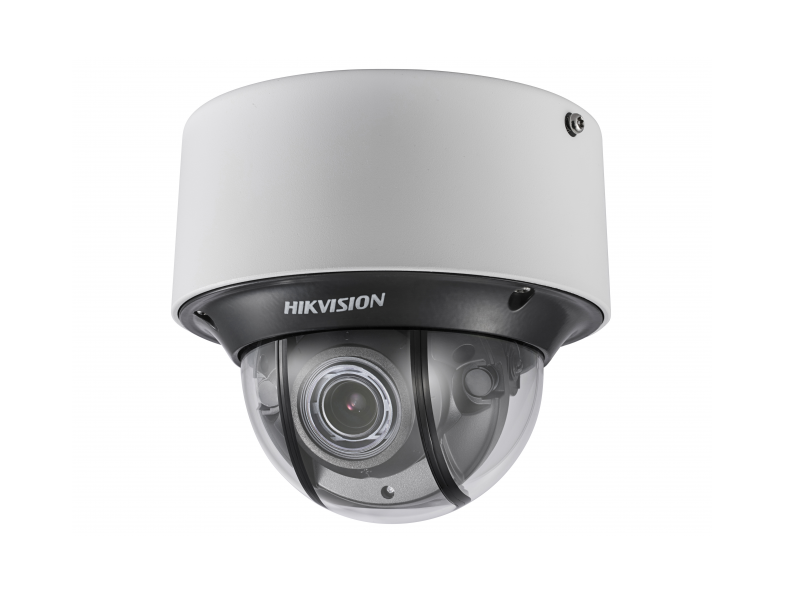

HIKVISION Dome Ip 1.3Mp Vf 2.8/12 30M Ir

Color: 0.005 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F1.4, AGC ON), 0 Lux with IR. B/W: 0.0005 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F1.4, AGC ON), 0 Lux with IR".

Key features

• Min. Illumination:
• Support
• 2.8 - 12 mm F1.4, horizontal angle of view 98.4`b0 - 30.2`b0
• DC drive
• Pan: 0`b0 to 355`b0, tilt: 0`b0 to 70`b0, rotate: 0`b0 to 355`b0
• Day& Night:
• IR Cut Filter
• Compression Standard
• Baseline Profile/Main Profile/High Profile
• Yes
• Image
• Max. Image Resolution:
• 50Hz: 50fps (1280 `d7 960, 1280 `d7 720, 704 `d7 576, 640 `d7 480)
• 60Hz: 60fps (1280 `d7 960, 1280 `d7 720, 704 `d7 480, 640 `d7 480)
• 50Hz: 25fps (704 `d7 576, 640 `d7 480, 352 `d7 288, 320 `d7 240)
• 60Hz: 30fps (704 `d7 480, 640 `d7 480, 352 `d7 240, 320 `d7 240)
• 50Hz: 25fps (1280 `d7 960, 1280 `d7 720, 704 `d7 576, 640 `d7 480, 352 `d7 288, 320 `d7 240)
• 60Hz: 30fps (1280 `d7 960, 1280 `d7 720, 704 `d7 480, 640 `d7 480, 352 `d7 240, 320 `d7 240)
• Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• Support 4 fixed region for each stream, and dynamic face tracking
• LOGO picture can be overlaid on video with 128 `d7 128 24bit bmp format
• Auto/Schedule/Triggered by Alarm In (-S)
• microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, rtcp, pppoe, NTP, upnp, smtp, snmp, igmp, 802.1X, qos, ipv6, UDP, bonjour
• One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
• mask, Watermark, IP address filtering
• ONVIF (Profile S, Profile G),ISAPI
• 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface (-S)
• With -S model: 2 inputs, 2 outputs (up to DC24V 1A or AC110V 500mA )
• Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Support dual audio track, stereo
• Smart Feature-set
• Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
• Cross a pre-defined virtual line
• Enter and loiter in a pre-defined virtual region
• Enter a pre-defined virtual region from the outside place
• Exit from a pre-defined virtual region
• Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Objects removed from the pre-defined region, such as the exhibits on display.
• Scene change detection
• Face Detection
• 30 `b0C ~ 60 `b0C (-22 `b0F ~ 140 `b0F)
• 12 V DC `b1 20%, PoE (802.3af, class 3)
• Approx. 10 to 30 meters

Specifications

• WDR face detection 6 behavior analyses
• 1/3" Progressive Scan CMOS
• 1 s - 1/100,000 s
• `f614
• 120 dB
• 3D DNR
• H.265+/h.265/h.264+/h.264/mjpeg
• H.264 code profile:
• 32Kbps~16Mbps
• G.711/g.722.1/g.726/mp2l2/pcm
• 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
• 1280x960
• BLC/HLC/3D DNR/Defog/EIS
• With -S model: 1 input (line in), 1 output
• 1Vp-p Composite Output (75 `d9, BNC)
• 16kHz / 32kHz / 44.1kHz / 48kHz
• Humidity 95% or less (non-condensing)
• 12 V DC `b1 20%: max. 9W/0.75A
• PoE (802.3af): max. 10W/0.21A
• IP66
• `d6145.96 `d7 133.5 mm (`d65.75″ `d7 5.26″)
• 1200 g (2.65 lb.)
