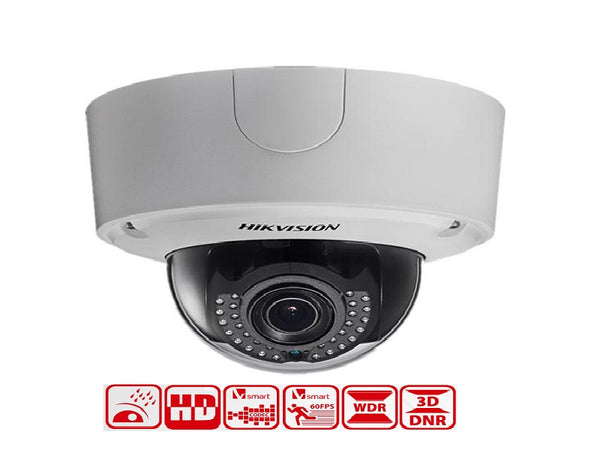

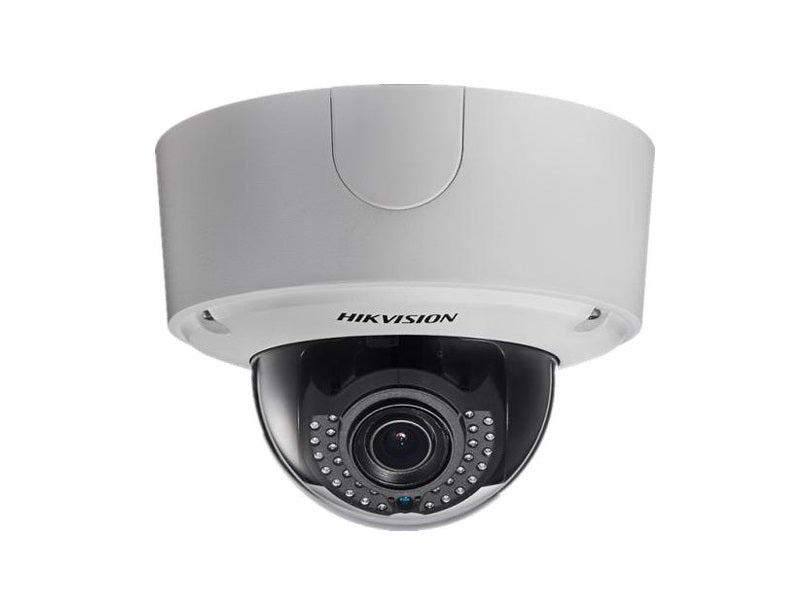

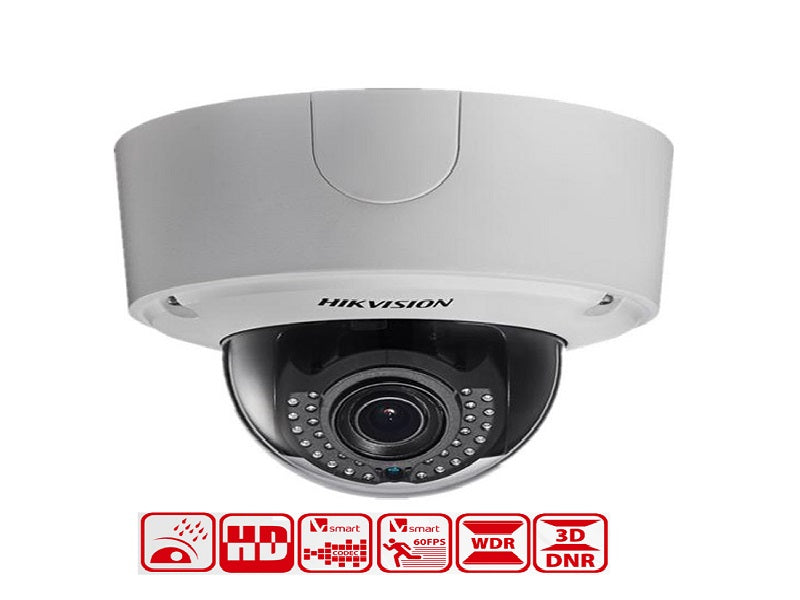

HIKVISION Dome Ip Vf 2.8/12 Smart Face

H.264 code profile: Baseline Profile / Main Profile / High Profile. Audio bit rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2).

Key features

• Detection
• Ultra-low light
• Slow shutter
• Motorized lens with Smart Focus
• Audio/Alarm IO
• Compression Standard
• Image
• Frame Rate: 50Hz: 50fps(1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• 60Hz: 60fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• Third Stream: Independent with Main Stream and Sub Stream, up to
• 50Hz: 25fps(1920 `d7 1080); 60Hz: 30fps (1920 `d7 1080)
• Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• Picture Overlay: LOGO picture can be overlaid on video with 128x128 24bit bmp format
• Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Communication Interface: 1 RJ45 10M / 100M Ethernet interface and 1 RS-485 interface
• Alarm: 1 input, 1 output (up to DC24V 1A or AC110V 500mA )
• On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Audio Sampling Rate: 16kHz / 32kHz / 44.1kHz / 48kHz
• Smart Feature-set
• Behavior Analysis: Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
• Intrusion Detection: Enter and loiter in a pre-defined virtual region
• Region Entrance: Enter a pre-defined virtual region from the outside place
• Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
• Exception Detections: Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
• Statistics: Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
• Operating Conditions: -30 `b0C - 60 `b0C (-22 `b0F - 140 `b0F), Humidity 95% or less (non-condensing), -H: -40 `b0C - 60 `b0C

Specifications

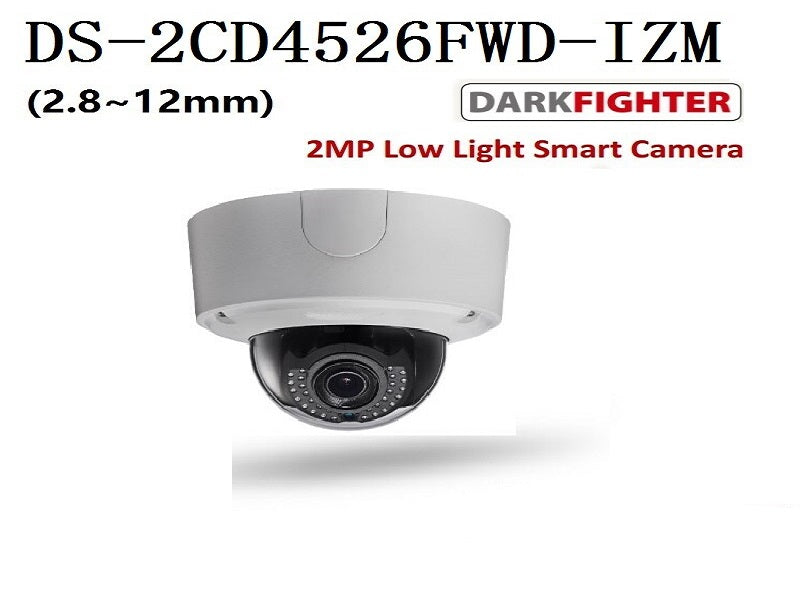

• Hikvision 2MP Low Light Smart Camera
• 1/1.8” Progressive Scan CMOS
• Full HD1080p video
• Up to 60fps frame rate
• 120dB WDR
• 3D DNR
• Up to 40m IR range

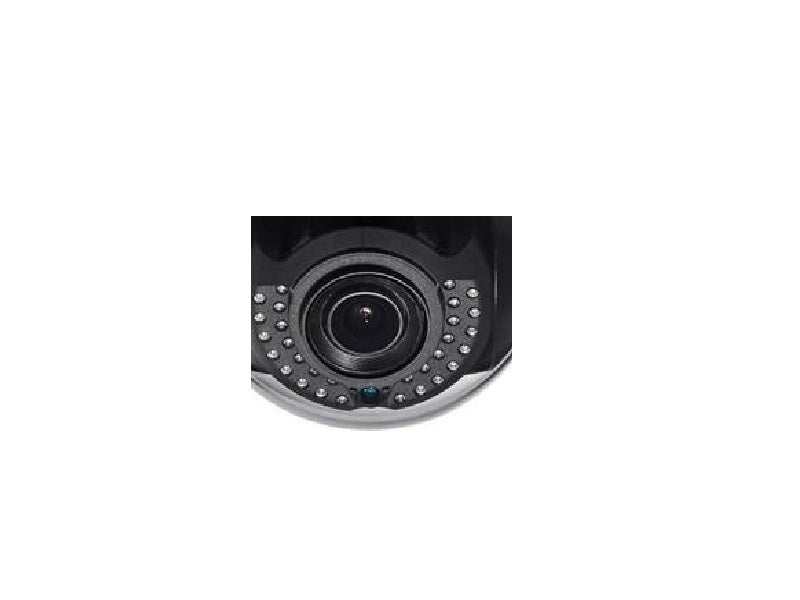

• 2.8 to 12mm motorized varifocal lens
• Support 128G on-board storage
• Ac24v/dc12v/poe
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Signal System: PAL/NTSC
• Min. Illumination: 0.002 Lux @ (F1.2, AGC ON),
• 0.0027 Lux @ (F1.4, AGC ON),
• 0 Lux with IR
• Shutter time: 1s ~ 1/100,000s
• Slow shutter: Support
• Lens: 2.8~12mm @ F1.4, 92`b0~32`b0
• Lens Mount: `f614
• Auto Iris: DC drive
• Adjustment Range: Pan: 0`b0~355`b0, tilt: 0`b0~75`b0,rotation: 0`b0~355`b0
• Day& Night: IR cut filter with auto switch
• Wide Dynamic Range: 120 dB
• Digital noise reduction: 3D DNR
• Video Compression: H.264+/H.264/MPEG4/MJPEG
• Video bit rate: 32Kbps~16Mbps
• Audio Compression: G.711/G.722.1/G.726/MP2L2
• Triple Streams: Yes
• Max. Image Resolution: 1920 x 1080
• Image Enhancement: BLC/3D DNR/ROI/Defog/EIS
• Distortion Correction: Support
• Target Cropping: Support
• Day/Night Switch: Auto/Schedule/Triggered by Alarm In
• Network Storage: NAS (Support NFS,SMB/CIFS), ANR
• General Function: User Authentication, Watermark, IP address filtering
• System Compatibility: ONVIF (Profile S, Profile G),ISAPI
• Audio: 1-ch audio in, Mic in/Line in;
• 1-ch audio out
• Alarm Input: 1
• Alarm Output: 1
• Video Input: 1 RJ12 interface
• Video Output: 1Vp-p Composite Output (75 `d9, BNC)
• Reset Button: Yes
• Audio I/O: Support dual audio track, stereo
• Line Crossing Detection: Cross a pre-defined virtual line
• Region Exiting: Exit from a pre-defined virtual region
• Recognition: Face detection recognition
• Power Supply: DC12V/AC24V/PoE(802.3af) , -H: DC12V/AC24V/PoE(802.3at)
• Power Consumption: Max. 12 W; -H: 17W
• Impact Protection: IK10
• Weather Proof: IP66
• IR Range: Up to 40m
• Dimensions: `d6164.9`d7127 mm (`d66.49” `d7 5”)
• Weight: 2100 g ( 4.63 lbs)
