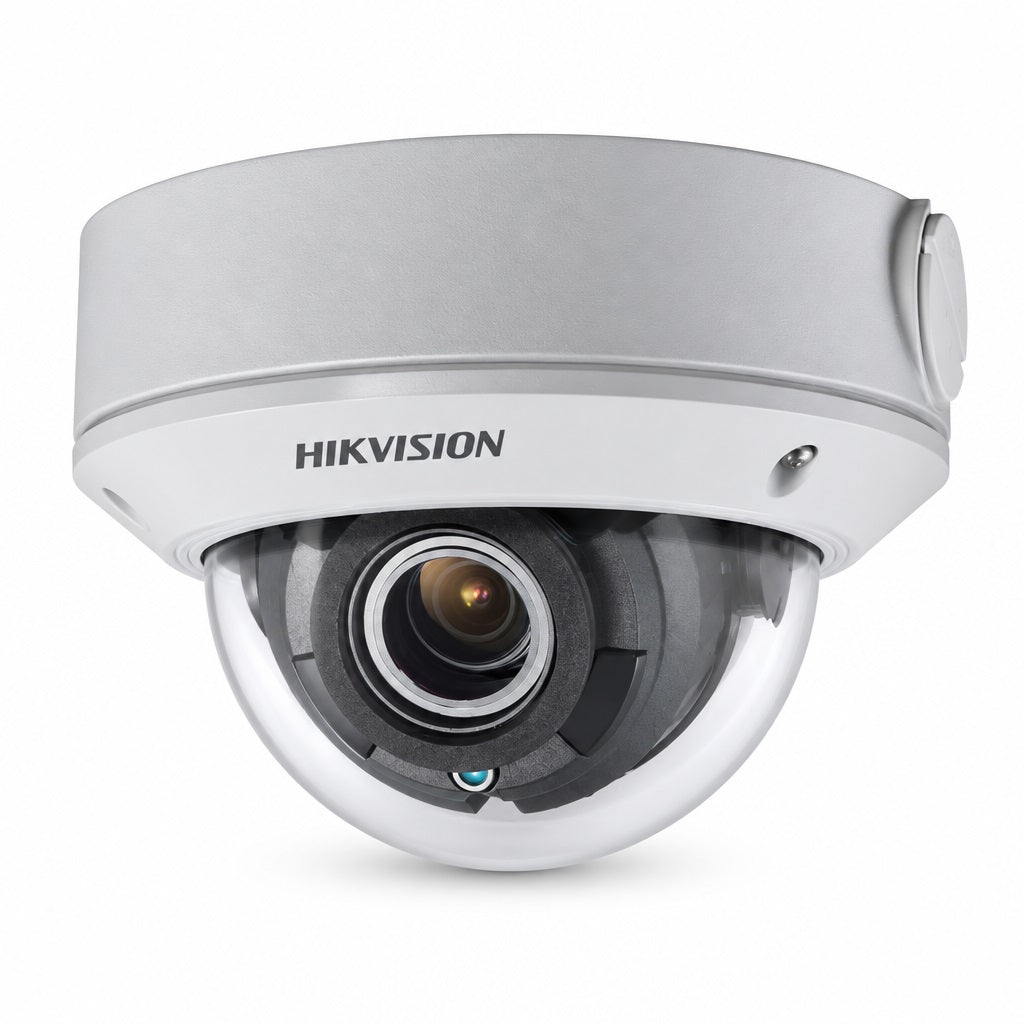

Hikvision DS-2CE5AD0T-VPIT3F 2MP Dome

HIKVISION 2MP Vandal-Resistant Manual Varifocal Dome Camera
The HIKVISION 2MP Vandal-Resistant Manual Varifocal Dome Camera is a durable HD analogue surveillance camera designed for professional indoor and outdoor CCTV installations. Featuring a 2MP CMOS image sensor, 2.8–12mm manual varifocal lens, up to 40m infrared night vision and four switchable video signals, it provides flexible coverage for a wide range of security applications.
The adjustable 2.8–12mm varifocal lens allows installers to manually select a wider viewing angle or a narrower, more focused field of view according to the surveillance area. With a horizontal field of view ranging from 102.25° to 32°, the camera can be configured for monitoring entrances, corridors, parking areas, warehouses, retail premises and other locations.
Built-in infrared illumination provides clear night surveillance at distances of up to 40 metres, while the robust metal housing provides IP67 weather protection and IK10 vandal resistance, making the camera suitable for demanding environments.
The camera also features 4-in-1 switchable TVI/AHD/CVI/CVBS video output, providing additional flexibility when connecting it to compatible analogue surveillance equipment.
Key Features
- 2MP HD analogue dome camera
- Maximum resolution of 1920 × 1080
- 2.8–12mm manual varifocal lens
- Adjustable horizontal FOV from 102.25° to 32°
- Up to 40m IR night vision
- 0 Lux with IR illumination
- IR cut filter for day/night operation
- 4-in-1 switchable TVI/AHD/CVI/CVBS
- PAL and NTSC support
- Digital WDR
- BLC image enhancement
- 2D Digital Noise Reduction
- Adjustable brightness and sharpness
- Mirror function
- Automatic Gain Control
- IP67 water and dust protection
- IK10 vandal resistance
- Durable metal housing
- 12V DC operation
- Suitable for indoor and outdoor surveillance
2MP Full HD Imaging
The camera features a 2MP CMOS image sensor capable of producing a maximum resolution of 1920 × 1080.
This Full HD resolution provides clear surveillance footage suitable for general security monitoring across residential and commercial CCTV installations.
Camera Specifications
Image Sensor: 2MP CMOS
Maximum Resolution: 1920 × 1080
Minimum Illumination:
Colour: 0.01 Lux @ F1.2, AGC ON
0 Lux with IR
Day & Night: IR Cut Filter
Signal System: PAL / NTSC
2.8–12mm Manual Varifocal Lens
The camera incorporates a 2.8mm to 12mm manual varifocal lens, providing greater installation flexibility than a standard fixed-lens camera.
The installer can manually adjust the focal length to achieve either a wider overview or a more focused view of a specific surveillance area.
Lens Type: 2.8–12mm Varifocal
Lens Mount: `d614
Field of View
Horizontal FOV: 102.25° to 32°
At the wider end of the lens range, the camera provides broader scene coverage. Adjusting towards 12mm provides a narrower field of view suitable for focusing on more specific areas.
Adjustable Camera Angle
The dome camera provides flexible physical adjustment during installation.
Pan: 0° to 355°
Tilt: 0° to 70°
Rotation: 0° to 355°
This allows the camera to be positioned according to the required surveillance direction after installation.
Up to 40m IR Night Vision
Integrated infrared illumination allows the camera to continue monitoring when ambient lighting is very low or absent.
Supplement Light: Infrared
IR Distance: Up to 40 metres
With IR active, the camera can operate at 0 Lux, providing night surveillance without requiring continuous external visible lighting.
Day & Night Modes
Supported operating modes include:
- Auto
- Colour
- Black & White
The camera also incorporates an IR cut filter to support effective day and night imaging.
4-in-1 Switchable Video Output
The camera provides a switchable HD analogue output supporting four video signal technologies:
- TVI
- AHD
- CVI
- CVBS
Video Output: 1 × HD analogue output
The switchable signal capability provides flexibility when integrating the camera with compatible DVRs and existing analogue CCTV infrastructure.
Frame Rate
PAL
1080p @ 25fps
NTSC
1080p @ 30fps
Image Enhancement
The camera provides several image adjustment and enhancement functions to improve surveillance performance under different conditions.
Image Settings
- Brightness
- Sharpness
- Mirror
- AGC
Wide Dynamic Range
Digital WDR
Digital WDR helps improve image visibility in scenes containing different levels of brightness.
Backlight Compensation
BLC – Backlight Compensation
BLC can help improve visibility when a monitored subject is positioned against a bright background.
Noise Reduction
2D DNR – Digital Noise Reduction
2D DNR helps reduce visible image noise, particularly in lower-light surveillance conditions.
Shutter Speed
PAL:
1/25 s to 1/50,000 s
NTSC:
1/30 s to 1/50,000 s
Durable Metal Construction
The camera features a metal housing designed for demanding security environments.
Its robust dome construction provides additional physical protection for the camera and lens assembly.
IP67 Weather Protection
The camera carries an IP67 protection rating, providing resistance against water and dust.
This makes the camera suitable for both indoor and outdoor surveillance installations when correctly installed.
IK10 Vandal Resistance
With an IK10 vandal-resistance rating, the camera is designed to provide a high level of protection against physical impact.
This makes the vandal-resistant dome design particularly suitable for exposed or publicly accessible locations where additional physical protection may be required.
Power
Power Supply: 12V DC ±25%
Maximum Power Consumption: 4W
The camera operates from a compatible 12V DC CCTV power supply.
Communication
Communication: HIKVISION-C
Technical Specifications
Specification Details
Brand HIKVISION
Product Type Vandal-Resistant Varifocal Dome Camera
Camera Technology HD Analogue
Image Sensor 2MP CMOS
Maximum Resolution 1920 × 1080
Lens 2.8–12mm Manual Varifocal
Horizontal FOV 102.25° to 32°
Lens Mount `d614
Night Vision IR
IR Range Up to 40m
Minimum Illumination 0.01 Lux Colour / 0 Lux with IR
Day/Night IR Cut Filter
Video Signals TVI / AHD / CVI / CVBS
Video Output 1 × HD Analogue
PAL Frame Rate 1080p @ 25fps
NTSC Frame Rate 1080p @ 30fps
WDR Digital WDR
Image Enhancement BLC
Noise Reduction 2D DNR
Material Metal
Weather Protection IP67
Vandal Resistance IK10
Power Supply 12V DC ±25%
Maximum Power 4W
Communication HIKVISION-C
Language English

Dimensions & Weight
Dimensions:
`d8141 × 99.9mm
Weight:
Approx. 800g
Operating Conditions
Operating Temperature:
-40°C to 60°C
Operating Humidity:
90% or less, non-condensing
The broad operating-temperature range and IP67-rated construction make the camera suitable for demanding indoor and outdoor surveillance environments.
Ideal Applications
The HIKVISION 2MP Vandal Manual Varifocal Dome Camera is suitable for:
- Retail stores
- Warehouses
- Offices
- Schools
- Commercial buildings
- Building entrances
- Parking areas
- Residential properties
- Factories
- Corridors
- Public-facing areas
- Indoor surveillance
- Outdoor surveillance
- Areas requiring vandal-resistant camera protection
Why Choose This HIKVISION Camera?
The HIKVISION 2MP Vandal-Resistant Manual Varifocal Dome Camera combines 1080p imaging, an adjustable 2.8–12mm lens, up to 40m IR night vision, four switchable analogue video formats and robust IP67/IK10 protection.
Its manually adjustable varifocal lens makes it particularly useful for installations where the required viewing angle needs to be fine-tuned on site, while the metal vandal-resistant housing provides additional durability for demanding CCTV environments.
