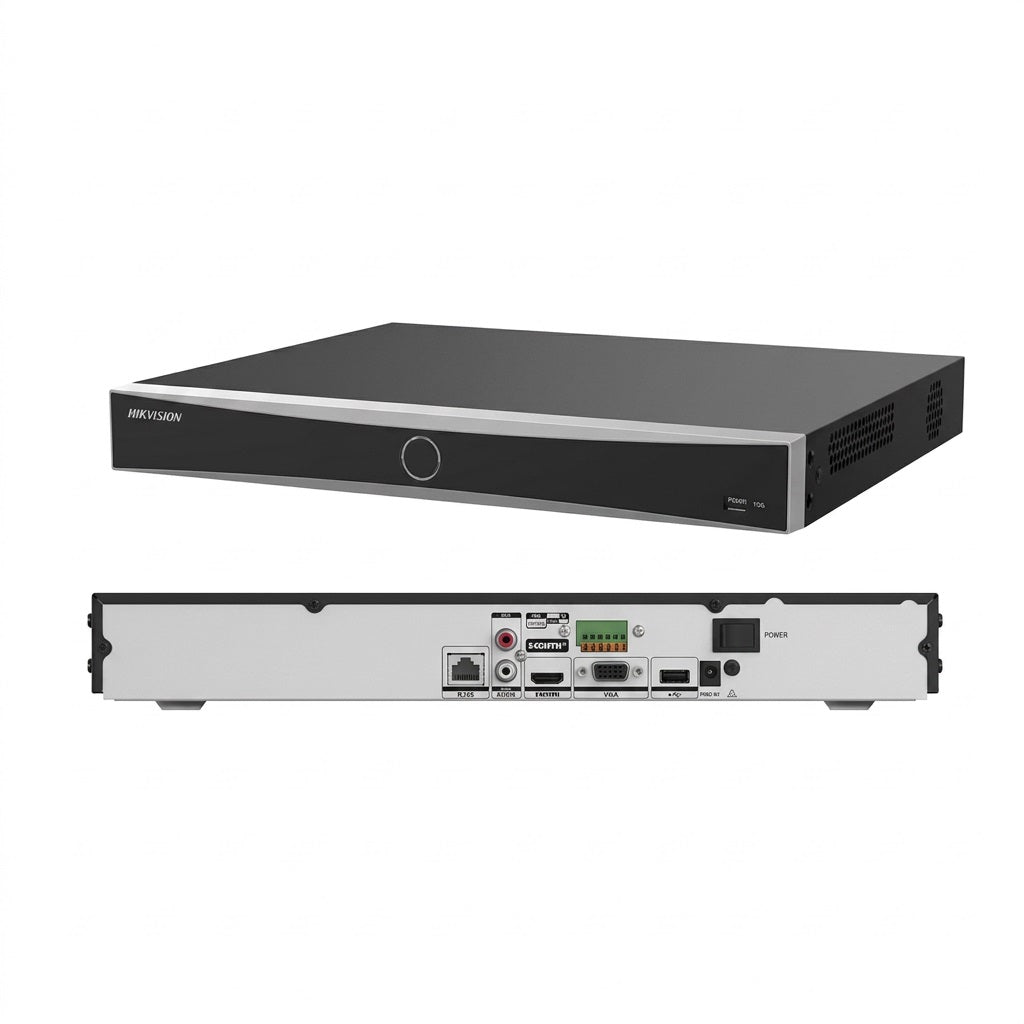

Hikvision DS-7608NXI-K2/VPro 8-Channel AcuSeek NVR - 1U, 2 SATA Bays, 12MP, 4K HDMI, 80Mbps

The Hikvision DS-7608NXI-K2/VPro is an 8-channel 1U network video recorder from the AcuSeek K VPro range. It records IP cameras up to 12MP with up to 80 Mbps incoming bandwidth, outputs 4K over HDMI and takes two SATA hard drives of up to 16TB each.

Built-in AcuSense technology on the recorder reduces false alarms with human and vehicle recognition, and AcuSeek lets you find people and vehicles quickly across all channels when paired with AcuSense cameras that have AcuSearch enabled (modelling up to 50,000 targets per day). Cameras are connected and configured automatically. This K2 model has no built-in PoE ports, so cameras are powered by a PoE switch or their own power supplies.

Key features

• Up to 8-channel IP camera input, recording up to 12MP
• Up to 80 Mbps incoming and 160 Mbps outgoing bandwidth
• AcuSeek and AcuSearch on up to 8 channels
• AI by NVR: facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, AcuSeek
• AI by NVR and camera: facial recognition, perimeter protection, Motion Detection 2.0, ANPR, VCA
• Perimeter protection by NVR: 2 channels up to 4MP or 1 channel 5–8MP; all channels by camera
• Motion Detection 2.0 by NVR on all channels up to 4MP (up to 8MP with enhanced SVC mode)
• Up to 16 face picture libraries with up to 50,000 face pictures; 8-channel face picture comparison
• H.265+ / H.265 / H.264+ / H.264 video formats
• HDMI up to 4K and VGA up to 1080p, with independent outputs
• 2 SATA bays, up to 16TB per HDD
• Automatic camera connection and configuration

Specifications

• IP video input: 8 channels
• IP speaker input: 4 channels
• Decoding capability (AI off): 4-ch 12MP, 6-ch 8MP, 8-ch 6MP, 8-ch 4MP, 8-ch 3MP or 8-ch 2MP @ 30fps
• Decoding capability (AI on): 2-ch 12MP, 3-ch 8MP, 4-ch 6MP, 6-ch 4MP, 8-ch 3MP or 8-ch 2MP @ 30fps
• Synchronous playback: 8 channels
• Recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• HDMI output: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p/60Hz, UXGA/60Hz, SXGA/60Hz, 720p/60Hz
• VGA output: 1080p/60Hz, UXGA/60Hz, SXGA/60Hz, 720p/60Hz
• Audio: 1 × RCA input (two-way audio), 1 × RCA output
• Audio compression: G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2
• Network: 1 × RJ45 10/100/1000 Mbps; up to 128 remote connections
• Network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
• Storage: 2 × SATA, up to 16TB per HDD
• Alarm in/out: 4/1
• USB: 1 × USB 2.0 front, 1 × USB 2.0 rear
• Power: 12 VDC, 3.33 A; consumption ≤15 W without HDD
• Operating conditions: -10°C to 55°C, 10%–90% humidity
• Dimensions (W × D × H): 384 × 317 × 52mm
• Weight: ≤3kg without HDD
• Certifications: CE, CB, REACH, WEEE, UKCA, RCM, IC
