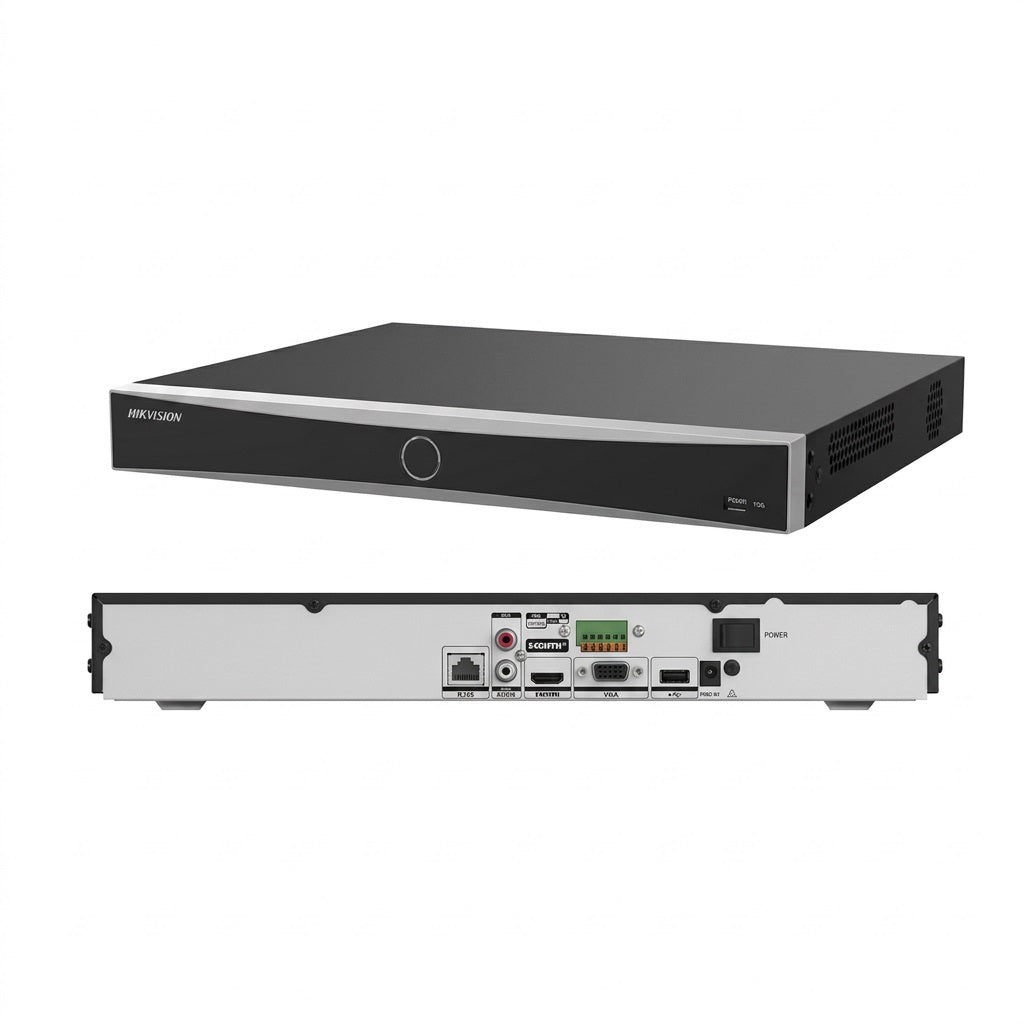

Hikvision DS-7616NXI-K2/VPro AcuSeek NVR

Up to 16-ch AcuSeek and AcuSearch function
Adopt Hikvision AcuSense technology to minimize manual effort and security costs
Accurate perimeter protection effectively reduces false alarms
Automatic cameras connection and configuration
Up to 16-ch IP camera inputs
Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 16-ch@2 MP decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Up to 160 Mbps incoming bandwidth
AI by NVR
Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek
AI by NVR and Camera
Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA
AcuSearch
By Camera
All channels

*: The camera should enable AcuSearch function

AcuSeek
Performance
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 50,000 targets/day.
Search Language
English
Perimeter Protection
By NVR
Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm.

Up to 4 MP: 2-ch;

5 MP to 8 MP: 1-ch

By Camera
All channels
Target Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB)
Face Picture Comparison
8-ch
Facial Detection and Analytics Performance
Up to 4 MP: 2-ch;

5 MP to 8 MP: 1-ch

Motion Detection 2.0
By NVR
All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera
All channels
Video and Audio
IP Video Input
16-ch
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
IP Speaker Input
4-ch
HDMI Output
4K`a3`a83840×2160`a3©/30Hz`a3`ac2K`a3`a82560×1440`a3©/60Hz`a3`ac1080P`a3`a81920×1080`a3©/60Hz`a3`acUXGA`a3`a81600×1200`a3©/60Hz`a3`acSXGA`a3`a81280×1024`a3©/60Hz`a3`ac720P`a3`a81280×720`a3©/60Hz
Video Output Mode
HDMI/VGA independent output
Audio Input
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
VGA Output
1080P`a3`a81920×1080`a3©/60Hz`a3`acUXGA`a3`a81600×1200`a3©/60Hz`a3`acSXGA`a3`a81280×1024`a3©/60Hz`a3`ac720P`a3`a81280×720`a3©/60Hz
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding Format
H.265, H.265+, H.264, H264+
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback
16-ch
Decoding Capability
AI on: 2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 6 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 12-channel 2 MP@30fps

AI off: 4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 12-channel 4 MP@30 fps, 16-channel 3 MP@30fps, 16-channel 2 MP@30fps

Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
Network Interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection
128
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 16 TB capacity for each HDD
Alarm In/Out
4/1
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
GUI Language
English,Russian,Bulgarian,Hungarian,Greek,German,Italian,Czech,Slovakia,French,Polish,Dutch,Portuguese,Spanish,Romanian,Turkish,Japanese,Danish,Swedish,Norwegian,Finnish,Korean,TraChinese,Thai,Estonia,Vietnamese,Croatian,Slovenian,Serbian,Latvian,Lithuanian,Uzbek,Kazak,Arabic,Hebrew,Ukrainian,Indonesian
Power Supply
12 VDC, 3.33 A
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Dimension (W × D × H)
384 mm × 317 mm × 52 mm (15.1 × 12.5 × 2.0 inch)
≤ 3 kg (without HDD, 4.0 lb.)
Certification
Obtained Certification
CE,CB,REACH,WEEE,UKCA,RCM,IC
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
