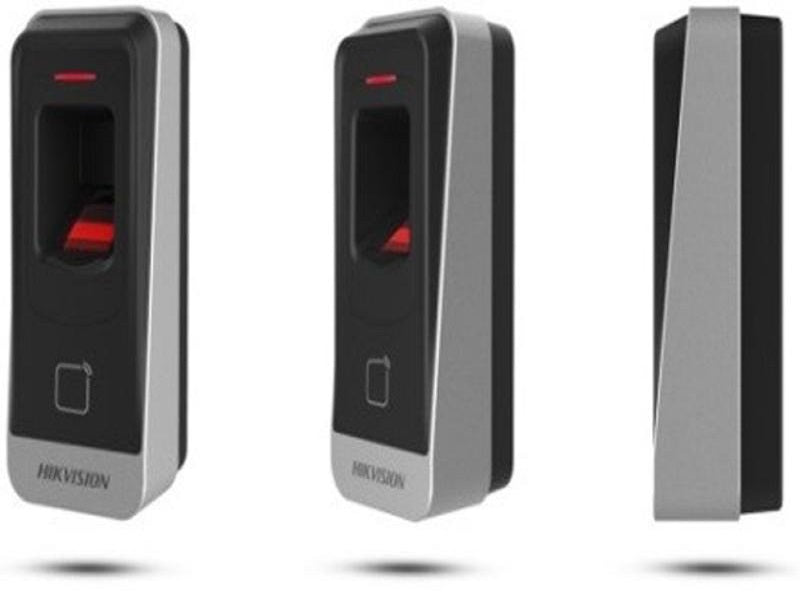

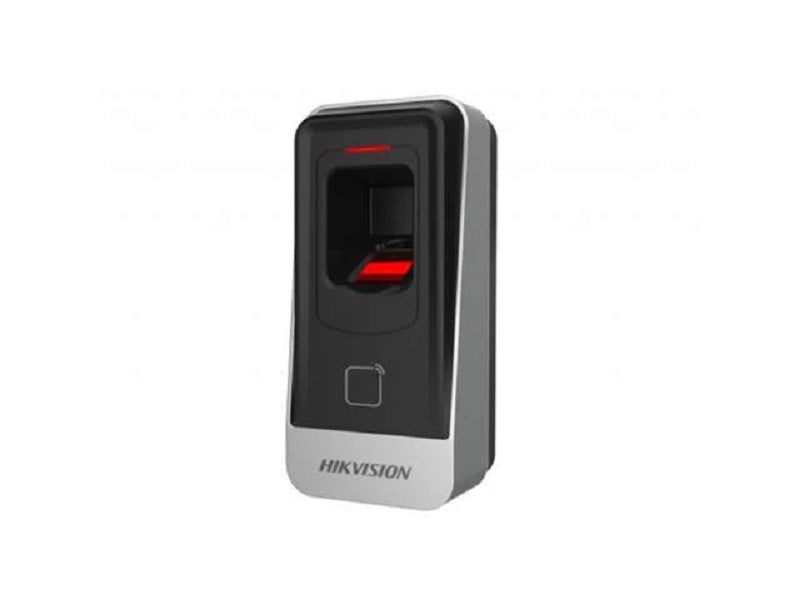

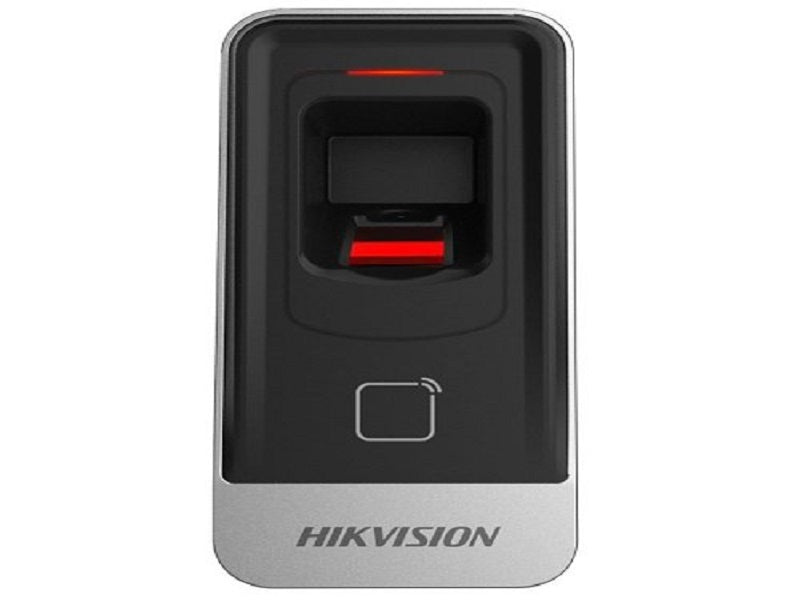

HIKVISION DS-K1201AMF Fingerprint Reader

The HIKVISION DS-K1201AMF Fingerprint Reader is a highly secure and versatile access control solution. Featuring advanced fingerprint encryption, multiple authentication modes, and robust construction, this reader is designed to enhance the security and efficiency of your access control system. Secure Fingerprint Storage: Encrypted data ensures the security of stored fingerprints.

Key features

• RS-485 Communication: Supports 19200bps-N-8-1 transmission rate with CRC test for reliable data transfer.
• M1 Card Reading: Compatible with M1 cards, offering flexible authentication options.
• Card Induction Distance: Effective range of 30 mm to 100 mm.
• Multiple Authentication Modes: Supports card, fingerprint, and card + fingerprint authentication.
• Optical CMOS Fingerprint Module: Ensures accurate and fast fingerprint recognition.
• Large Capacity: Stores up to 5000 fingerprints.
• Fast Comparison Time: 1:1 and 1:1000 modes both have a comparison time of ≤ 1 second.
• High Accuracy: False Rejection Rate (FRR) ≤ 0.01%, False Acceptance Rate (FAR) ≤ 0.001%.
• Noise Suppression: Communication circuit features optical coupling isolation and noise suppression.
• Built-in Buzzer: Provides clear status indications.
• Reliable Operation: Built-in electronic clock and watchdog program ensure accurate data and time display.
• Tamper Protection: Equipped with 1 tamper interface for enhanced security.
• Fingerprint Module: Optical fingerprint module for high accuracy.
• modes.
• Card Type: Compatible with M1 cards.
• Working Temperature: -40 `b0C to 70 `b0C (-40 `b0F to 158 `b0F)
• Dimensions: 62 mm `d7 132 mm `d7 44 mm (2.44" `d7 5.20" `d7 1.73")
• The HIKVISION DS-K1201AMF Fingerprint Reader combines advanced biometric technology with flexible authentication options to provide a secure and efficient access control solution. Its encrypted fingerprint storage and multiple authentication modes ensure high security, while the robust design and tamper-proof functionality make it ideal for a wide range of applications.

Specifications

• HIKVISION DS-K1201AMF Fingerprint Reader
• Fingerprint Comparing Mode: Supports 1:1 and 1
• Power Supply: 12 VDC `b1 10%
• Power Consumption: ≤ 1.6 W
• Working Humidity: 10% to 90% (non-condensing)
• Installation: Surface mounting
• Buzzer: Supported for status indication
