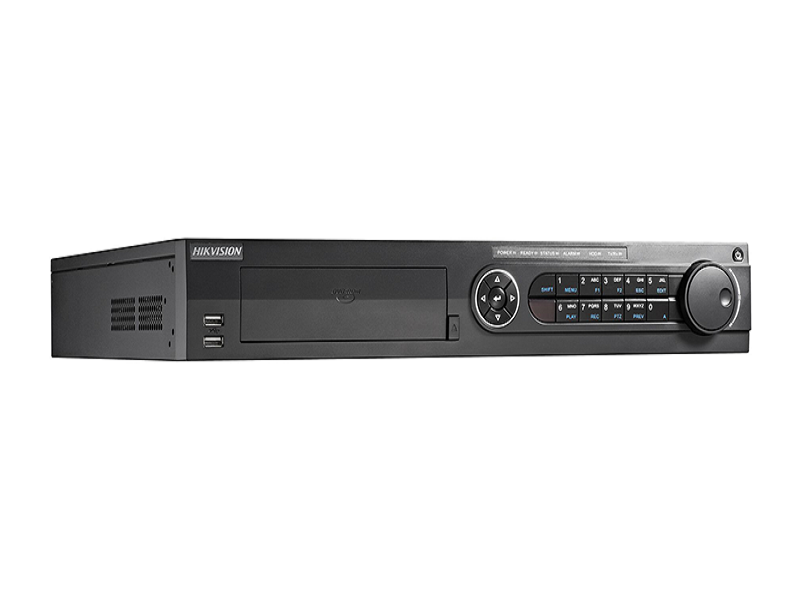

Hikvision DS-7316HQHI-SH 16+2 channel DVR three-quarter view of the black front keypad

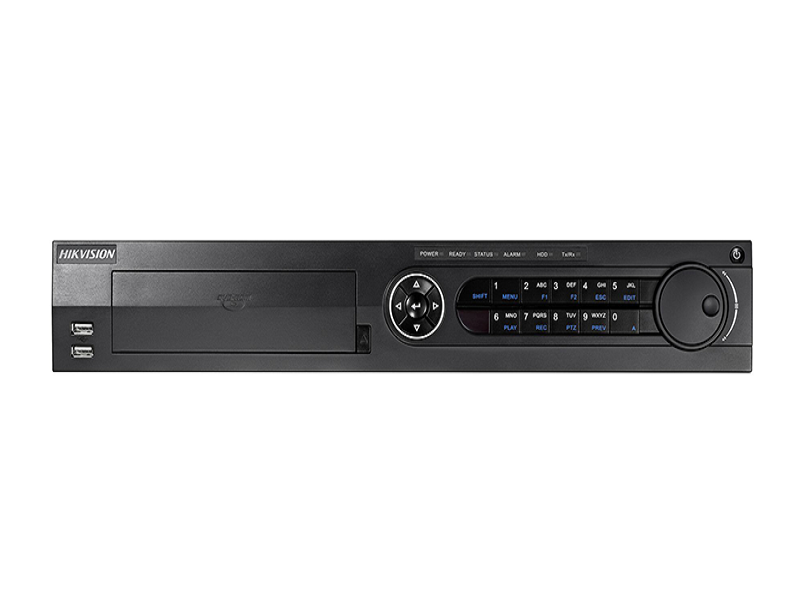

Hikvision DS-7316HQHI-SH DVR front panel view with navigation keypad and jog dial

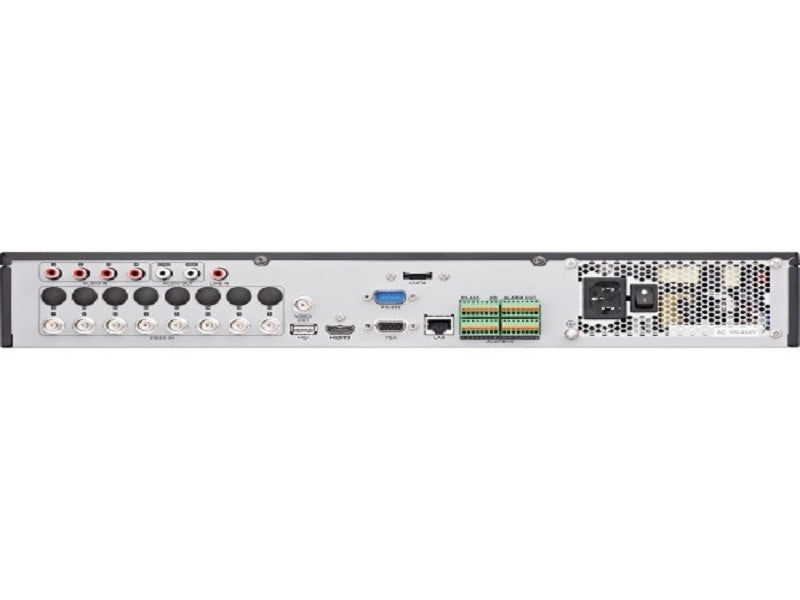

Hikvision DS-7316HQHI-SH DVR rear panel showing BNC inputs, HDMI/VGA and alarm terminals

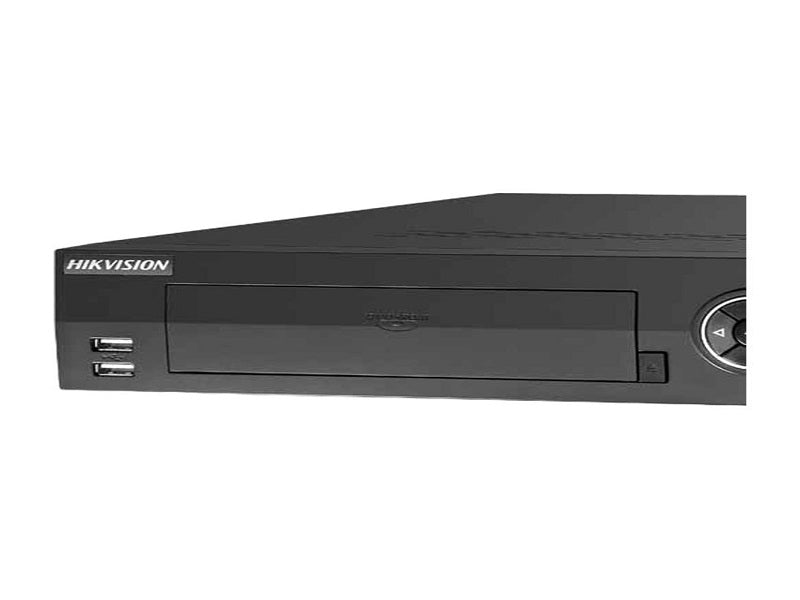

Hikvision DS-7316HQHI-SH DVR close-up of front-left corner with logo and dual USB ports

Hikvision DS-7316HQHI-SH 16-Channel + 2 IP DVR - 1080p, 4 HDD, H.264, HDMI/VGA, Alarm I/O

HIKVISION
R 7,767R 10,999
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 1,294.50 over 2–6 instalments
Price: R 7,767

Description

1-ch, BNC (1.0 Vp-p, 75 `d9), resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480. 1920 `d7 1080 / 60 Hz,1280 `d7 1024 / 60 Hz, 1280 `d7 720 / 60 Hz, 1024 `d7 768 / 60 Hz.

Key features

  • 2-ch (up to 18-ch) Up to 2MP resolution
  • 2-ch, RCA (Linear, 1K'd9, for VGA output and CVBS output respectively)
  • Support
  • 1080P / 720P / VGA / WD1 / 4CIF / CIF / qvga / qcif
  • Tcp/ip, pppoe, dhcp, DNS, ddns, NTP, sadp, smtp, snmp, NFS, iscsi, upnp?, https
  • Hard Disk Driver
  • 4 SATA interfaces for 4 HDDs; 1 eSATA interface
  • Up to 6 TB capacity for each disk
  • 1; 10M / 100M / 1000M self-adaptive Ethernet interface
  • 1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface
  • 10 oC ~+55 oC (14 oF ~ 131 oF)
  • 445 `d7 390 `d7 70 mm (17.5 `d7 15.3 `d7 2.7 inch)

Specifications

  • 4-ch
  • H.264
  • 16-ch,BNC interface (1.0Vp-p, 75 `d9)
  • 720p/25Hz, 720p/30Hz, 720p/50Hz, 720p/60Hz, 1080p/25Hz, 1080p/30Hz, CVBS
  • BNC (1.0 Vp-p, 75`d9)
  • G.711u
  • RCA (2.0 Vp-p, 1 k'd9)
  • 1-ch RCA(2.0Vp-p, 1k'd9)
  • 1080p/720p/VGA/WD1/4CIF/CIF
  • 1080p/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
  • WD1/4CIF@12fps;
  • CIF/QCIF/QVGA@25fps (P)/30fps (N)
  • 32 Kbps-10 Mbps
  • 64kbps
  • 16-ch
  • 128
  • 1 eSATA interface
  • 3 USB2.0 interfaces
  • 100 ~ 240VAC, 47 ~ 63HZ
  • ≤ 55W
  • 10% ~ 90%
  • 19-inch rack-mounted 1.5U chassis
  • ≤5Kg (11.0lb)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision DVRs / Security & Surveillance / Specials
Brand Hikvision
Channels 16-ch + 2-ch IP
Video Compression H.264
IP Video Input 2-ch (up to 18-ch), up to 2MP
Audio Compression G.711u
HDMI/VGA Output 1920 x 1080 / 60Hz
Recording Resolution 1080p/720p/VGA/WD1/4CIF/CIF
Video Bit Rate 32 Kbps - 10 Mbps
Remote Connections 128
Storage 4 SATA + 1 eSATA, up to 6 TB per disk
Network Interface 10/100/1000 Mbps Ethernet
USB 3 x USB 2.0
Alarm I/O 16-in / 4-out
Power Supply 100-240 VAC, 47-63 Hz
Power Consumption <= 55W
Form Factor 19-inch 1.5U rack-mount
Dimensions 445 x 390 x 70 mm
Weight <= 5 kg
Barcode 6954273607067
