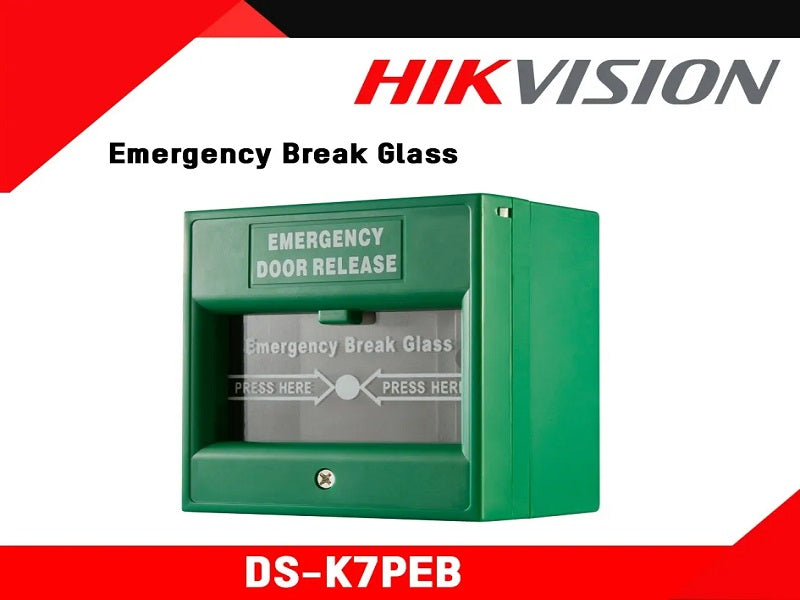

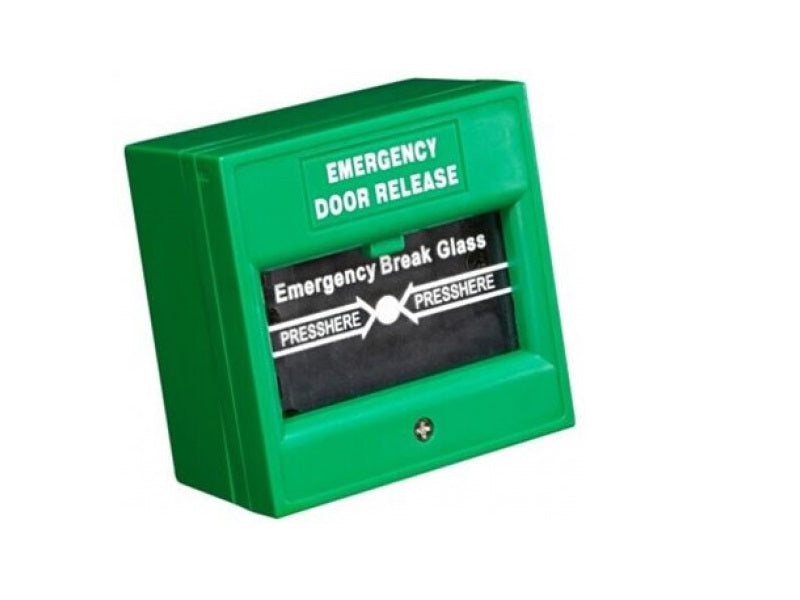

Hikvision DS-K7PEB green Emergency Door Release break-glass unit, angled view
Hikvision DS-K7PEB Emergency Break Glass unit shown against a black and red backdrop

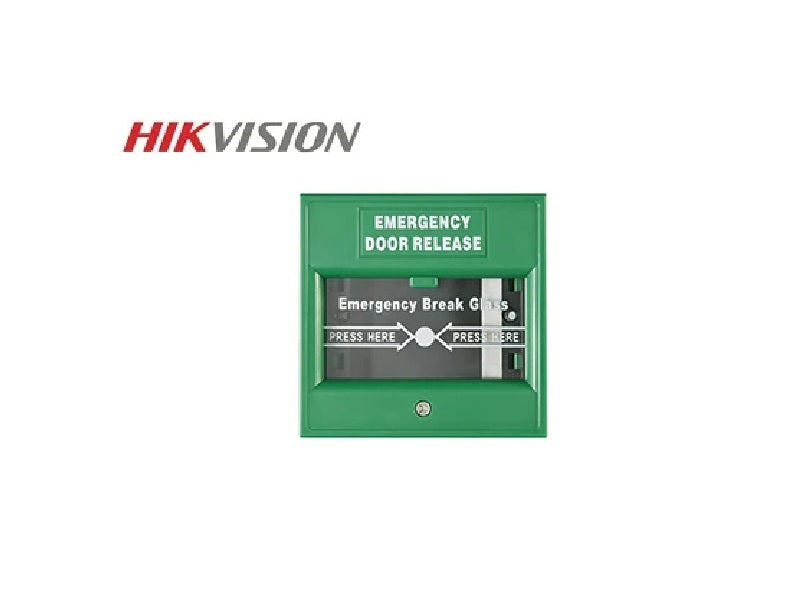

Hikvision DS-K7PEB green Emergency Door Release unit, straight-on front view

Hikvision DS-K7PEB Emergency Door Release Button - Fireproof, NO/NC/COM, Green

HIKVISION
R 169R 229
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Flexible payments from only R 28.16 over 2–6 instalments
Price: R 169

Description

Hikvision DS-K7PEB Emergency Door Release

Provide an emergency door-release point for compatible access control installations with the Hikvision DS-K7PEB Emergency Break Glass Button. Designed for exit doors and emergency doors, this device allows an emergency release signal to be triggered through its break-glass mechanism.

The DS-K7PEB features normally open (NO), normally closed (NC) and common (COM) output contacts, allowing it to connect to compatible access control systems. Its fire-resistant housing and sandblasted finish make it suitable for appropriate indoor emergency exit installations.

This emergency release accessory is commonly used in access-controlled environments where a dedicated manual emergency door-release device is required.

Key Features

Emergency Break-Glass Design: Provides a manual emergency door-release point.

Hikvision Original Accessory: Model DS-K7PEB.

NO/NC/COM Contacts: Supports connection to compatible access control systems.

Fire-Resistant Housing: Constructed from fireproof material.

Wall-Mount Design: Compact housing for suitable wall installations.

Emergency Exit Application: Designed for exit doors and emergency doors.

Optional Protective Cover: Glass or transparent cover accessories may be available separately.

Compact Construction: Measures 86 × 86 × 50 mm.

Technical Specifications

Specification

Details

Brand

Hikvision

Model / SKU

DS-K7PEB

Product Name

Emergency Break Glass Box

Product Type

Emergency Door Release Button

Application

Access Control / Emergency Exit

Operating Method

Break-glass emergency release

Connectivity

Wired

Output Contacts

NO / NC / COM

Maximum Current Rating

3 A at 36 VDC

Housing Material

Fire-resistant material

Finish

Sandblasted

Suitable Door Types

Exit doors and emergency doors

Dimensions (L × W × H)

86 × 86 × 50 mm

Weight

Approximately 0.2 kg

Working Temperature

-10°C to +55°C

Working Humidity

0% to 95% relative humidity

Colour

Confirm supplied variant

Optional Accessories

Glass / transparent protective cover

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories Hikvision / New Arrivals / Safety
Brand Hikvision
Brand Hikvision
Type Emergency Door Release / Exit Button
Model DS-K7PEB
Application Exit and emergency doors
Material Fireproof, sandblast finished
Output Contact NO/NC/COM
Colour Striking Green
Use Case Access control request-to-exit
SKU DS-K7PEB
Barcode 6954273671204
