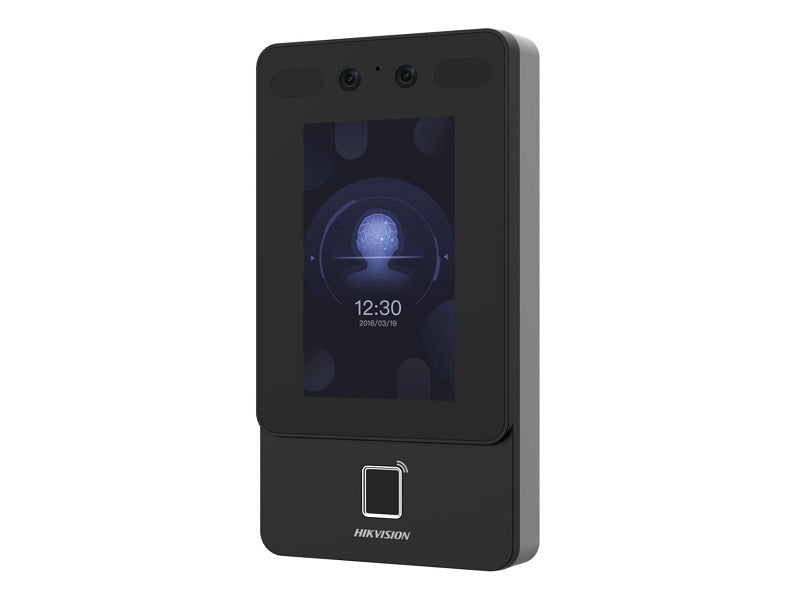

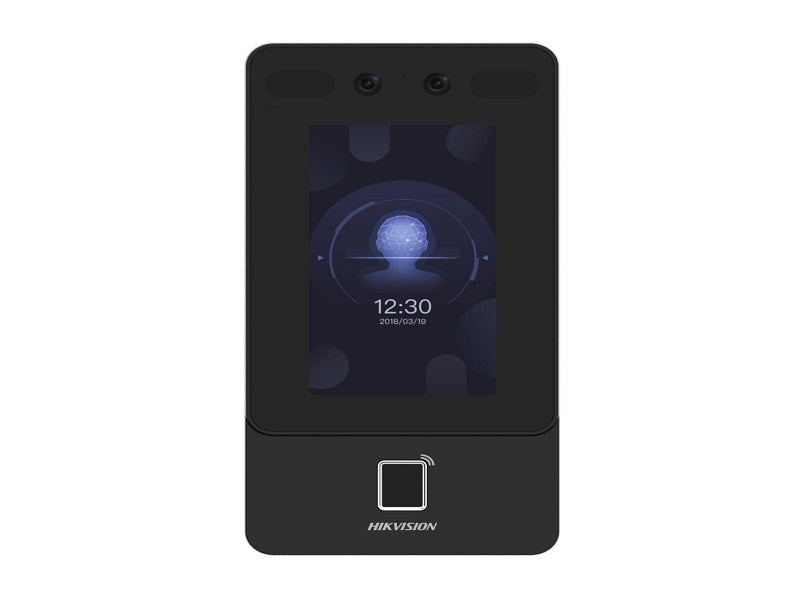

Hikvision DS-K1T342MFWX-E1 terminal, front view with card icon and fingerprint reader module

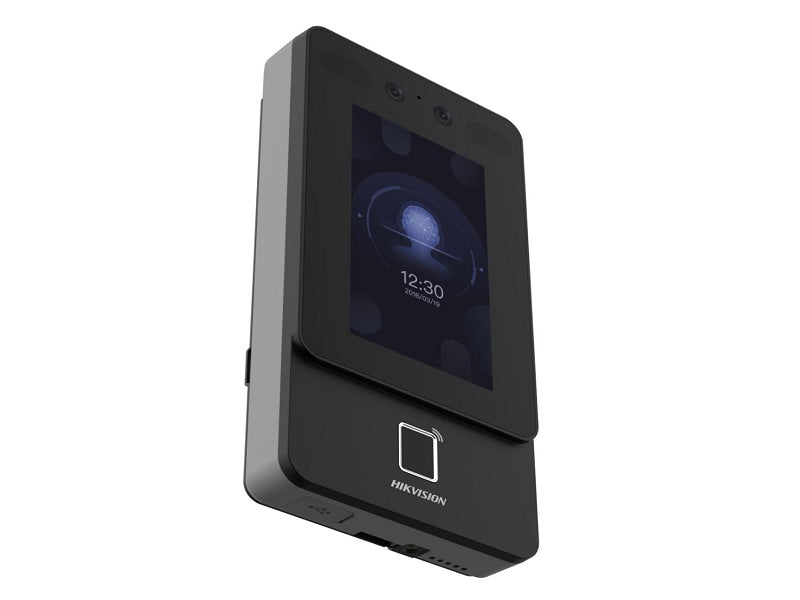

Hikvision DS-K1T342MFWX-E1 terminal shown at a three-quarter angle
Hikvision DS-K1T342MFWX-E1 terminal tilted to show the side USB and connector ports

Hikvision DS-K1T342MFWX-E1 Face Access Terminal - 4.3" Touch, Fingerprint, PoE, Wi-Fi

DS-K1T342MFWX-E1

HIKVISION
R 5,145R 5,699
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Flexible payments from only R 857.50 over 2–6 instalments
Price: R 5,145

Description

Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module. Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi.

Key features

  • Face Recognition Terminal
  • Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
  • Configuration via the web client
  • Face Recognition Distance: 0.3 m to 1.5 m; Duration ≤ 0.2 s/User; Accuracy rate ≥ 99%
  • Supports face with mask recognition
  • Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
  • Supports platform-applied personal PIN and device-set personal PIN
  • Linux
  • Type
  • LCD
  • Operation Method
  • Capacitive touch screen
  • Pixel
  • PAL (Default) and NTSC
  • Support
  • PoE
  • Wiegand
  • Exit Button
  • Tamper
  • Card Capacity
  • Face Capacity
  • Fingerprint Capacity
  • Event Capacity
  • Authentication
  • Card Type
  • Card Reading Frequency
  • Face Recognition Duration
  • Face Recognition Accuracy Rate
  • Face Recognition Distance
  • Fingerprint Recognition Duration
  • Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
  • Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
  • Working Temperature
  • 30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity
  • 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
  • Installation
  • Wall Mounting
  • Protective Level
  • Language
  • English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
  • Function
  • Face Anti-Spoofing
  • Time Synchronization

Specifications

  • Ds-k1t342mfwx-e1
  • Supports ISAPI, ISUP5.0
  • 4.3-inch
  • Resolution
  • 272 × 480
  • 2 MP
  • Lens
  • × 2
  • 10 M/100 M self-adaptive
  • IEEE802.3at, standard PoE
  • 1
  • RS-485
  • Capacity
  • 3,000
  • 1,500
  • 150,000
  • M1 card
  • 13.56 MHz
  • ≤ 0.2 s
  • `a3¾99%
  • 0.3 to 1.5 m
  • ≤ 1 s
  • 0 to 90% (No condensing)
  • IP65
  • Gross weight: 0.93 kg (2.05 lbs)
  • Net weight: 0.36 kg (0.79 lbs)

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories Hikvision / Security & Surveillance / Specials
Brand Hikvision
Model DS-K1T342MFWX-E1
Operating System Linux
Screen Size 4.3-inch LCD capacitive touch
Resolution 272 x 480
Camera 2 MP wide-angle dual-lens
Face Capacity 1,500
Fingerprint Capacity 3,000
Card Capacity 3,000
Event Capacity 150,000
Connectivity TCP/IP, Wi-Fi, PoE
Power Supply 12 VDC/1 A or PoE 37-57 VDC
Dimensions 91.3 x 181.3 x 24.5 mm
Weight 0.36 kg net
Protection IP65
Installation Wall mounting
SKU DS-K1T342MFWX-E1
Barcode 6942160439778
