Hikvision H6 Slid…
13% OFF

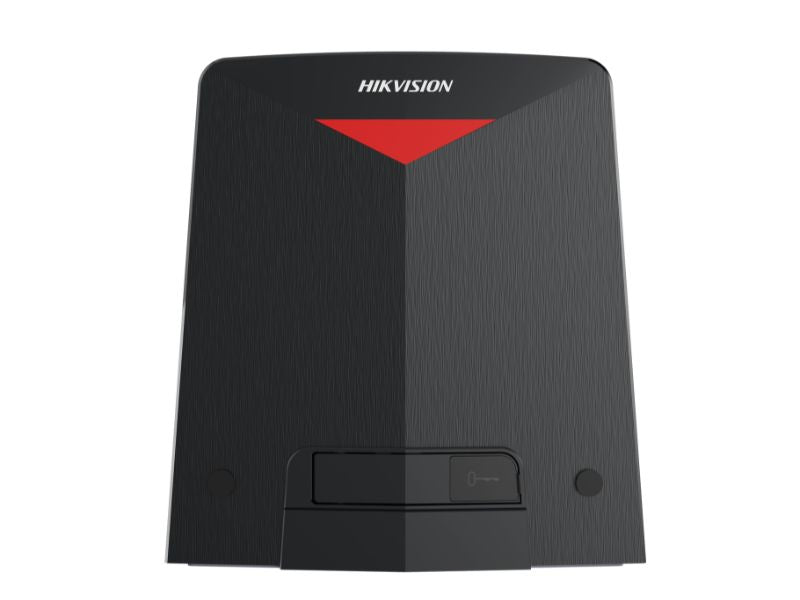

Hikvision H6 sliding gate opener, front view of motor housing with key lock cover and badge

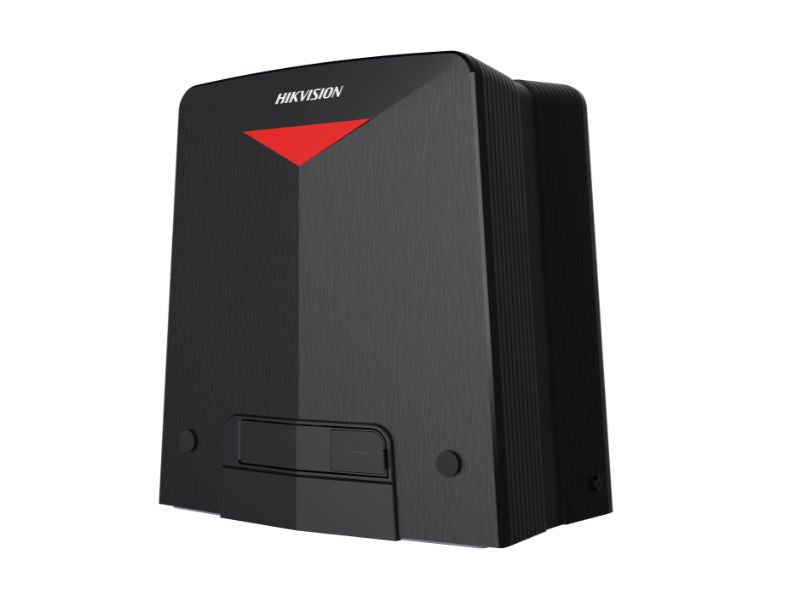

Hikvision H6 sliding gate opener, three-quarter angle showing side cooling fins and housing depth

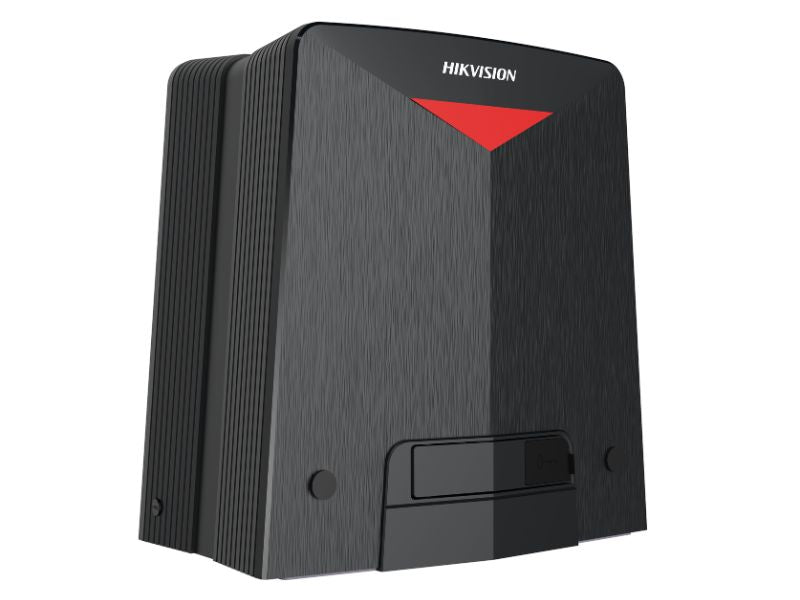

Hikvision H6 Sliding Gate Opener - 600kg, 20m, Wi-Fi & Ethernet, IPX5 (DS-K3GL606WX-WE)

DS-K3GL606WX-WE

HIKVISION
R 6,116R 6,999
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 1,019.33 over 2–6 instalments
Price: R 6,116

Description

Support built-in WIFI and LAN interfaces, easy for remote management system. Battery-driven, max open speed at 0.6 m/second, @17 Kgf (2 x 12V 7AH batteries are essential for normal operation, max dimension (W `d7 H `d7 D): 151mm x 94mm x 65mm).

Key features

  • Sliding gate opener
  • Support Mobile web configuration with AP mode by a simple touch on NFC tags.
  • Support component status self- diagnostics
  • Support built-in access system, could achieve the functions of opening doors via PIN code, card, and QR code with external AC card reader.
  • The system supports linkage function, enabling integrated applications with intercom, alarm, and access control systems.
  • The product supports low-power mode, which allows for excellent power consumption management after a power outage, achieving longer standby times and more door opening and closing cycles.
  • Motor
  • Brush motor
  • Mcbf
  • Gate mass - maximum
  • Open speed
  • 12V 7AH x 2 (Not included in the box, purchase separately)
  • Motor Push Force - Starting
  • Motor Push Force - Rated
  • Gate Length - Maximum
  • Remote Keyfob Capacity
  • Support
  • Optional
  • Exit button
  • Tamper
  • IR connection
  • Hardware
  • Buzzer
  • Expansion screw
  • Card capacity
  • Event capacity
  • Function
  • Configuration via PC Web
  • Configuration via mobile Web
  • Hik-Connect
  • Multi-factor authentication
  • AP mode
  • Communication protocol
  • Tcp/ip,isapi
  • Keyfob
  • Support, 868 MHz, within 200 m (Open area)
  • Pedestrian Mode
  • Reopen
  • Soft Start & Stop
  • Flashing light
  • Power supply: 100 to 240 VAC~, 50/60 Hz, Rated current: 0.8A, Peak current: 4A
  • Working temperature
  • 15 `b0C to 55 `b0C (5 `b0F to 131 `b0F)
  • Working humidity
  • Protective level
  • Without package: 309.72 mm `d7 225.66 mm `d7 330 mm (12.2" `d7 8.9" `d7 13.0")
  • With package: 360 mm `d7 275 mm `d7 450 mm (14.17 `d7 10.83" `d7 17.72")"
  • Approval
  • Ce/cb/rohs/reach/weee
  • Language
  • English, Arabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Latin America), Spanish (Europe), Thai, Russian, Ukrainian, Uzbek, Vietnamese, Korean

Specifications

  • Ds-k3gl606wx-we
  • ≥ 0.8 million times
  • 600 Kg
  • Up to 0.6 m/second, @17 Kgf
  • Battery
  • 30 Kgf
  • 17 Kgf
  • 20 m
  • 3,000
  • 10/100 Mbps self-adaptive Ethernet
  • 4G
  • 1
  • 2
  • RS-485
  • 12V/0.2A*2
  • M12 X 150mm
  • Capacity
  • 250,000
  • 500,000
  • Standby: 5 W
  • Working: 280 W
  • Peak: 400 W
  • 10% to 95% (No condensing)
  • IPX5
  • Net: 7.45 kg (16.3 lb)
  • Gross: 10 kg (22 lb)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Home Safety & Security / Specials
Brand Hikvision
Model DS-K3GL606WX-WE (H6)
Type Sliding Gate Opener
Motor Brush Motor
Max Gate Mass 600 Kg
Max Gate Length 20 m
Open Speed Up to 0.6 m/s @17 Kgf
Battery 12V 7AH x 2 (Not Included)
Connectivity Wi-Fi, 10/100 Mbps Ethernet
Power Supply 100-240 VAC, 50/60 Hz
Power Consumption Standby 5W, Working 280W, Peak 400W
Working Temperature -15C to 55C
Protective Level IPX5
Dimensions 309.72 x 225.66 x 330 mm
Weight 7.45 kg Net / 10 kg Gross
Barcode 6936422143312
