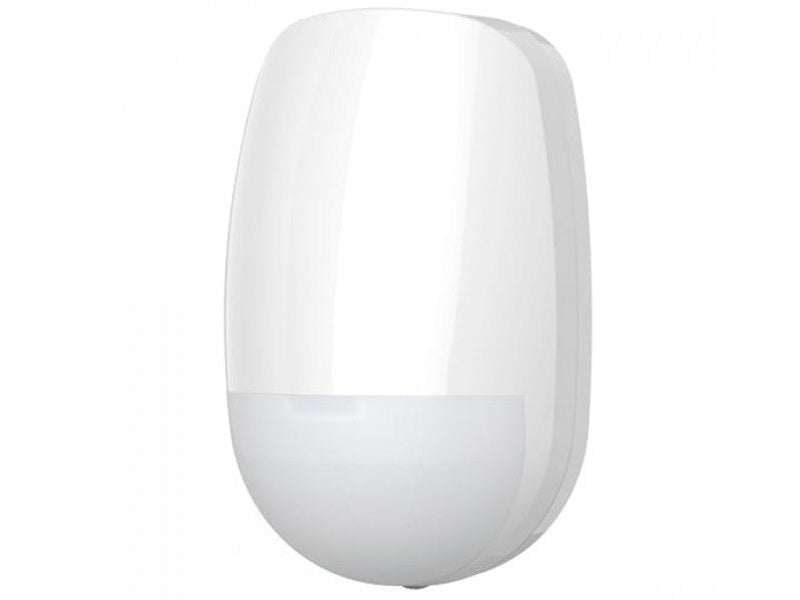

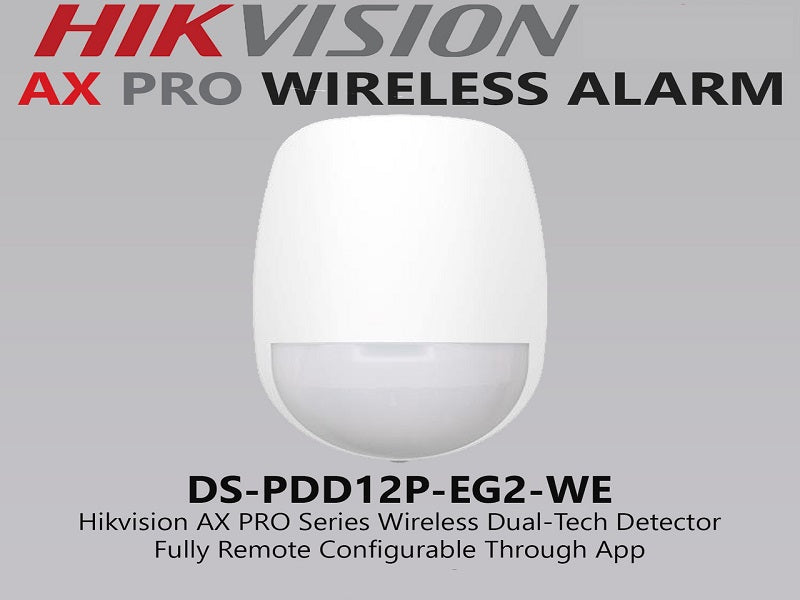

HIKVISION Internal Wireless Pir Detector

Wireless Dual-Tech Detector
3D optics including creep-zone protection, full coverage without dead angle
24G microwave to prevent wall penetration
Digital temperature compensation
Fully remote configurable through APP
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected
Frequency hopping against jamming for reliable transmission

Detection Performance
Detection Method
Passive Infrared;Microwave
Detection Range
12m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3`a1`ab2m/s
Sensitivity
High;Auto;Pet
Pet Immunity
30Kg
White Light Filter
6500lux
Microwave Frequency
24GHz(24.15`a1`ab24.25GHz)
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Power Switch
Power Up Enrolling
LED Indicator
Green(PIR), Red(Microwave), Blue(Alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 5 years (standby time)
Power Supply
Battery Powered
Battery Type
CR123A × 2
Typical Voltage
3V
General
Operation Temperature
-10°C to 55°C (14 °F to 131 °F)
Storage Temperature
-20°C to 60°C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
65.5 mm × 103 mm × 48.5 mm
Weight
141 g
Mounting Height
1.8 m to 2.4 m
Mounting Method
Wall
Application Scenario
Indoor
Bracket
Optional Wall & Ceiling Accessory
