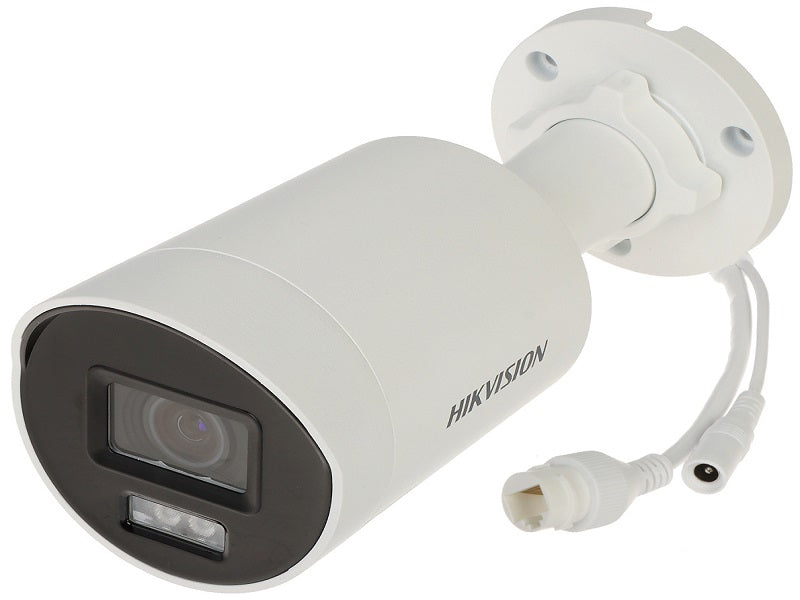

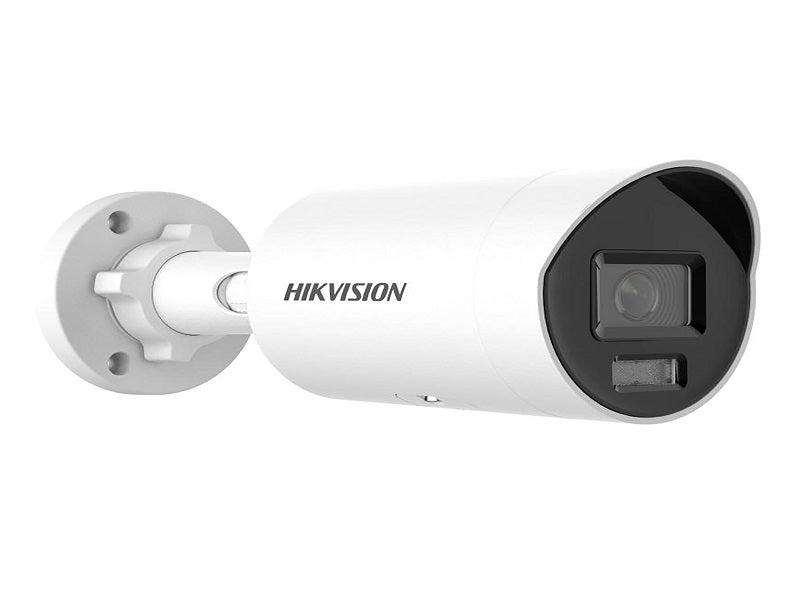

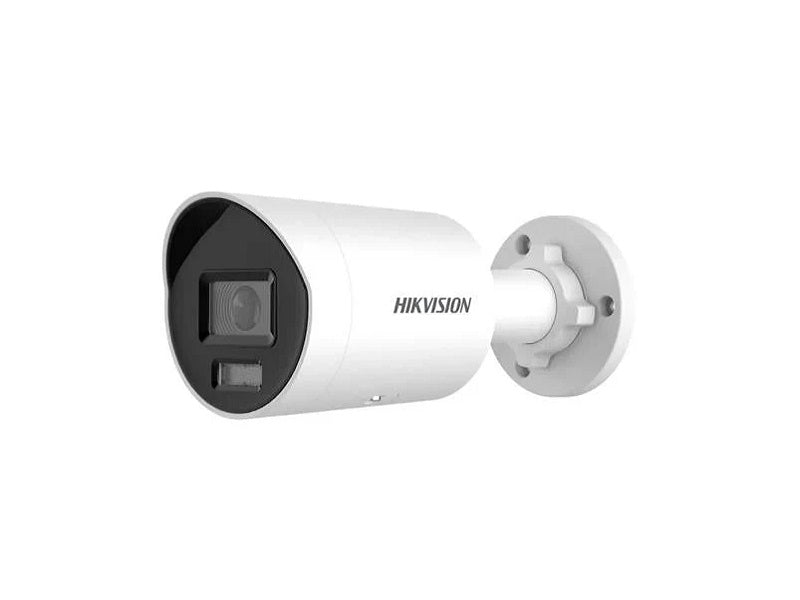

HIKVISION Ip Bullet 4 Mp Colorvu 2.8 Mm

4 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera. Clear imaging against strong back light due to 130 dB WDR technology.

Key features

• Focus on human and vehicle classification based on deep learning
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 360`b0,tilt: 0`b0 to 90`b0,rotate: 0`b0 to 360`b0
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 104.0`b0, vertical FOV 54.4`b0, diagonal FOV 126.7`b0
• 4 mm, horizontal FOV 89.2`b0, vertical FOV 45.5`b0, diagonal FOV 108.2`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
• 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
• Illuminator
• Supplement Light Type
• IR,White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: 25 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• The third stream is supported under certain settings.
• Third stream is supported under certain settings.
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Scalable Video Coding (SVC)
• Region Of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• SNR
• Wide Dynamic Range (WDR)
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage
• Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
• Smart Event
• Scene change detection
• Deep Learning Function
• Face Capture
• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types (human and vehicle)
• 12 VDC `b1 25%, 0.45 A, max. 5.5 W,`d85.5 mm coaxial power plug,reverse polarity protection,
• PoE: IEEE 802.3af, Class 3, max. 7 W
• `d874.4 mm `d7 179.2 mm (`d82.9" `d7 7.1")
• 234 mm `d7 120 mm `d7 117 mm (9.2" `d7 4.7" `d7 4.6")
• Approx. 525 g (1.2 lb.)
• Approx. 750 g (1.7 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions
• Heartbeat,mirror,password reset via email,pixel counter,anti-banding
• Language
• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Approval
• EMC
• Ce-emc: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
• Safety
• BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Protection

Specifications

• Ds-2cd2047g2h-li2.8
• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 1/1.8" Progressive Scan CMOS
• 2688 `d7 1520
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M16
• Aperture
• F1.0
• Depth Of Field
• 2.8 mm: 2.5 m to ∞
• 4 mm: 3.1 m to ∞
• Up to 40 m
• 850 nm
• Main stream: H.265/H.264/H.264+/H.265+,
• Sub-stream: H.265/H.264/MJPEG,
• Third stream: H.265/H.264,
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• U: g.711/g.722.1/g.726/mp2l2/pcm/mp3/aac-lc
• U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• U: Yes
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect,Hik-Central
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Blc,hlc,3d DNR
• ≥ 52 dB
• 130 dB
• 4 programmable polygon privacy masks
• Material
• Front cover: Metal, body: Metal, bracket: Metal
• IC: ICES-003: Issue 7,
• KC: KN32: 2015, KN35: 2015,
• RCM: as/nzs cispr 32: 2015
• UL: UL 62368-1,
• CB: IEC 62368-1: 2014+A11,
• Ce-lvd: EN 62368-1: 2014/A11: 2017,
• Ce-rohs: 2011/65/EU
• IP67: IEC 60529-2013
