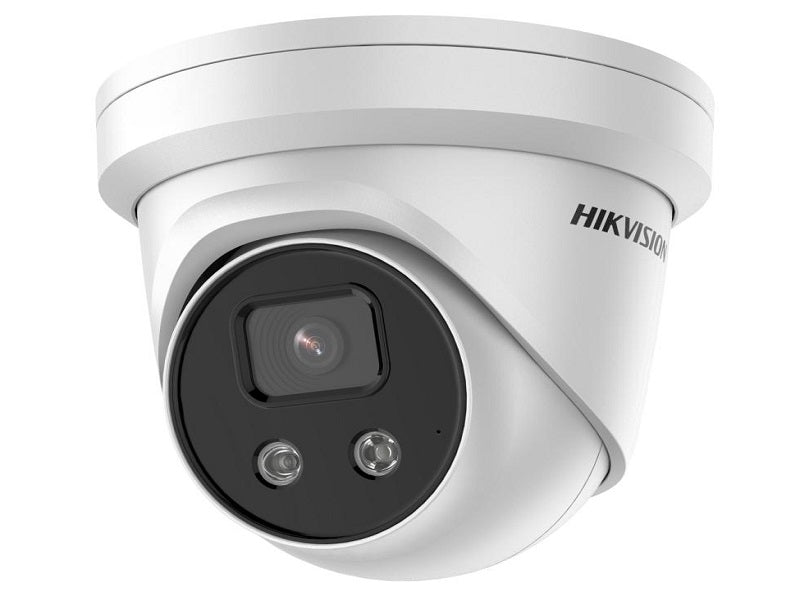

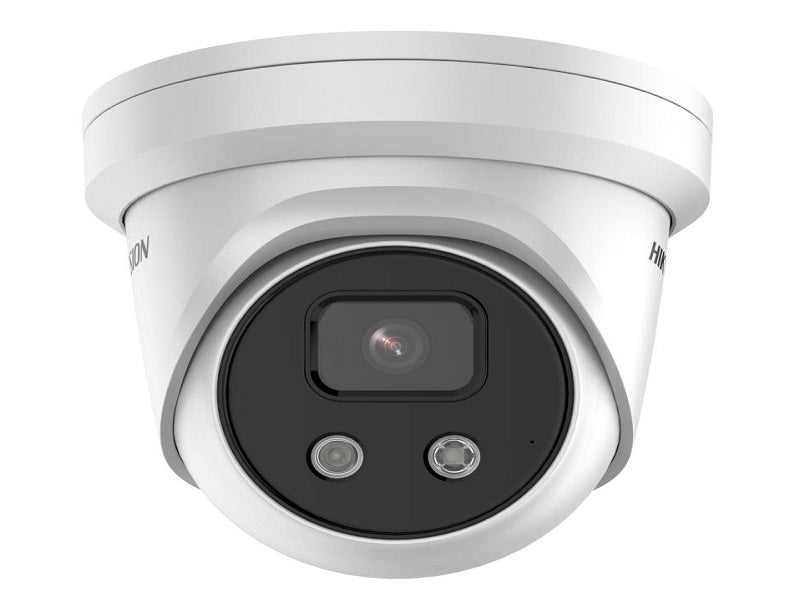

Hikvision Ip Dome 4 Mp AcuSense 2.8 Mm

Clear imaging against strong backlight due to 120 dB WDR technology. Focus on human and vehicle targets classification based on deep learning.

Key features

• Excellent low-light performance with powered-by-DarkFighter technology
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 360`b0, tilt: 0`b0 to 75`b0, rotate: 0`b0 to 360`b0
• Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 103`b0, vertical FOV 55`b0, diagonal FOV 123`b0
• 4 mm, horizontal FOV 83`b0, vertical FOV 45`b0, diagonal FOV 98`b0
• 6 mm, horizontal FOV 53`b0, vertical FOV 28`b0, diagonal FOV 62`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
• 4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
• 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: 25 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third stream is supported under certain settings.
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Simultaneous Live View
• API
• Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in micro SD slot, up to 512 GB
• Reset Key
• Event
• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
• Scene change detection
• Linkage
• Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
• Deep Learning Function
• Face Capture
• 12 VDC `b1 25%, 0.48 A, max. 5.8 W, `d85.5 mm coaxial power plug, reverse polarity protection
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
• `d8138.3 mm `d7 126.3 mm (`d85.4" `d7 5.0")
• 170 mm `d7 170 mm `d7 150 mm (6.7" `d7 6.7" `d7 5.9")
• Approx. 730 g (1.6 lb.)
• Approx. 1035 g (2.3 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Language
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Approval
• EMC
• FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• Safety
• CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
• CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection

Specifications

• Ds-2cd2346g2-i28
• 4 MP AcuSense Fixed Turret Network Camera
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 1/3" Progressive Scan CMOS
• 2688 `d7 1520
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.4
• Up to 30 m
• Main stream: H.265/H.264/H.265+/H.264+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• U: mono sound
• U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• U: Yes
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10, IE 11
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• 120 dB
• ≥ 52 dB
• BLC, HLC, 3D DNR
• 33 languages
• UL (UL 60950-1);
• LOA (iec/en 60950-1)
• IP67 (IEC 60529-2013)
