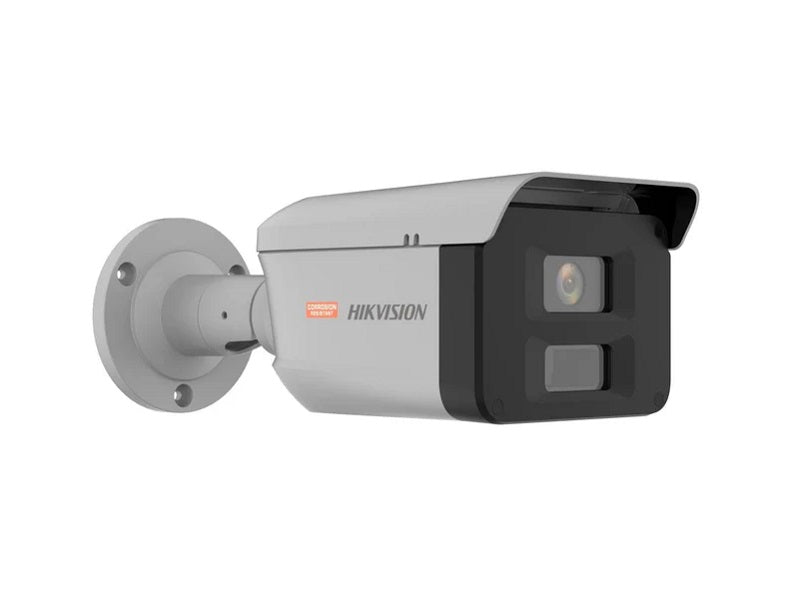

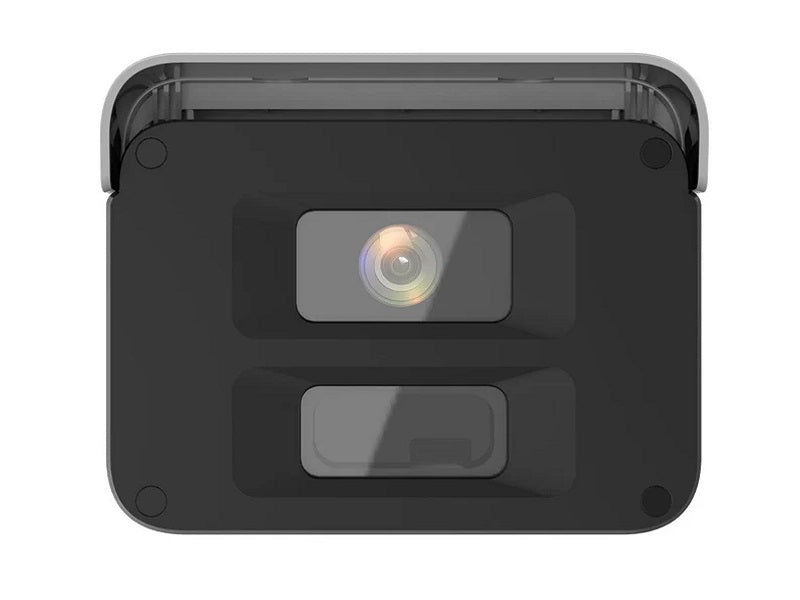

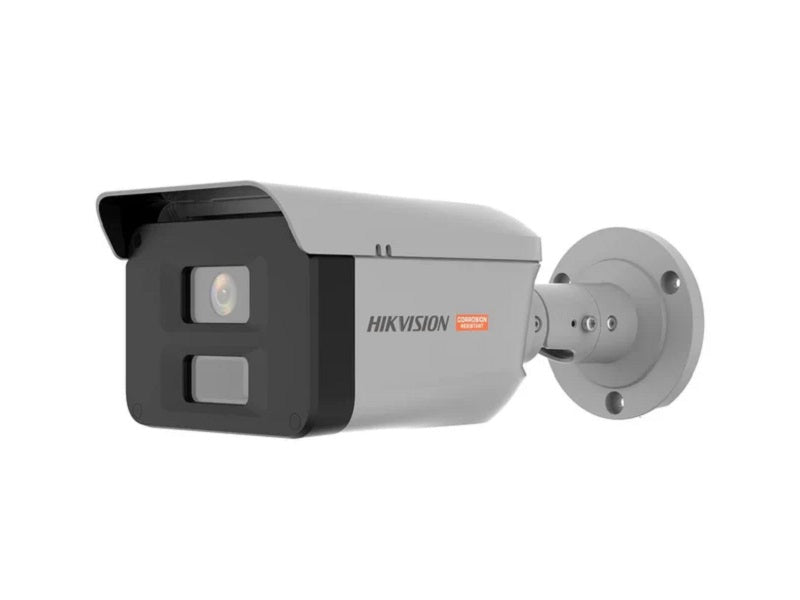

HIKVISION IP Polymer 2MP Anti-Corrosion

Clear imaging against strong back light due to 120 dB true WDR technology. Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras.

Key features

• Fixed Bullet
• Easy installation with Power over Ethernet (PoE) technology and 9 to 36 VDC power input
• Supports Hikvision Embedded Open Platform (HEOP) with 1.5 TOPS computing power and importing third party applications
• Efficient H.265+ compression technology to save bandwidth and storage
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Time
• Angle Adjustment
• Pan: 0`b0 to 360`b0,tilt: 0`b0 to 90`b0,rotate: 0`b0 to 360`b0
• Focal Length & FOV
• 2.8 mm, horizontal FOV 101.73`b0, vertical FOV 55.12`b0, diagonal FOV 120.84`b0
• 4 mm, horizontal FOV 75.79`b0, vertical FOV 40.84`b0, diagonal FOV 89.13`b0
• 6 mm, horizontal FOV 49.91`b0, vertical FOV 27.43`b0, diagonal FOV 57.82,
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
• 4 mm: D: 82.0 m, O: 32.5 m, R: 16.4 m, I: 8.2 m
• 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
• Illuminator
• Supplement Light Type
• White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• Heop
• Open Resources
• Deep Learning Structure
• Caffe,PyTorch,TensorFlow
• Programming Language
• C,C++
• Main Stream
• 50 Hz: 50 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• 60 Hz: 60 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• High frame rate is supported under certain settings.
• Sub-Stream
• 50 Hz: 25 fps (704 `d7 576, 640 `d7 480)
• 60 Hz: 30 fps (704 `d7 480, 640 `d7 480)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 576, 640 `d7 480)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 480, 640 `d7 480)
• Fourth Stream
• 50 Hz: 10 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 5 fixed regions for main stream and sub-stream
• Target Cropping
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Mono sound
• Simultaneous Live View
• API
• Open Network Video Interface, ISAPI, SDK, ISUP
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/Host
• NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
• Image
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
• Wide Dynamic Range (WDR)
• Picture Overlay
• LOGO picture can be overlaid on video with 128 `d7 128 24 bit bmp format.
• Day/Night Switch
• Day,Night,Auto,Schedule,Alarm Trigger (-S)
• Image Enhancement
• Image Parameters Switch
• SNR
• Privacy Mask
• S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 K'd9, interface type: non-equilibrium
• S: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 `d9, interface type: non-equilibrium
• Alarm
• S: 1 input, 1 output (max. 12 VDC, 30 mA)
• S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event
• Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
• Linkage
• Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing
• Deep Learning Function
• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types (human and vehicle)
• DC: 9 to 36 V, 0.8 A, max. 7.2 W,
• PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 7.2 W
• Front cover: PA* + 50% GF, body: PA* + 50% GF, bracket: ADC12
• 250.5 mm `d7 105.6 mm `d7 91.9 mm (9.86" `d7 4.16" `d7 3.62")
• 315 mm `d7 137 mm `d7 141 mm (12.41" `d7 5.40" `d7 5.56")
• Appox. 0.76 kg (1.68 lb.)
• Appox. 1.12 kg (2.47 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)

Specifications

• Polymer 2MP Anti-Corrosion Fixed Bullet
• 24/7 Colorful imaging
• High quality imaging with 2 MP resolution
• Water and dust resistant (IP68)
• 1/3" Progressive Scan CMOS
• 1920 `d7 1080
• 1 s to 1/100,000 s
• Lens
• Aperture
• F1.0
• Up to 40 m
• Memory: 60 MB,
• Smart RAM: 350 MB,
• eMMC: 2 GB
• 1.5 tops
• Main stream: H.265/H.264 /H.265+/H.264+,
• Sub-stream: H.265/H.264/MJPEG,
• Third stream: H.265/H.264
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.265 and H.264 encoding
• 8 kHz/16 kHz/32 kHz/48 kHz
• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
• Up to 20 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• 120 dB
• BLC,HLC,3D DNR,Defog
• ≥ 50 dB
• 8 programmable polygon privacy masks
• 1 RJ45 100 M Ethernet port
• RS-485
• Material
