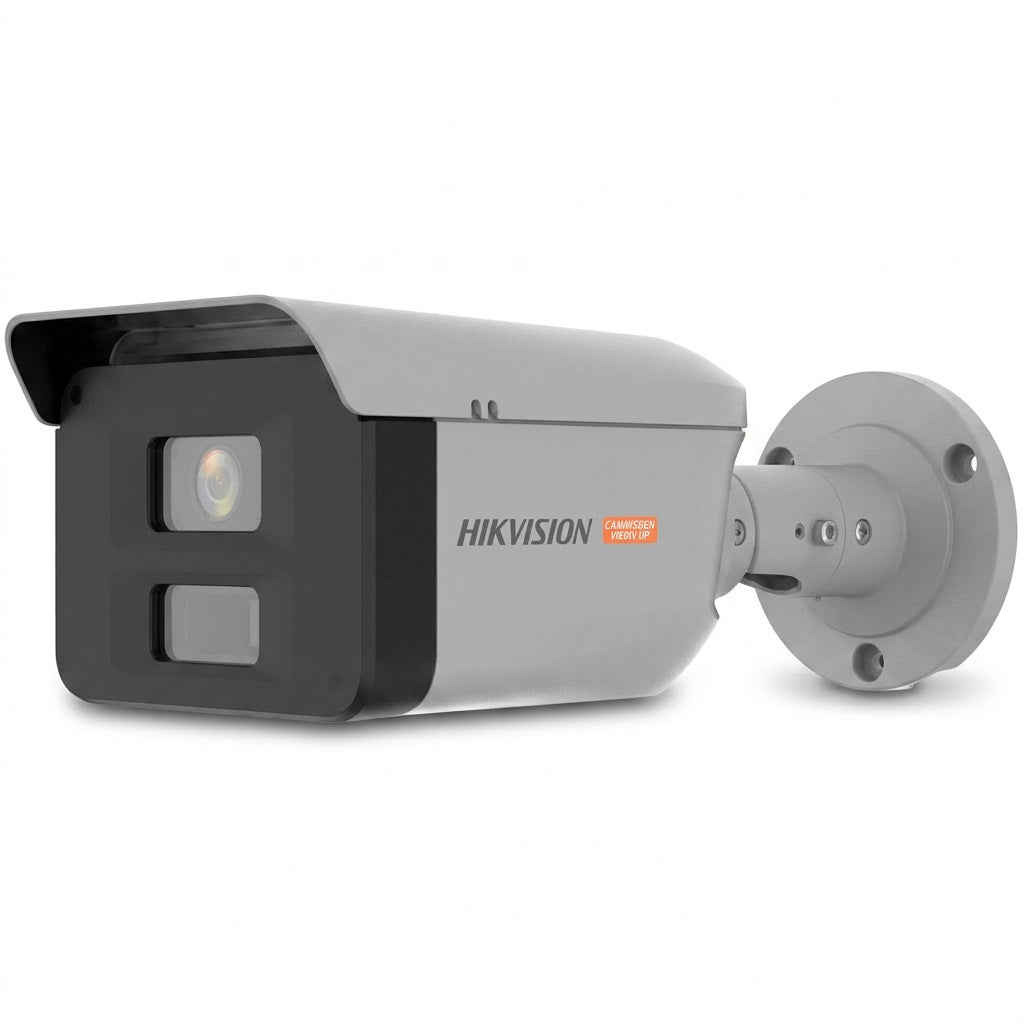

HIKVISION IP Polymer 4MP Anti-Corrosion

Polymer 4MP Anti-Corrosion Fixed Bullet
24/7 Colorful imaging
High quality imaging with 4 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
Water and dust resistant (IP68)
Easy installation with Power over Ethernet (PoE) technology and 9 to 36 VDC power input
Efficient H.265+ compression technology to save bandwidth and storage

Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time
1 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 101.73°, vertical FOV 55.12°, diagonal FOV 120.84°

4 mm, horizontal FOV 75.79°, vertical FOV 40.84°, diagonal FOV 89.13°

6 mm, horizontal FOV 49.91°, vertical FOV 27.43°, diagonal FOV 57.82,

Iris Type
Fixed
Aperture
F1.0
DORI
DORI
2.8 mm: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

4 mm: D: 82.0 m, O: 32.5 m, R: 16.4 m, I: 8.2 m

6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265/H.264 /H.265+/H.264+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264

Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.265 and H.264 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Target Cropping
Yes
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Type
Mono sound
Network
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface, ISAPI, SDK, ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users

3 user levels: administrator, operator, and user

Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Wide Dynamic Range (WDR)
120 dB
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Day/Night Switch
Day,Night,Auto,Schedule,Alarm Trigger (-S)
Image Enhancement
BLC,HLC,3D DNR,Defog
Image Parameters Switch
Yes
SNR
≥ 50 dB
Privacy Mask
8 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 100 M Ethernet port
Audio
-S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

-S: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm
-S: 1 input, 1 output (max. 12 VDC, 30 mA)
RS-485
-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General
Power
DC: 9 to 36 V, 0.8 A, max. 7.2 W,

PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 7.2 W

Material
Front cover: PA* + 50% GF, body: PA* + 50% GF, bracket: ADC12
Dimension
250.5 mm × 105.6 mm × 91.9 mm (9.86" × 4.16" × 3.62")
Package Dimension
315 mm × 137 mm × 141 mm (12.41" × 5.40" × 5.56")
Appox. 0.76 kg (1.68 lb.)
With Package Weight
Appox. 1.12 kg (2.47 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection
IP68: IEC 60529-2013
Anti-Corrosion Protection
C5,NEMA 4X (NEMA 250-2018)
