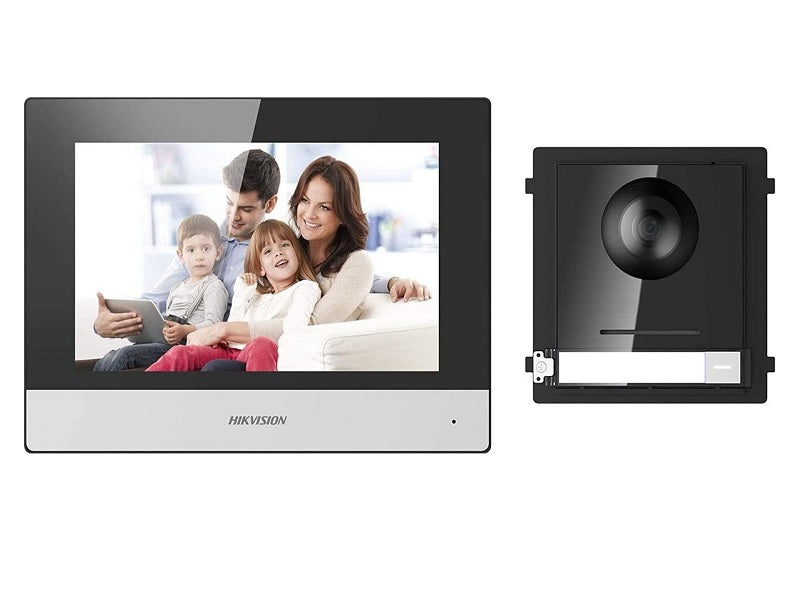

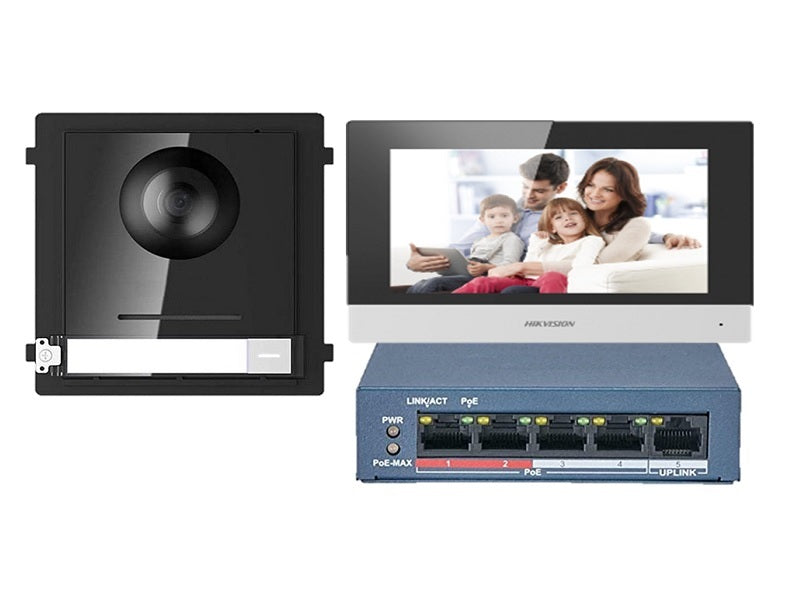

HIKVISION Ip Video Intercom Kit

Remote unlocking via the client software or the mobile client. TF card Max to 32 G, SD 2.0 or lower version.

Key features

• Indoor Station
• 7-inch colorful touch screen with resolution 1024 `d7 600
• Stores messages and captured pictures in the TF card
• Views live videos of door stations and linked cameras
• Door Station
• Access control function
• Noise suppression and echo cancellation
• Low illumination
• Tampering alarm
• Fisheye camera with IR supplement light
• Supports sub-modules'access (max. 8)
• Nametag customization
• Easy to extend
• Operation system Embedded Linux operation system
• Operation method Capacitive touch screen
• Audio input Built-in omnidirectional microphone
• Noise suppression and echo
• cancellation
• Working temperature -10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
• Operation method Physical button
• BLC Supported
• DNR Supported
• WDR Supported
• Field of view
• Built-in omnidirectional (more than
• Light supplement Light supplement mode IR supplement
• Working temperature - 40 `b0C to 60 `b0C (- 40 `b0F to 140 `b0F)
• Installation Flush mounting, surface mounting

Specifications

• Ds-kis602
• UI V2.0: User friendly design
• Standard PoE
• 2 MP HD video intercom function
• H.264 video compression
• Model DS-KH6320-WTE1
• Memory 128 MB
• Flash 32 MB
• Display screen 7-inch colorful TFT LCD
• Display resloution 1024 `d7 600
• Audio compression standard G.711 U
• Audio compression rate 64 Kbps
• Wired network 10/100 Mbps self-adaptive network
• Wireless network Wi-Fi 802.11b/g/n
• Network protocol TCP/IP'a1`a2SIP'a1`a2RTSP
• Network interface 1 RJ-45 10/100 Mbps self-adaptive
• Alarm input 8-ch alarm inputs
• Relay output 2
• RS-485 1
• IEEE802.3af, standard PoE
• 12 VDC/1 A
• Power consumption ≤ 6 W
• Working humidity 10% to 90%
• Model DS-KD8003-IME1
• Video compression standard H.264
• Resolution
• Main Stream: 1920 `d7 1080
• Sub Stream: 720 `d7 480
• Anti-flicker 50 Hz, 60 Hz
• Horizontal : 180`b0
• Vertical : 96`b0
• 85 dB within 20 cm)
• Ethernet 10/100 Mbps self-adaptive Ethernet
• Alarm parameters Tampering alarm 1
• Module-connecting 1
• I/O input 4
• Debug 1
• Relay 2 (30 V, 1 A)
• Physical button 1
• Power supply 12 VDC/PoE ( IEEE 802.3af)
• Power consumption ≤10 W
• Working humidity 10% to 95%
• IP protection level IP65
